Model # 2608 Official Bissell carpet sweeper

Here are the diagrams and repair parts for Official Bissell 2608 carpet sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |

Rh Ratchet Assy 006-7306
#11

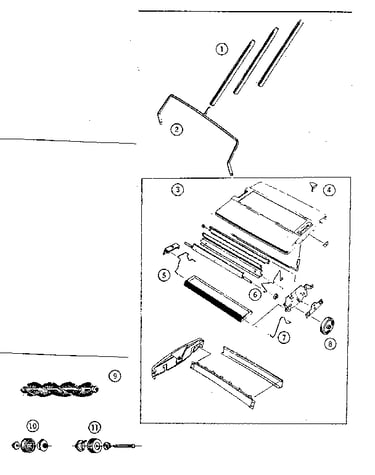

Replacement parts diagram

Rh ratchet assy

Part #006-7306

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 006-3163
#9

Replacement parts diagram

Brush assembly

Part #006-3163

The manufacturer no longer makes this part, and there's no substitute part

Adj Button 003-1307
#4

Replacement parts diagram

Adj button

Part #003-1307

The manufacturer no longer makes this part, and there's no substitute part

Bail 066-0300
#2

Replacement parts diagram

Bail

Part #066-0300

The manufacturer no longer makes this part, and there's no substitute part

Fric Spring 000-8401
#6

Replacement parts diagram

Fric spring

Part #000-8401

The manufacturer no longer makes this part, and there's no substitute part

Pan Spring 000-8402
#7

Replacement parts diagram

Pan spring

Part #000-8402

The manufacturer no longer makes this part, and there's no substitute part

Wheel Sub Ay 005-9750
#8

Replacement parts diagram

Wheel sub ay

Part #005-9750

The manufacturer no longer makes this part, and there's no substitute part

Lh Ratchet Assembly 006-7307
#10

Replacement parts diagram

Lh ratchet assembly

Part #006-7307

The manufacturer no longer makes this part, and there's no substitute part

Spring 000-8400
#5

Replacement parts diagram

Spring

Part #000-8400

The manufacturer no longer makes this part, and there's no substitute part

Handle Complete 859-4300
#1

Replacement parts diagram

Handle complete

Part #859-4300

The manufacturer no longer makes this part, and there's no substitute part
