Model # WET4027HW0 Official Whirlpool stacked laundry center

Here are the diagrams and repair parts for Official Whirlpool WET4027HW0 stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

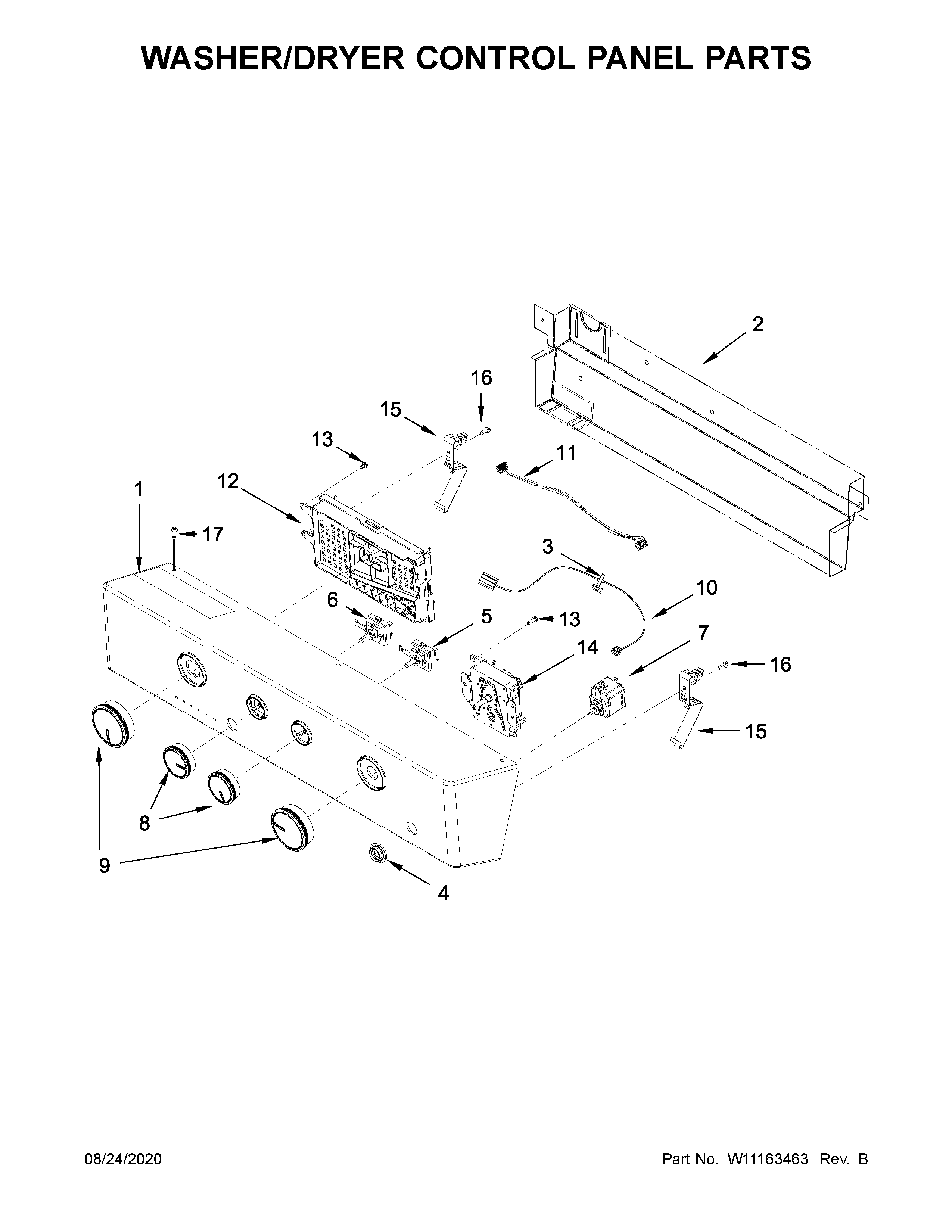

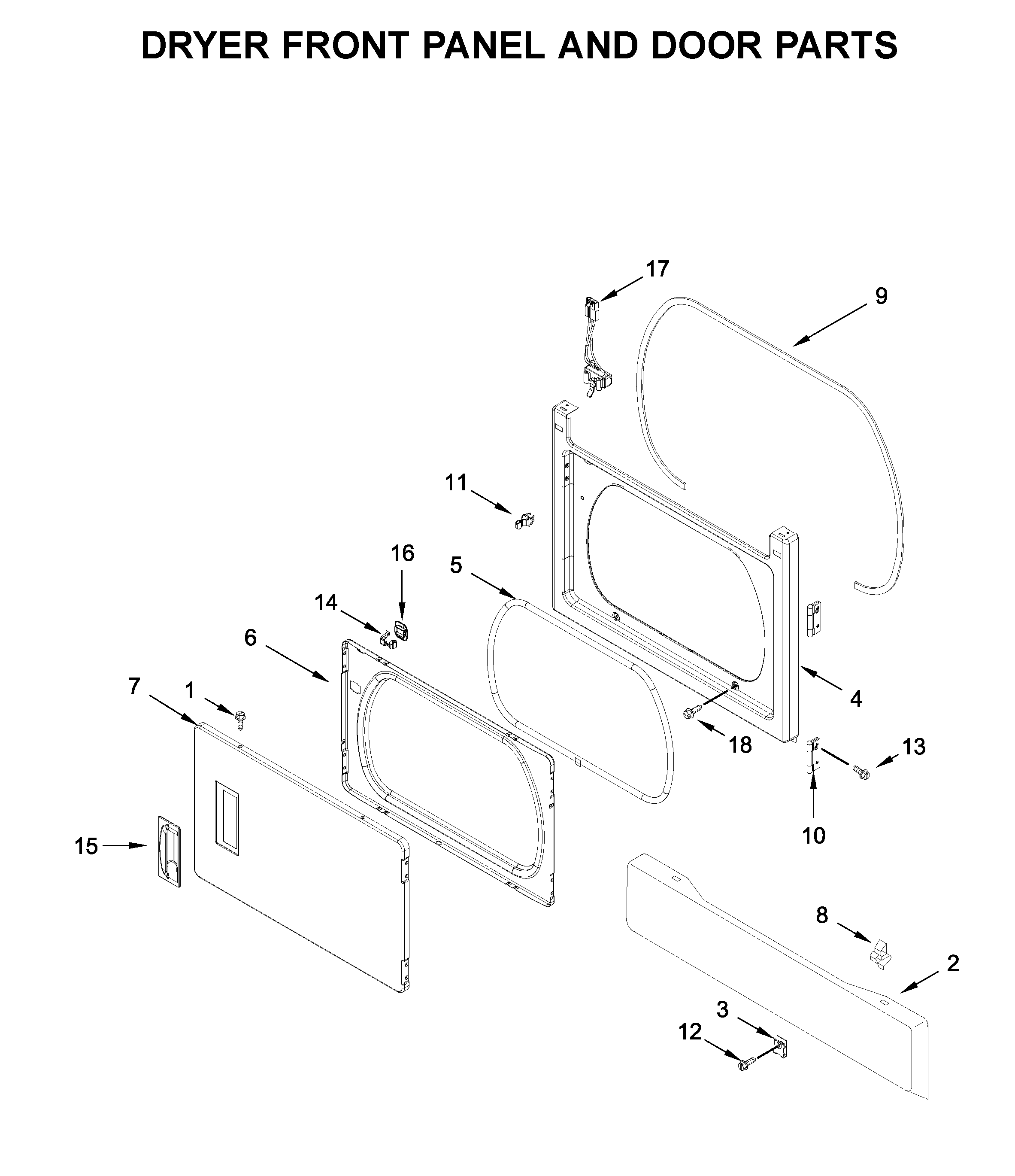

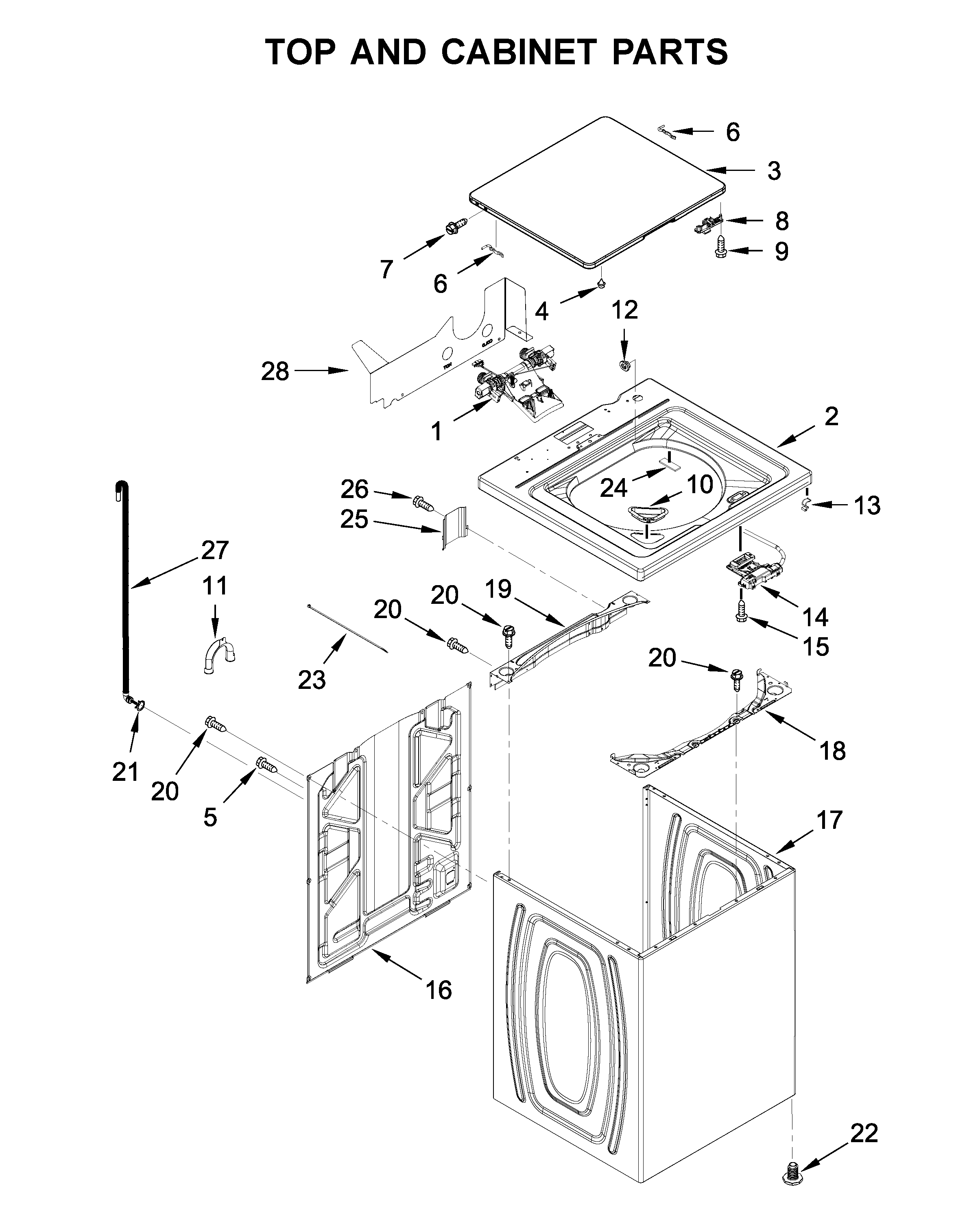

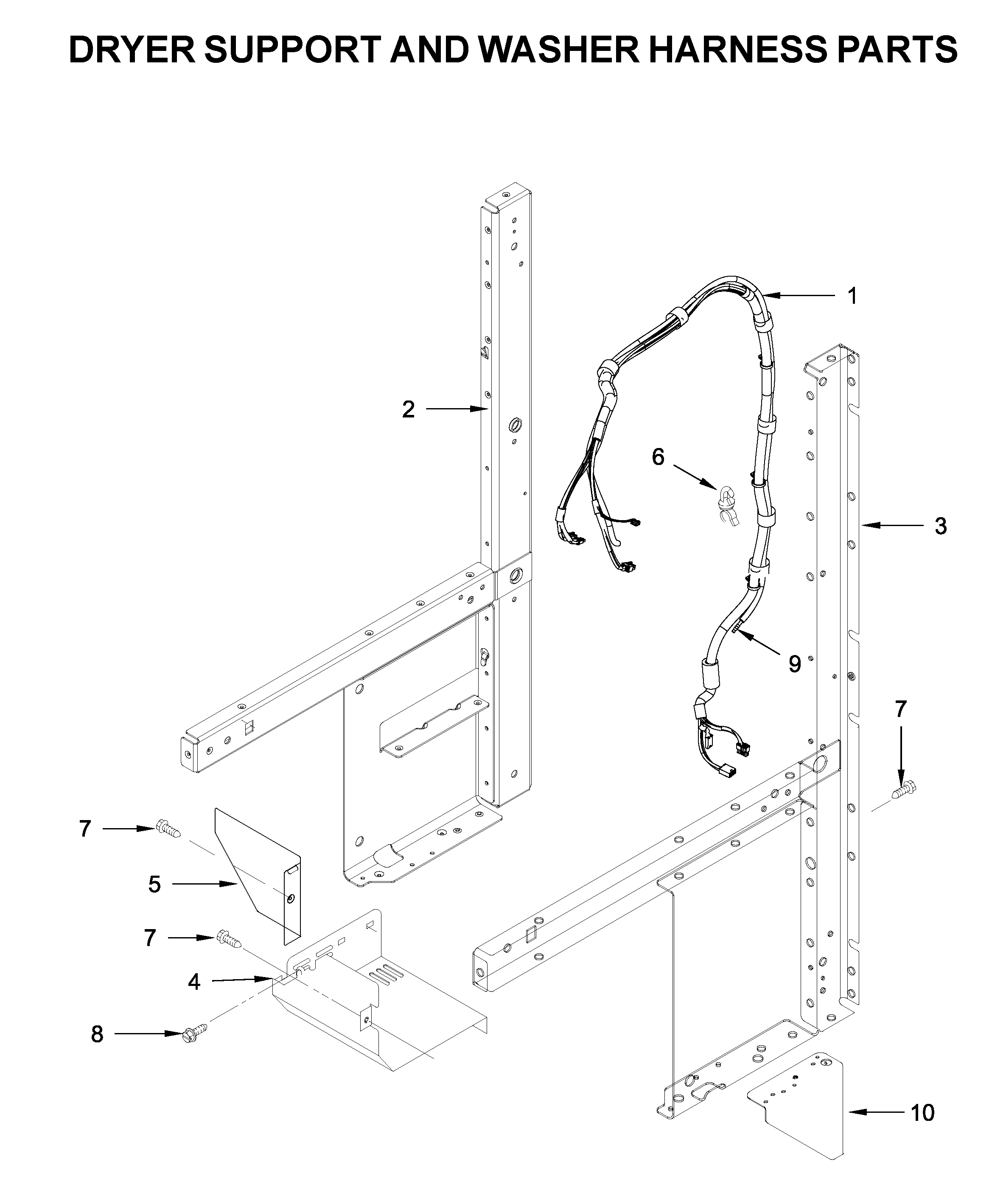

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Dryer Thermal Fuse 3392519
#40

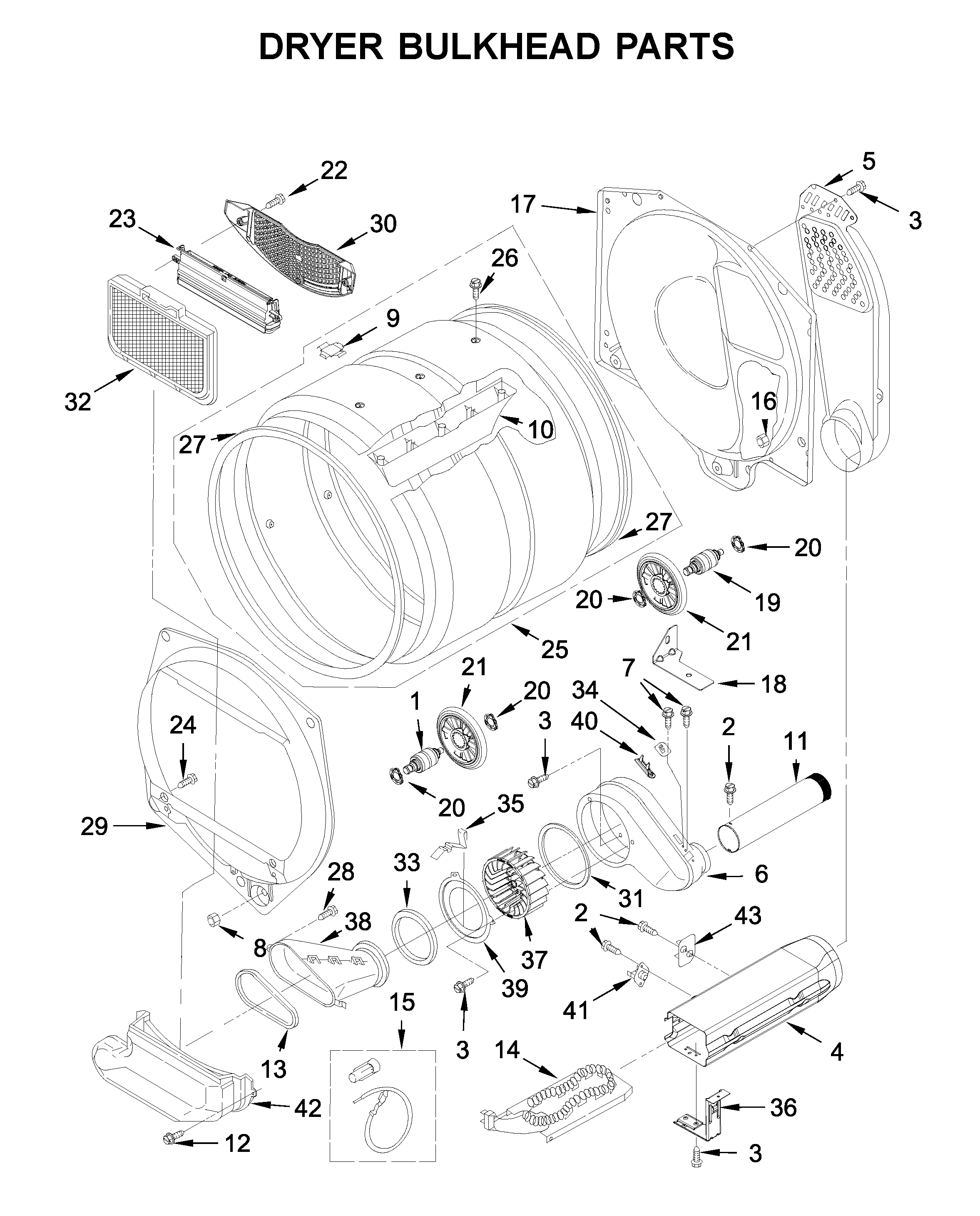

Dryer bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$18.56 |
10% OFF Phone Price : $20.56
In Stock
Washer Drive Pulley (replaces W10006356, W10239973, W10315818, W10536113, W11396423) W10721967
#15

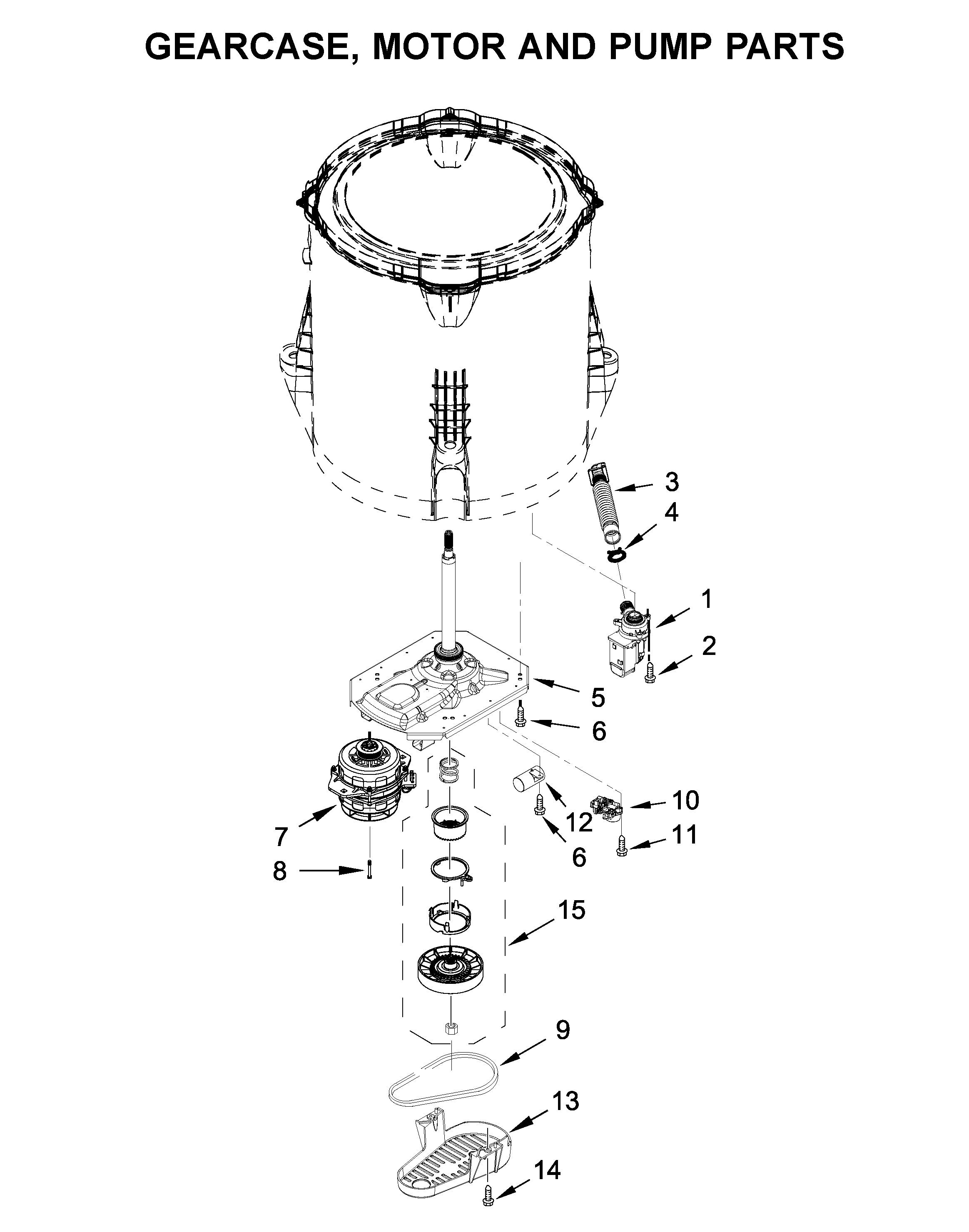

Gearcase, motor and pump parts diagram

Washer drive pulley (replaces w10006356, w10239973, w10315818, w10536113, w11396423)

Part #W10721967

BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Washer Actuator W10815026
#10

Gearcase, motor and pump parts diagram

Washer actuator

Part #W10815026

Replaced by #W10913953

?
Manufacturer substitution
This part replaces W10815026. Substitute parts can look different from the original.
BEST SELLER
$49.66 |
11% OFF Phone Price : $55.66
In Stock
Dryer Idler Pulley W10468057
#32

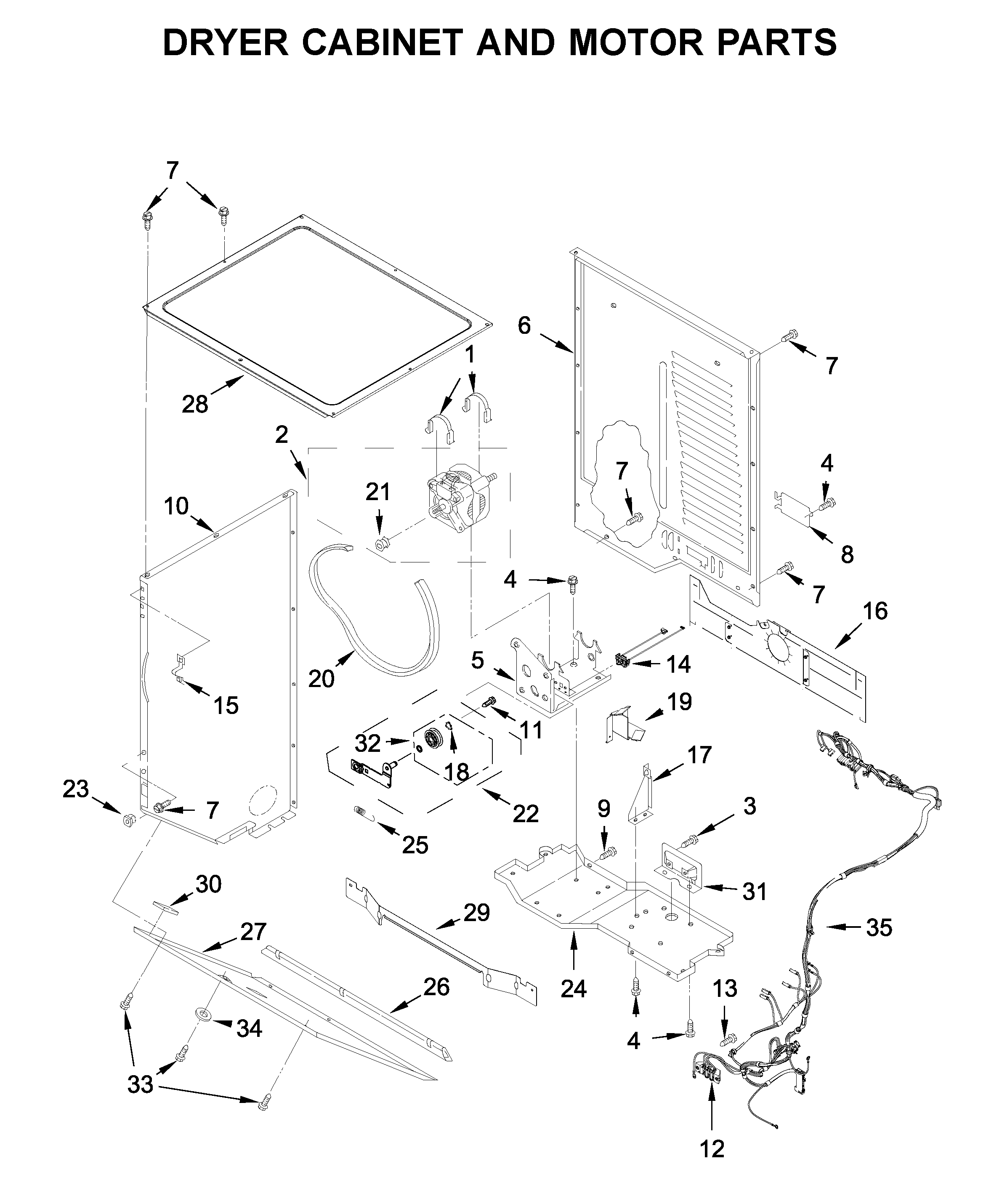

Dryer cabinet and motor parts diagram

Dryer idler pulley

Part #W10468057

The manufacturer no longer makes this part, and there's no substitute part

Agitator Dog 3366877
#8

Basket and tub parts diagram

Agitator dog

Part #3366877

Replaced by #80040

?
Manufacturer substitution
This part replaces 3366877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Dryer Drive Belt 3387610
#20

Dryer cabinet and motor parts diagram

Dryer drive belt

Part #3387610

Replaced by #661570V

?
Manufacturer substitution
This part replaces 3387610. Substitute parts can look different from the original.
BEST SELLER
$19.95 |
9% OFF Phone Price : $21.95
In Stock
Washer Drive Belt W10006384
#9

Gearcase, motor and pump parts diagram

Washer drive belt

Part #W10006384

Replaced by #WPW10006384

?
Manufacturer substitution
This part replaces W10006384. Substitute parts can look different from the original.
BEST SELLER
$25.38 |
19% OFF Phone Price : $31.38
In Stock
Damper Assembly W10821956
#22

Basket and tub parts diagram

Damper assembly

Part #W10821956

Replaced by #W10780045

?
Manufacturer substitution
This part replaces W10821956. Substitute parts can look different from the original.
BEST SELLER
$70.40 |
8% OFF Phone Price : $76.40
In Stock
Dryer Repair Kit 279948

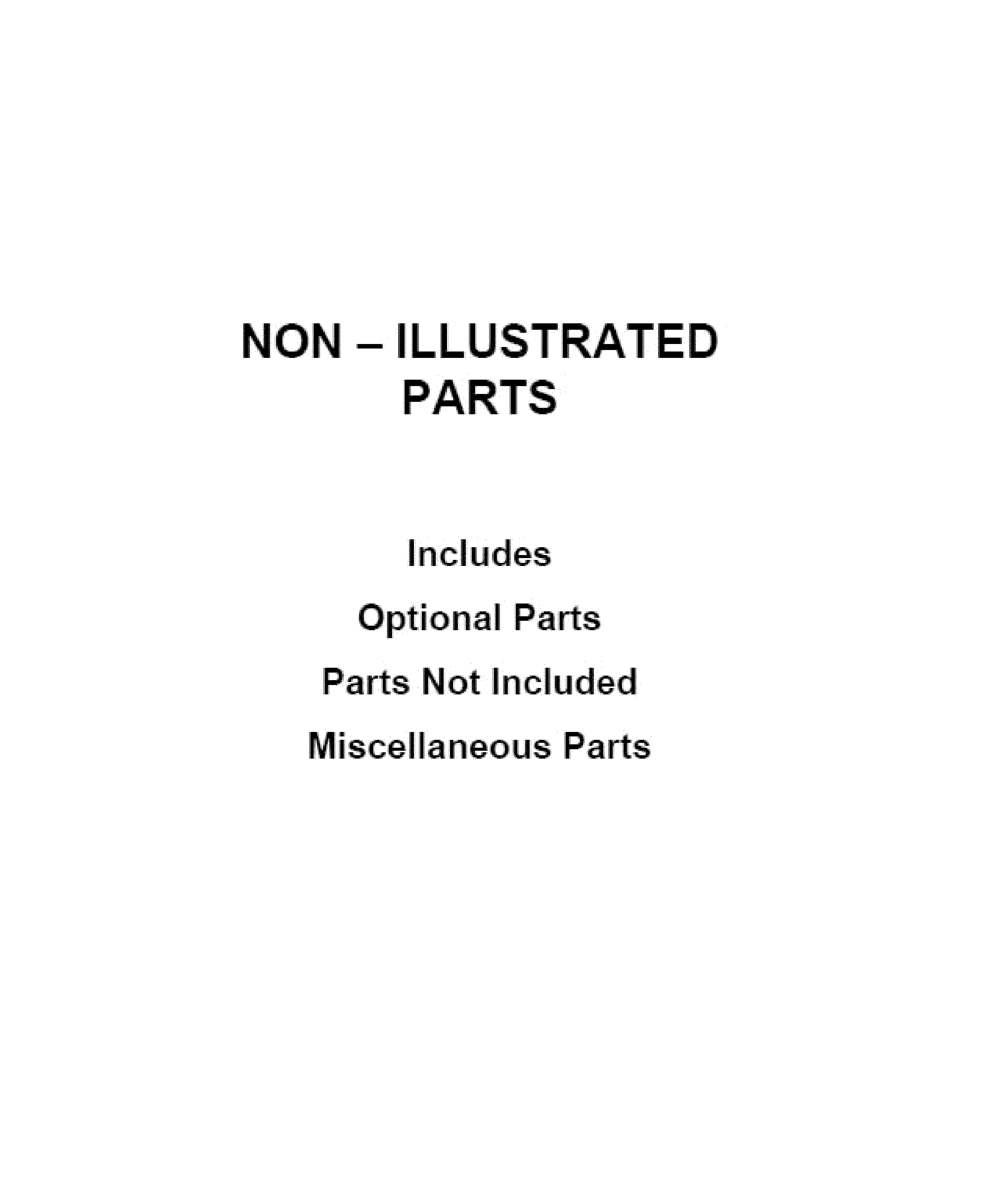

#NI

Optional parts diagram

Dryer repair kit

Part #279948

Replaced by #4392065

?
Manufacturer substitution
This part replaces 279948. Substitute parts can look different from the original.
BEST SELLER
$29.75 |
17% OFF Phone Price : $35.75
In Stock
Dryer Operating Thermostat 3387134
#34

Dryer bulkhead parts diagram

Dryer operating thermostat

Part #3387134

Replaced by #WP3387134

?
Manufacturer substitution
This part replaces 3387134. Substitute parts can look different from the original.
BEST SELLER
$20.83 |
22% OFF Phone Price : $26.83
In Stock
