Model # PM390 Official Broan range hood

Here are the diagrams and repair parts for Official Broan PM390 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 34 parts |

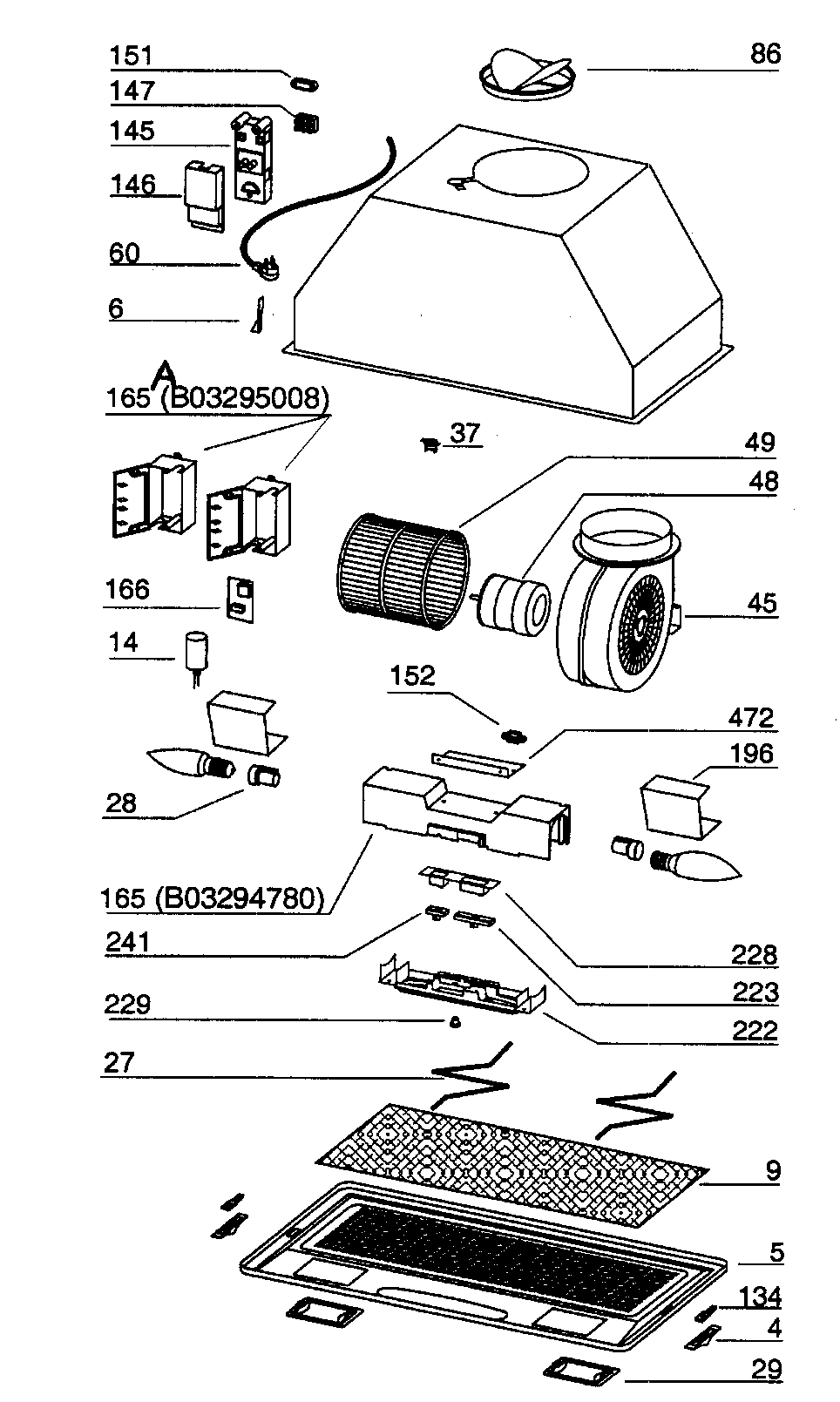

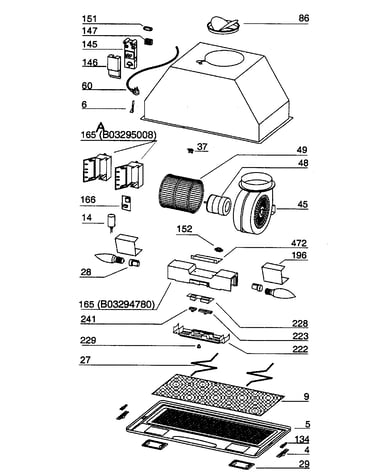

Range hood diagram

Grid

Part #B03127682

The manufacturer no longer makes this part, and there's no substitute part

#CAS

Range hood diagram

Range hood blower assembly

Part #B06002125

Replaced by #SB06002013

$290.19 |

$12.00 OFF Phone Price : $302.19

In Stock

Qty

#86

Range hood diagram

Range hood round damper, 6-in

Part #B08088378

Replaced by #SB08088378

This item is not returnable

$20.00 |

23% OFF Phone Price : $26.00

In Stock

Qty

Range Hood Blower Motor Capacitor B02300233

#14

Range hood diagram

Range hood blower motor capacitor

Part #B02300233

The manufacturer no longer makes this part, and there's no substitute part

#28

Range hood diagram

Range hood light socket

Part #B02300280

The manufacturer no longer makes this part, and there's no substitute part

#229

Range hood diagram

Range hood light lens

Part #B03201014

The manufacturer no longer makes this part, and there's no substitute part

#29

Range hood diagram

Range hood light lens

Part #B03293051

The manufacturer no longer makes this part, and there's no substitute part

#223

Range hood diagram

Range hood blower switch

Part #B03295042

Replaced by #SB03295042

This item is not returnable

$3.37

In Stock

Qty

Range Hood Electronic Control Board B08086668

#166

Range hood diagram

Range hood electronic control board

Part #B08086668

Replaced by #SB08086668

This item is not returnable

$109.41 |

10% OFF Phone Price : $121.41

In Stock

Qty

#37

Range hood diagram

Ht sentry

Part #B02300787

Replaced by #SB02300787

$51.40 |

10% OFF Phone Price : $57.40

In Stock

Qty

Most common symptoms to help you fix your range hoods

Choose a symptom to see related range hood repairs.

View all

Why doesn't my range hood's fan work?

Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure…

Why don't my range hood's lights work?

Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light sock…

Why does my range hood's fan turn on by itself?

Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board fail…

Why doesn't my range hood work?

Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure…

Why isn't my range hood's fan pulling much air?

Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade…

Why is my range hood's exhaust fan noisy?

Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings…

Why don't my range hood's lights and fan work?

Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure…

Most common repair guides to help fix your range hoods

These step-by-step repair guides will help you safely fix what’s broken on your range hood.

View all

How to replace a range hood fan motor

If the fan on the range hood won’t run, it’s likely that the fan motor has failed. Follow the steps in this guide to rep…

Repair difficulty

Time required

30 minutes or less

How to replace a range hood fan switch

The fan switch activates the fan motor in the range hood. If the fan switch is defective, replace it using the detailed …

Repair difficulty

Time required

15 minutes or less

How to replace a range hood light socket

When you replace a light bulb and it still won’t work, the socket is likely defective. Use the detailed steps in this re…

Repair difficulty

Time required

15 minutes or less
