Craftsman
Power Sander

Model # 315116950 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315116950 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Switch 030157001006
#5

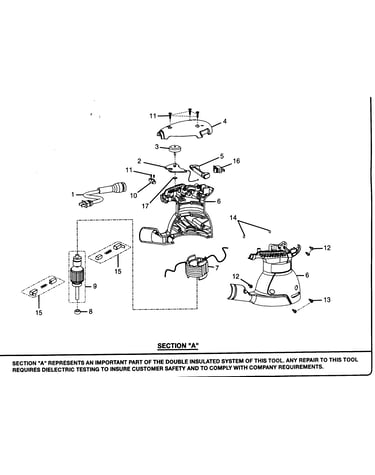

Motor assy diagram

Switch

Part #030157001006

The manufacturer no longer makes this part, and there's no substitute part

Sander Screw, 4.2 X 16-mm 030155001002
#12

Motor assy diagram

Sander screw, 4.2 x 16-mm

Part #030155001002

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 030157001009
#7

Motor assy diagram

Field assembly

Part #030157001009

The manufacturer no longer makes this part, and there's no substitute part

Label 030157001002
#3

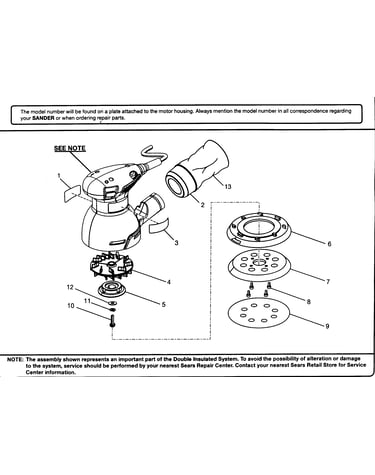

Cabinet diagram

Label

Part #030157001002

The manufacturer no longer makes this part, and there's no substitute part

Sander Bearing And Cap 030157001013
#5

Cabinet diagram

Sander bearing and cap

Part #030157001013

The manufacturer no longer makes this part, and there's no substitute part

Blade,retail N/A
#9

Cabinet diagram

Blade,retail

Part #N/A

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Brush 030155001013
#15

Motor assy diagram

Sander motor brush

Part #030155001013

The manufacturer no longer makes this part, and there's no substitute part

Sander Armature 030157001010
#9

Motor assy diagram

Sander armature

Part #030157001010

The manufacturer no longer makes this part, and there's no substitute part

Repair Sht 983000-453R
#NI

Motor assy diagram

Repair sht

Part #983000-453R

The manufacturer no longer makes this part, and there's no substitute part

Sander Cooling Fan 030157001012
#4

Cabinet diagram

Sander cooling fan

Part #030157001012

The manufacturer no longer makes this part, and there's no substitute part
