Kenmore
Upright Freezer

Model # 106625222 Official Kenmore 15.7 cubic foot coldspot freezer

Here are the diagrams and repair parts for Official Kenmore 106625222 15.7 cubic foot coldspot freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Light Bulb 527949
#29

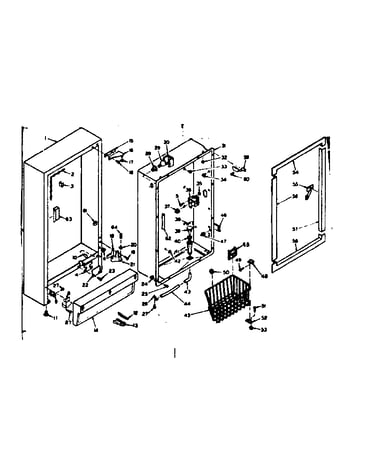

Cabinets parts diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Drier 505919
#60

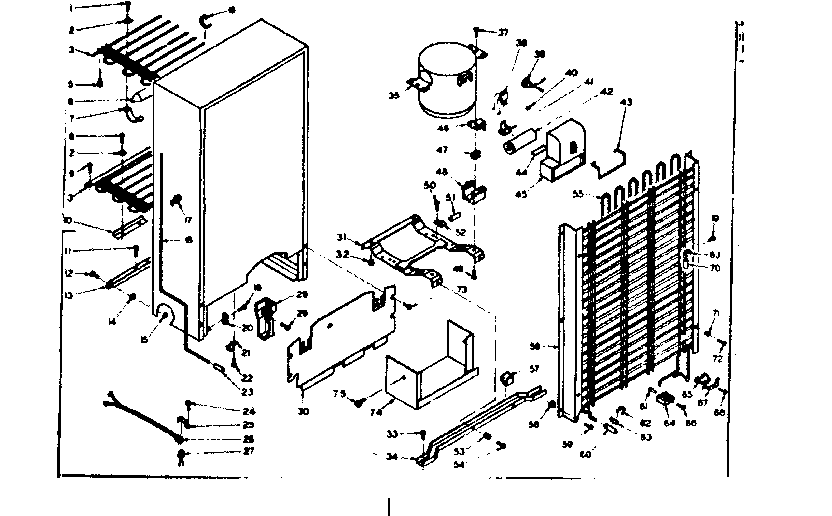

Unti parts diagram

Drier

Part #505919

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 505919. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Washer 487576
#17

Cabinets parts diagram

Refrigerator washer

Part #487576

Replaced by #WP487576

?
Manufacturer substitution
This part replaces 487576. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Screw 486993
#72

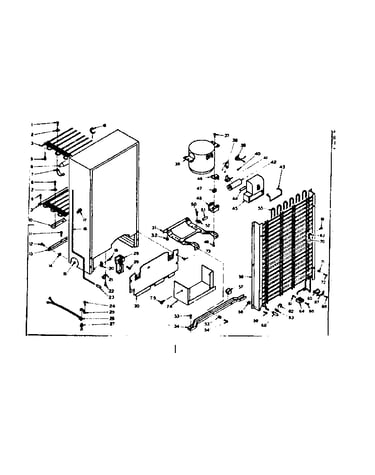

Unti parts diagram

Screw

Part #486993

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 486993. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 487909
#2

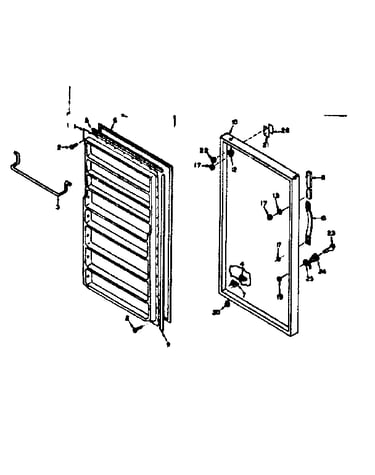

Door parts diagram
