Heating & Cooling Combined Unit

Model # PGMD36G0608 Official ICP central package

Here are the diagrams and repair parts for Official ICP PGMD36G0608 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

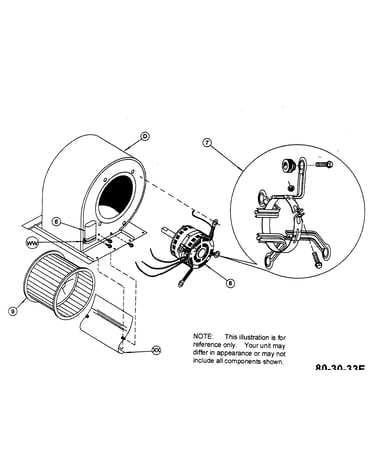

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Contactor 1050699
#40

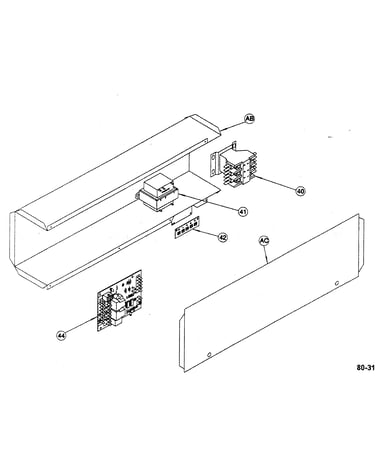

Control panel diagram

Contactor

Part #1050699

Replaced by #94-388

?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Furnace Temperature Limit Switch 1013102
#10

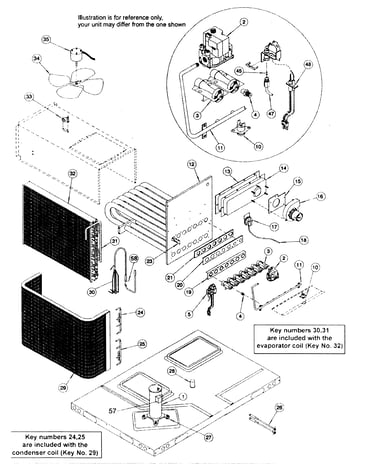

Outside view diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Fan Control Board 1084197
#44

Control panel diagram

Furnace fan control board

Part #1084197

$208.84 |
5% OFF Phone Price : $220.84
In Stock
Central Air Conditioner Condenser Fan Motor, 1/3-hp 1085926
#35

Outside view diagram

Central air conditioner condenser fan motor, 1/3-hp

Part #1085926

$299.36 |
$12.00 OFF Phone Price : $311.36
In Stock
Furnace Burner (replaces 1012383, 1149463) 1008724
#3

Outside view diagram

Furnace burner (replaces 1012383, 1149463)

Part #1008724

$84.88 |
7% OFF Phone Price : $90.88
In Stock
Box Collec 1098331
#14

Outside view diagram

Box collec

Part #1098331

Replaced by #1065256

?
Manufacturer substitution
This part replaces 1098331. Substitute parts can look different from the original.
$111.37 |
10% OFF Phone Price : $123.37
In Stock
Gas Valve 1011421
#2

Outside view diagram

Gas valve

Part #1011421

Replaced by #1170429

?
Manufacturer substitution
This part replaces 1011421. Substitute parts can look different from the original.
$765.63
In Stock
Conv Kit Lp 1148141
#NI

Outside view diagram

Conv kit lp

Part #1148141

$71.07
In Stock
Plate 1084329
#19

Outside view diagram

Plate

Part #1084329

$61.84
In Stock
Gasket 1065260
#P

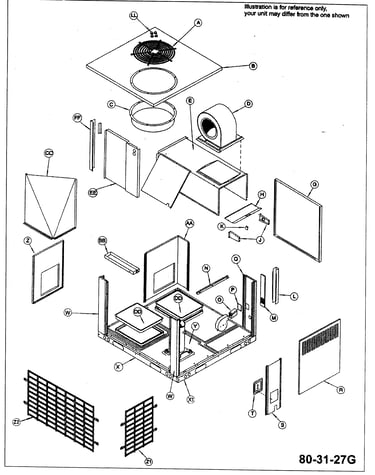

Inside view diagram

Gasket

Part #1065260

This item is not returnable
$2.54
In Stock
