Kenmore
Mechanical Sewing Machine

Model # 15812110 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 15812110 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

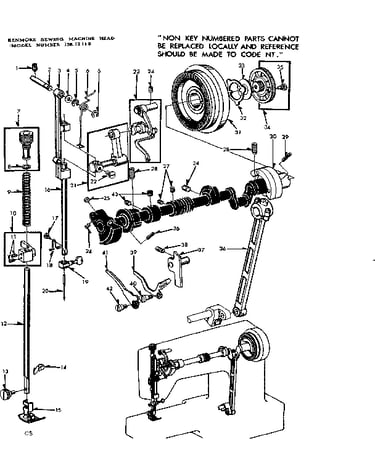

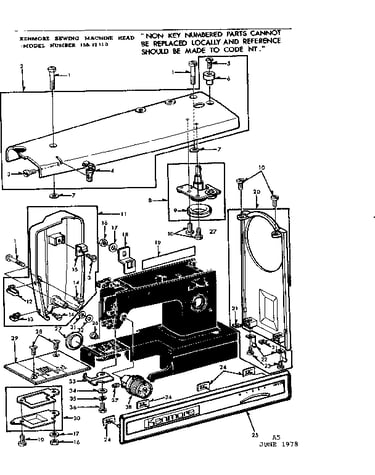

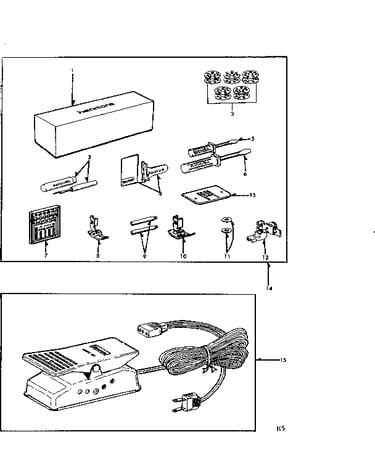

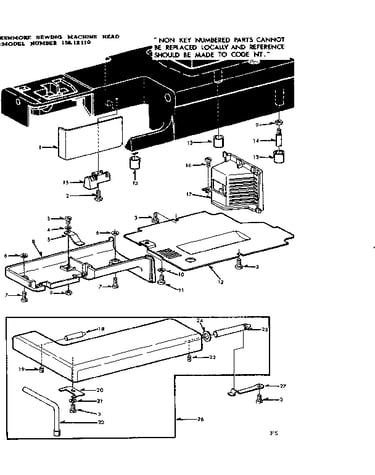

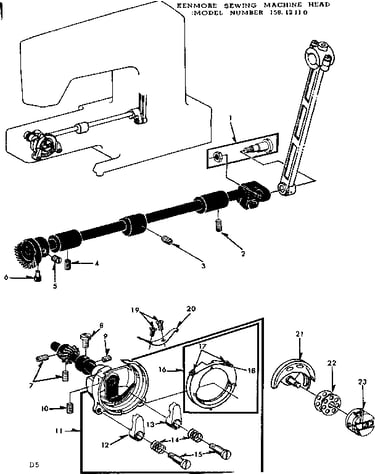

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Kenmore Feed Regulator 48908
#24

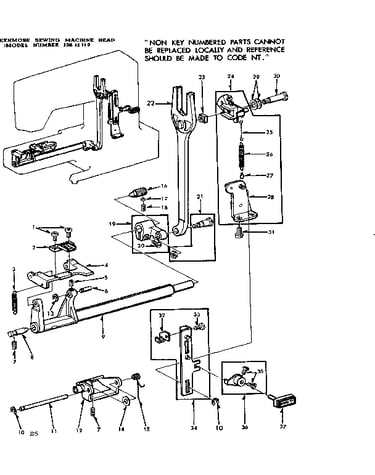

Feed assebmly diagram

Kenmore feed regulator

Part #48908

The manufacturer no longer makes this part, and there's no substitute part

Hanger 45511
#25

Feed assebmly diagram

Hanger

Part #45511

The manufacturer no longer makes this part, and there's no substitute part

Cover Plate 45496
#14

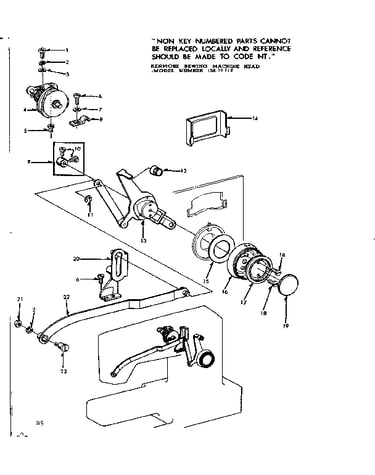

Zigzag geared cam assembly diagram

Cover plate

Part #45496

The manufacturer no longer makes this part, and there's no substitute part

Washer 45618
#15

Zigzag geared cam assembly diagram

Washer

Part #45618

The manufacturer no longer makes this part, and there's no substitute part

Cap 48871
#17

Zigzag geared cam assembly diagram

Cap

Part #48871

The manufacturer no longer makes this part, and there's no substitute part

Slider 48869
#34

Feed assebmly diagram

Slider

Part #48869

The manufacturer no longer makes this part, and there's no substitute part

Lever 48880
#36

Feed assebmly diagram

Lever

Part #48880

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Set Screw 39
#1

Zigzag geared cam assembly diagram

Sewing machine set screw

Part #39

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 45463
#13

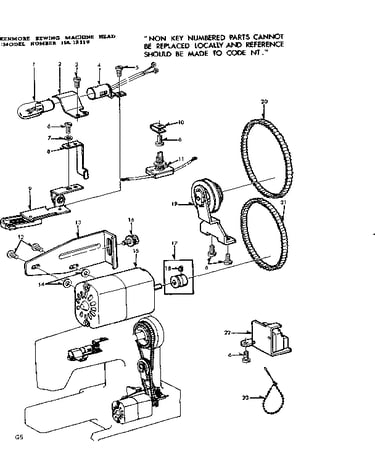

Motor assembly diagram

Motor bracket

Part #45463

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Zigzag Lever 48909
#13

Zigzag geared cam assembly diagram

Kenmore zigzag lever

Part #48909

The manufacturer no longer makes this part, and there's no substitute part
