Model # DEDFH1 Official Frigidaire 27" electric dryer - lf31689080
Here are the diagrams and repair parts for Official Frigidaire DEDFH1 27" electric dryer - lf31689080, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for

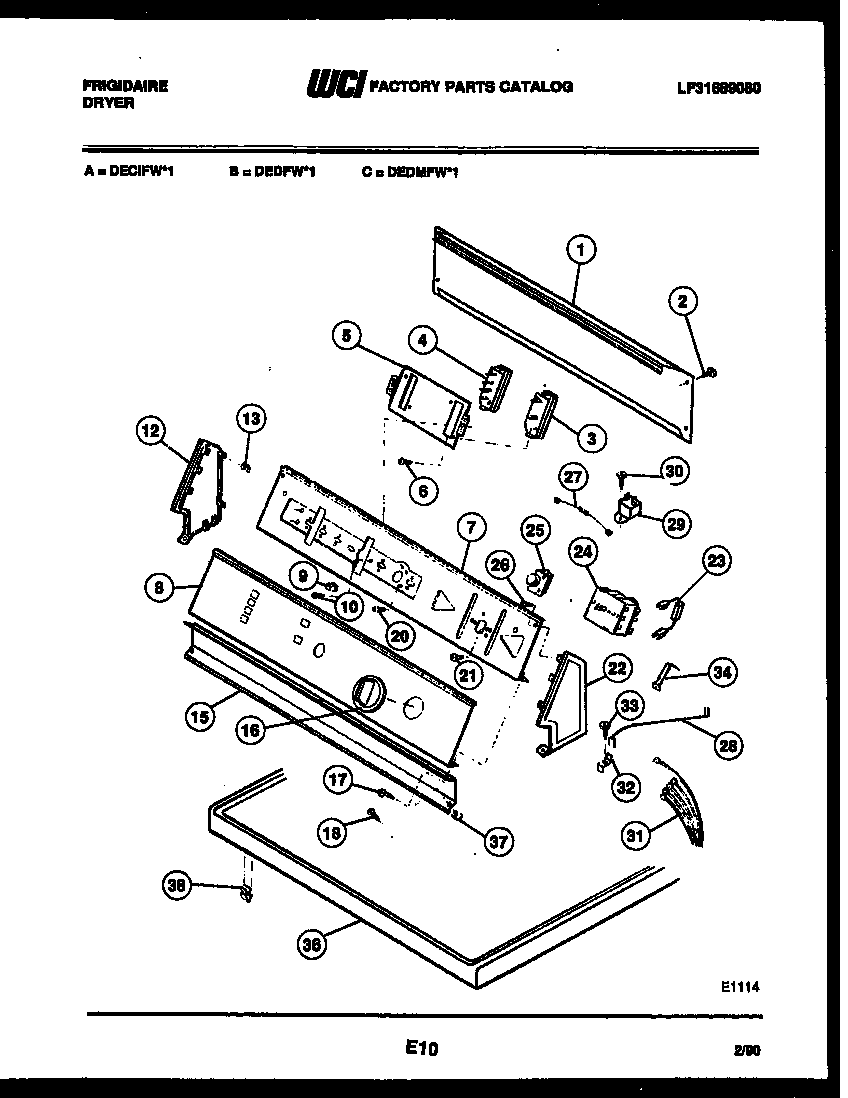

DEDFH1 27" Electric Dryer - LF31689080
#13

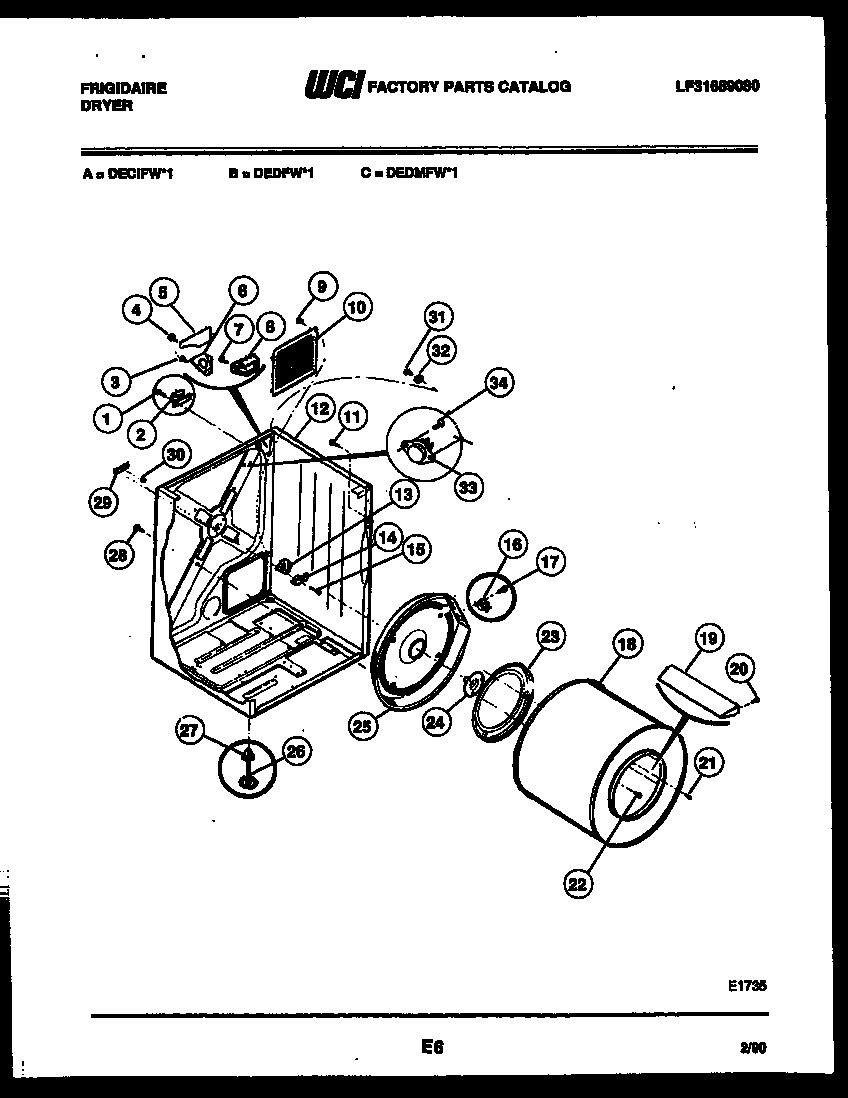

Cabinet and component parts diagram
Bearing
Part #3281008
Replaced by #131825900
?
Manufacturer substitution
This part replaces 3281008. Substitute parts can look different from the original.
$7.43 |
12% OFF Phone Price : $8.43
In Stock
#NI
All parts diagram
Bearing kit
Part #3281153
Replaced by #5303281153
?
Manufacturer substitution
This part replaces 3281153. Substitute parts can look different from the original.
$28.27 |
18% OFF Phone Price : $34.27
In Stock
#8

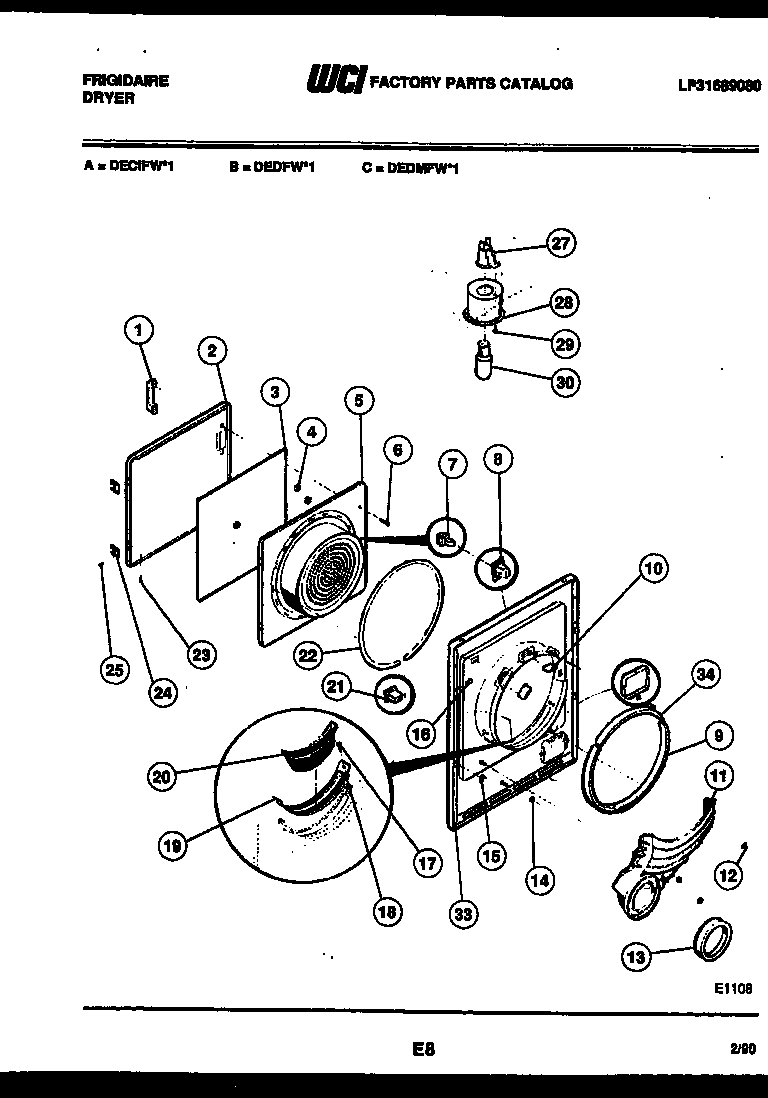

Door parts diagram
Catch
Part #3202755
Replaced by #131658800
?
Manufacturer substitution
This part replaces 3202755. Substitute parts can look different from the original.
$46.34 |
11% OFF Phone Price : $52.34
In Stock
#14
Cabinet and component parts diagram
Bracket
Part #3281023
Replaced by #131724301
?
Manufacturer substitution
This part replaces 3281023. Substitute parts can look different from the original.
$13.29 |
13% OFF Phone Price : $15.29
In Stock
#30
Cabinet and component parts diagram
Ball
Part #3281019
Replaced by #5303281019
?
Manufacturer substitution
This part replaces 3281019. Substitute parts can look different from the original.
$19.49 |
9% OFF Phone Price : $21.49
In Stock
#29
Cabinet and component parts diagram
Nut
Part #3281020
Replaced by #5303281020
?
Manufacturer substitution
This part replaces 3281020. Substitute parts can look different from the original.
$17.79 |
10% OFF Phone Price : $19.79
In Stock
#7
Door parts diagram
Strike
Part #F141736-000
Replaced by #5303207102
?
Manufacturer substitution
This part replaces F141736-000. Substitute parts can look different from the original.
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
#23
Cabinet and component parts diagram
Baffle
Part #3201198
Replaced by #3204254
?
Manufacturer substitution
This part replaces 3201198. Substitute parts can look different from the original.
$98.30 |
11% OFF Phone Price : $110.30
In Stock
#13
Door parts diagram
Seal
Part #3281013
Replaced by #134417000
?
Manufacturer substitution
This part replaces 3281013. Substitute parts can look different from the original.
This item is not returnable
$7.28 |
12% OFF Phone Price : $8.28
In Stock
#3

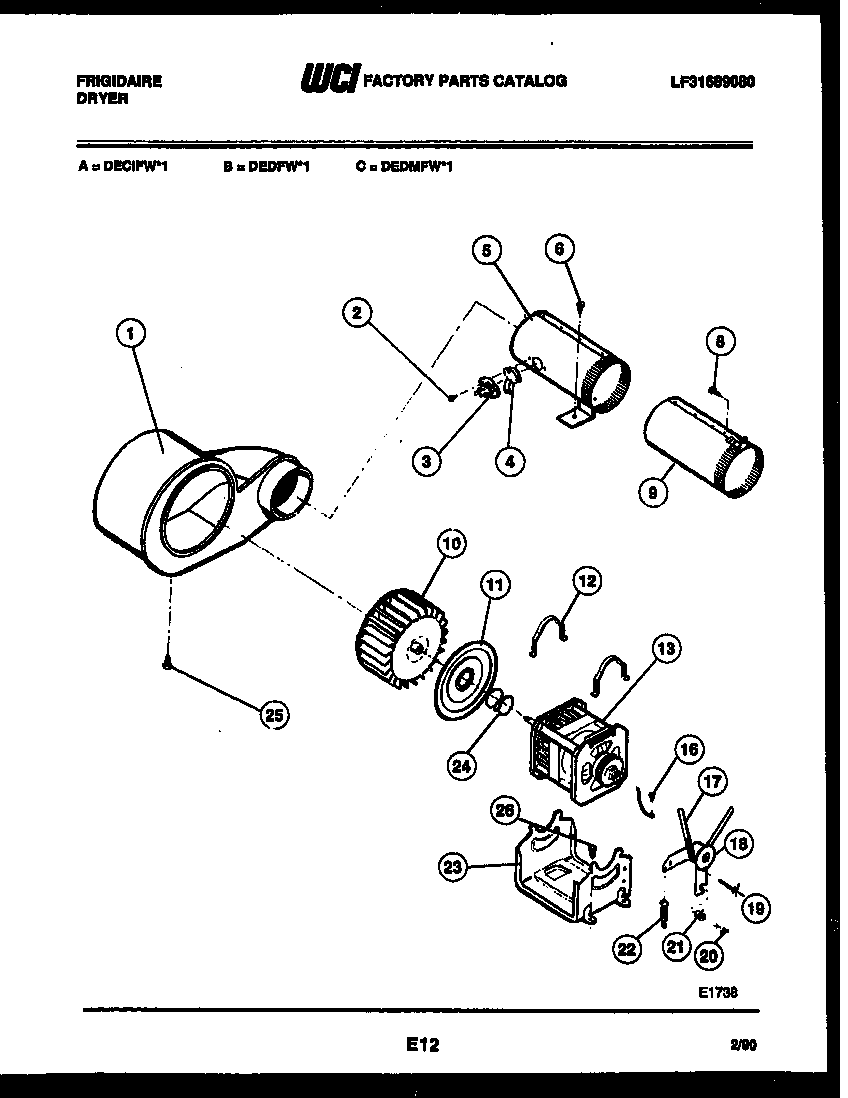

Motor and blower parts diagram
Dryer operating thermostat
Part #3204307
$111.49 |
10% OFF Phone Price : $123.49
In Stock
