Model # 8SF302PSYW0 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool 8SF302PSYW0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Surface Knob 4371476
#3

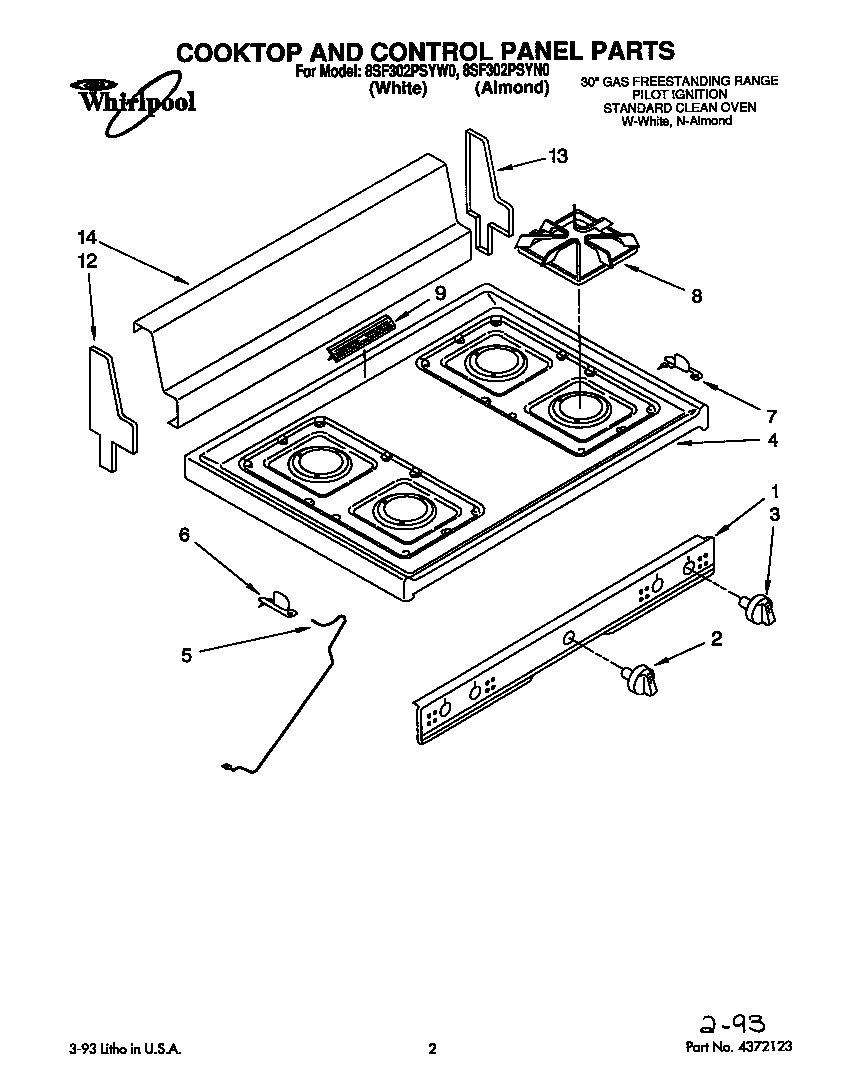

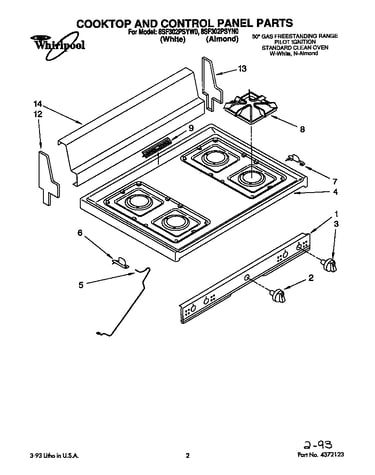

Cooktop and control panel diagram

Surface knob

Part #4371476

The manufacturer no longer makes this part, and there's no substitute part

Screw 4371027
#19

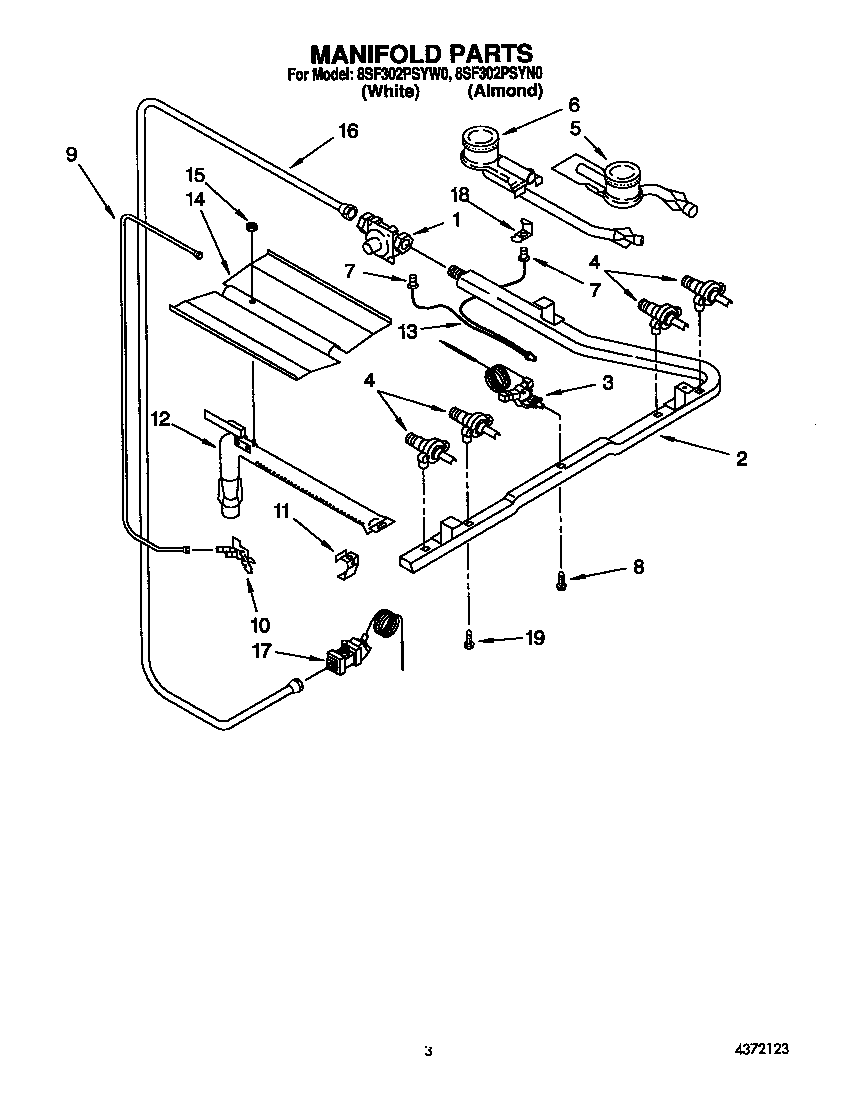

Manifold diagram

Screw

Part #4371027

Replaced by #WP3186217

?
Manufacturer substitution
This part replaces 4371027. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Insulation 4371091
#15

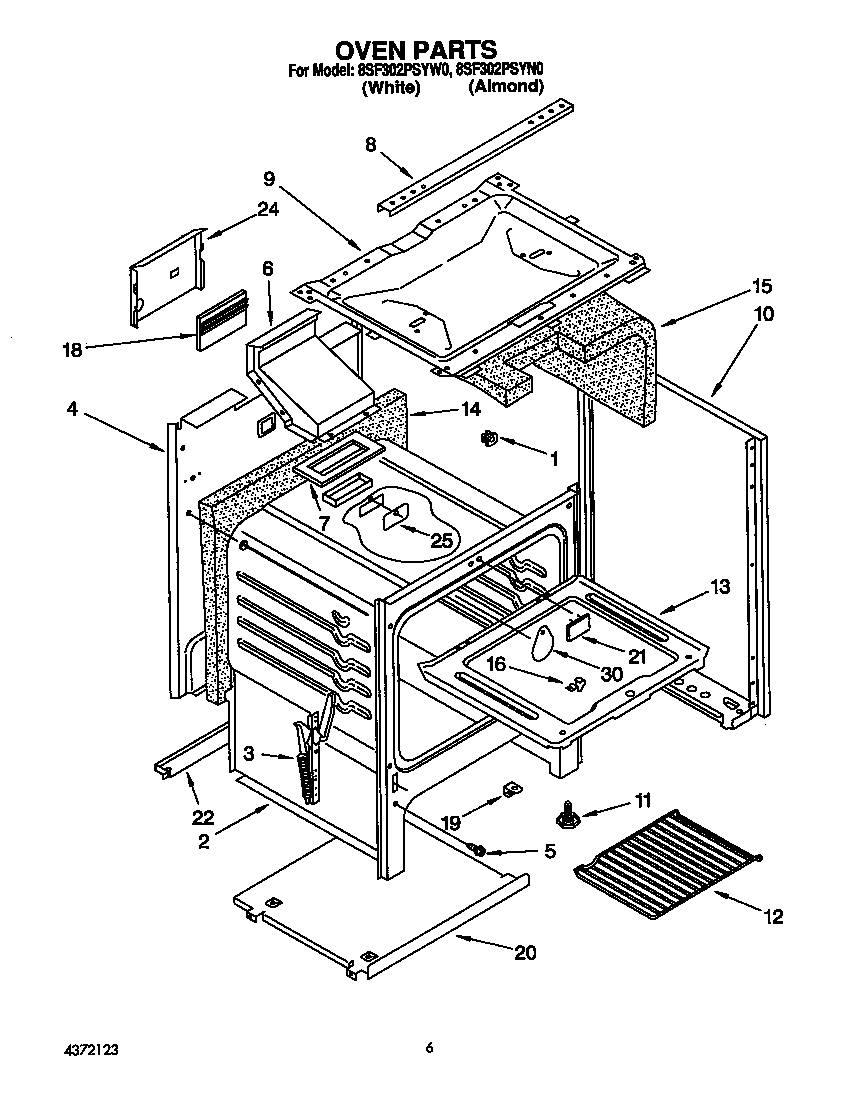

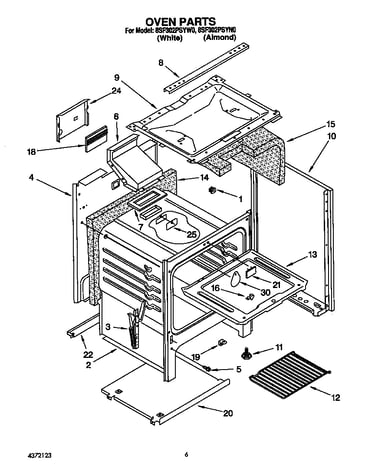

Oven diagram

Insulation

Part #4371091

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4371091. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Burner 4371480
#5

Manifold diagram

Burner

Part #4371480

The manufacturer no longer makes this part, and there's no substitute part

Panel W 816754
#17A

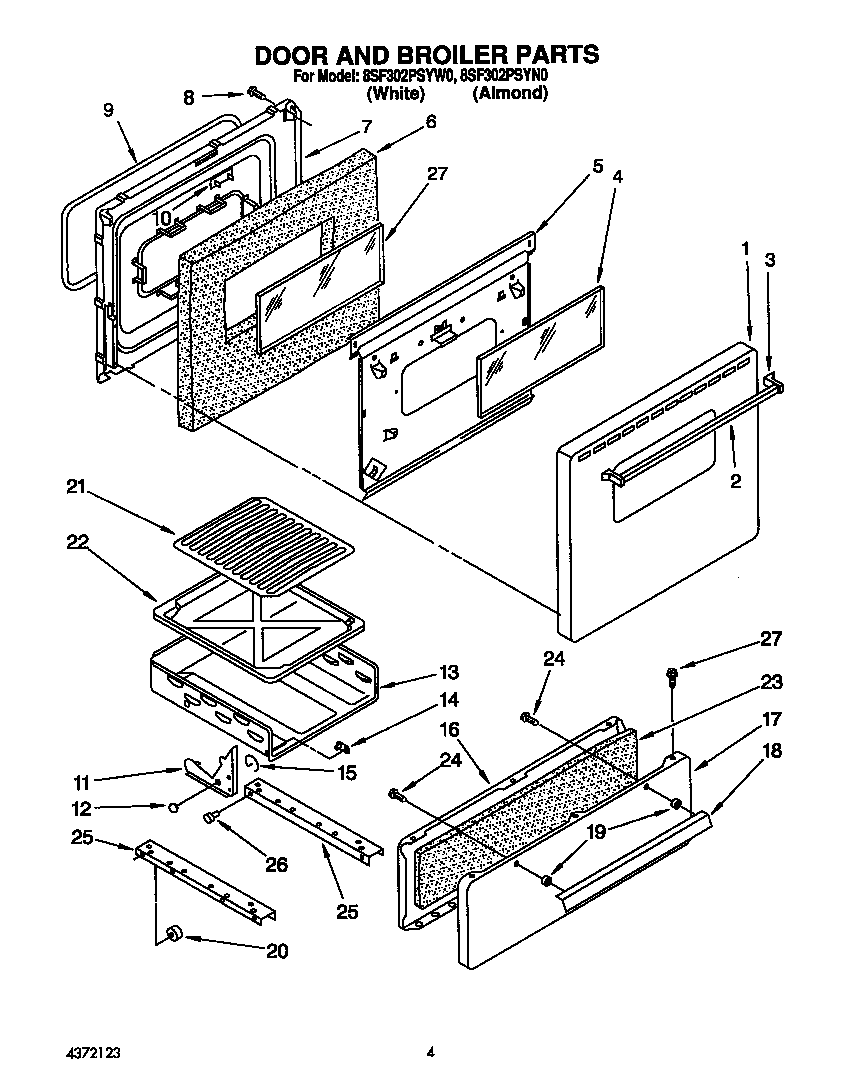

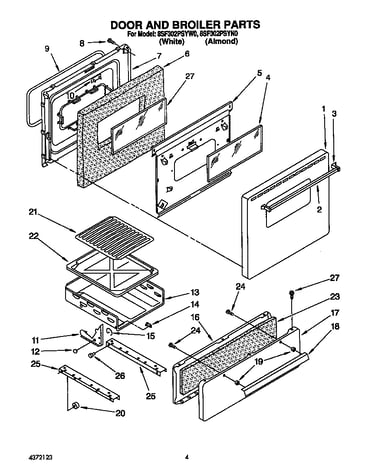

Door and broiler diagram

Panel w

Part #816754

The manufacturer no longer makes this part, and there's no substitute part

Hinge Bracket 4371113
#11

Door and broiler diagram

Hinge bracket

Part #4371113

The manufacturer no longer makes this part, and there's no substitute part

Push Nut Fastener 4371117
#12

Door and broiler diagram

Push nut fastener

Part #4371117

The manufacturer no longer makes this part, and there's no substitute part

Clip 816713
#19

Door and broiler diagram

Clip

Part #816713

The manufacturer no longer makes this part, and there's no substitute part

Burner 4371481
#6

Manifold diagram

Burner

Part #4371481

The manufacturer no longer makes this part, and there's no substitute part

Door Glass 4371309
#27

Door and broiler diagram

Door glass

Part #4371309

The manufacturer no longer makes this part, and there's no substitute part
