Model # GFWH1200H0WW Official GE washer

Here are the diagrams and repair parts for Official GE GFWH1200H0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Washer Shock Absorber WH01X20826
#253

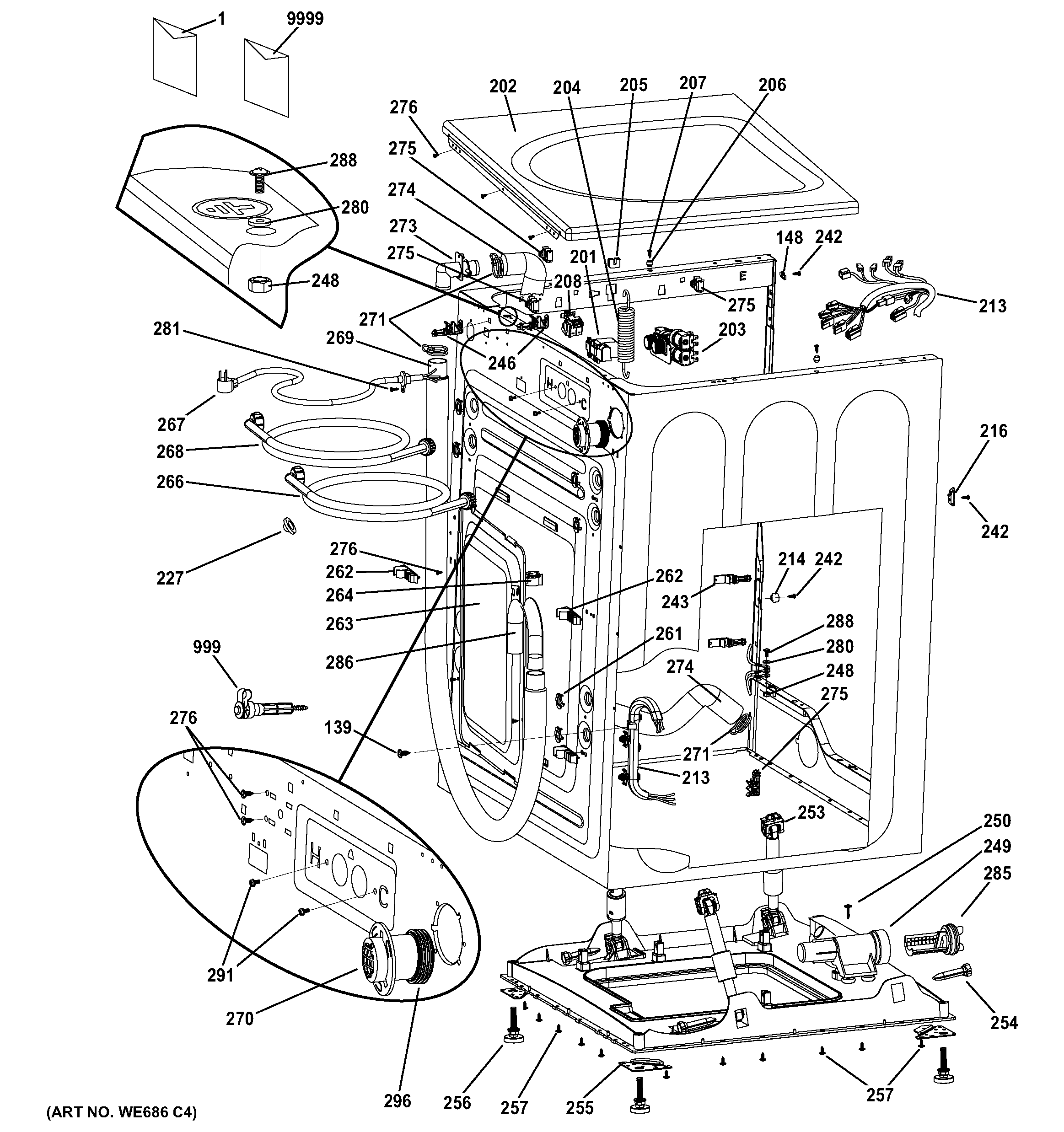

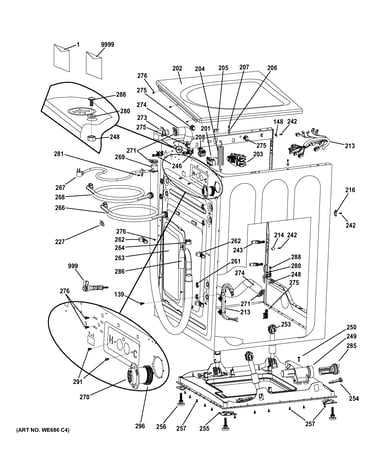

Cabinet & top panel diagram

Washer shock absorber

Part #WH01X20826

BEST SELLER
$73.93 |
8% OFF Phone Price : $79.93
In Stock
Pump WH23X20825
#249

Cabinet & top panel diagram

Pump

Part #WH23X20825

Replaced by #WH11X34740

?
Manufacturer substitution
This part replaces WH23X20825. Substitute parts can look different from the original.
BEST SELLER
$103.89
In Stock
Washer Door Lock Strike WH01X20823
#223

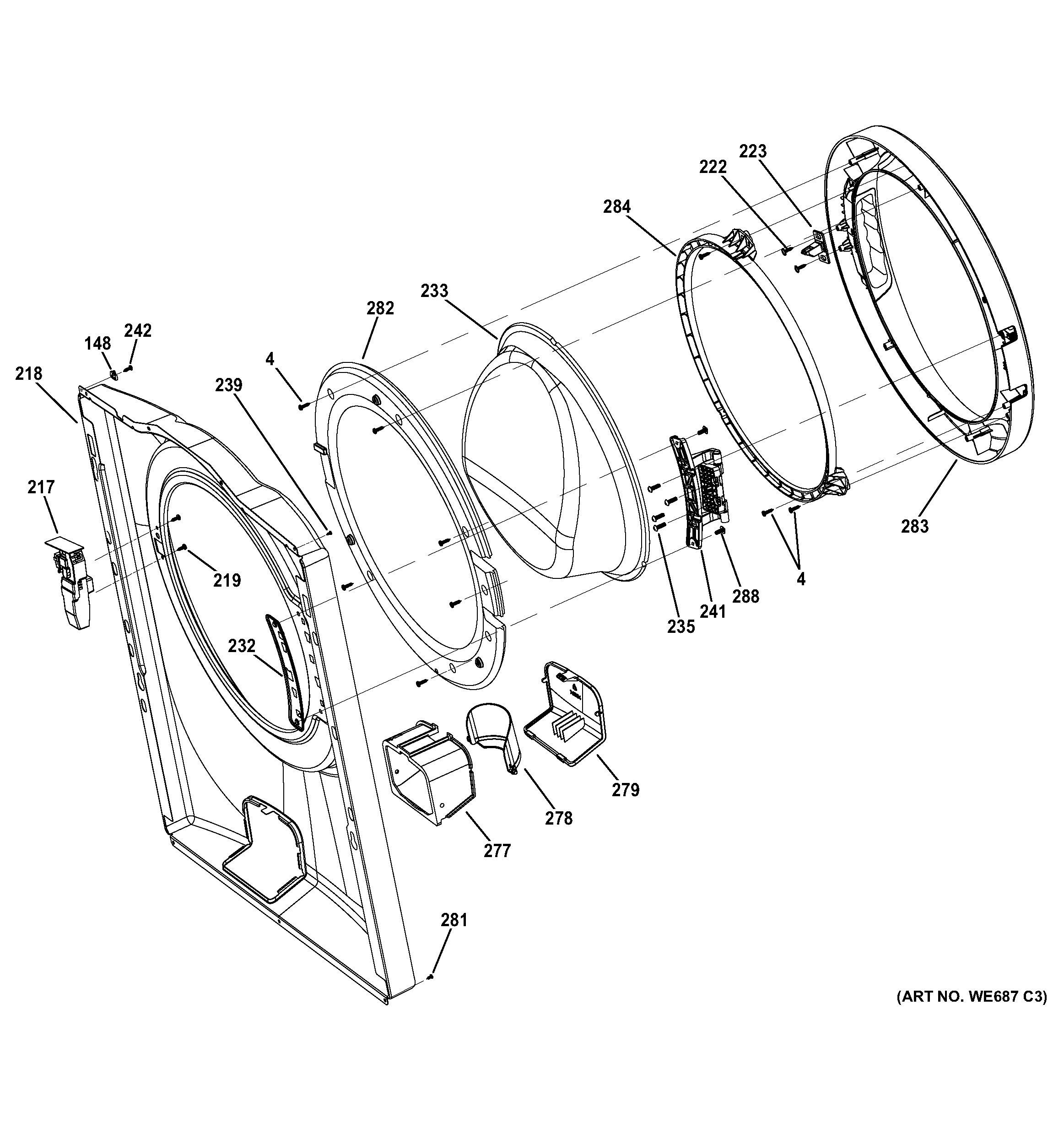

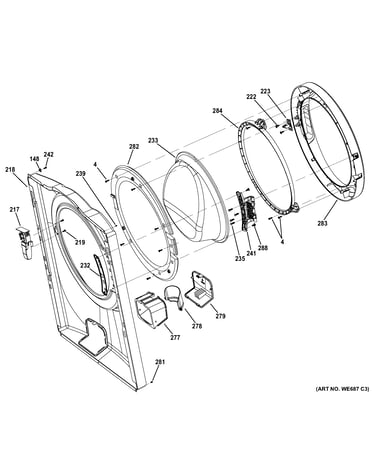

Front panel & door diagram

Washer door lock strike

Part #WH01X20823

This item is not returnable
$16.04 |
11% OFF Phone Price : $18.04
In Stock
Washer Door Boot Spring Clamp, Outer WH01X10279
#349

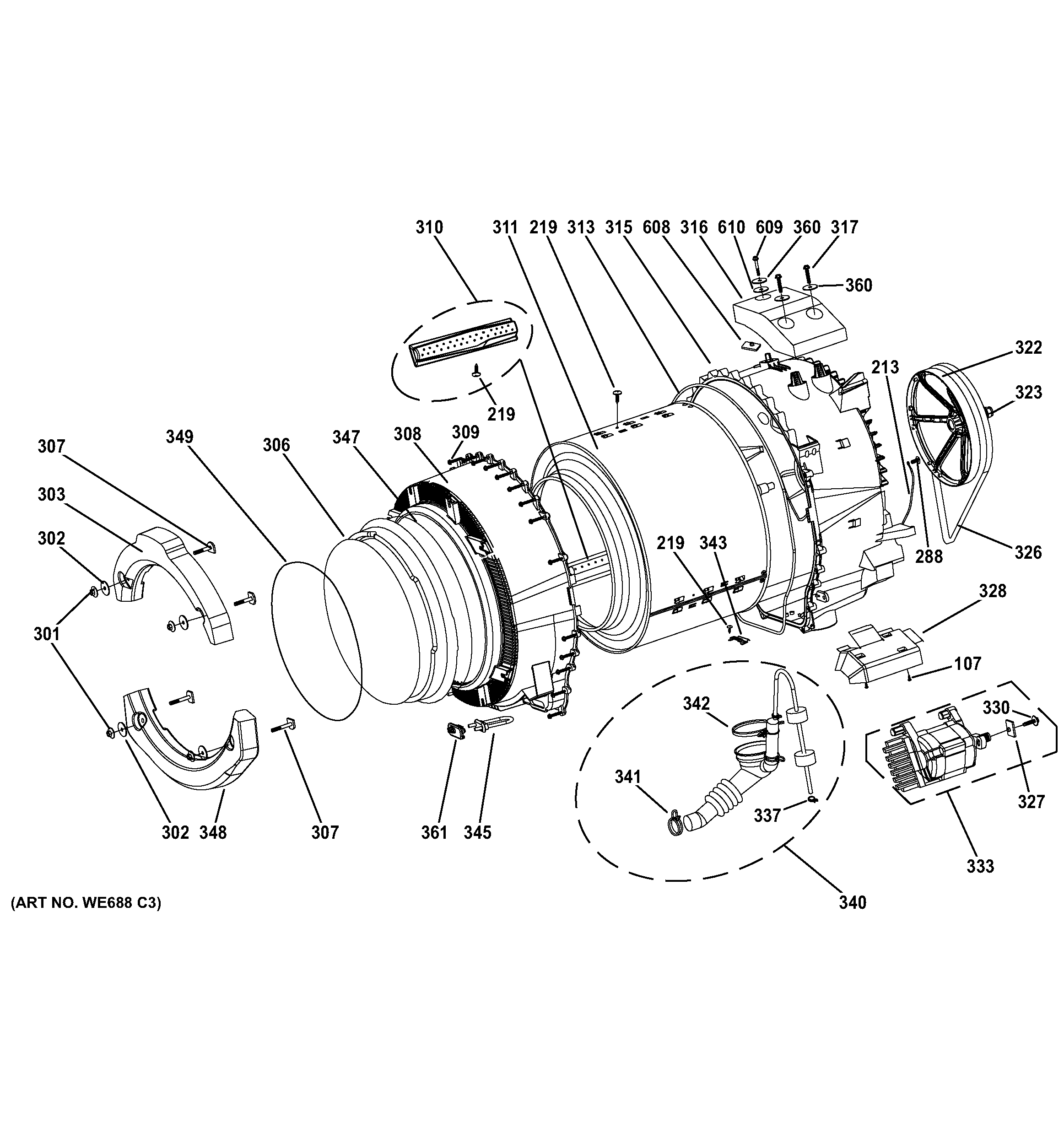

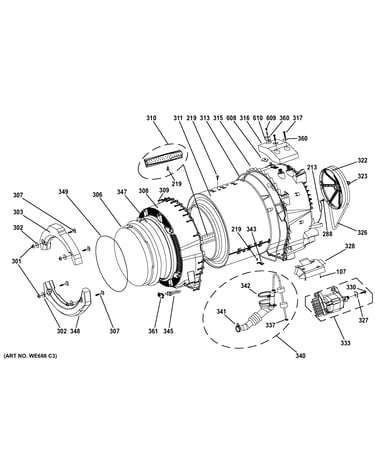

Tub & motor diagram

Washer door boot spring clamp, outer

Part #WH01X10279

This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Washer Door Boot Spring Clamp, Inner WH01X10277
#347

Tub & motor diagram

Washer door boot spring clamp, inner

Part #WH01X10277

This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Washer Cycle Selector Knob WH11X10061
#113

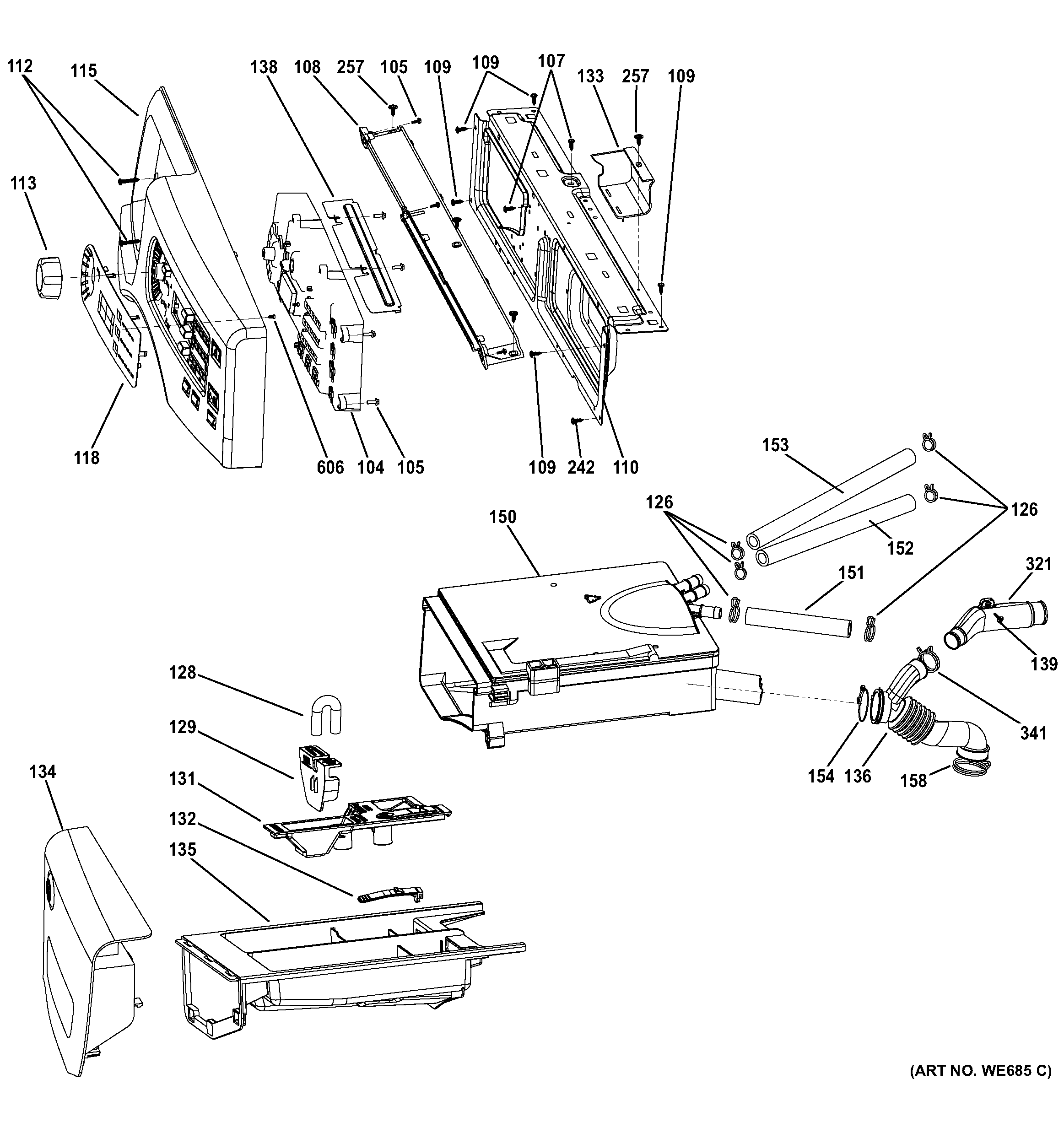

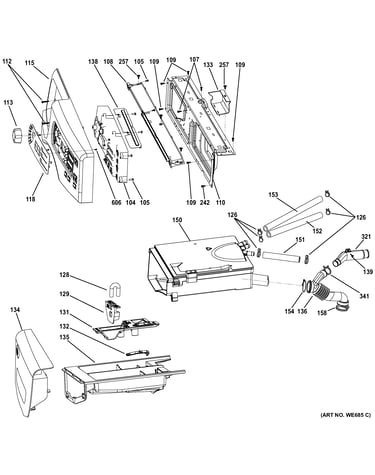

Controls & dispenser diagram

Washer cycle selector knob

Part #WH11X10061

Replaced by #WE04X21014

?
Manufacturer substitution
This part replaces WH11X10061. Substitute parts can look different from the original.
$22.80 |
21% OFF Phone Price : $28.80
In Stock
Screw M5*12 WH02X10234
Screw m5*12

Part #WH02X10234

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Drain Hose Adapter WH01X10266
#273

Cabinet & top panel diagram

Washer drain hose adapter

Part #WH01X10266

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer Drain Hose U-bend Bracket WH41X10133
#286

Cabinet & top panel diagram

Washer drain hose u-bend bracket

Part #WH41X10133

$7.09 |
12% OFF Phone Price : $8.09
In Stock
Appliance Nut WH02X10211
#323

Tub & motor diagram

Appliance nut

Part #WH02X10211

$16.15 |
11% OFF Phone Price : $18.15
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

View all

Why won't my washing machine drain?

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Read more

Why won't my washing machine agitate or spin?

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Read more

Why won't my washing machine start?

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Read more

Why your washing machine won't finish its cycle

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Read more

Why is my washing machine noisy or shaking?

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Read more

Why won't my washing machine fill?

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Read more

Why doesn't my washing machine work at all?

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Read more

Why does my washing machine overfill?

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Read more
