Crosley
Upright Freezer

Model # WCR17/E Official Crosley upright freezer

Here are the diagrams and repair parts for Official Crosley WCR17-E upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Light Bulb 1-34291-002
#41

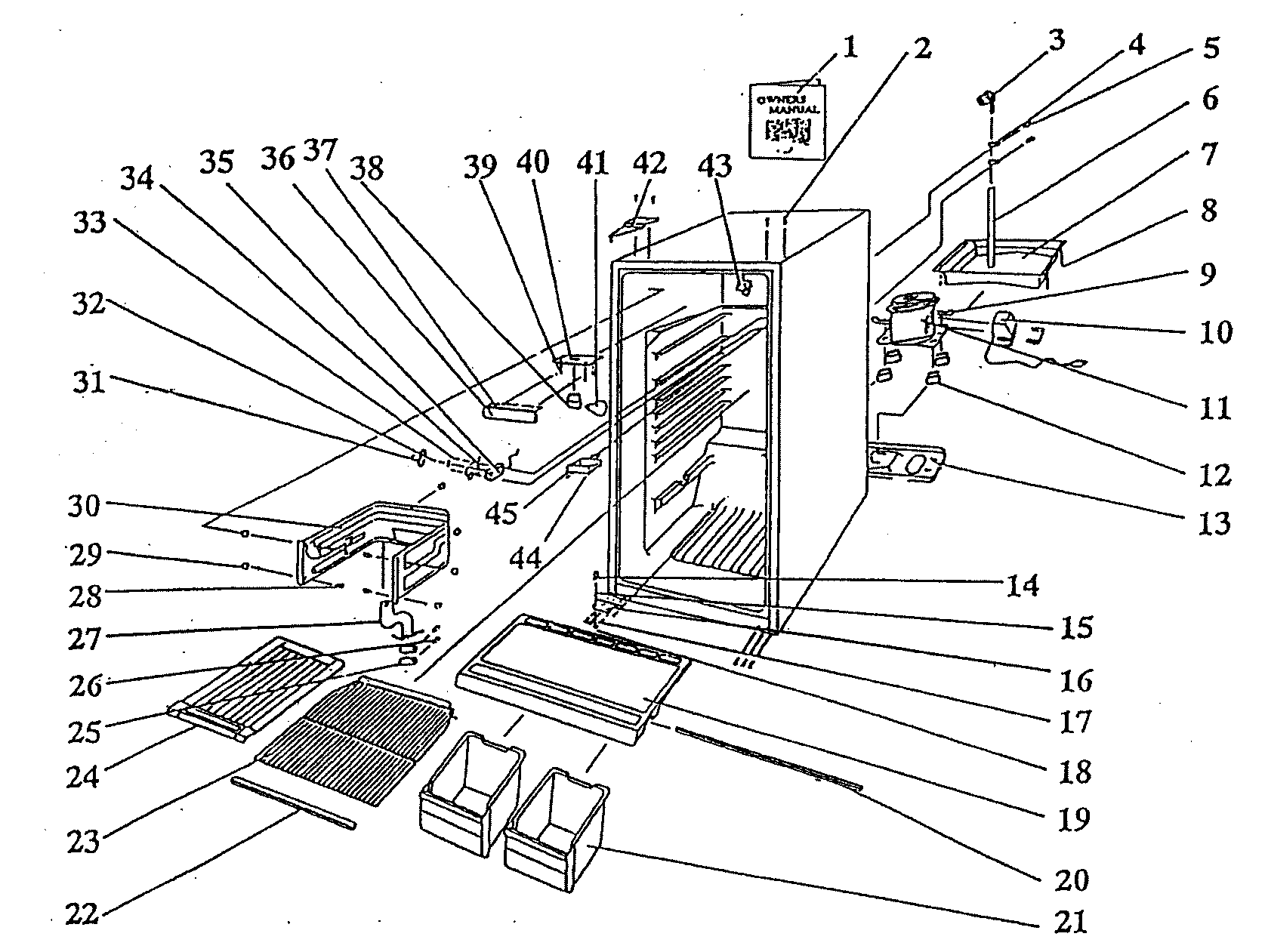

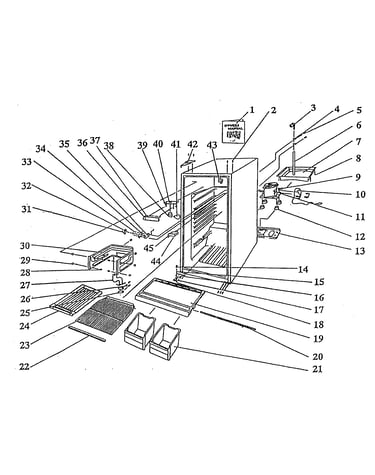

Cabinet parts diagram

Light bulb

Part #1-34291-002

The manufacturer no longer makes this part, and there's no substitute part

Switch 2-32164-001
#43

Cabinet parts diagram

Switch

Part #2-32164-001

The manufacturer no longer makes this part, and there's no substitute part

Drier 3-34960-001
#11C

Cabinet parts diagram

Drier

Part #3-34960-001

The manufacturer no longer makes this part, and there's no substitute part

Cover 3-35171-001
#10

Cabinet parts diagram

Cover

Part #3-35171-001

The manufacturer no longer makes this part, and there's no substitute part

Handle Screw 3-24004-091
#56A

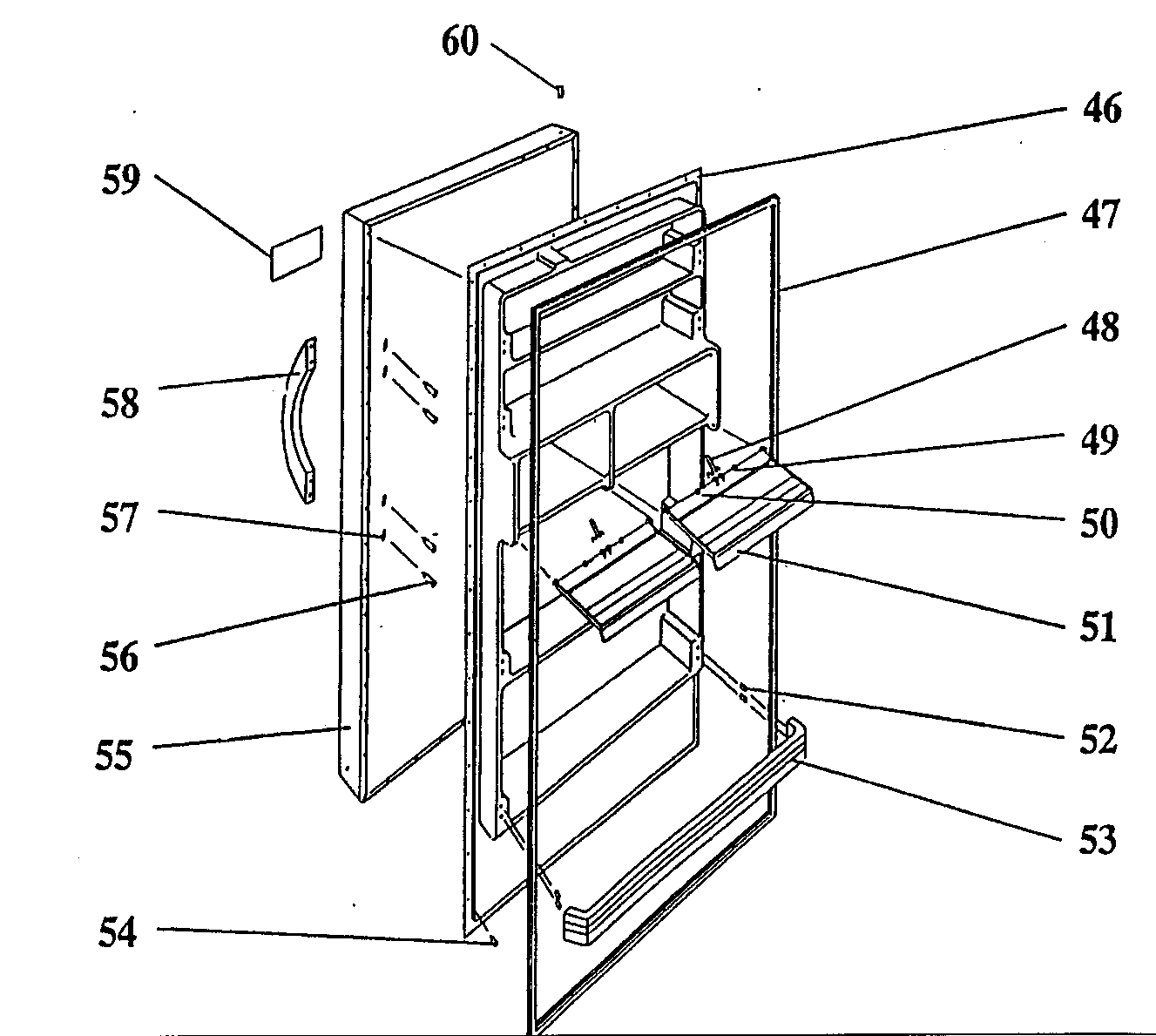

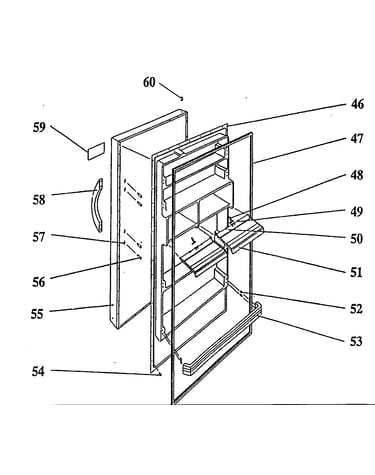

Door assy diagram

Handle screw

Part #3-24004-091

The manufacturer no longer makes this part, and there's no substitute part

Gasket Kit 0-90000-043
#47

Door assy diagram

Gasket kit

Part #0-90000-043

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-20152
#18

Cabinet parts diagram

Washer

Part #1-20152

The manufacturer no longer makes this part, and there's no substitute part

Protector 2-34286-020
#11B

Cabinet parts diagram

Protector

Part #2-34286-020

The manufacturer no longer makes this part, and there's no substitute part

Plug 1-60121-001
#NI

Cabinet parts diagram

Plug

Part #1-60121-001

The manufacturer no longer makes this part, and there's no substitute part

Levelr Leg 90028-005
#15

Cabinet parts diagram

Levelr leg

Part #90028-005

The manufacturer no longer makes this part, and there's no substitute part
