Radial Arm Saw

Model # 113197280 Official Craftsman radial saw

Here are the diagrams and repair parts for Official Craftsman 113197280 radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

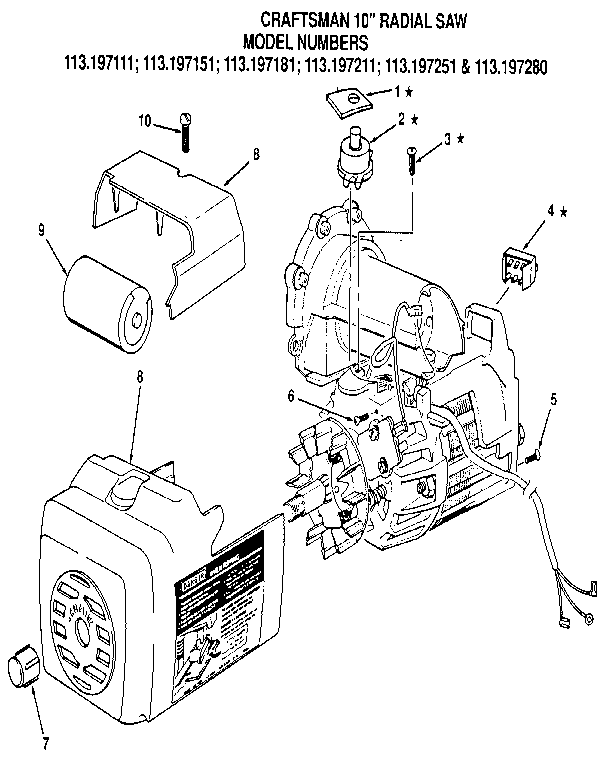

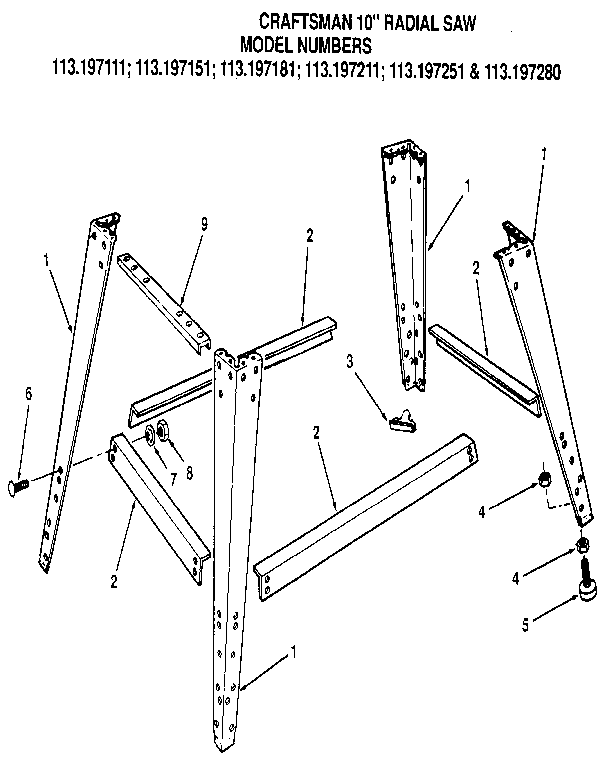

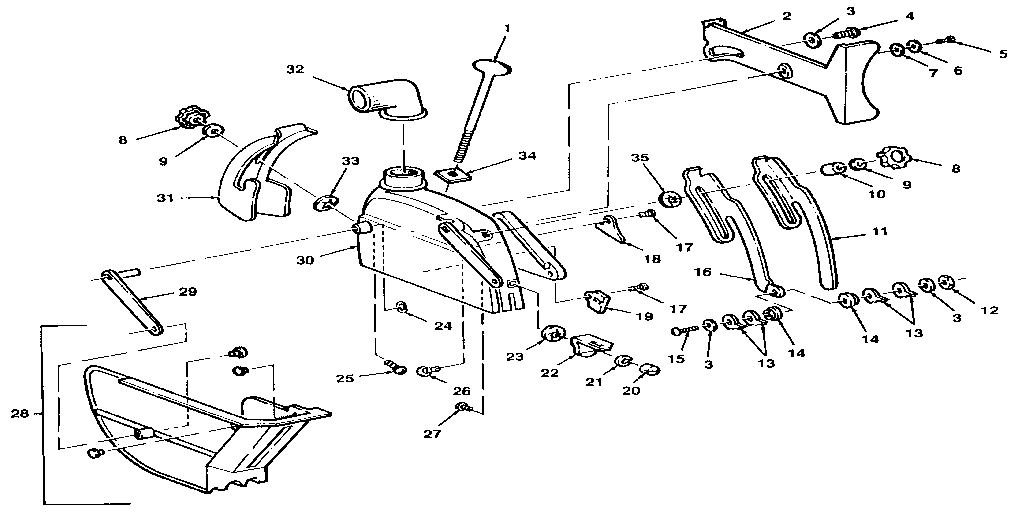

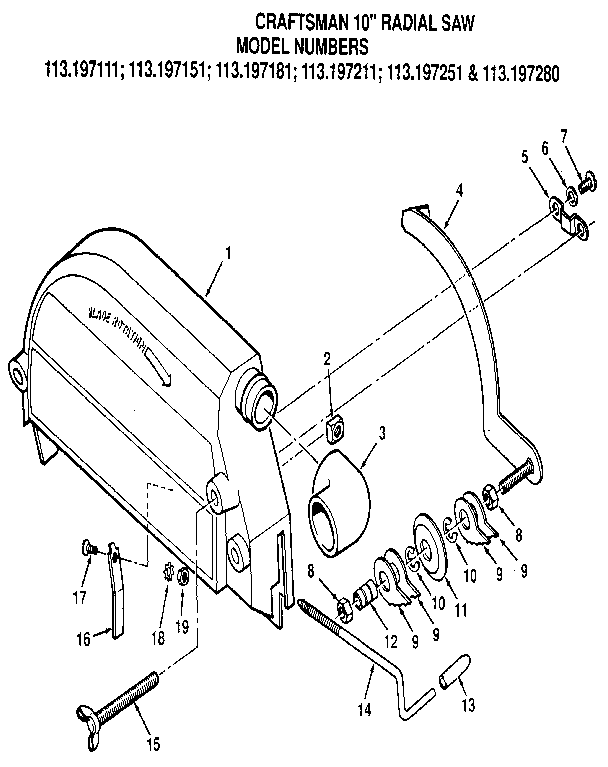

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 255 parts  |
Table, Front 820568
#10A

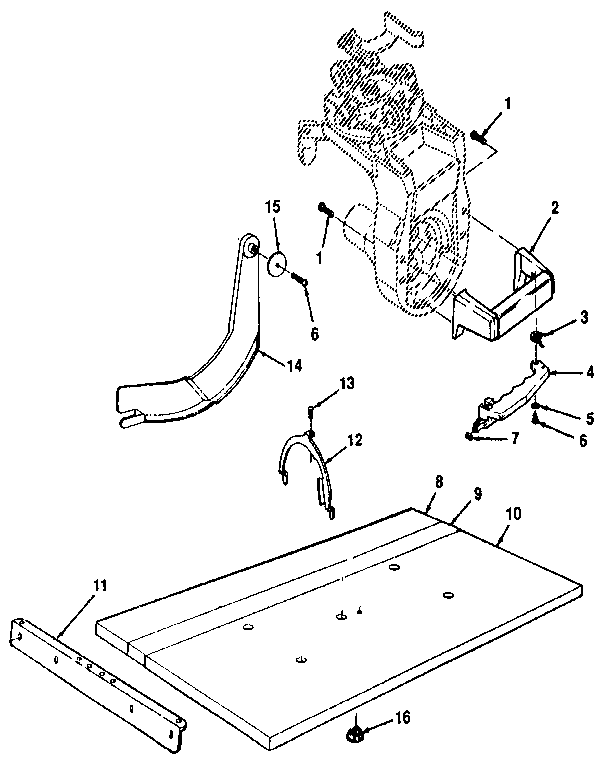

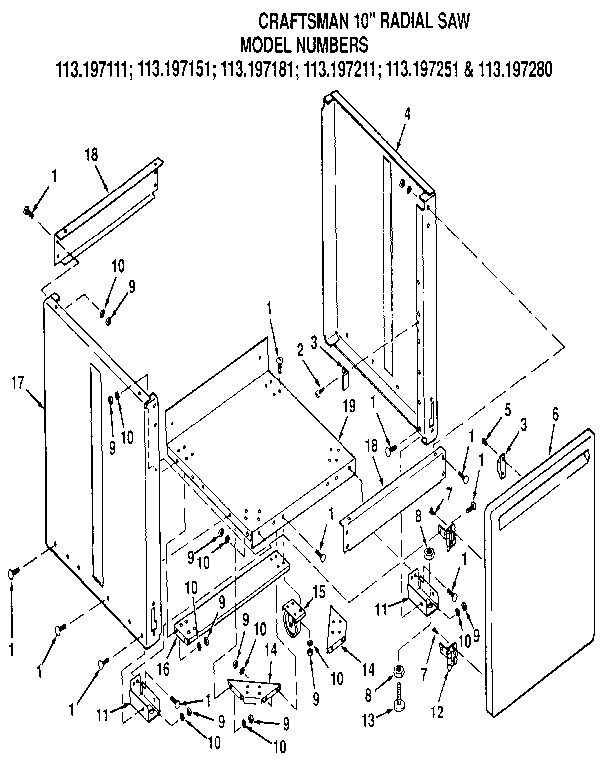

Figure 11 diagram

Table, front

Part #820568

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Bearing Washer 60438
#32

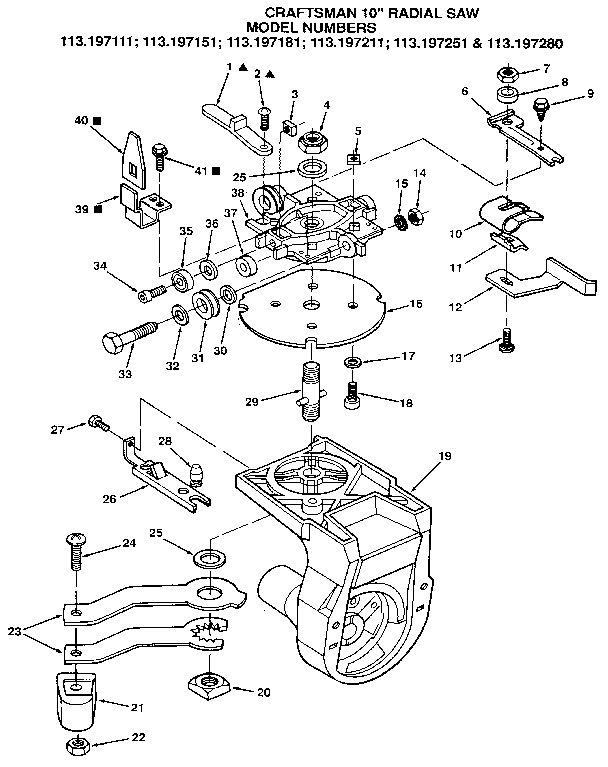

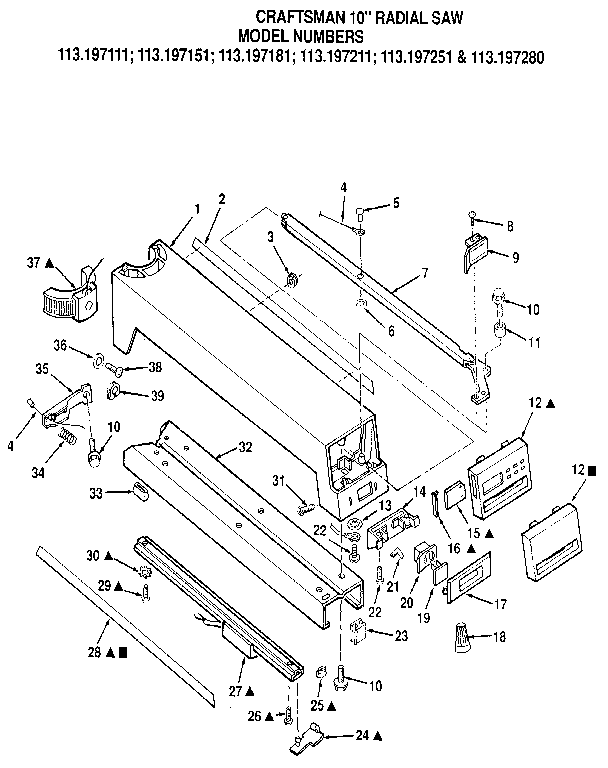

Figure 4 diagram

Radial arm saw carriage bearing washer

Part #60438

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Thrust Washer 63500
#14

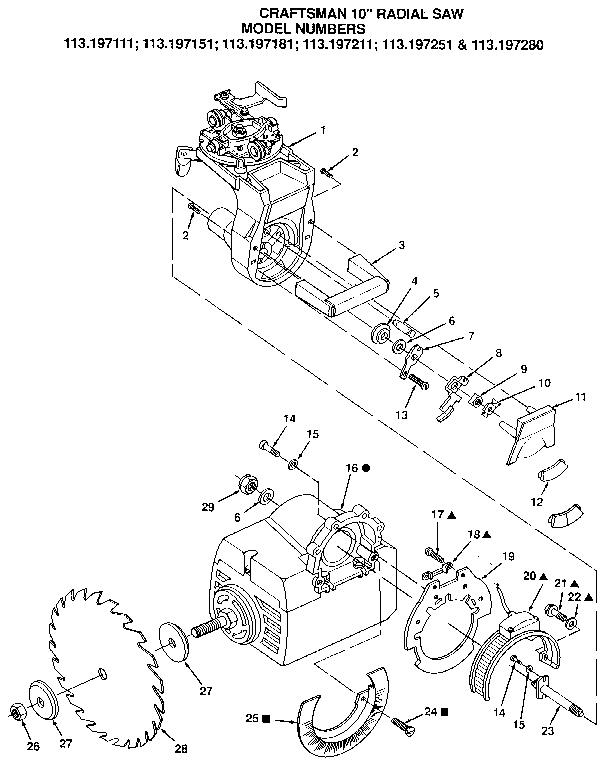

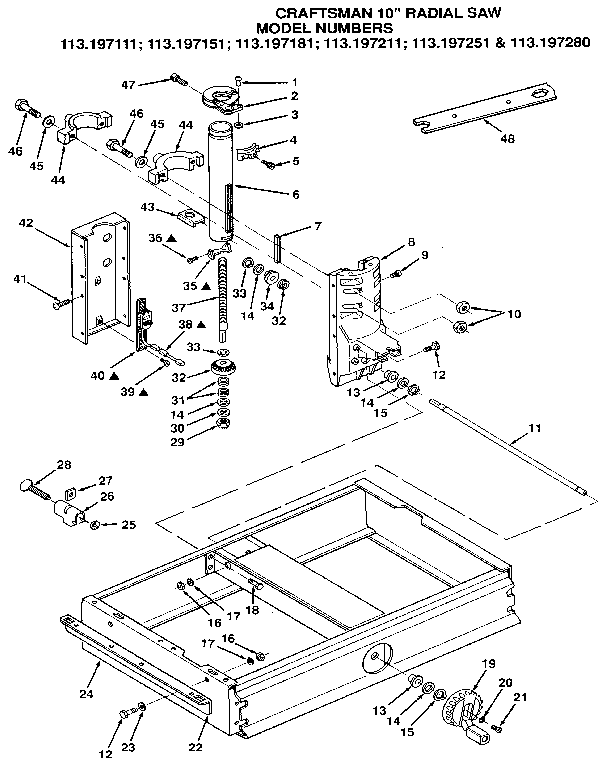

Figure 2 diagram

Radial arm saw thrust washer

Part #63500

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Front 818191
#4

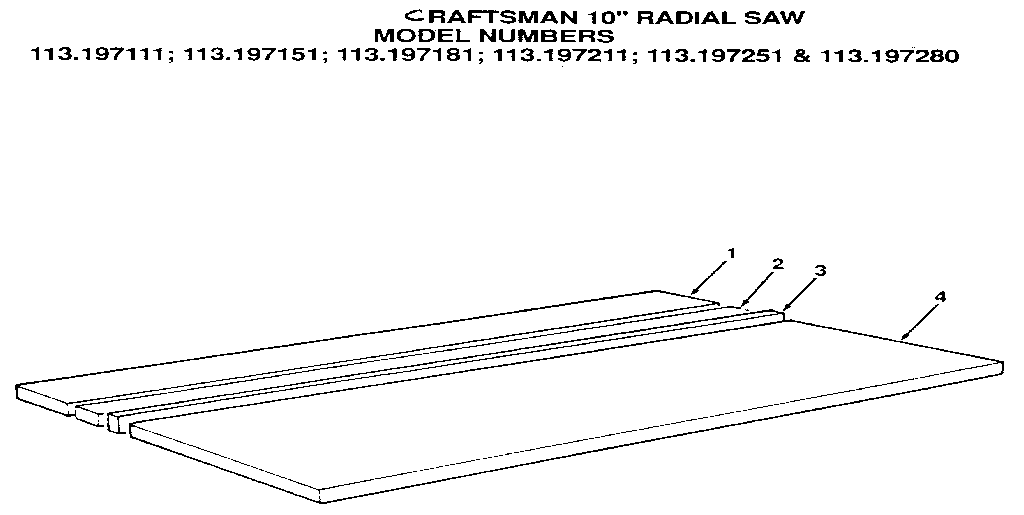

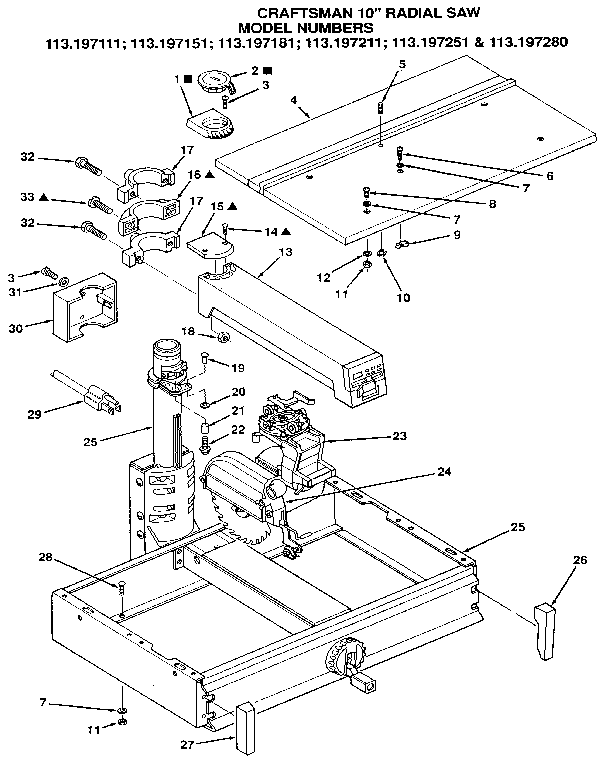

Figure 8 - table assembly diagram

Radial arm saw table, front

Part #818191

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table 820572
#10

Figure 11 diagram

Radial arm saw table

Part #820572

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hand Wheel Assembly 816499
#19

Figure 2 diagram

Radial arm saw hand wheel assembly

Part #816499

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table Spacer 820573
#9

Figure 11 diagram

Radial arm saw table spacer

Part #820573

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Spacer 62520
#8

Figure 4 diagram

Table saw spacer

Part #62520

The manufacturer no longer makes this part, and there's no substitute part

Nut (silver) 62636
#5

Figure 4 diagram

Nut (silver)

Part #62636

The manufacturer no longer makes this part, and there's no substitute part

Washer 805548-10
#15

Figure 11 diagram

Washer

Part #805548-10

The manufacturer no longer makes this part, and there's no substitute part
