LG
Washer

Model # WM1812CW Official LG washer

Here are the diagrams and repair parts for Official LG WM1812CW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Washer Water Inlet Valve 5221ER1003A
#F160

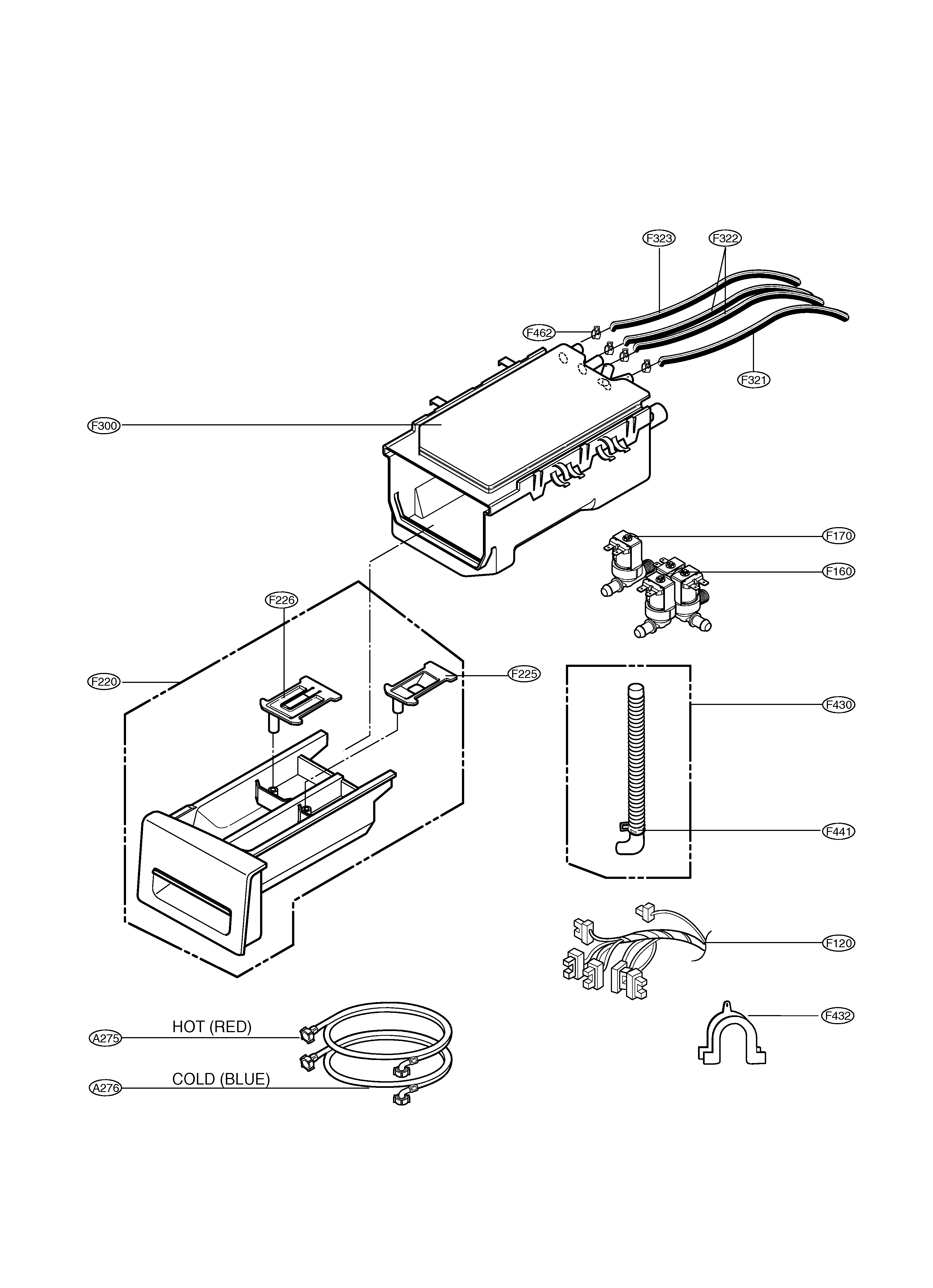

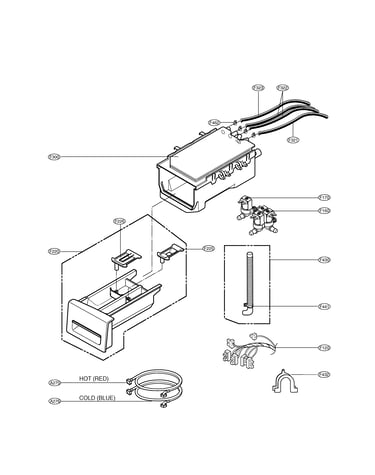

Dispenser diagram

Washer water inlet valve

Part #5221ER1003A

Replaced by #5220FR2075L

?
Manufacturer substitution
This part replaces 5221ER1003A. Substitute parts can look different from the original.
BEST SELLER
$61.36 |
9% OFF Phone Price : $67.36
In Stock
Washer Single-solenoid Water Inlet Valve (replaces 5220fr1280f, 5220fr2006l) 5220FR2006H
#F170

Dispenser diagram

Washer single-solenoid water inlet valve (replaces 5220fr1280f, 5220fr2006l)

Part #5220FR2006H

BEST SELLER
$20.53 |
23% OFF Phone Price : $26.53
In Stock
Washer Door Lock Switch 6601ER1004C
#A440

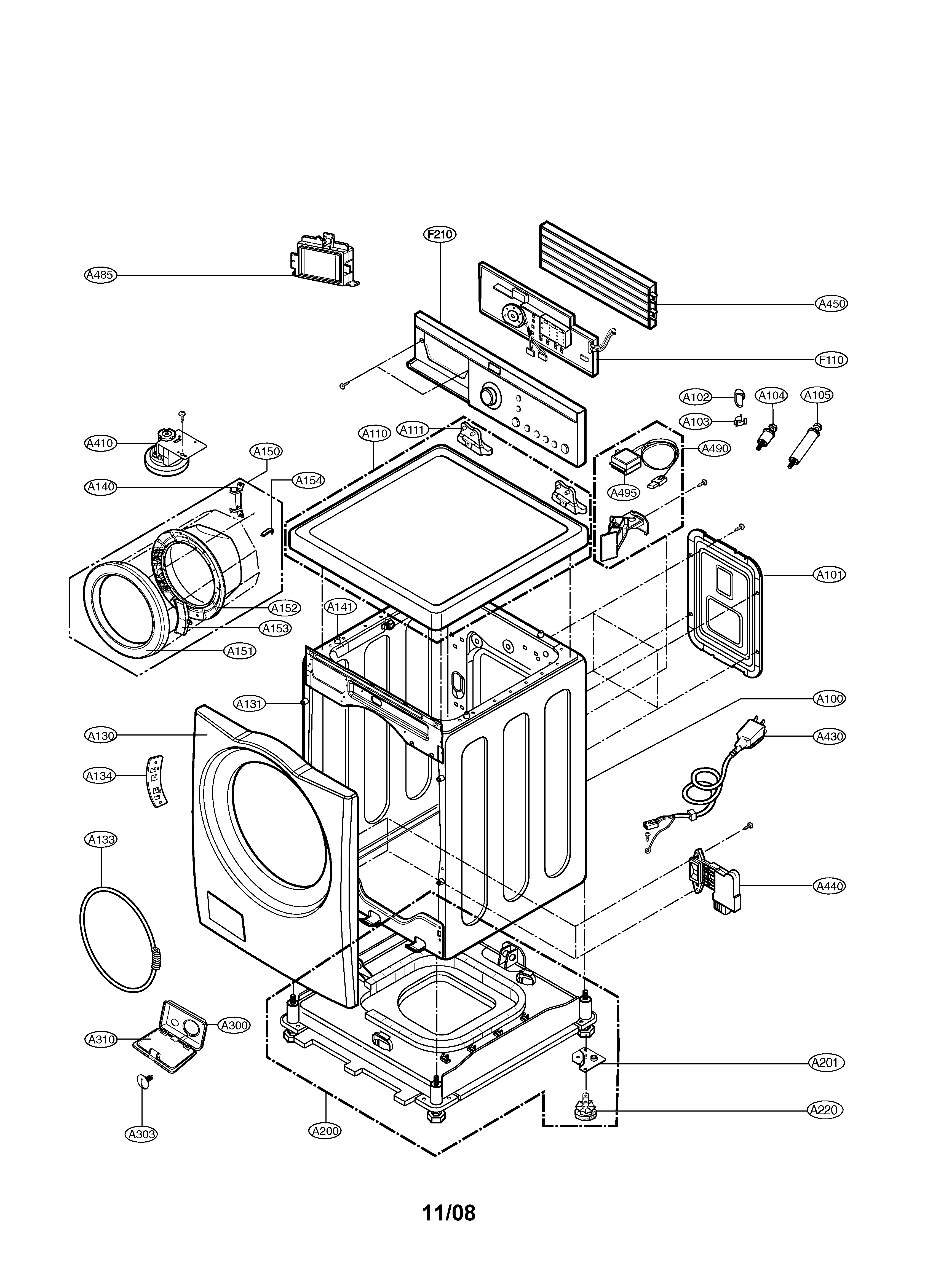

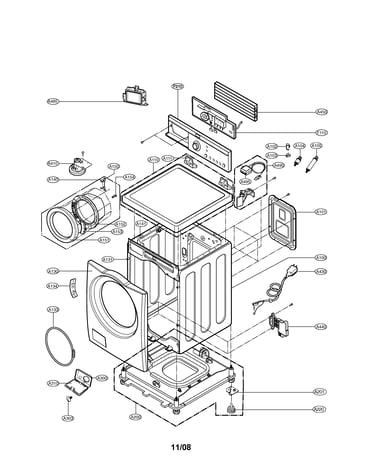

Cabinet & control panel diagram

Washer door lock switch

Part #6601ER1004C

Replaced by #EBF49827801

?
Manufacturer substitution
This part replaces 6601ER1004C. Substitute parts can look different from the original.
BEST SELLER
$57.02 |
10% OFF Phone Price : $63.02
In Stock
Washer Drain Pump Filter Drain Hose 5214FR4006L
#K342

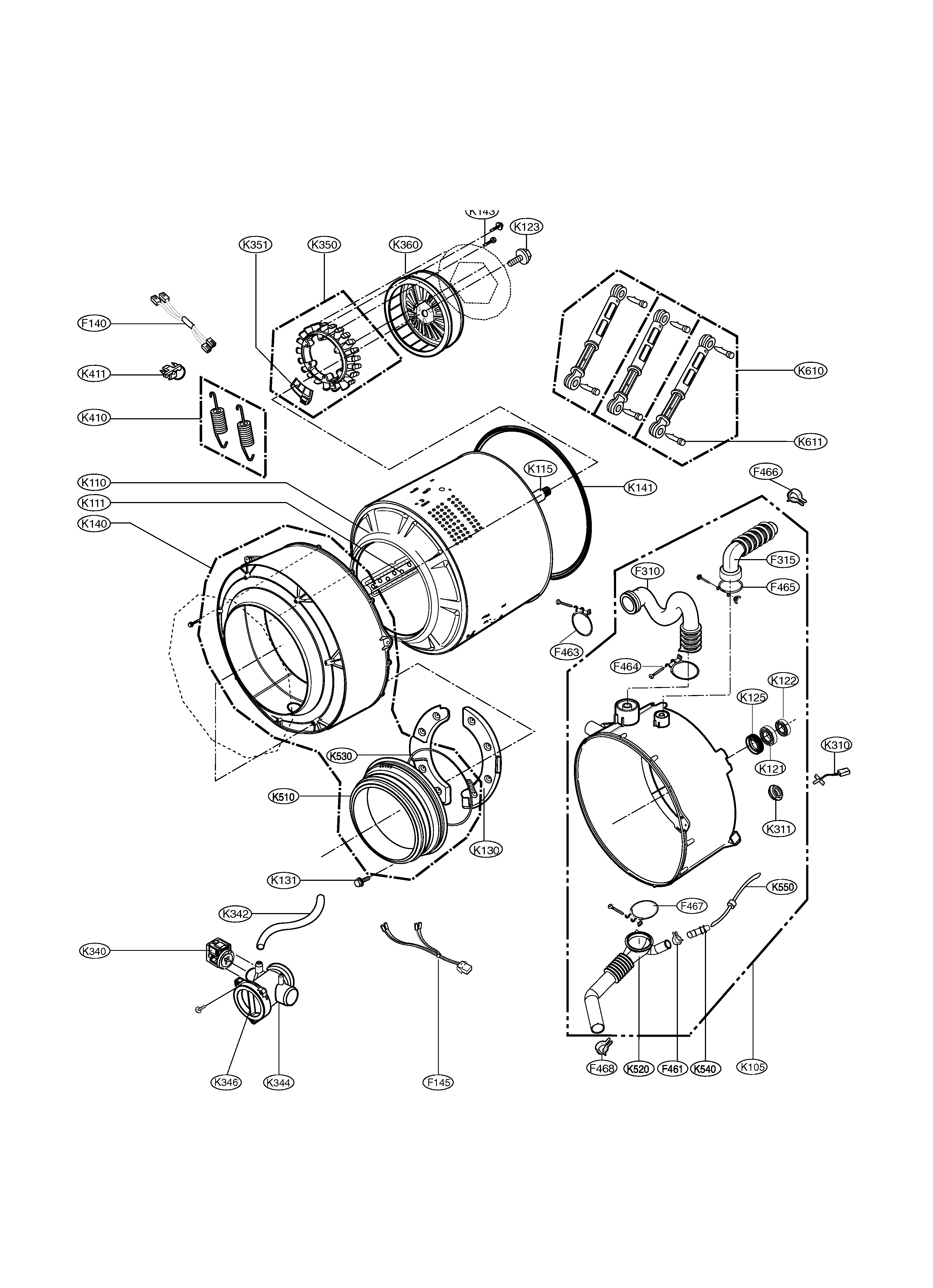

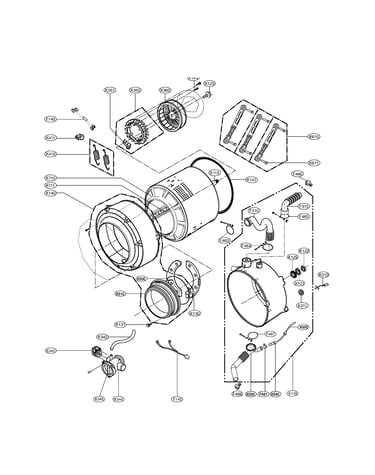

Drum & tub diagram

Washer drain pump filter drain hose

Part #5214FR4006L

Replaced by #5214FR4006G

?
Manufacturer substitution
This part replaces 5214FR4006L. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.56 |
13% OFF Phone Price : $7.56
In Stock
Washer Drain Pump Filter (replaces 383eer2001f, 5230er3002a) 383EER2001A
#K346

Drum & tub diagram

Washer drain pump filter (replaces 383eer2001f, 5230er3002a)

Part #383EER2001A

BEST SELLER
$20.29 |
23% OFF Phone Price : $26.29
In Stock
Washer Hose Clamp (replaces 3w40106m) 4861FR3068A
#F462

Dispenser diagram

Washer hose clamp (replaces 3w40106m)

Part #4861FR3068A

BEST SELLER
This item is not returnable
$6.77 |
13% OFF Phone Price : $7.77
In Stock
Washer Shock Absorber Mounting Pin 4774FR3118B
#K611

Drum & tub diagram

Washer shock absorber mounting pin

Part #4774FR3118B

BEST SELLER
$15.36 |
12% OFF Phone Price : $17.36
In Stock
Washer Drain Pump Filter Drain Hose Plug 5006ER3009A
#A303

Cabinet & control panel diagram

Washer drain pump filter drain hose plug

Part #5006ER3009A

Replaced by #5006EN3015A

?
Manufacturer substitution
This part replaces 5006ER3009A. Substitute parts can look different from the original.
BEST SELLER
$6.70 |
13% OFF Phone Price : $7.70
In Stock
Washer Motor Rotor Position Sensor 6501KW2001A
#K351

Drum & tub diagram

Washer motor rotor position sensor

Part #6501KW2001A

Replaced by #6501KW2001B

?
Manufacturer substitution
This part replaces 6501KW2001A. Substitute parts can look different from the original.
BEST SELLER
$27.41 |
18% OFF Phone Price : $33.41
In Stock
Washer Screw 1SZZER4002A
#K131

Drum & tub diagram

Washer screw

Part #1SZZER4002A

BEST SELLER
This item is not returnable
$6.77 |
13% OFF Phone Price : $7.77
In Stock
