Gas Line Trimmer

Model # 316731973 Official Craftsman gas line trimmer

Here are the diagrams and repair parts for Official Craftsman 316731973 gas line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Lawn & Garden Equipment Engine Spark Plug (replaces 794-00043) 794-00082
#39

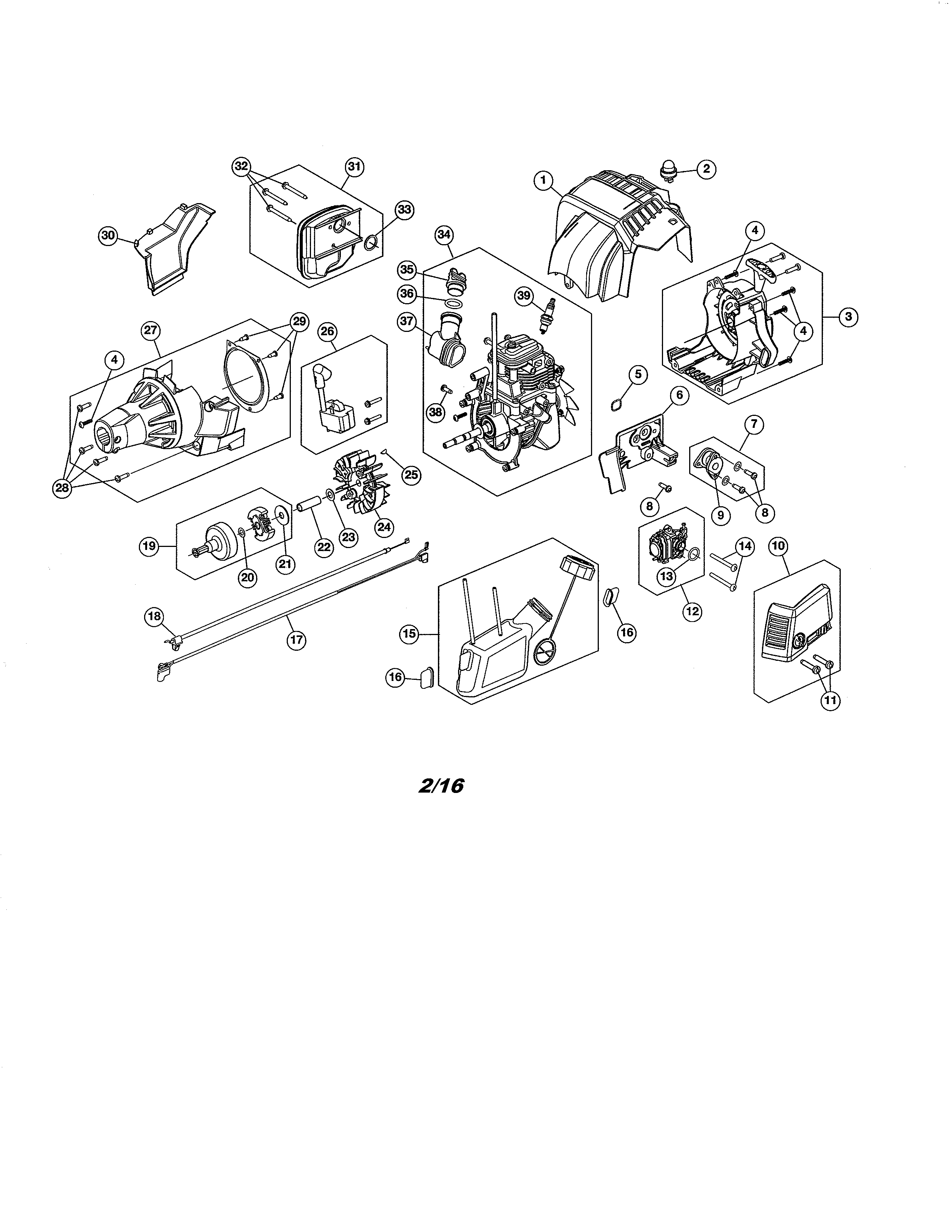

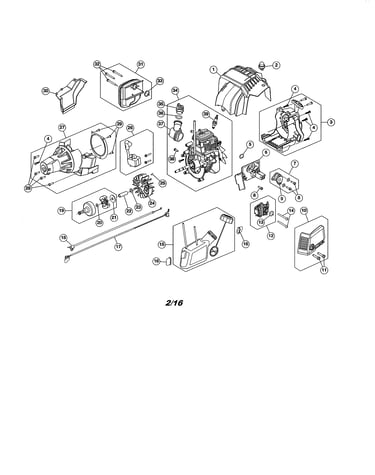

Fuel tank/short block diagram

Lawn & garden equipment engine spark plug (replaces 794-00043)

Part #794-00082

BEST SELLER
$10.05 |
17% OFF Phone Price : $12.05
In Stock
Line Trimmer Air Filter 751-12833

#NI01

All parts diagram

Line trimmer air filter

Part #751-12833

BEST SELLER
This item is not returnable
$3.29 |
23% OFF Phone Price : $4.29
In Stock
Yard-man Lawn & Garden Equipment Clutch Assembly (replaces 791-182369) 753-05860
#19

Fuel tank/short block diagram

Yard-man lawn & garden equipment clutch assembly (replaces 791-182369)

Part #753-05860

$26.75 |
18% OFF Phone Price : $32.75
In Stock
Line Trimmer Carburetor 753-08203
#12

Fuel tank/short block diagram

Line trimmer carburetor

Part #753-08203

Replaced by #753-08057

?
Manufacturer substitution
This part replaces 753-08203. Substitute parts can look different from the original.
$37.96 |
14% OFF Phone Price : $43.96
In Stock
Ace Line Trimmer Engine Flywheel (replaces 753-06499) 753-06246
#24

Fuel tank/short block diagram

Ace line trimmer engine flywheel (replaces 753-06499)

Part #753-06246

This item is not returnable
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Kmart Lawn & Garden Equipment Screw 791-182057
#12

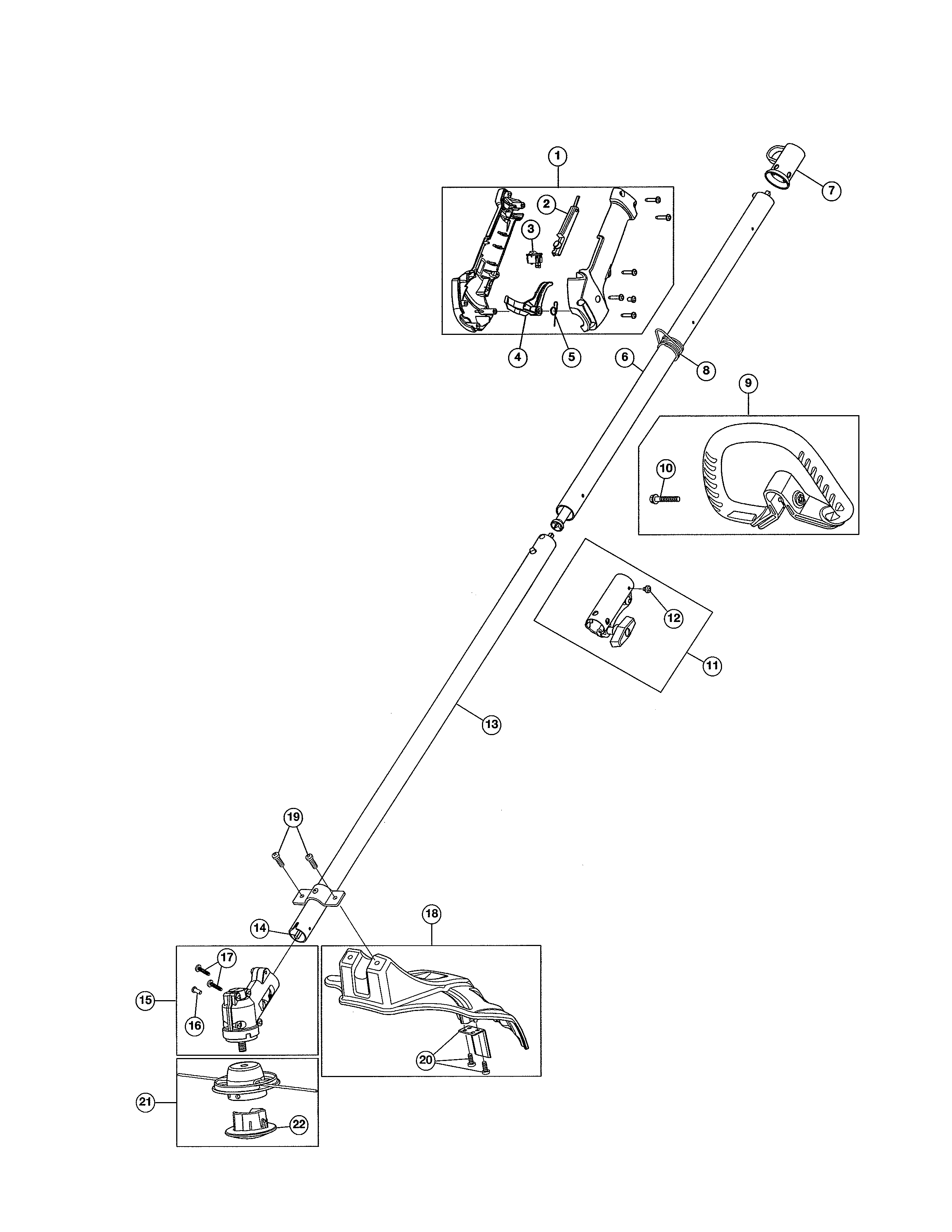

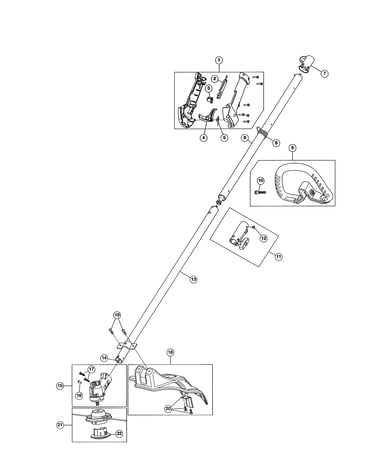

Drive shaft/handle/shield diagram

Kmart lawn & garden equipment screw

Part #791-182057

This item is not returnable
$6.87 |
13% OFF Phone Price : $7.87
In Stock
Line Trimmer Engine Oil Pan Assembly 753-08503
#NI

Fuel tank/short block diagram

Line trimmer engine oil pan assembly

Part #753-08503

$57.67 |
9% OFF Phone Price : $63.67
In Stock
Yard Machines Lawn & Garden Equipment Screw 791-182195
#17

Drive shaft/handle/shield diagram

Yard machines lawn & garden equipment screw

Part #791-182195

This item is not returnable
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Lawn & Garden Equipment Screw 710-04194
#4

Fuel tank/short block diagram

Lawn & garden equipment screw

Part #710-04194

This item is not returnable
$6.46 |
13% OFF Phone Price : $7.46
In Stock
Screw 710-04809
#32

Fuel tank/short block diagram

Screw

Part #710-04809

This item is not returnable
$5.60
In Stock
