Model # SF0100SKW0 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF0100SKW0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Nut 878095
#7

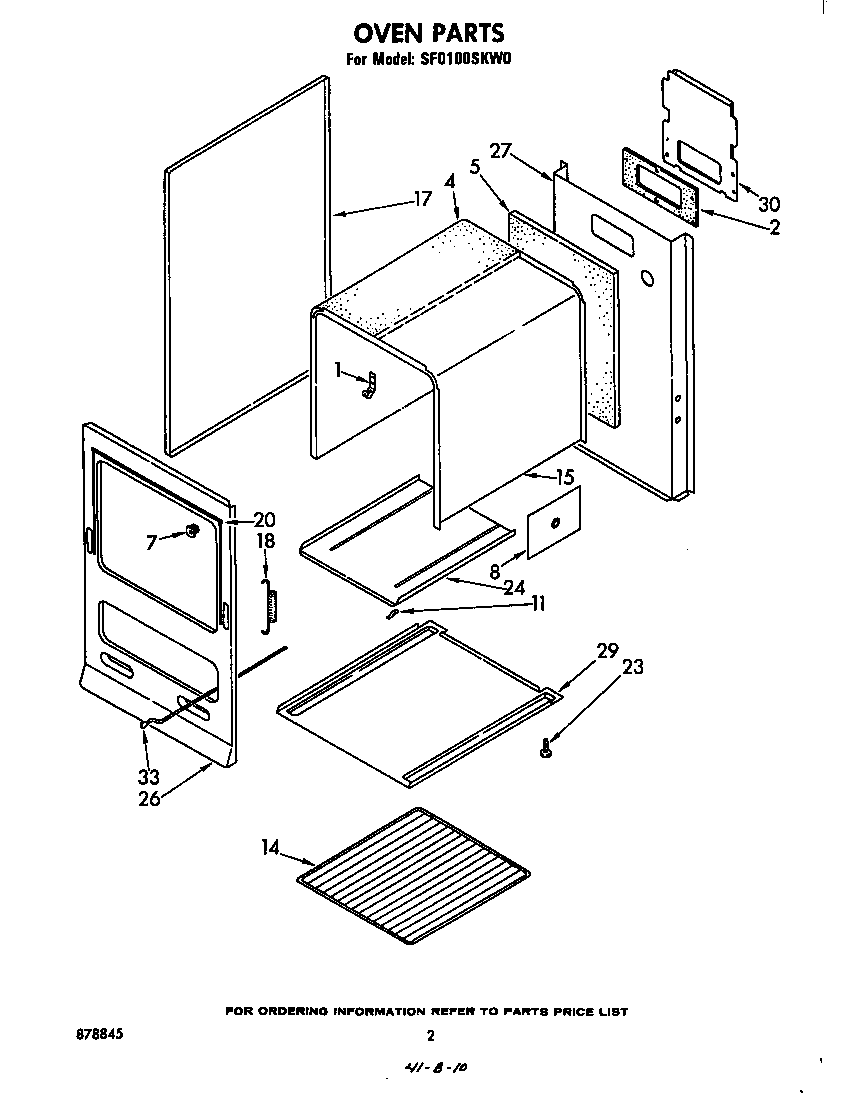

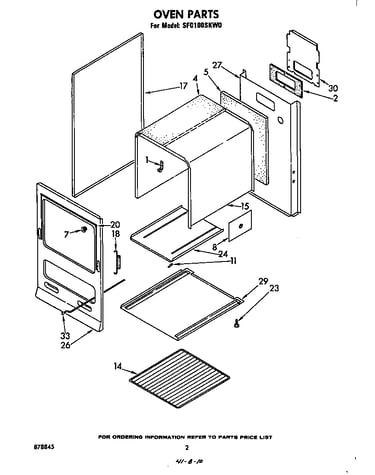

Oven diagram

Nut

Part #878095

Replaced by #98460

?
Manufacturer substitution
This part replaces 878095. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Insulation 878305
#4

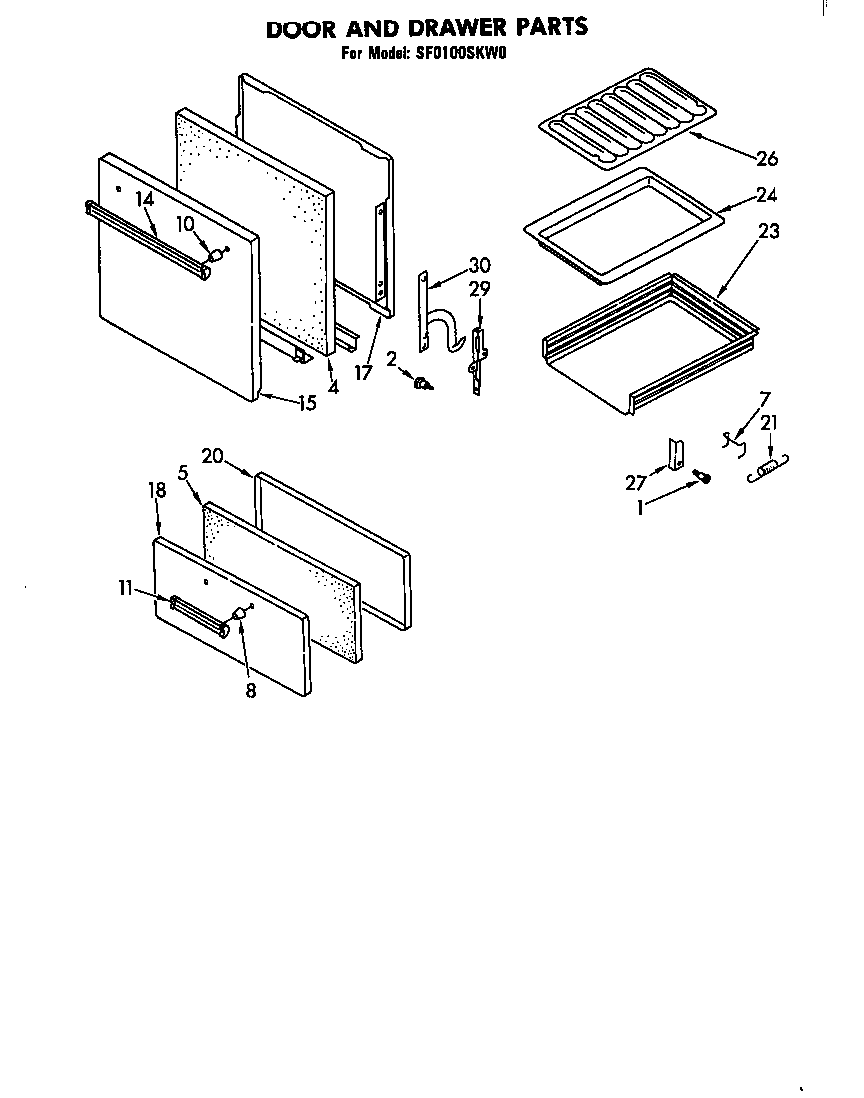

Door and drawer diagram

Insulation

Part #878305

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878305. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 878367
#5

Oven diagram

Insulation

Part #878367

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878367. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 878307
#4

Oven diagram

Insulation

Part #878307

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878307. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Rear Cover 878347
#27

Oven diagram

Rear cover

Part #878347

The manufacturer no longer makes this part, and there's no substitute part

Shuttr-air 878102
#11

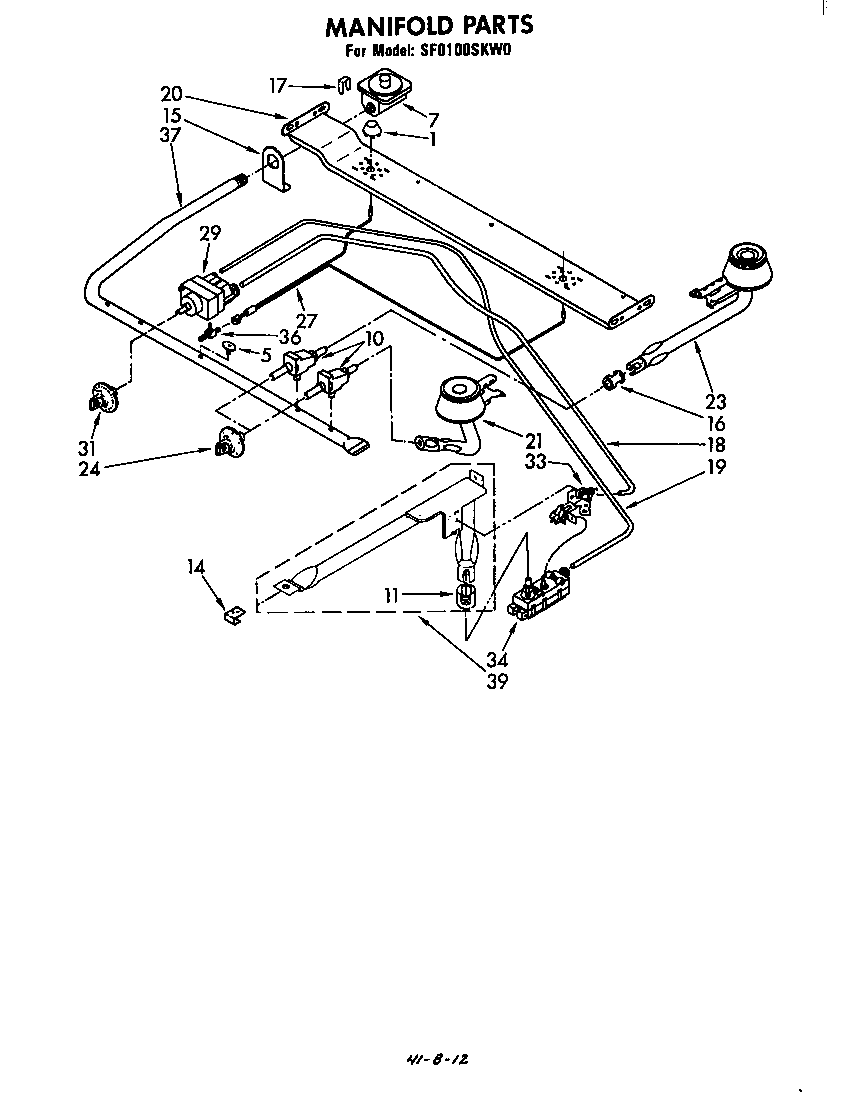

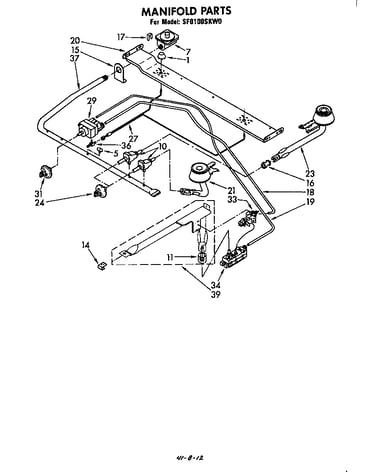

Manifold diagram

Shuttr-air

Part #878102

The manufacturer no longer makes this part, and there's no substitute part

Pipe 878715
#37

Manifold diagram

Pipe

Part #878715

The manufacturer no longer makes this part, and there's no substitute part

Vent Gasket 878304
#2

Oven diagram

Vent gasket

Part #878304

The manufacturer no longer makes this part, and there's no substitute part

Fitting 878825
#5

Manifold diagram

Fitting

Part #878825

The manufacturer no longer makes this part, and there's no substitute part

Backguard Panel 878435
#21D

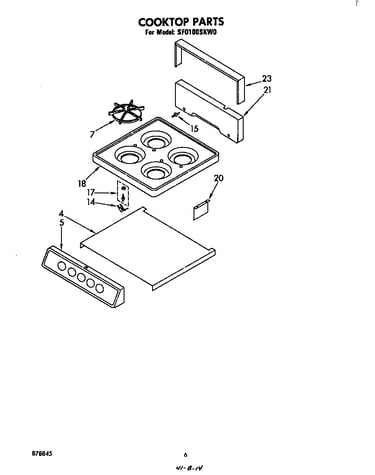

Cooktop diagram

Backguard panel

Part #878435

The manufacturer no longer makes this part, and there's no substitute part
