Model # JRT216B/MAJ73B Official Jenn-Air refrigerator

Here are the diagrams and repair parts for Official Jenn-Air JRT216B-MAJ73B refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

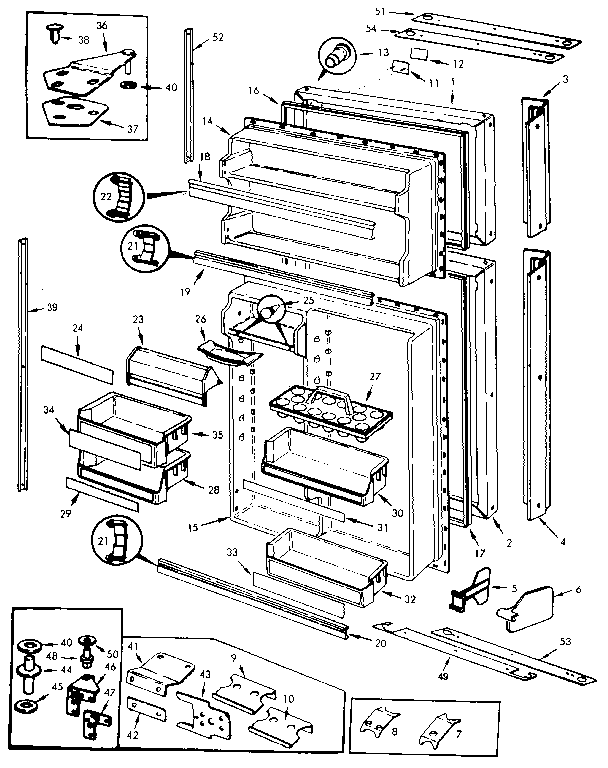

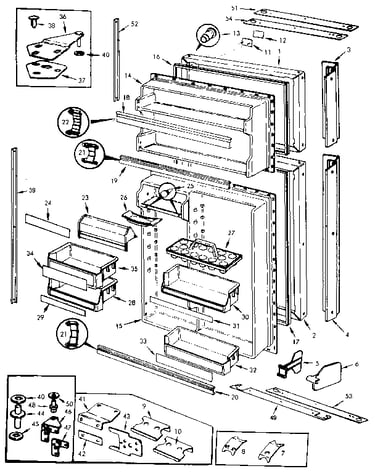

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |
Refrigerator Drier 13900
#13

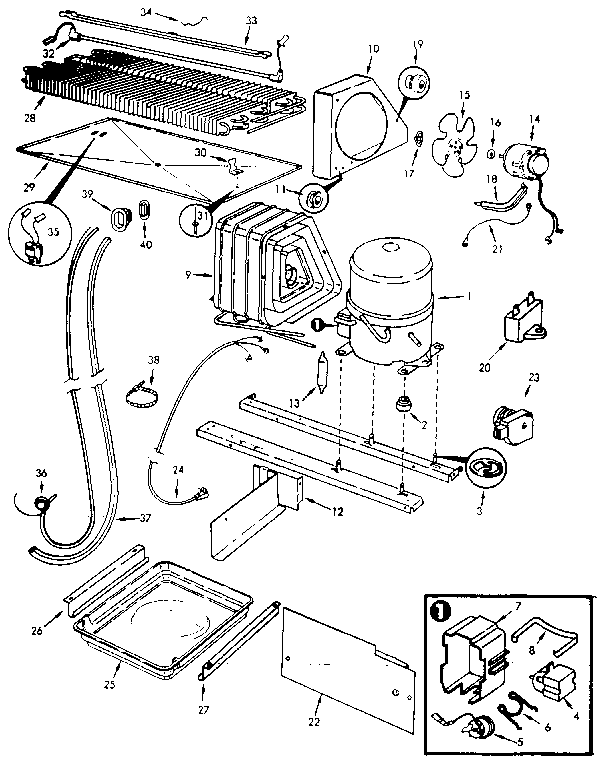

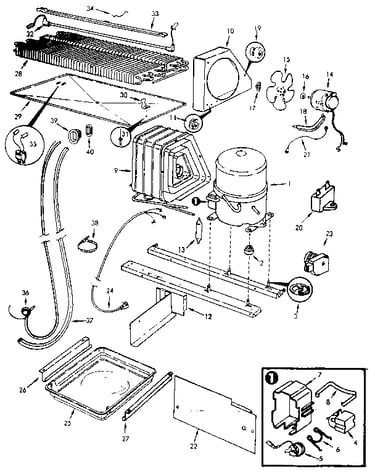

Unit diagram

Refrigerator drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Bulb 31956
#19

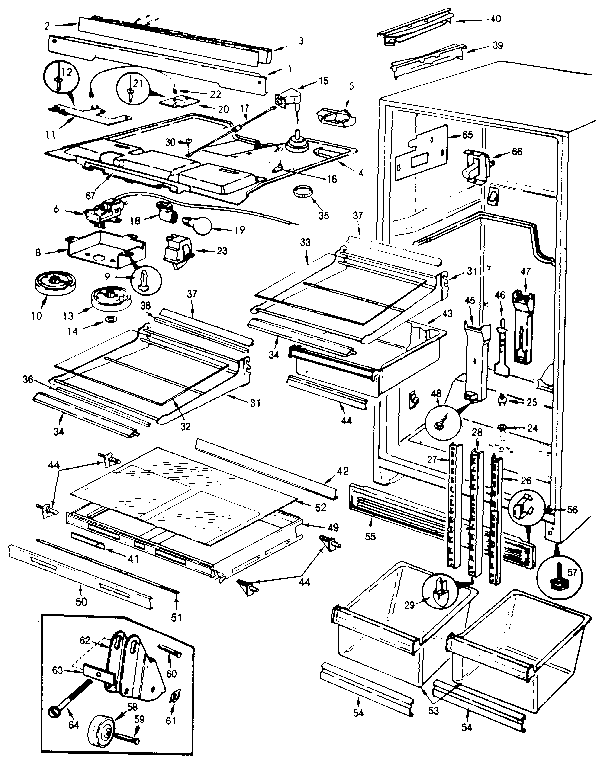

Fresh food compartment diagram

Refrigerator light bulb

Part #31956

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch 66987-1
#23

Fresh food compartment diagram

Refrigerator light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Capacitor 65889-2
#20

Unit diagram

Refrigerator capacitor

Part #65889-2

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 65889-2. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Refrigerator Motor 28056-13
#14

Unit diagram

Refrigerator motor

Part #28056-13

Replaced by #833697

?
Manufacturer substitution
This part replaces 28056-13. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Screw 9986-45
#22A

Unit diagram

Refrigerator screw

Part #9986-45

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 9986-45. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Tubing 67579-7
#25

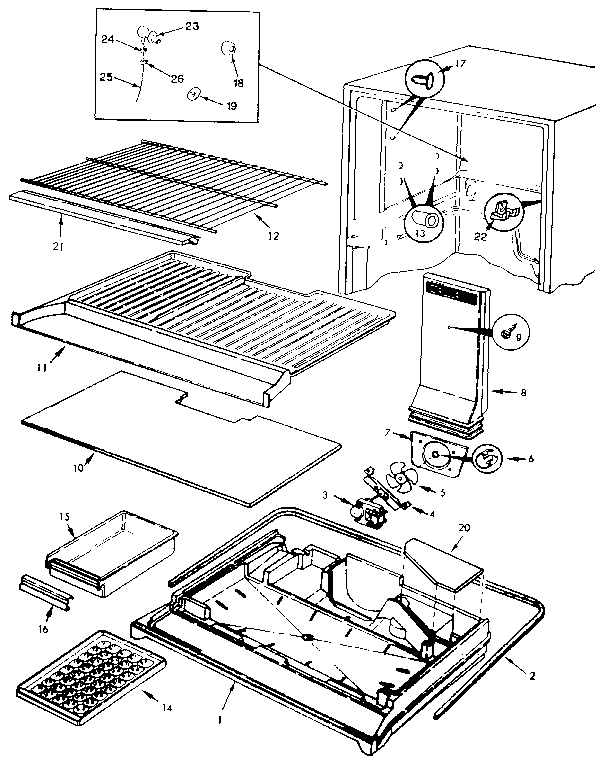

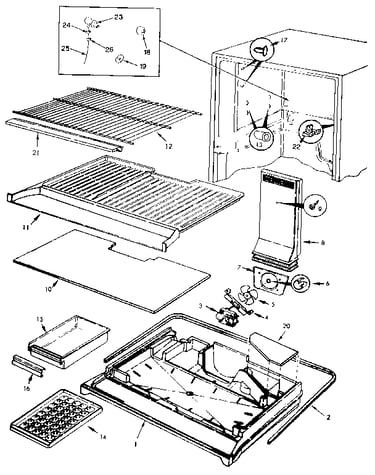

Freezer compartment diagram
