Model # 11023932200 Official Kenmore washer
Here are the diagrams and repair parts for Official Kenmore 11023932200 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

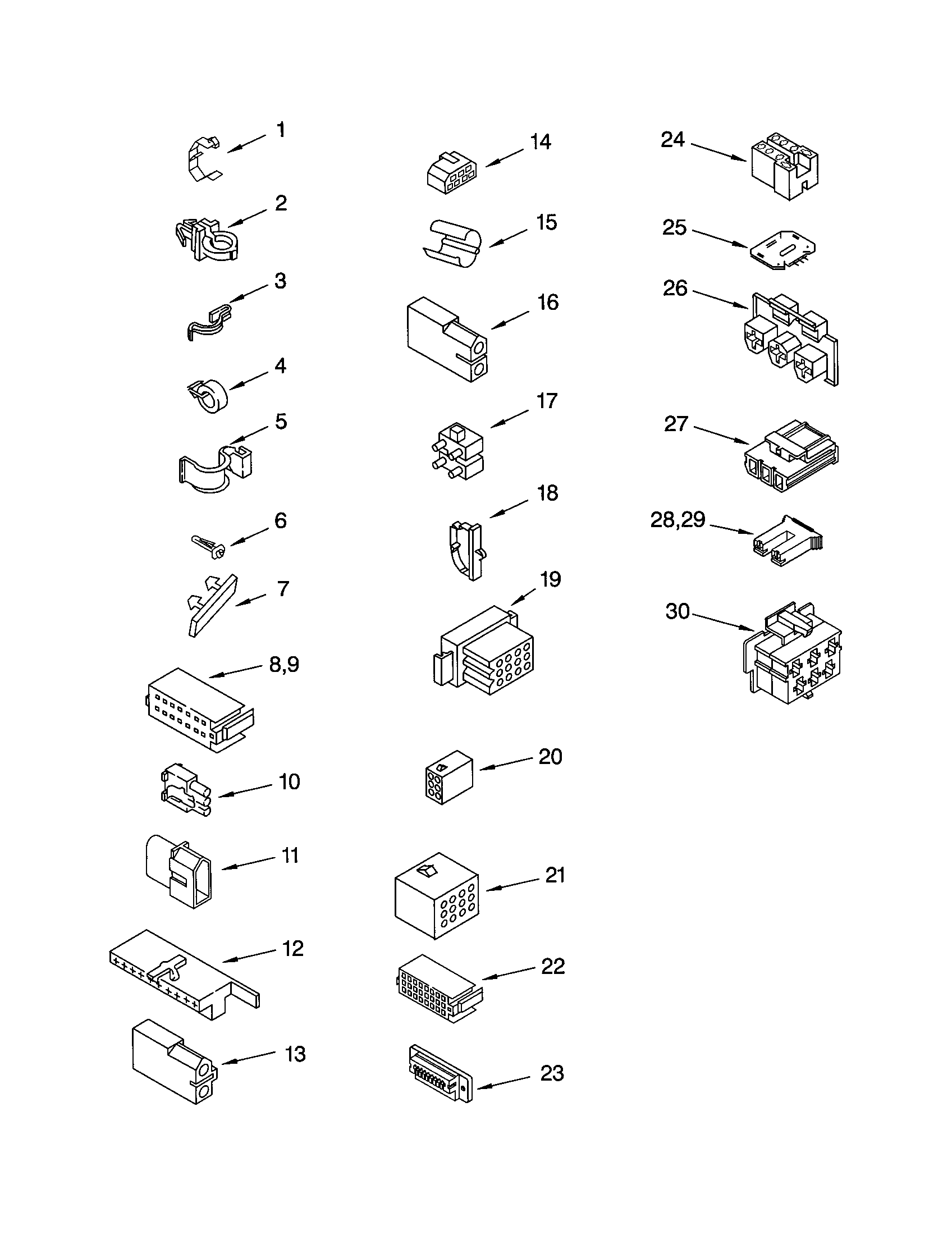

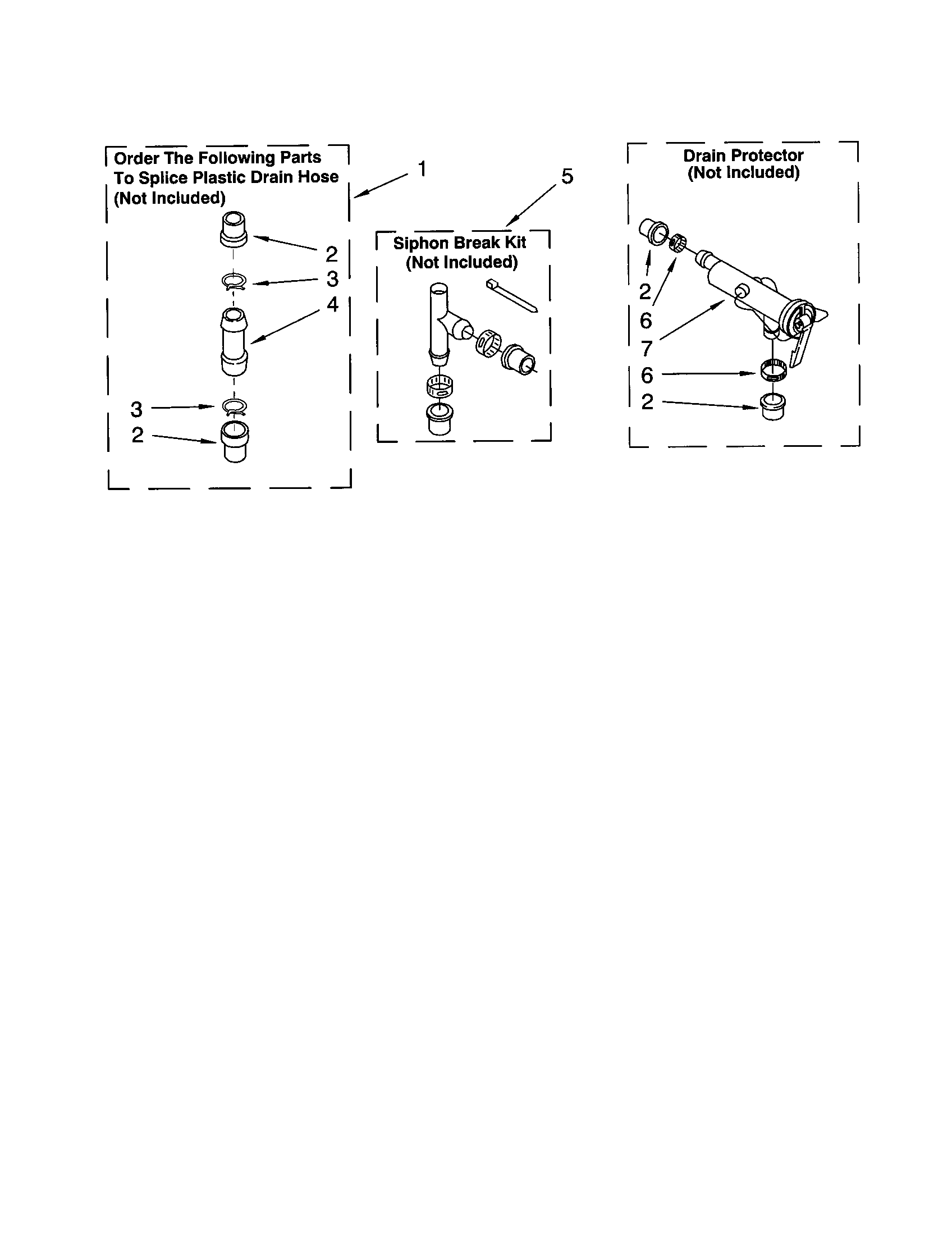

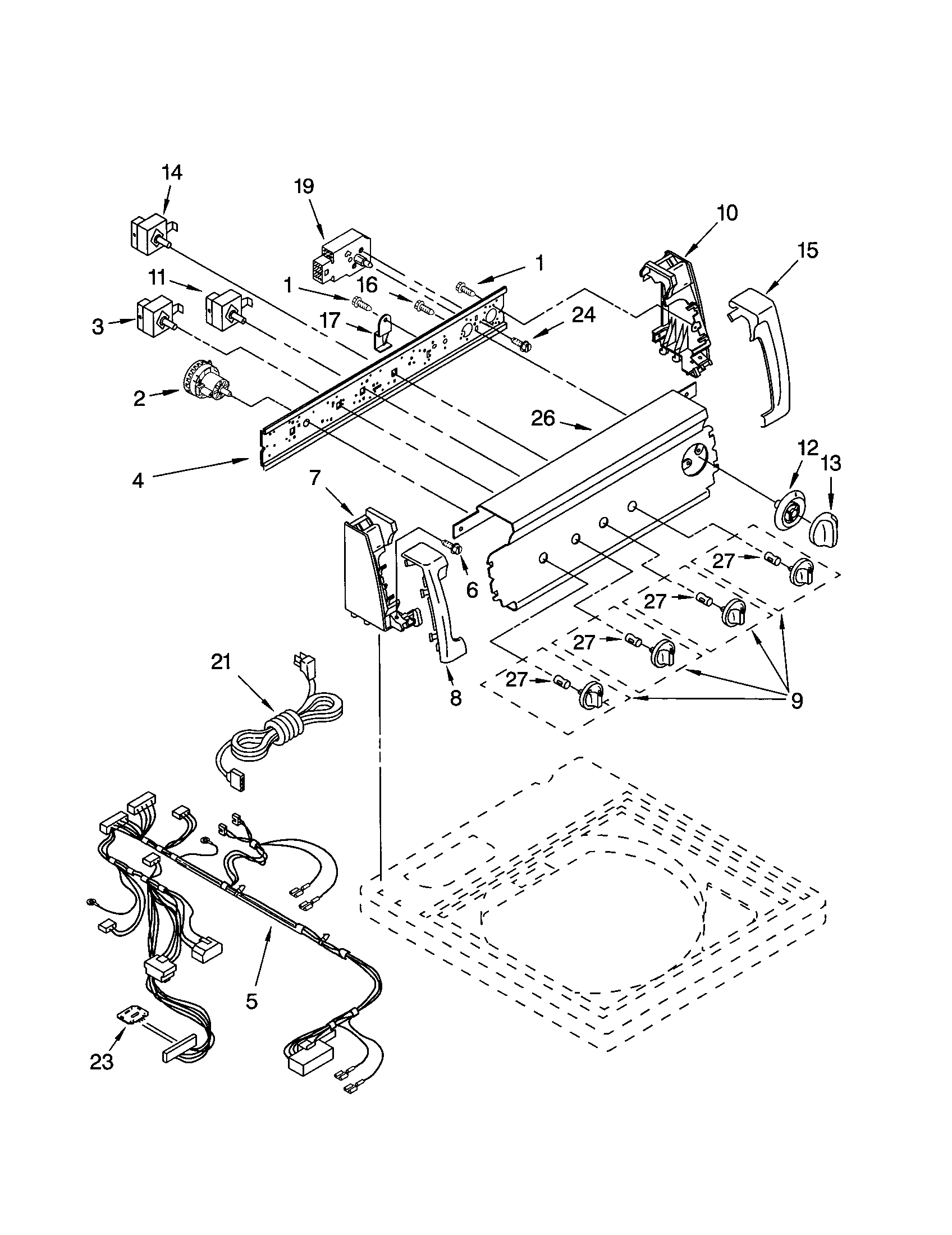

SELECT DIAGRAM
Browse Parts for
11023932200 Washer
#5

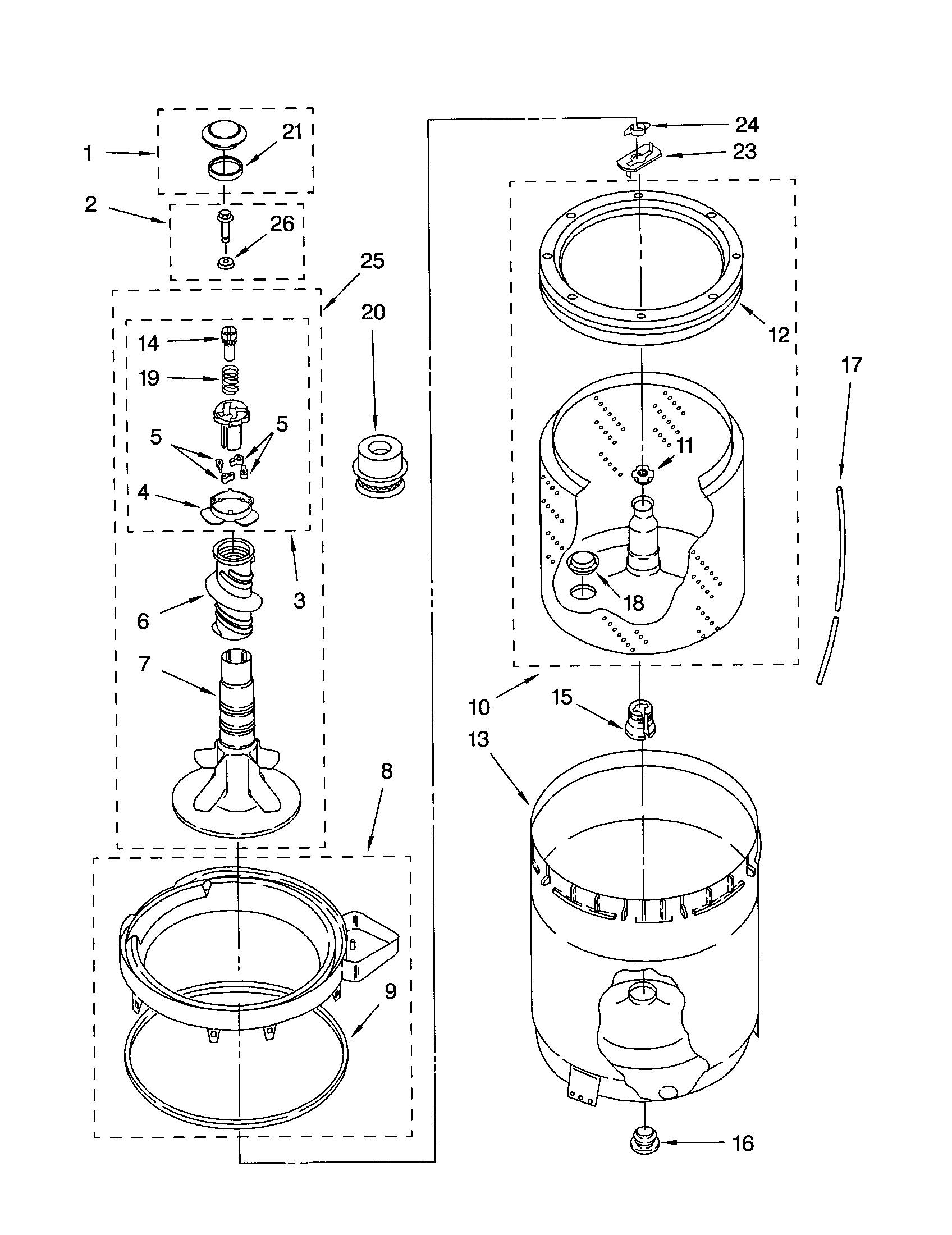

Agitator, basket and tub diagram
Agitator dog
Part #3366877
Replaced by #80040
?
Manufacturer substitution
This part replaces 3366877. Substitute parts can look different from the original.
$6.87 |
13% OFF Phone Price : $7.87
In Stock
#13

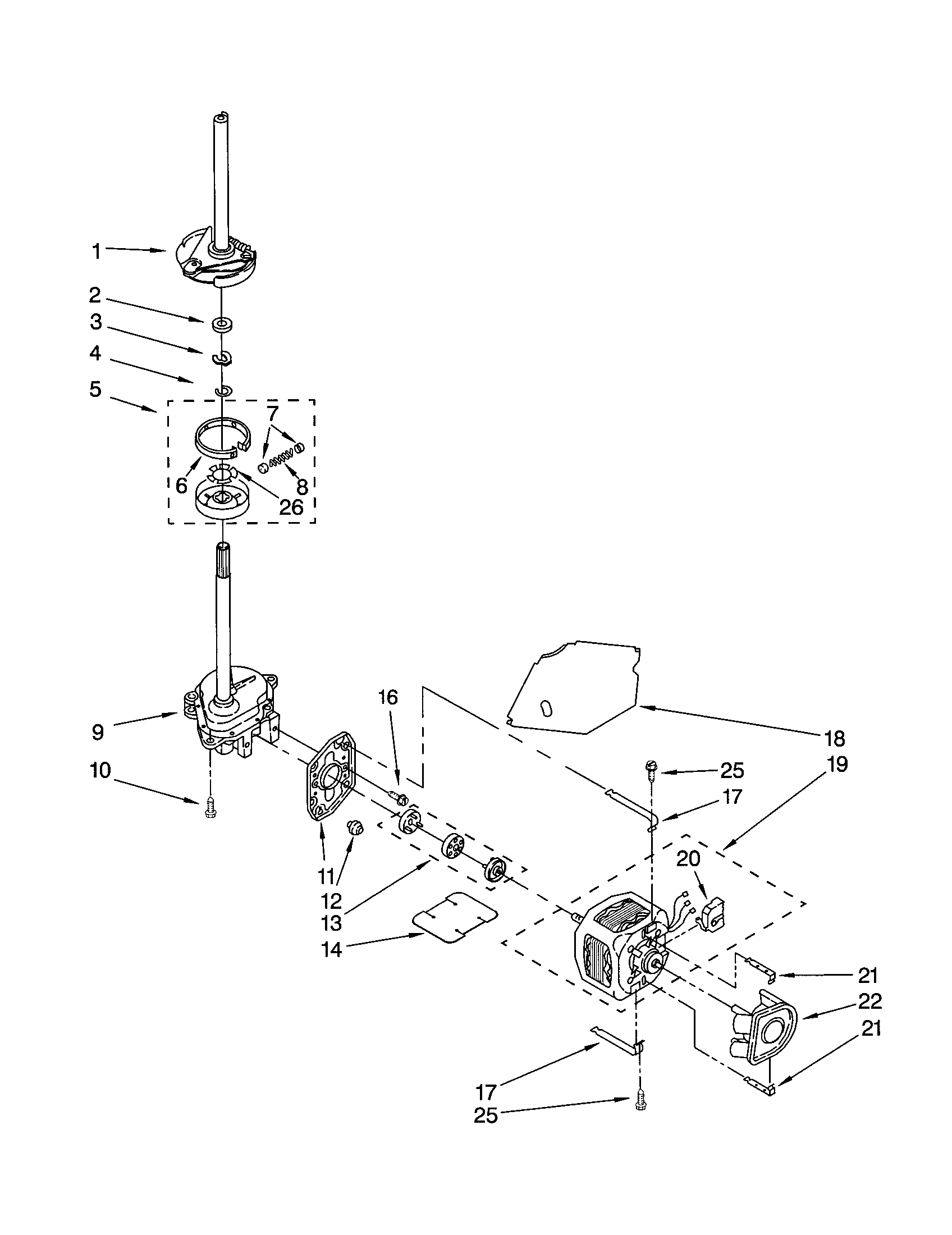

Brake/clutch/gearcase/motor/pump diagram
Washer motor coupling
Part #285753
Replaced by #285753A
?
Manufacturer substitution
This part replaces 285753. Substitute parts can look different from the original.
$21.03 |
22% OFF Phone Price : $27.03
In Stock
#9
Brake/clutch/gearcase/motor/pump diagram
Gear case
Part #3360630
Replaced by #3360629
?
Manufacturer substitution
This part replaces 3360630. Substitute parts can look different from the original.
$237.92 |
5% OFF Phone Price : $249.92
In Stock
#5
Brake/clutch/gearcase/motor/pump diagram
Clutch
Part #3951311
Replaced by #285785
?
Manufacturer substitution
This part replaces 3951311. Substitute parts can look different from the original.
$32.12 |
16% OFF Phone Price : $38.12
In Stock
#11

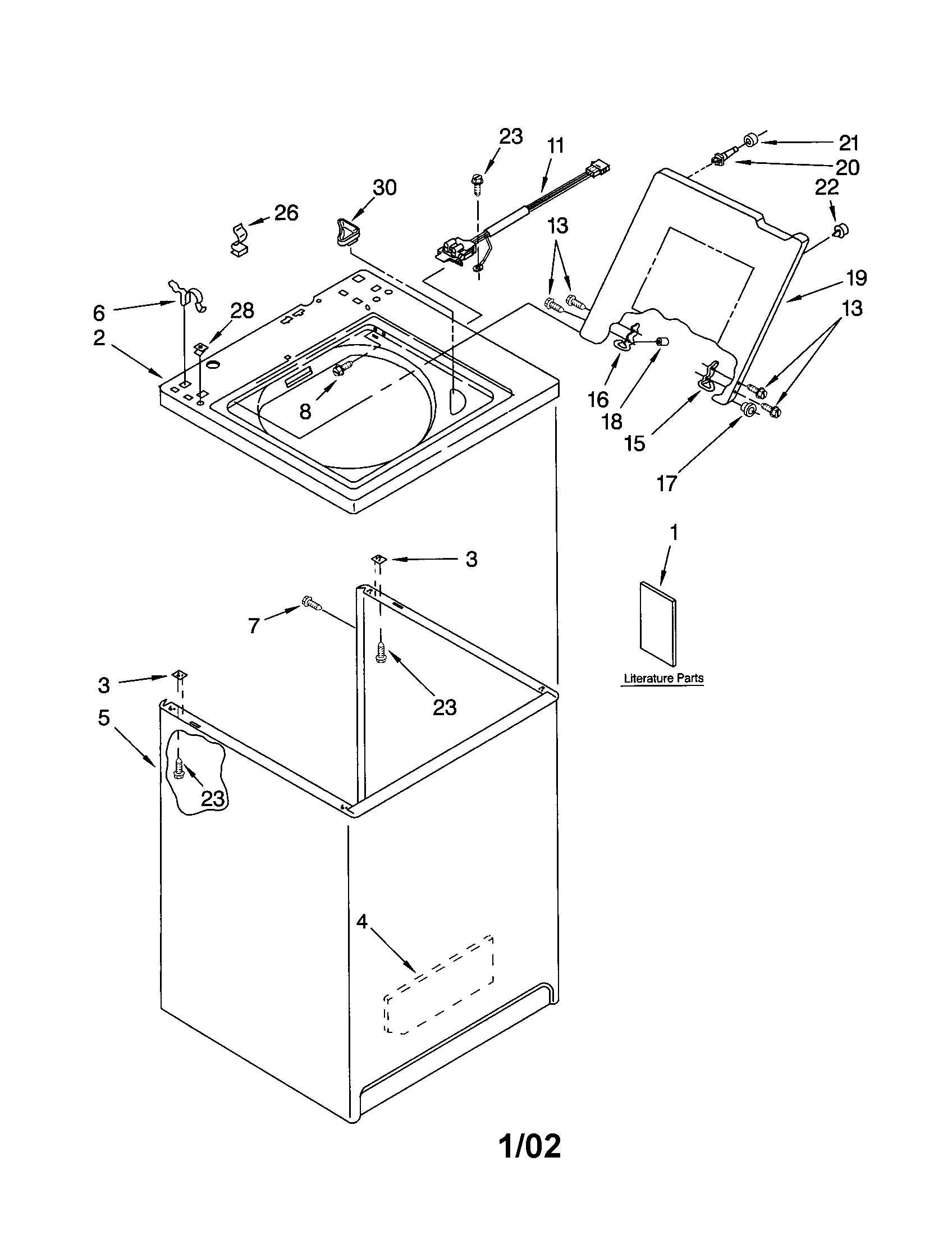

Top and cabinet diagram
Washer lid switch
Part #3949238
Replaced by #WP3949238
?
Manufacturer substitution
This part replaces 3949238. Substitute parts can look different from the original.
$26.97 |
18% OFF Phone Price : $32.97
In Stock
Drive basket
Part #388952
Replaced by #W10820043
?
Manufacturer substitution
This part replaces 388952. Substitute parts can look different from the original.
$125.26 |
9% OFF Phone Price : $137.26
In Stock
#22
Brake/clutch/gearcase/motor/pump diagram
Washer drain pump
Part #3363394
Replaced by #WP3363394
?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
$28.91 |
17% OFF Phone Price : $34.91
In Stock
#11
Agitator, basket and tub diagram
Washer spanner nut
Part #21366
Replaced by #WP21366
?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#26

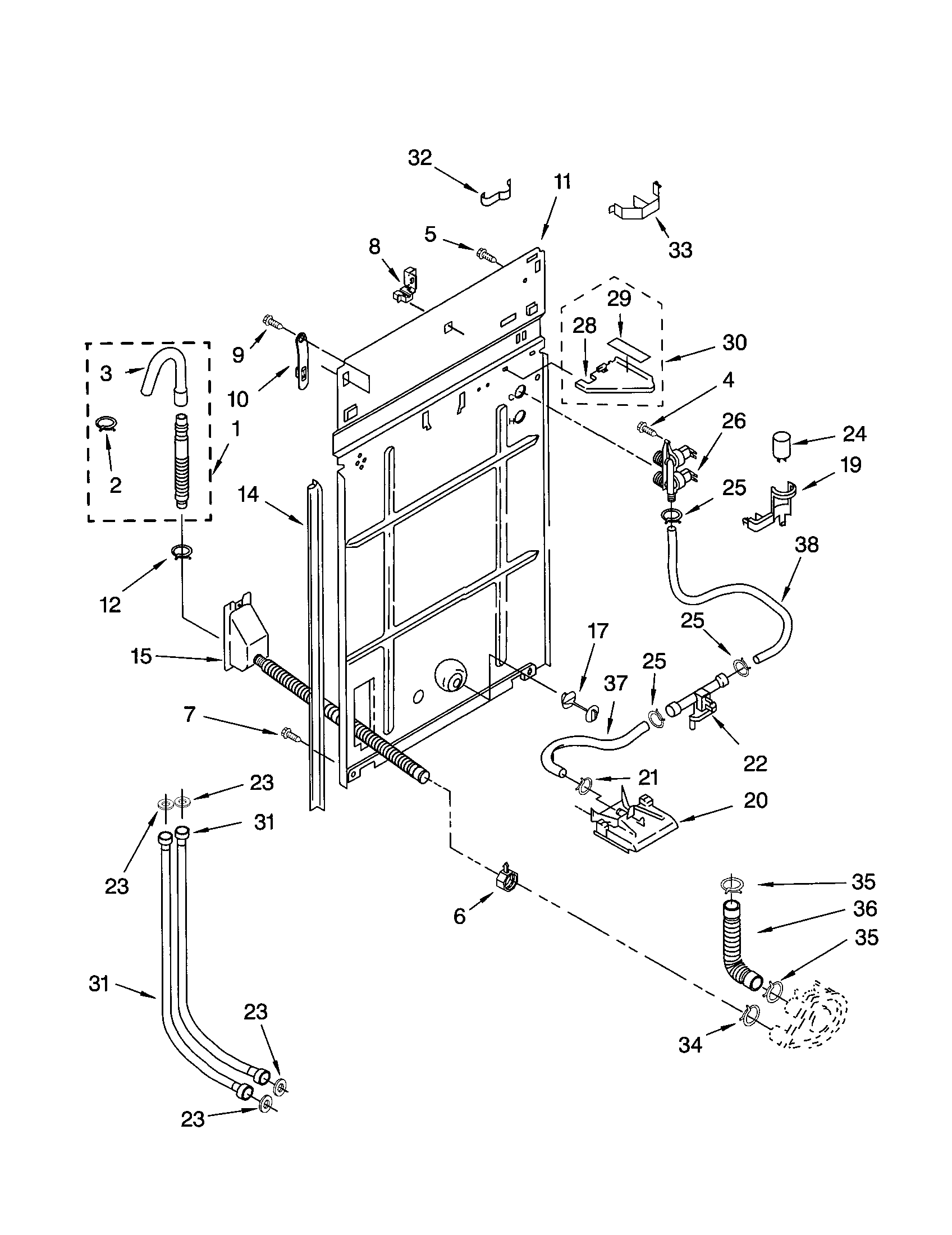

Rear panel diagram
Washer inlet valve
Part #3952164
Replaced by #285805
?
Manufacturer substitution
This part replaces 3952164. Substitute parts can look different from the original.
$26.81 |
18% OFF Phone Price : $32.81
In Stock
#3

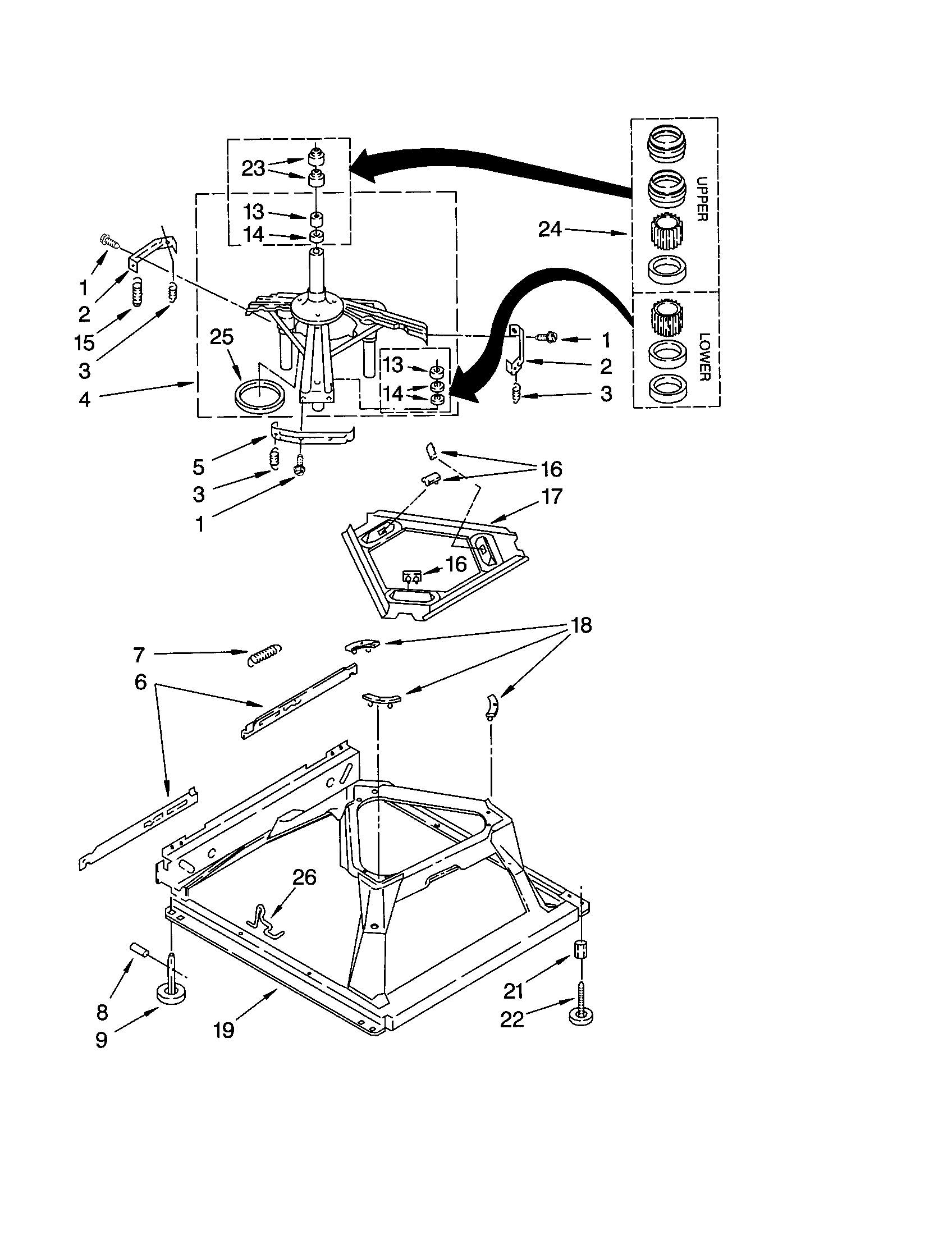

Machine base diagram
Washer suspension spring
Part #63907
Replaced by #WP63907
?
Manufacturer substitution
This part replaces 63907. Substitute parts can look different from the original.
$7.26 |
12% OFF Phone Price : $8.26
In Stock
