LG
Bottom-Mount Refrigerator

Model # LBC22518WW/00 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LBC22518WW-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

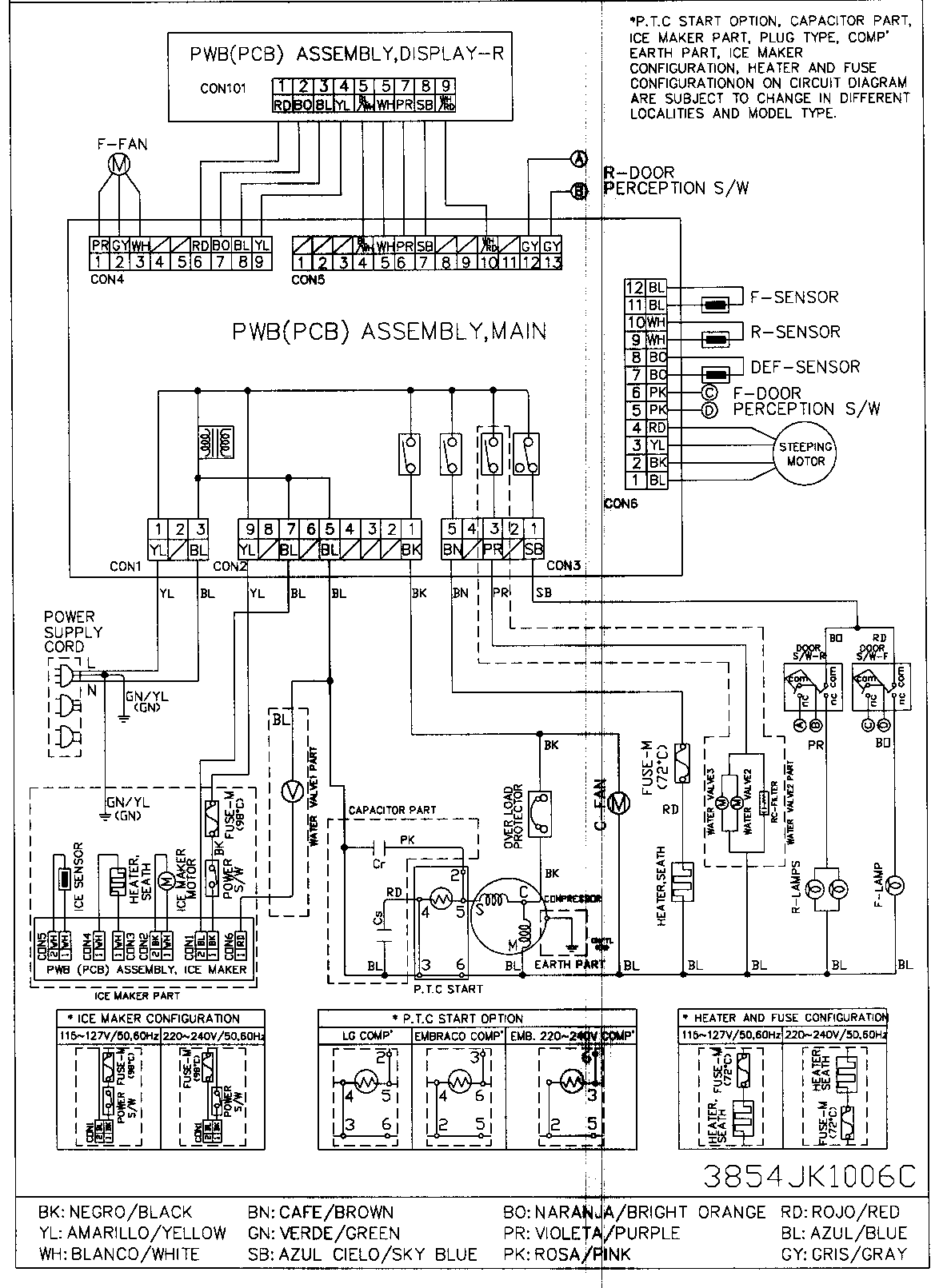

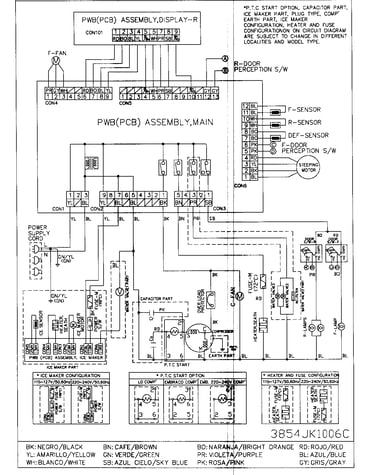

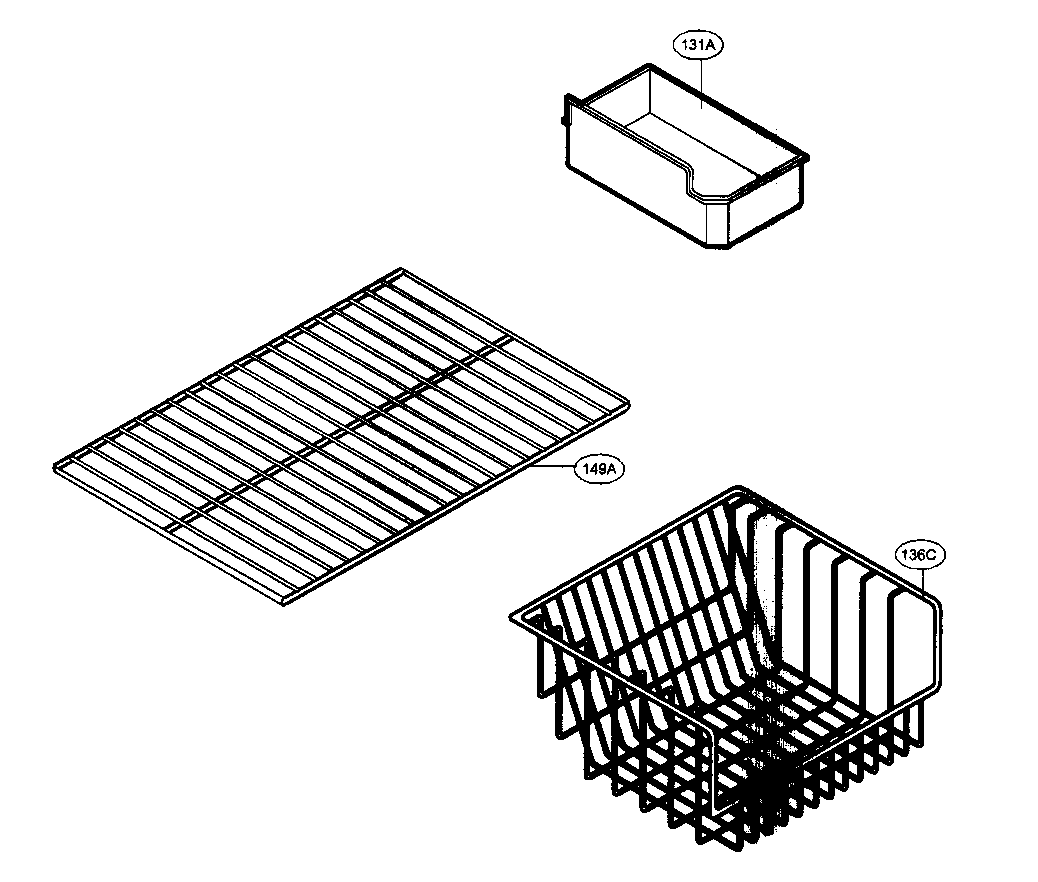

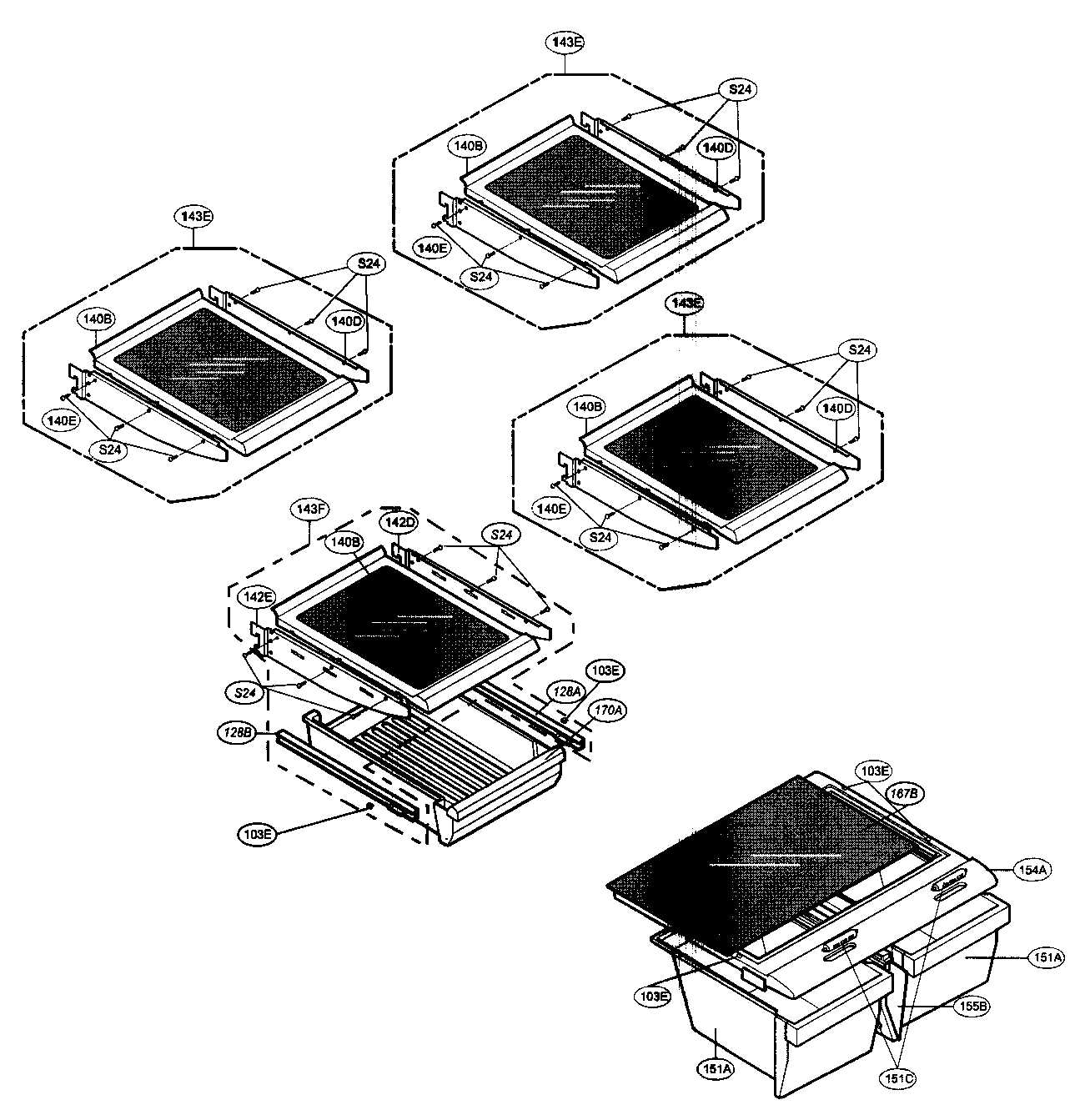

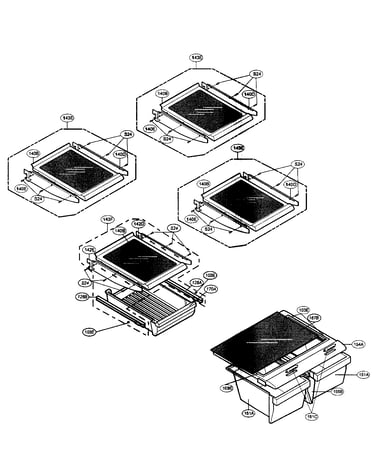

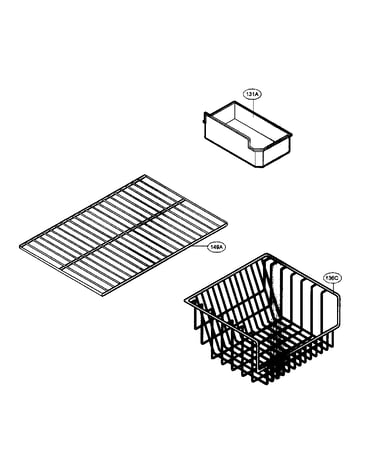

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Refrigerator Drier Assembly 5851JJ2002B
#317A

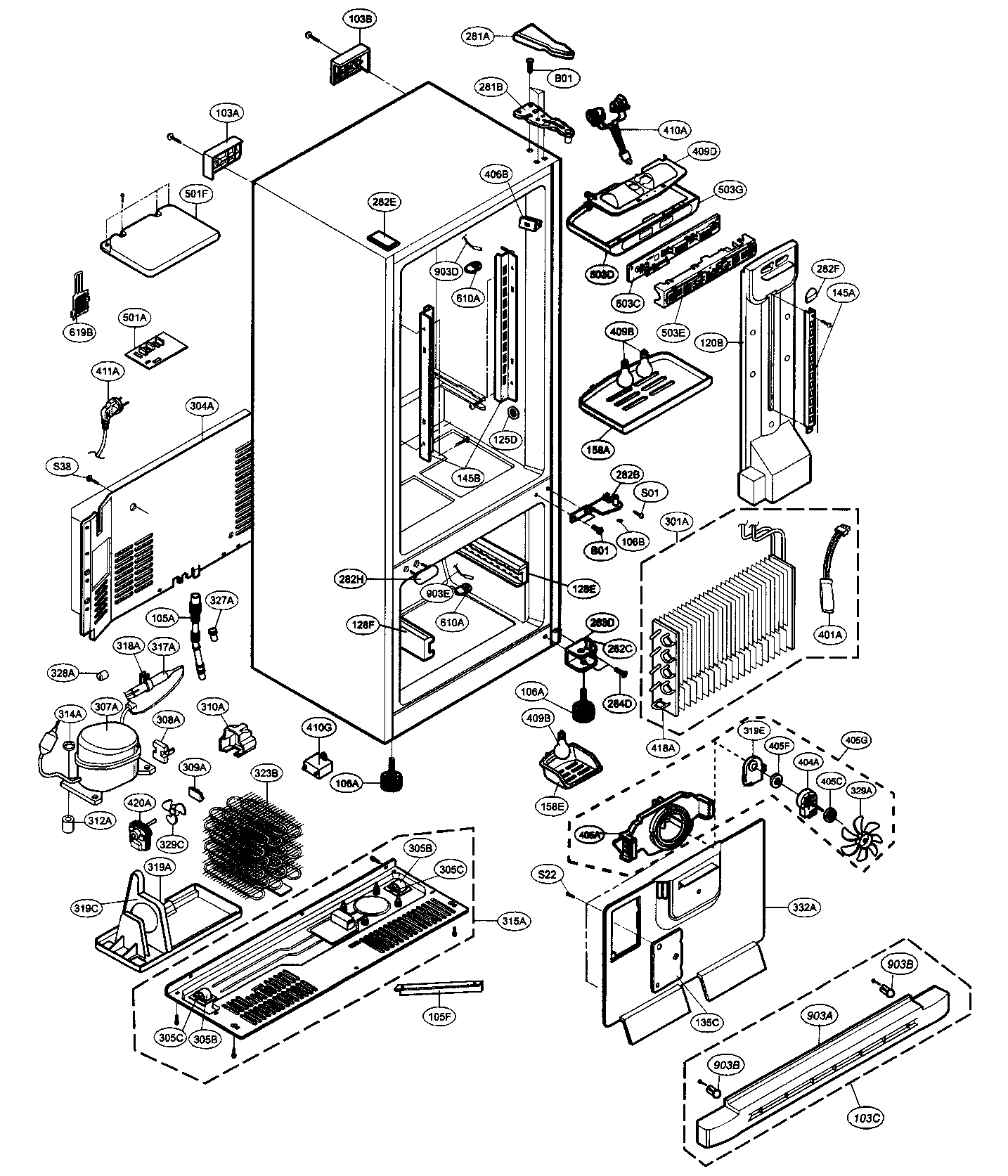

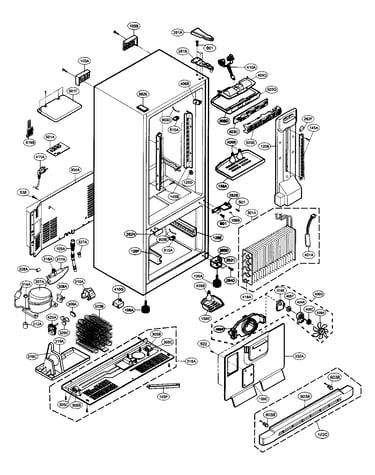

Case parts diagram

Refrigerator drier assembly

Part #5851JJ2002B

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JJ2002B. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Refrigerator Door Push-button Switch 6600JB1004A
#406B

Case parts diagram

Refrigerator door push-button switch

Part #6600JB1004A

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1004A. Substitute parts can look different from the original.
BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Door Hinge Bushing 4984JJ3003A
#286A

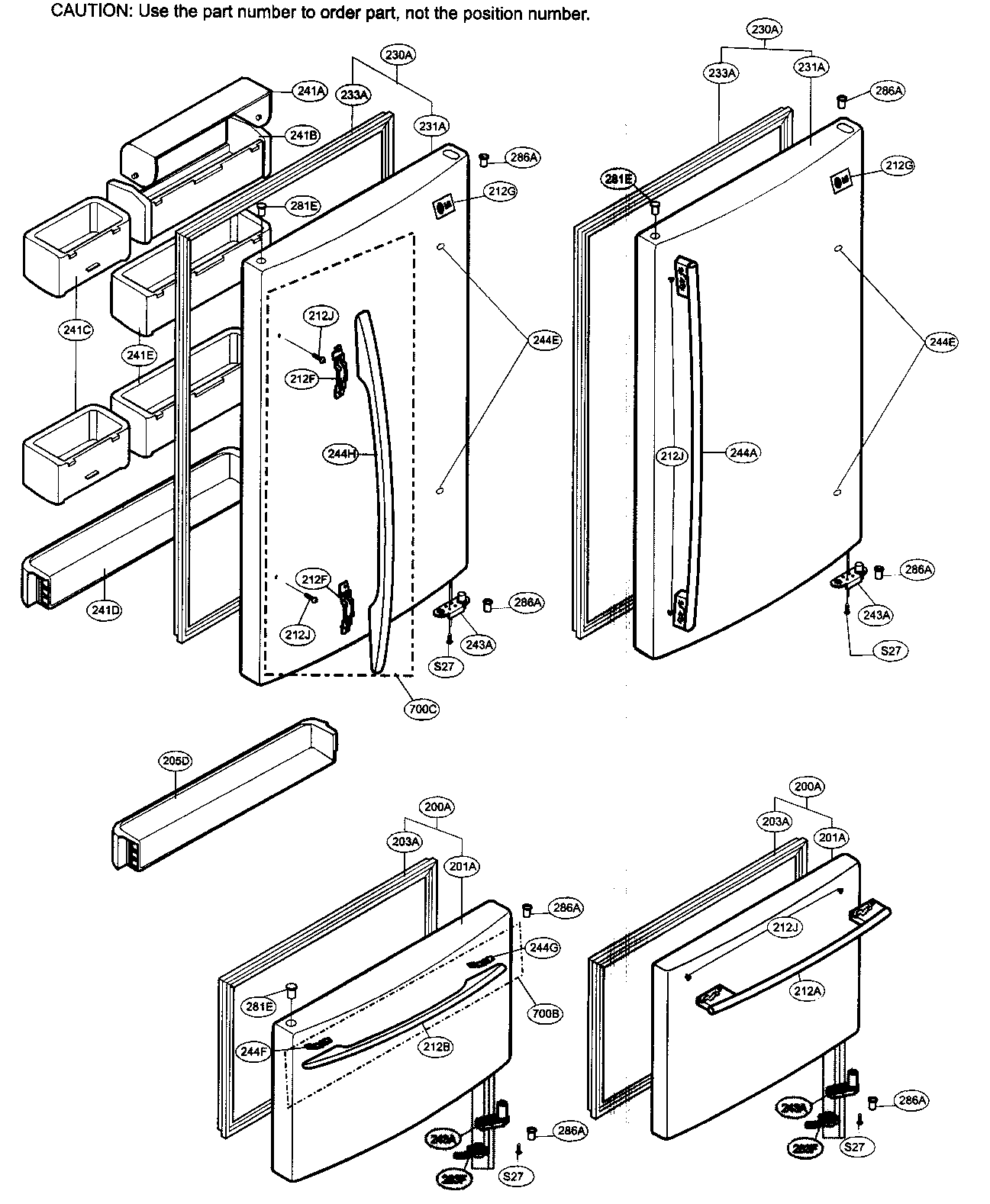

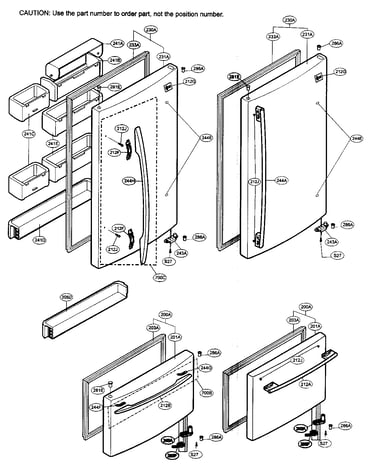

Door swing diagram

Refrigerator door hinge bushing

Part #4984JJ3003A

BEST SELLER
$11.62 |
15% OFF Phone Price : $13.62
In Stock
Refrigerator Gasket Assembly 4987JJ1004A
#203A

Door swing diagram

Refrigerator gasket assembly

Part #4987JJ1004A

Replaced by #ADX73350925

?
Manufacturer substitution
This part replaces 4987JJ1004A. Substitute parts can look different from the original.
BEST SELLER
$61.44 |
9% OFF Phone Price : $67.44
In Stock
Refrigerator Air Damper Motor 4681JK1004A
#404A

Case parts diagram

Refrigerator air damper motor

Part #4681JK1004A

Replaced by #4681JB1029H

?
Manufacturer substitution
This part replaces 4681JK1004A. Substitute parts can look different from the original.
BEST SELLER
$76.72 |
7% OFF Phone Price : $82.72
In Stock
Refrigerator Sensor 6500JK1003A
#903D

Case parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Ice Maker Assembly (replaces 5989jj002n) 5989JA0002N
#600A

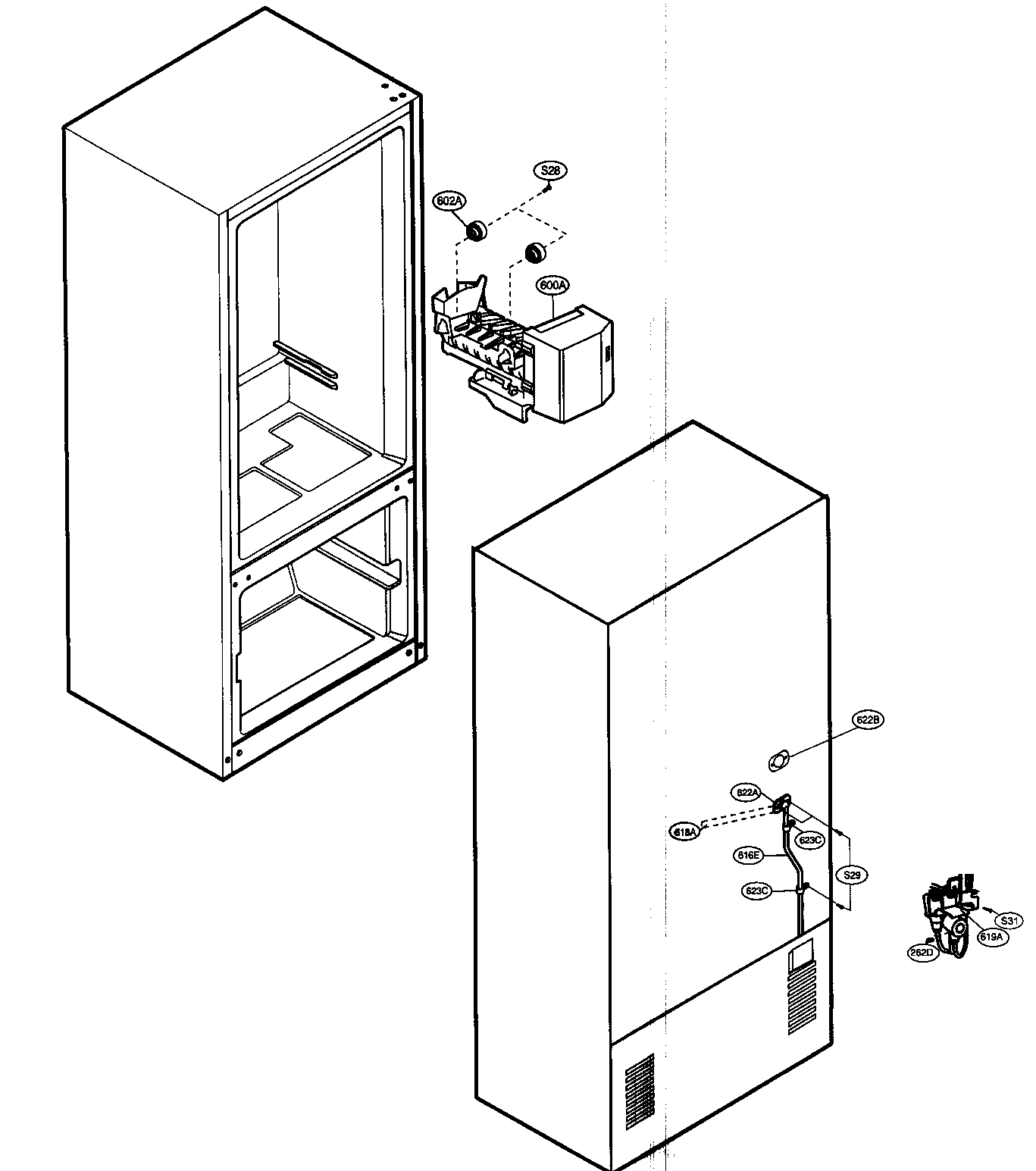

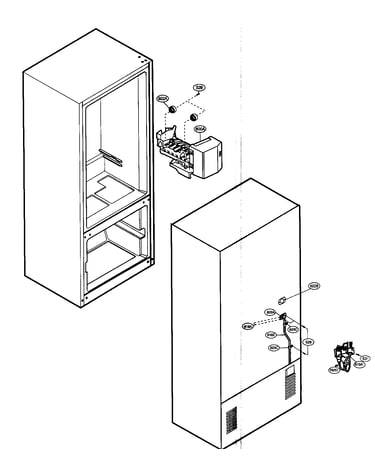

Water/ice maker diagram

Refrigerator ice maker assembly (replaces 5989jj002n)

Part #5989JA0002N

BEST SELLER
$202.91 |
6% OFF Phone Price : $214.91
In Stock
Refrigerator Water Inlet Valve (replaces 5220ja2003a, 5220ja2009b, 5221ja2008g) 5220JA2009D
Refrigerator water inlet valve (replaces 5220ja2003a, 5220ja2009b, 5221ja2008g)

Part #5220JA2009D

BEST SELLER
$63.83 |
9% OFF Phone Price : $69.83
In Stock
Refrigerator Water Inlet Valve 5221JA2008G
#619C

Water/ice maker diagram

Refrigerator water inlet valve

Part #5221JA2008G

Replaced by #5220JA2009D

?
Manufacturer substitution
This part replaces 5221JA2008G. Substitute parts can look different from the original.
BEST SELLER
$63.83 |
9% OFF Phone Price : $69.83
In Stock
Refrigerator Evaporator Fan Motor And Bracket Assembly (replaces 4811jj2002k) 4811JJ2002H
#405G

Case parts diagram

Refrigerator evaporator fan motor and bracket assembly (replaces 4811jj2002k)

Part #4811JJ2002H

BEST SELLER
$99.62 |
11% OFF Phone Price : $111.62
In Stock
