$102.85 |Â
10% OFFÂ Phone Price : $114.85
CONFIRM THE PART FITS
Part Information
Basic Information

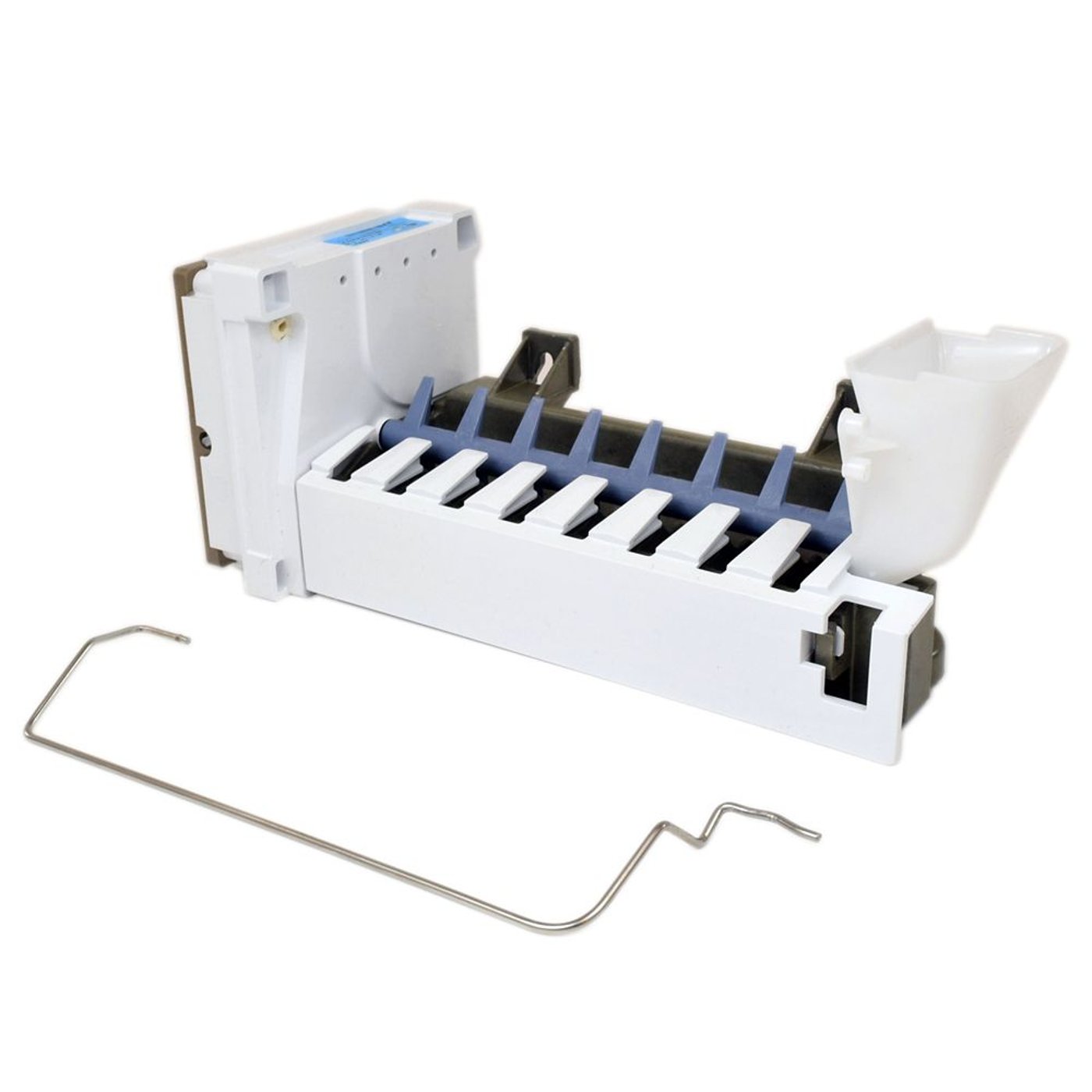

- Part Name: Refrigerator Ice Maker Assembly
- Manufacturer: Whirlpool
- Category: Refrigerator Component
- Primary Function: Facilitates the production of ice by receiving water from the inlet, freezing it in the ice mold, and then ejecting the ice into the storage bin until full.
Technical Specifications
- Dimensions: Please refer to the manufacturer's official documentation for detailed specifications.
- Material: Durable ABS plastic and corrosion-resistant stainless steel
Installation & Compatibility
- Compatible Models:
- Kenmore 596 Series
- Amana AFI Series
- Whirlpool GI6, G, WRF, WRX Series
- Jenn-Air JFX Series
- KitchenAid KFIS, KFX Series
- Maytag MFI, MFX Series
- Installation Difficulty: Medium — Installation requires moderate mechanical skills, including an understanding of basic refrigerator components.
- Tools Required: Phillips screwdriver, Allen wrench, and a pair of pliers
Additional Information
The Refrigerator Ice Maker Assembly (Part Number: W10882923) by Whirlpool stands as an original equipment manufacturer (OEM) replacement part, ensuring seamless integration with specific bottom-freezer refrigerator models. This assembly controls the ice-making process by holding the water until a solid freeze, ejecting the ice, and repeating the cycle until the ice bin reaches its capacity.

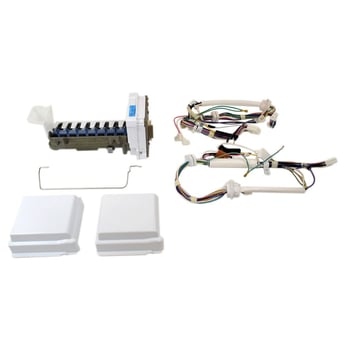

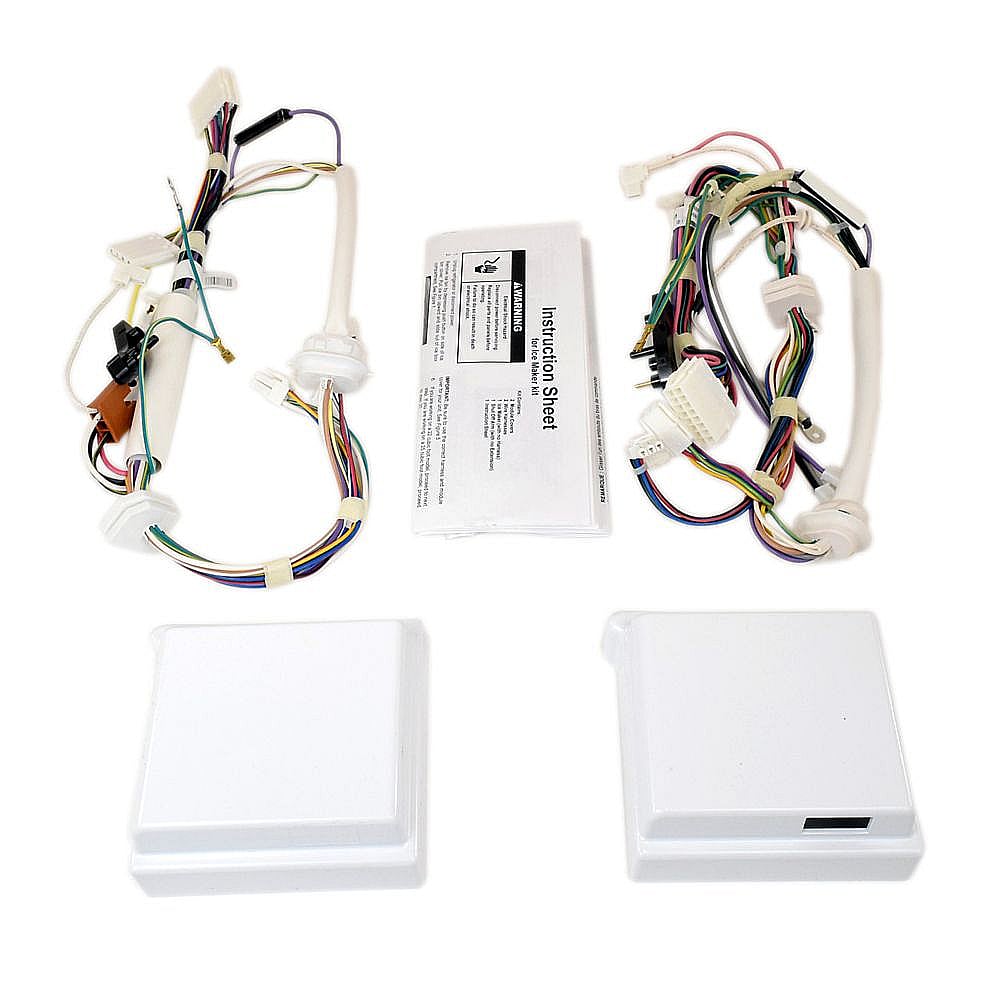

Included in the kit are two module covers, two wire harnesses, one ice maker, and one shut-off arm, making it comprehensive for effective installation. If ice cubes appear smaller than expected, a new water filter may be necessary. Enhance your refrigerator's performance by using high-quality water filters, which can be conveniently found through this water filter guide. Regular inspection and maintenance of your water filter can optimize ice production efficiency and quality.
This ice maker assembly substitutes previous assembly models WPW10377147 and WPW10377151, maintaining the integrity and efficiency expected from Whirlpool's lineup of refrigerator components.
Frequently Used Together
- $97.60 |Â11% OFFÂ Phone Price : $109.60
- $73.88 |Â8% OFFÂ Phone Price : $79.88
- $156.52 |Â7% OFFÂ Phone Price : $168.52
- $31.69 |Â16% OFFÂ Phone Price : $37.69
- $32.67 |Â16% OFFÂ Phone Price : $38.67
- $130.39 |Â8% OFFÂ Phone Price : $142.39
- $26.33 |Â19% OFFÂ Phone Price : $32.33
- $96.83 |Â11% OFFÂ Phone Price : $108.83
- $85.03 |Â7% OFFÂ Phone Price : $91.03
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #GI6SARXXF04 Whirlpool bottom-mount refrigerator | GI6SARXXF04 | Icemaker parts |
| Model #MFI2269VEM11 Maytag bottom-mount refrigerator | MFI2269VEM11 | Icemaker parts |
| Model #MFI2665XEW5 Maytag bottom-mount refrigerator | MFI2665XEW5 | Icemaker parts |
| Model #MFI2269VEM9 Maytag bottom-mount refrigerator | MFI2269VEM9 | Icemaker parts |
| Model #GI6SARXXF05 Whirlpool bottom-mount refrigerator | GI6SARXXF05 | Icemaker parts |
| Model #MFI2269VEB8 Maytag bottom-mount refrigerator | MFI2269VEB8 | Icemaker parts |
| Model #MFI2269VEW7 Maytag bottom-mount refrigerator | MFI2269VEW7 | Icemaker parts |
| Model #MFI2269VEQ7 Maytag bottom-mount refrigerator | MFI2269VEQ7 | Icemaker parts |
| Model #MFI2269VEW8 Maytag bottom-mount refrigerator | MFI2269VEW8 | Icemaker parts |
| Model #MFI2269VEB7 Maytag bottom-mount refrigerator | MFI2269VEB7 | Icemaker parts |
Reviews
Parts Missing - Box was received open and mangled
Missing Hardware: 1 switch 2133326 1 impinger W1012121269 1 Shut Off Arm Extension W10351019
MavericksGarage, Phoenix AZ
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- More than 2 hours
Installation
It took me about a couple hours to install. I found a really good video on youtube watched it, and took pictures. The wiring harness was a bit tricky at times but it all worked out very well.
eric, pittsburgh
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
medium ease of installation
Took less than an hour to install, fairly straightforward. Had to partly disassemble existing icemaker unit and route new cabling for this assembly. (which comes as part of this icemaker assembly, and contains a couple of fuzes and sensors that may be the source of any problems. I was hoping not to use new cabling for easier installation, but the new icemaker had slightly different connector than the old one (matching the cabling it came with, and the cableing matched the refridgeator connector fine as well.)
engineer g, Southern CA
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
This is the 4th ice maker in 5 years
There's something wrong here. My Whirlpool refrigerator is 7 years old and this is the 4th ice maker I've installed in the last 5 years. The previous one (same make/model) lasted 3 months before eating the thin metal bar that is supposed to shut it off when the bin fills. The fact that the latest one was on back order for over a month (and out of stock most other places) tells you that the failure rate is through the roof. They also changed the wiring harness at some point so now you have to completely remove the entire ice making component from the fridge and install the new harness. After installing this latest one it wasn't 24 hours before the metal bar had fallen into the ice tray. I ended up taking a small zip tie and wrapping it around the bar at one end so that it couldn't work itself free and fall out again. Although the bar moves smoothly it still doesn't shut the ice maker off when the tray fills. It continues to make ice and I have to empty it daily. Poor design poor execution. The only positive thing I have to say is that Sears Parts Direct was a pleasure to work with. They stood by their 365 day guarantee and replaced this junk for free.
John, South Carolina
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- 30 minutes - 1 hour
It works
The electrical connections were different so it took several hours to install. But my husband has experience in home improvement so he was able to figure it out. It took several months to get the part but it was worth the wait because now my refridge is making ice!!!
AFSimpson, Carlisle AR
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Perfect Part. Easy to install. Great result.
This was easy to install. It took about 60 mins but I am super cautious and I took my time. Next time would be 30 mins. The hardest task was choosing the correct part as the replacement parts have changed over time. The website and online resources were helpful. The key issue is getting the correct cables and connectors. This kit contained multiple versions of cables Including the one I needed as well as the ice maker.
Mike, Nassau, The Bahamas
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Sears did well. Good unit.
Received the part a day earlier than expected. It contained the correct ice maker unit and two wire harnesses of which I needed one of them to adapt to this particular unit. Took a little longer than expected to put in as I needed to remove the other wire harness, but it was easy to figure out and it now works! Tried another vendor who took my order and never sent me the unit after over 1 month of waiting. Sears did well.
Undisclosed, Virginia
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Part is good. Instructions not so much. Doable.
Worked fine. Easy install but the instructions are poor. Just watch a few YouTube videos if you have to swap the wire harness. If not then it's really easy.
Undisclosed, Texas
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
