Model # TS300 Official Delta 10" motorized saw

Here are the diagrams and repair parts for Official Delta TS300 10" motorized saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

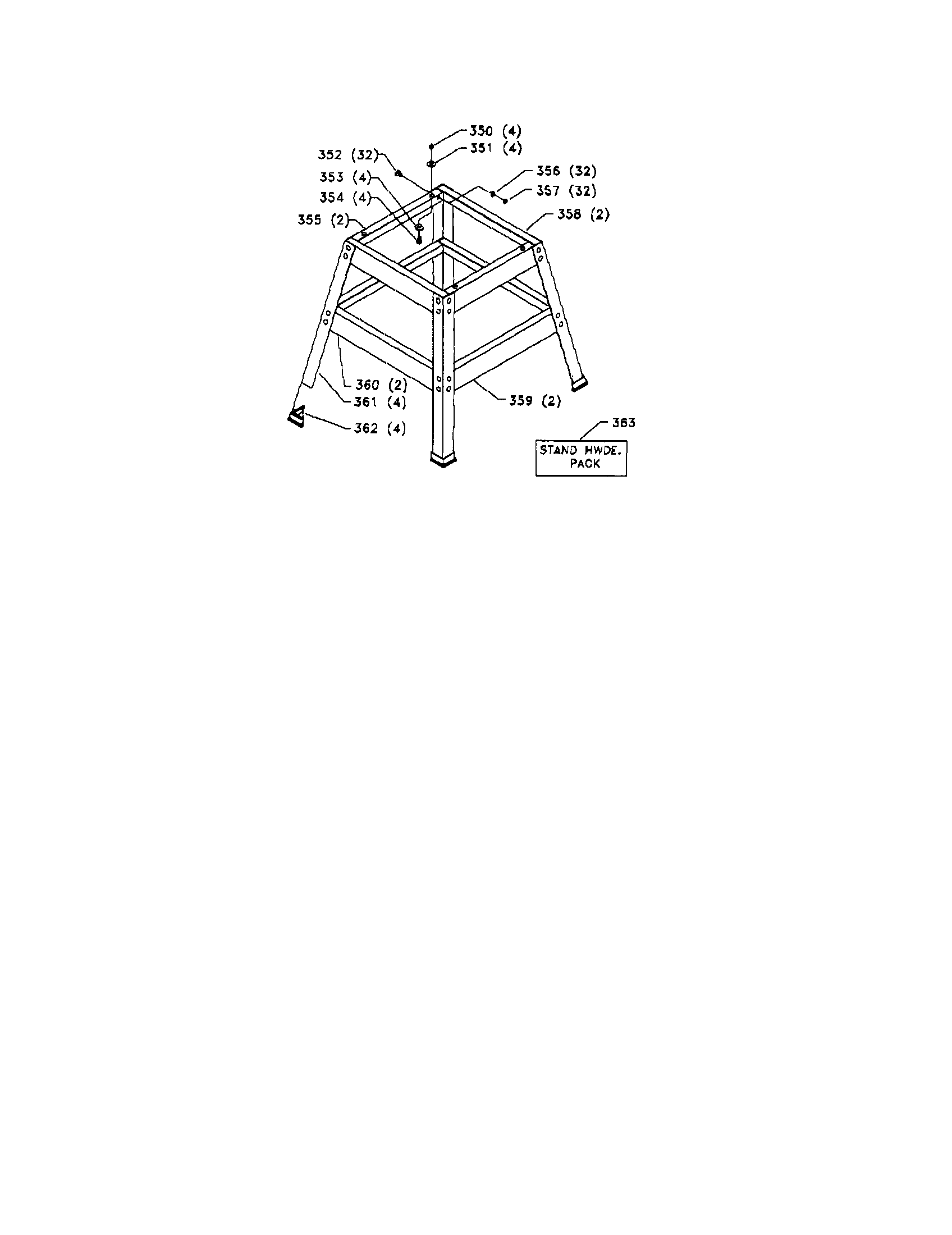

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Spcl Wshr 1313311
#156

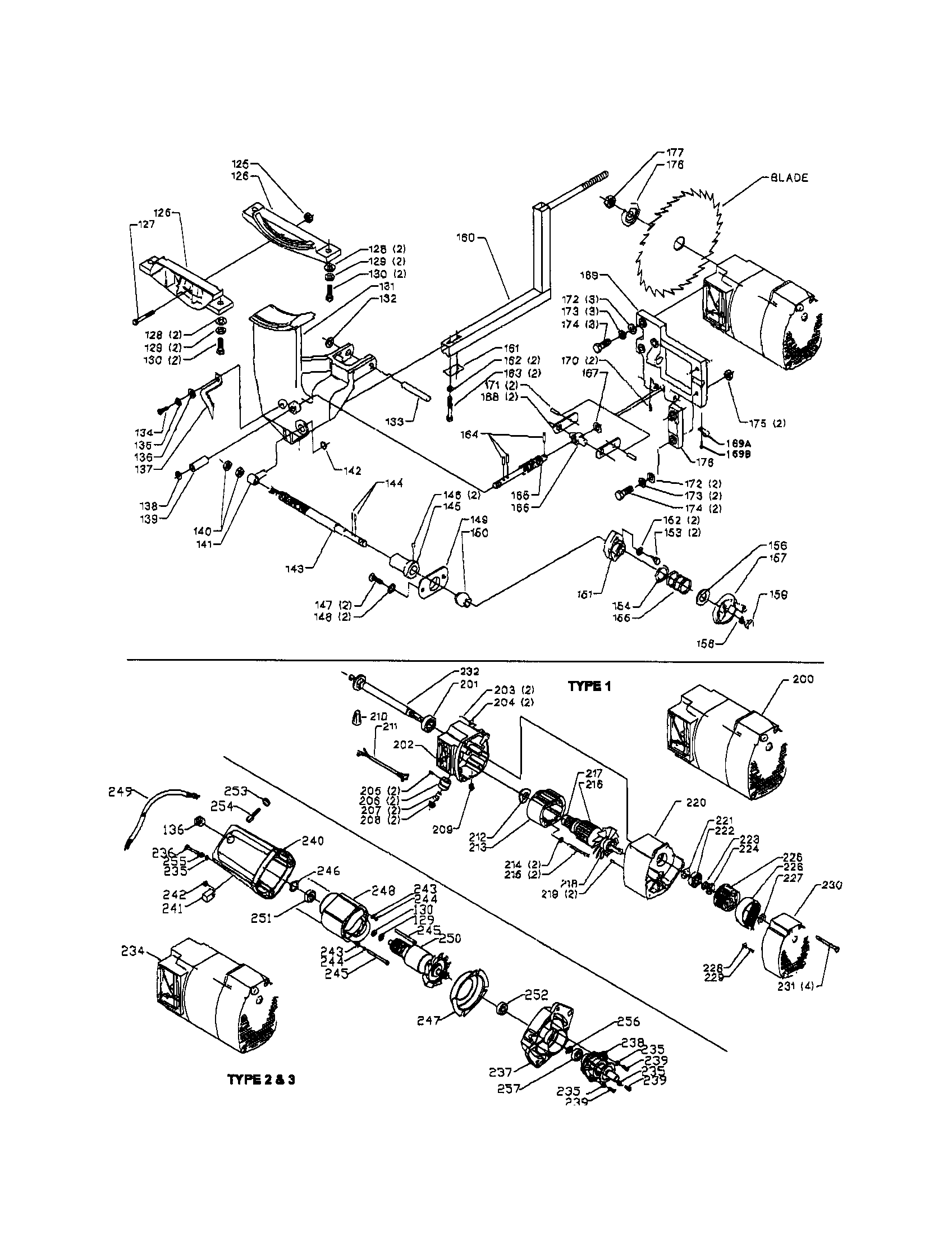

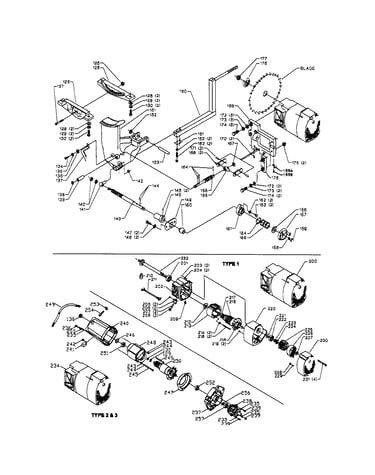

Blade/motor/shaft diagram

Spcl wshr

Part #1313311

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 1243476
#70

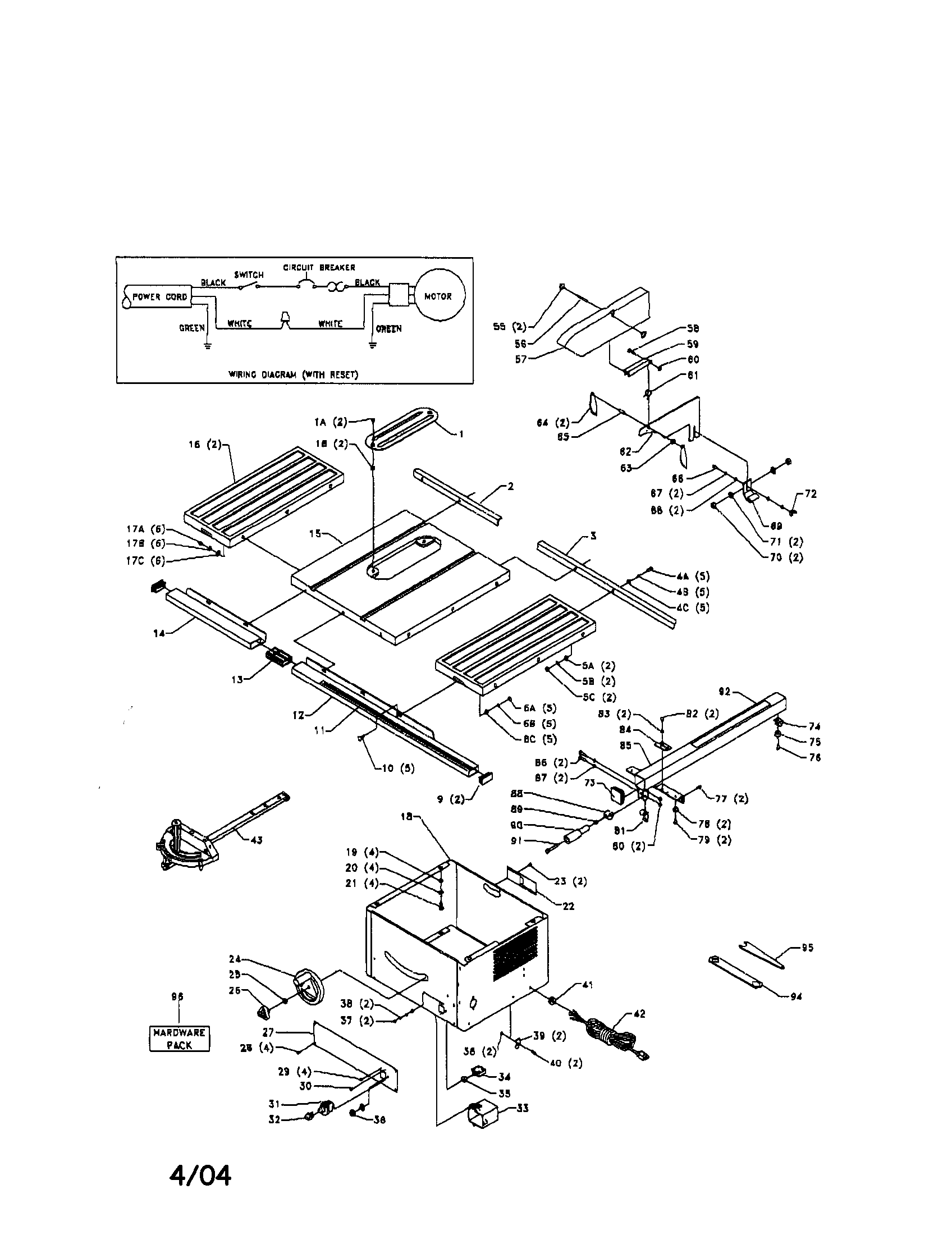

Table and cabinet diagram

Hex nut

Part #1243476

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring 1313275
#60

Table and cabinet diagram

Lock ring

Part #1313275

The manufacturer no longer makes this part, and there's no substitute part

Table 1348723
#15

Table and cabinet diagram

Table

Part #1348723

The manufacturer no longer makes this part, and there's no substitute part

Clamp 1313220
#39

Table and cabinet diagram

Clamp

Part #1313220

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Screw 1344026
#245

Blade/motor/shaft diagram

Porter cable screw

Part #1344026

The manufacturer no longer makes this part, and there's no substitute part

Spacer 1313300
#139

Blade/motor/shaft diagram

Spacer

Part #1313300

The manufacturer no longer makes this part, and there's no substitute part

Screw 1341046
#82

Table and cabinet diagram

Screw

Part #1341046

The manufacturer no longer makes this part, and there's no substitute part

Bumper 1348742
#78

Table and cabinet diagram

Bumper

Part #1348742

The manufacturer no longer makes this part, and there's no substitute part

Block 1313303
#149

Blade/motor/shaft diagram

Block

Part #1313303

The manufacturer no longer makes this part, and there's no substitute part
