Frigidaire
Gas Wall Oven

Model # FFGW2416UBA Official Frigidaire wall oven

Here are the diagrams and repair parts for Official Frigidaire FFGW2416UBA wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

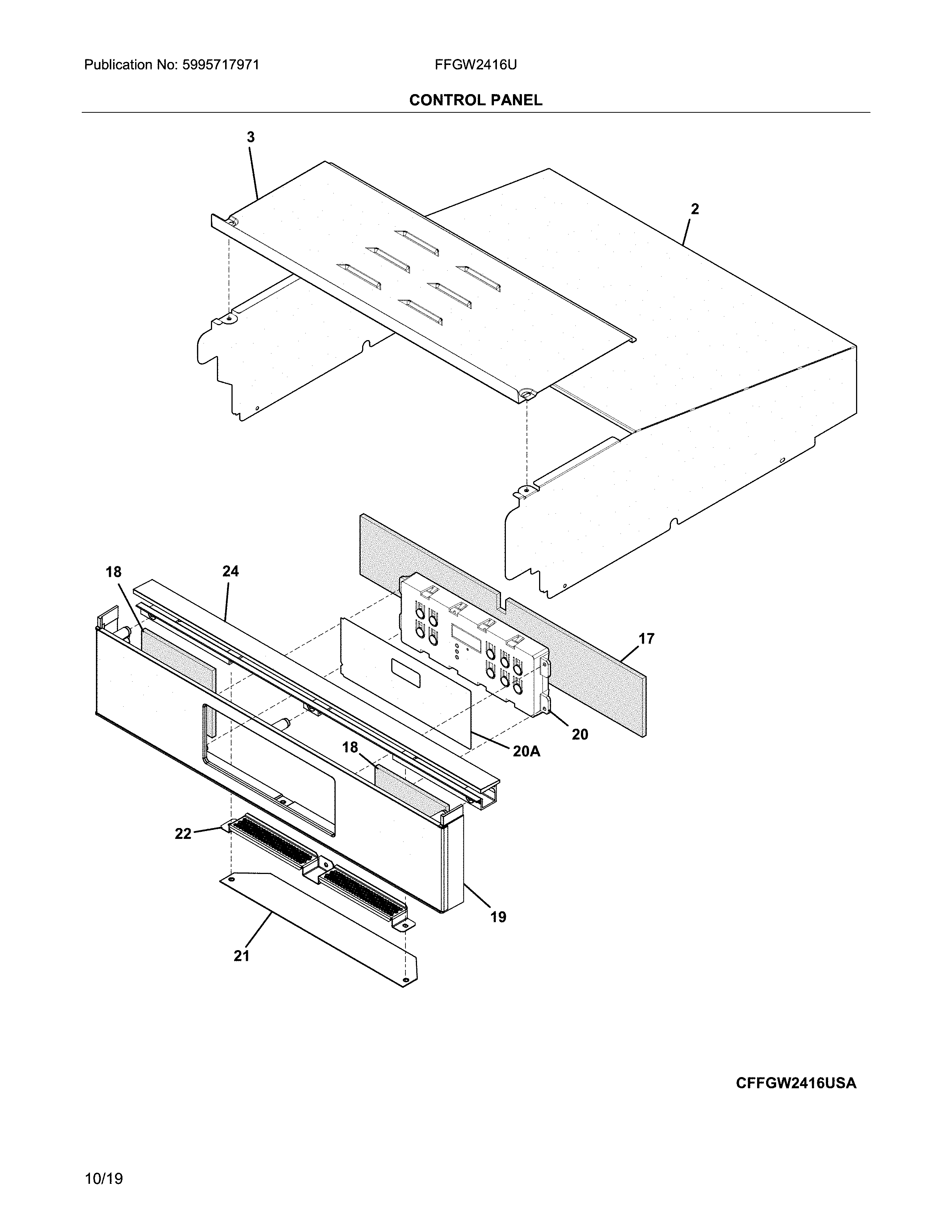

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Range Bake Igniter 139013700
#26

Burner diagram

Range bake igniter

Part #139013700

BEST SELLER
$100.80 |
11% OFF Phone Price : $112.80
In Stock
Wall Oven Safety Thermostat 318578509
#119

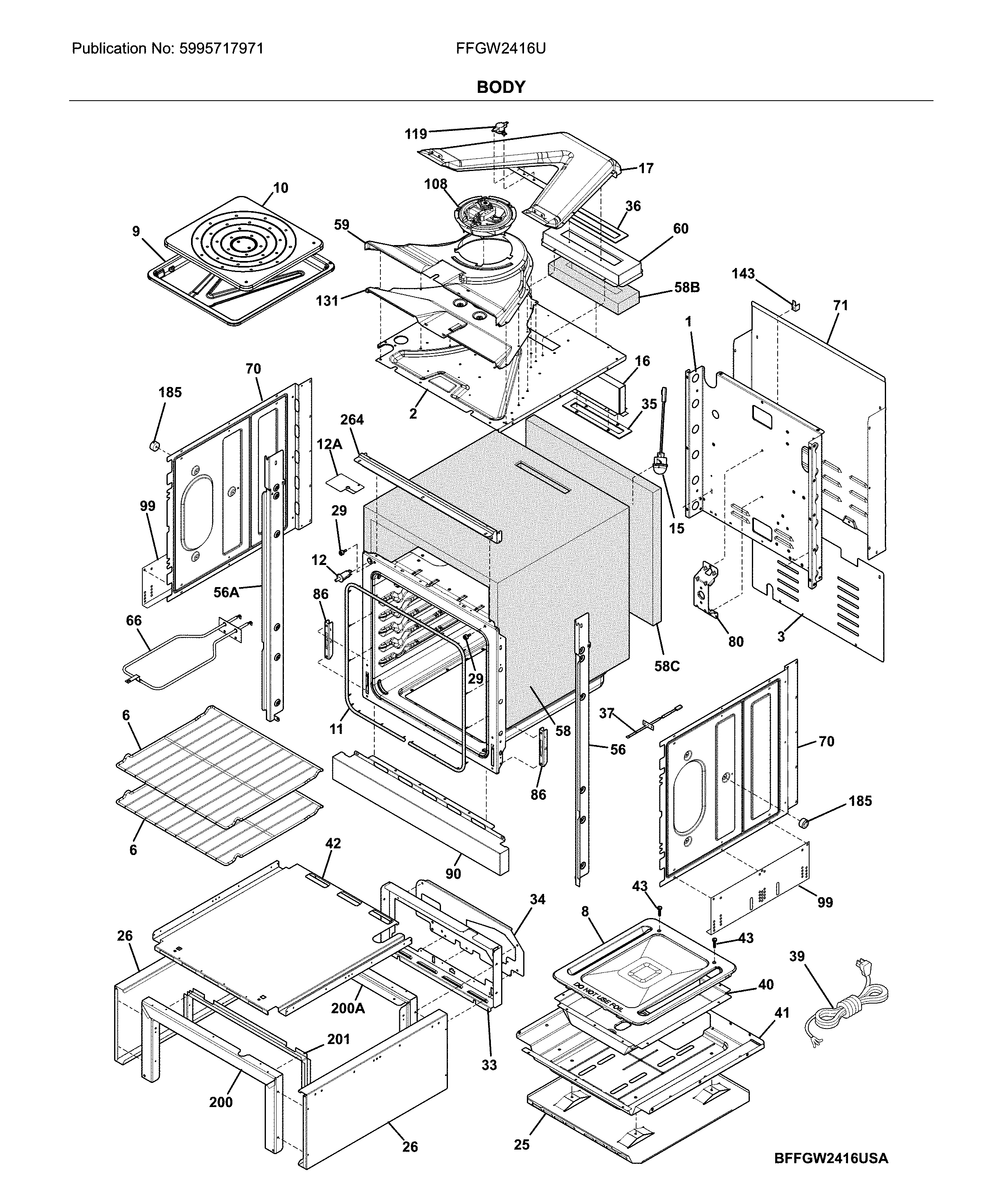

Body diagram

Wall oven safety thermostat

Part #318578509

$44.99 |
12% OFF Phone Price : $50.99
In Stock
Range Oven Light Bulb 139009000
#15

Body diagram

Range oven light bulb

Part #139009000

Replaced by #5304528790

?
Manufacturer substitution
This part replaces 139009000. Substitute parts can look different from the original.
$23.49 |
20% OFF Phone Price : $29.49
In Stock
Range Door Light Switch 318394802
#12

Body diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Range Oven Gas Valve 807192701
#17

Burner diagram

Range oven gas valve

Part #807192701

$142.98 |
8% OFF Phone Price : $154.98
In Stock
Tappan Range Power Cord (replaces 807108201) 5304509199
#39

Body diagram

Tappan range power cord (replaces 807108201)

Part #5304509199

$39.29 |
13% OFF Phone Price : $45.29
In Stock
Range Hex Nut 5303013272
#21

Burner diagram

Range hex nut

Part #5303013272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Range Oven Door Spacer (replaces 318147400, 7318165800) 318165800
Range oven door spacer (replaces 318147400, 7318165800)

Part #318165800

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Wall Oven Rack 139012300
#6

Body diagram

Wall oven rack

Part #139012300

$53.48 |
10% OFF Phone Price : $59.48
In Stock
Range Bake Burner 5304502520
#18

Burner diagram

Range bake burner

Part #5304502520

$112.22
In Stock
