Model # MGDE201YW0 Official Maytag 27" gas dryer

Here are the diagrams and repair parts for Official Maytag MGDE201YW0 27" gas dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

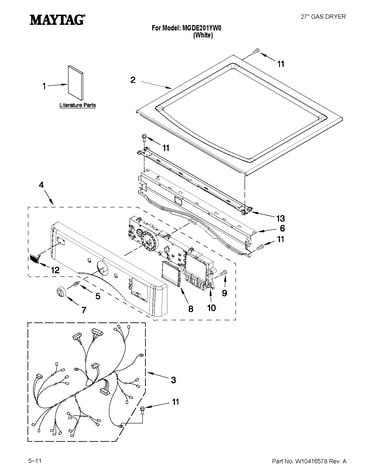

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forMGDE201YW0 27" Gas Dryer

  • Dryer Idler Pulley 3388672
    #13

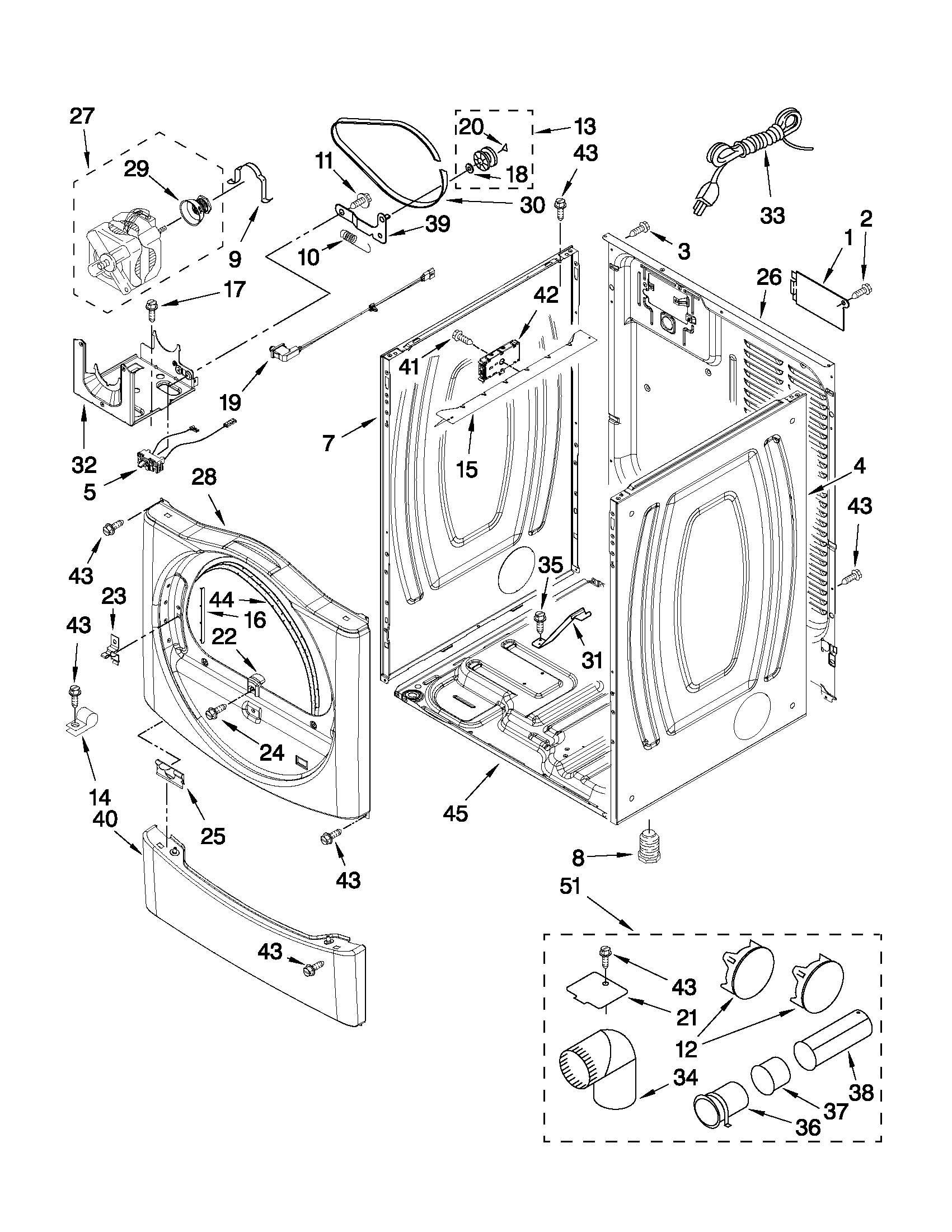

    Cabinet parts diagram

    Dryer idler pulley

    Part #3388672

    Replaced by #279640

    ?
    Manufacturer substitution
    This part replaces 3388672. Substitute parts can look different from the original.
    BEST SELLER
    $27.53
    18% OFF Phone Price : $33.53
    In Stock
  • Dryer Drum Support Roller W10314171
    #21

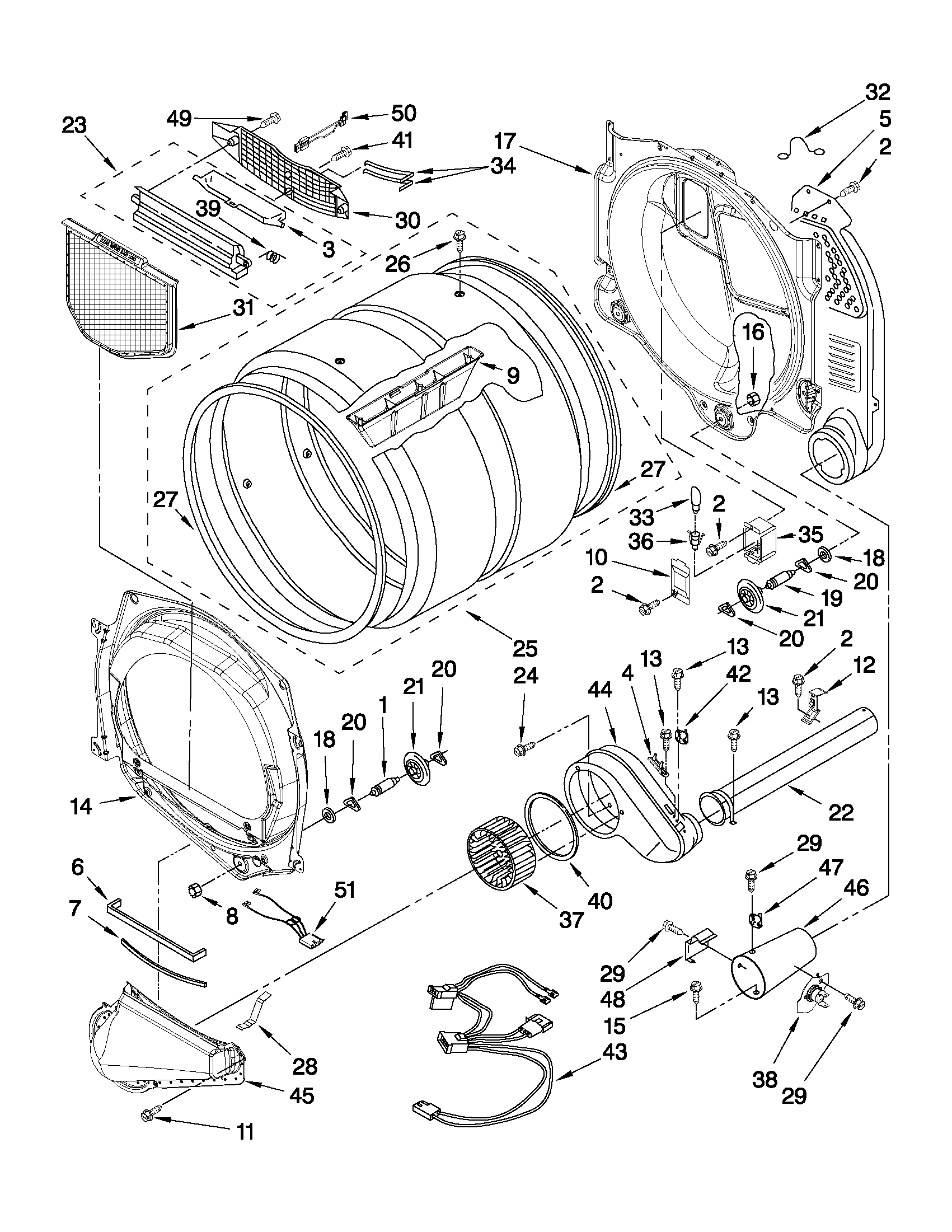

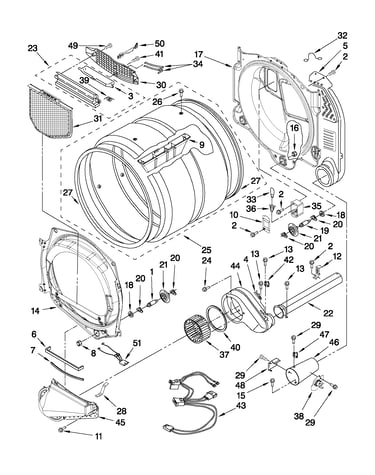

    Bulkhead parts diagram

    Dryer drum support roller

    Part #W10314171

    Replaced by #WPW10314173

    ?
    Manufacturer substitution
    This part replaces W10314171. Substitute parts can look different from the original.
    BEST SELLER
    $11.76
    15% OFF Phone Price : $13.76
    In Stock
  • Bracket 3388674
    #39

    Cabinet parts diagram

    Bracket

    Part #3388674

    Replaced by #W10837240

    ?
    Manufacturer substitution
    This part replaces 3388674. Substitute parts can look different from the original.
    BEST SELLER
    $17.72
    10% OFF Phone Price : $19.72
    In Stock
  • Dryer Repair Kit 80047
    #NI

    Optional parts (not included) diagram

    Dryer repair kit

    Part #80047

    Replaced by #4392067

    ?
    Manufacturer substitution
    This part replaces 80047. Substitute parts can look different from the original.
    BEST SELLER
    $41.05
    13% OFF Phone Price : $47.05
    In Stock
  • Dryer Thermistor 8577274
    #42

    Bulkhead parts diagram

    Dryer thermistor

    Part #8577274

    Replaced by #WP8577274

    ?
    Manufacturer substitution
    This part replaces 8577274. Substitute parts can look different from the original.
    BEST SELLER
    $26.52
    18% OFF Phone Price : $32.52
    In Stock
  • Dryer Blower Wheel 697772
    #37

    Bulkhead parts diagram

    Dryer blower wheel

    Part #697772

    Replaced by #WP697772

    ?
    Manufacturer substitution
    This part replaces 697772. Substitute parts can look different from the original.
    BEST SELLER
    $33.87
    15% OFF Phone Price : $39.87
    In Stock
  • Igniter 686590
    #4

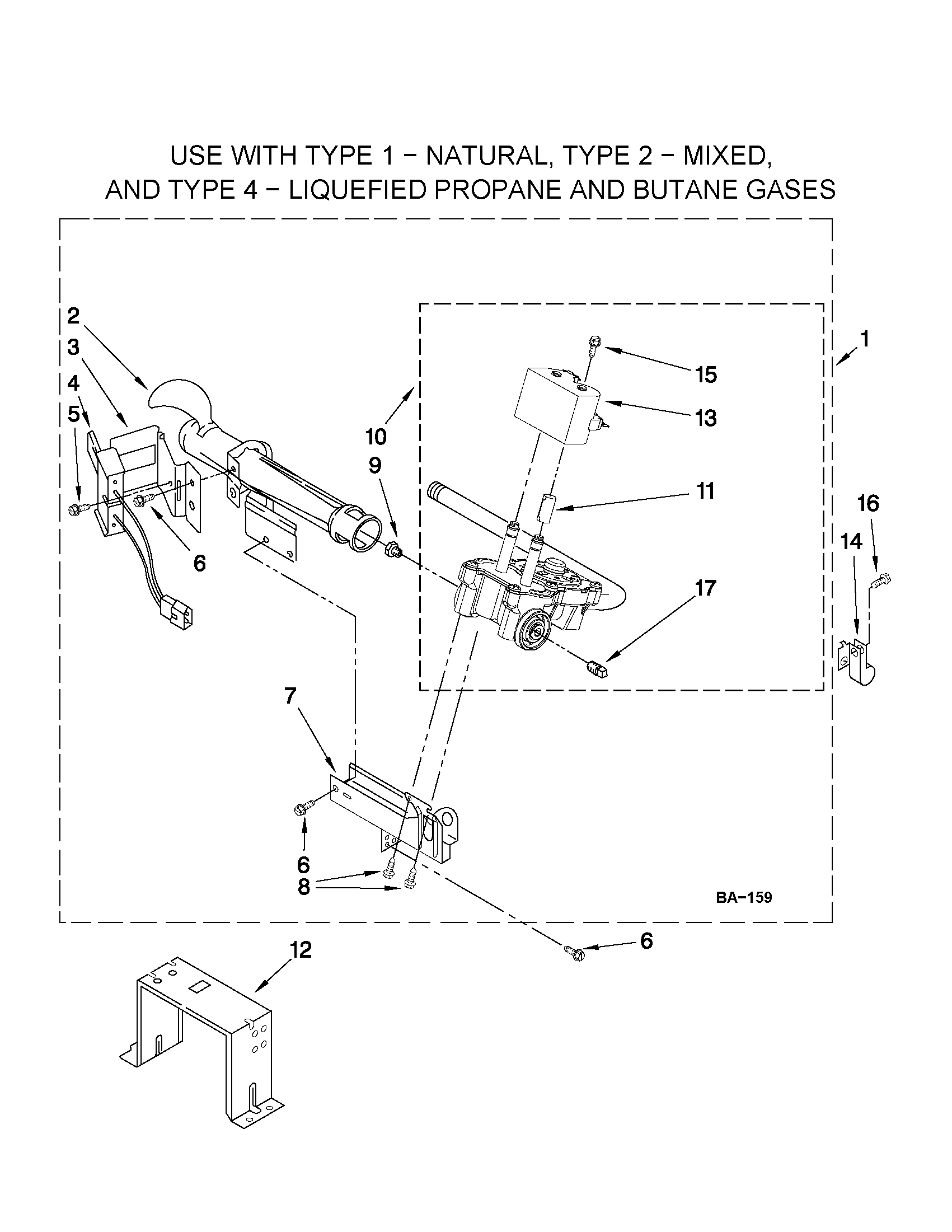

    W10293911 burner assembly diagram

    Igniter

    Part #686590

    Replaced by #279311

    ?
    Manufacturer substitution
    This part replaces 686590. Substitute parts can look different from the original.
    BEST SELLER
    $24.98
    19% OFF Phone Price : $30.98
    In Stock
  • Catch 690081
    #14

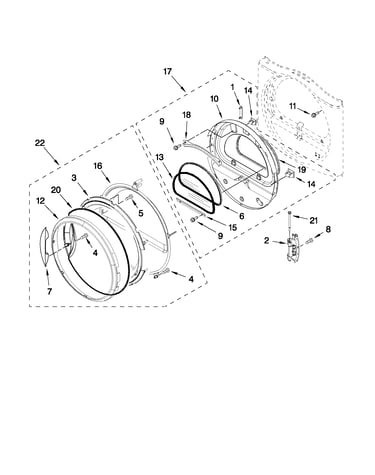

    Door parts diagram

    Catch

    Part #690081

    Replaced by #279570

    ?
    Manufacturer substitution
    This part replaces 690081. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.25
    19% OFF Phone Price : $5.25
    In Stock
  • Drive Motor 8538263
    #27

    Cabinet parts diagram

    Drive motor

    Part #8538263

    Replaced by #279787

    ?
    Manufacturer substitution
    This part replaces 8538263. Substitute parts can look different from the original.
    BEST SELLER
    $172.19
    7% OFF Phone Price : $184.19
    In Stock
  • Screen W10049370
    #31

    Bulkhead parts diagram

    Screen

    Part #W10049370

    Replaced by #W10120998

    ?
    Manufacturer substitution
    This part replaces W10049370. Substitute parts can look different from the original.
    BEST SELLER
    $48.69
    11% OFF Phone Price : $54.69
    In Stock
