Broan
Downdraft Ventilation System

Model # HLB3 Official Broan blower

Here are the diagrams and repair parts for Official Broan HLB3 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Downdraft Vent Blower Motor 99080485
#13

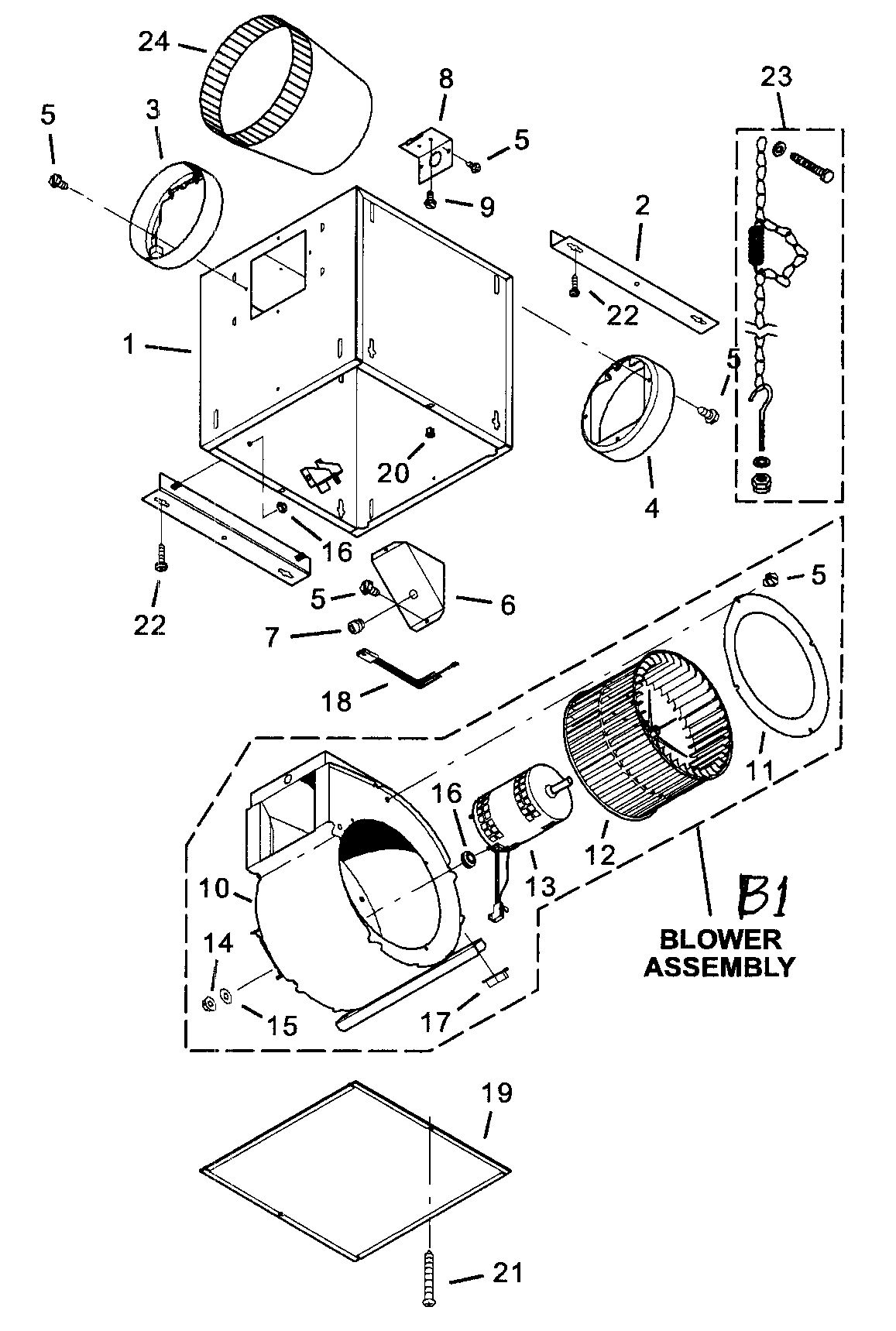

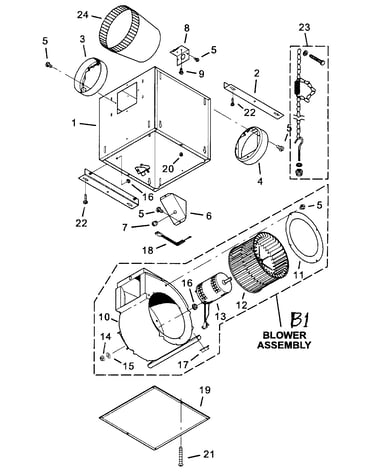

Blower diagram

Downdraft vent blower motor

Part #99080485

Replaced by #S99080485

?
Manufacturer substitution
This part replaces 99080485. Substitute parts can look different from the original.
$156.60
In Stock
Trash Compactor Lock Nut 99260477
#17

Blower diagram

Trash compactor lock nut

Part #99260477

Replaced by #S99260477

?
Manufacturer substitution
This part replaces 99260477. Substitute parts can look different from the original.
This item is not returnable
$3.64
In Stock
Blower Assembly 97016792
#B1

Blower diagram

Blower assembly

Part #97016792

$137.99
In Stock
Broan Instruction Manual 99043698B
#NI

Blower diagram

Broan instruction manual

Part #99043698B

This item is not returnable
$2.16
In Stock
Transition S414
#24

Blower diagram

Transition

Part #S414

$78.63
In Stock
Hanger Kit 97016791
#23

Blower diagram

Hanger kit

Part #97016791

Replaced by #S97016791

?
Manufacturer substitution
This part replaces 97016791. Substitute parts can look different from the original.
$64.46
In Stock
Bushing 99400035
#7

Blower diagram

Bushing

Part #99400035

Replaced by #S99400035

?
Manufacturer substitution
This part replaces 99400035. Substitute parts can look different from the original.
This item is not returnable
$6.66
In Stock
Adapter Pl 98005512
#8

Blower diagram

Adapter pl

Part #98005512

Replaced by #S98005512

?
Manufacturer substitution
This part replaces 98005512. Substitute parts can look different from the original.
This item is not returnable
$4.53
In Stock
Blower Wheel 99020273
#12

Blower diagram

Blower wheel

Part #99020273

Replaced by #S99020273

?
Manufacturer substitution
This part replaces 99020273. Substitute parts can look different from the original.
$71.40
In Stock
Outlet Cover 98005513
#6

Blower diagram

Outlet cover

Part #98005513

Replaced by #S98005513

?
Manufacturer substitution
This part replaces 98005513. Substitute parts can look different from the original.
This item is not returnable
$4.57
In Stock
