Model # GLD4560R00SS Official GE dishwasher

Here are the diagrams and repair parts for Official GE GLD4560R00SS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Rinse Module WD12X10205
#811

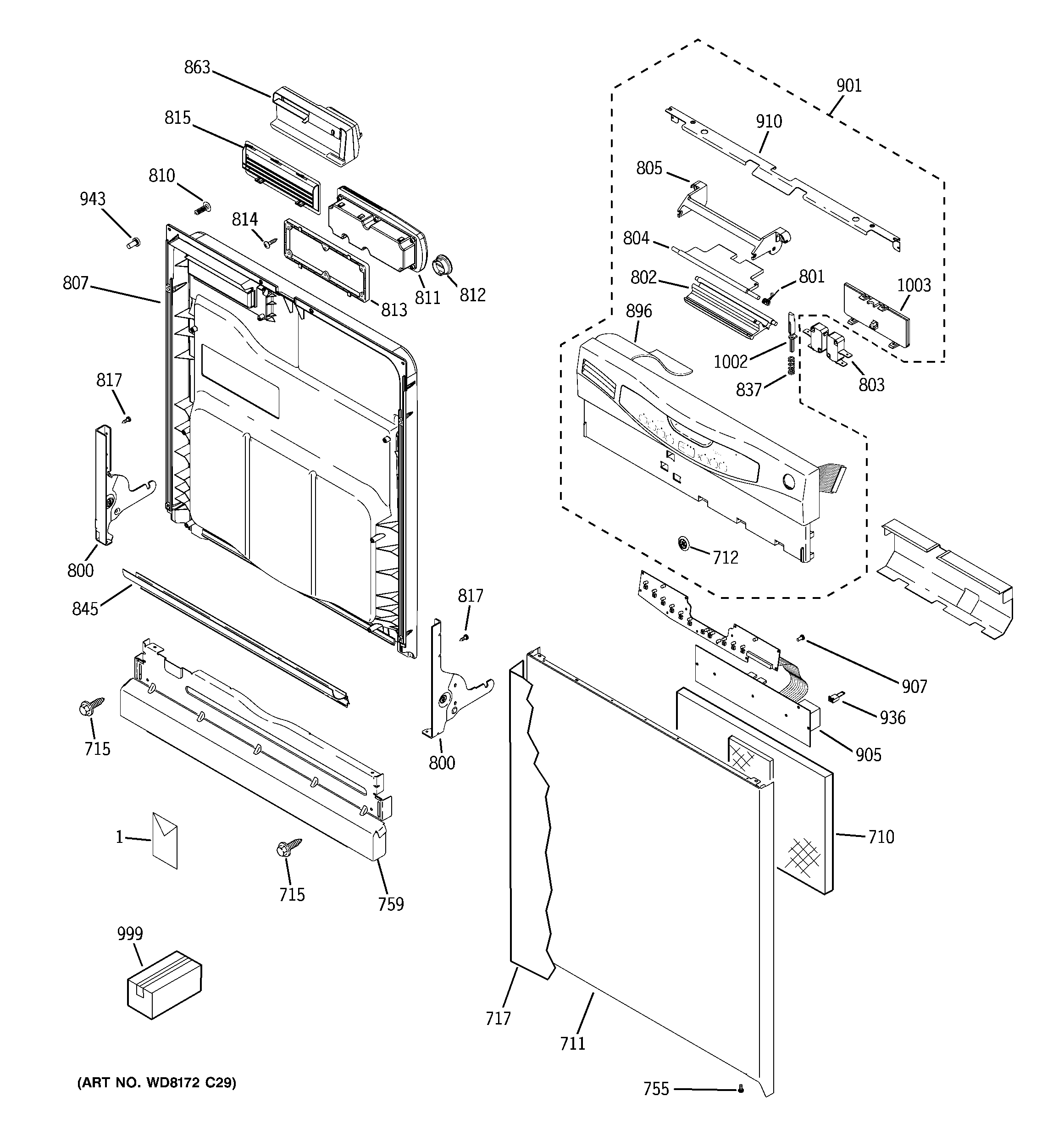

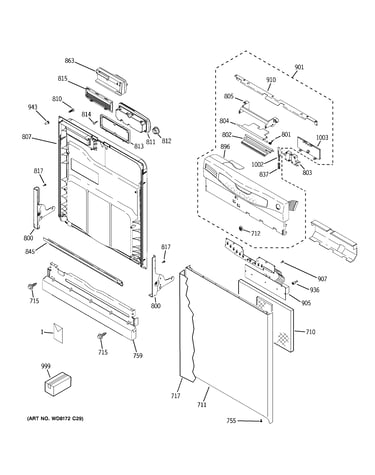

Escutcheon & door assembly diagram

Rinse module

Part #WD12X10205

The manufacturer no longer makes this part, and there's no substitute part

Dishwasher Water Inlet Valve WD15X10003
#744

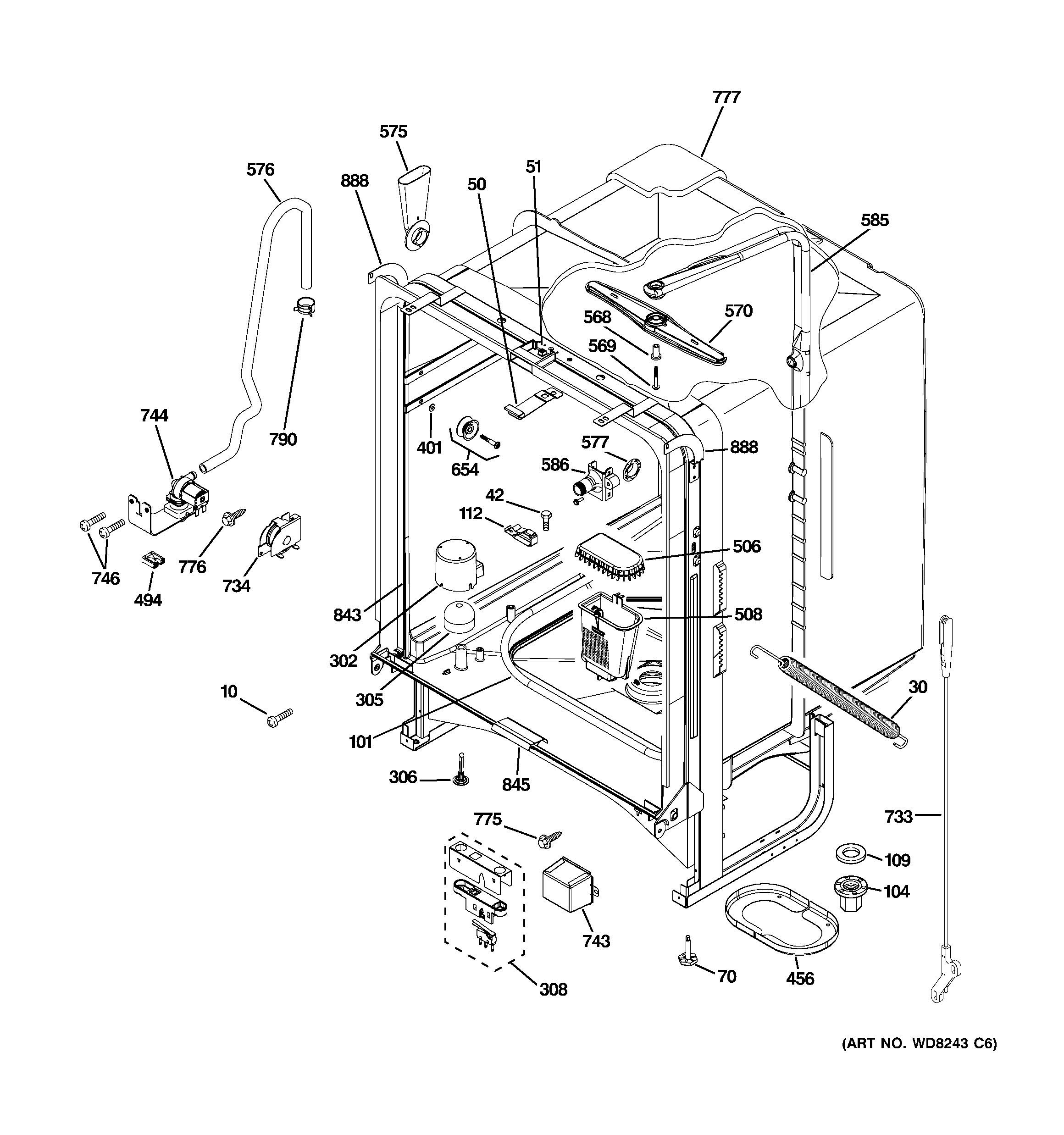

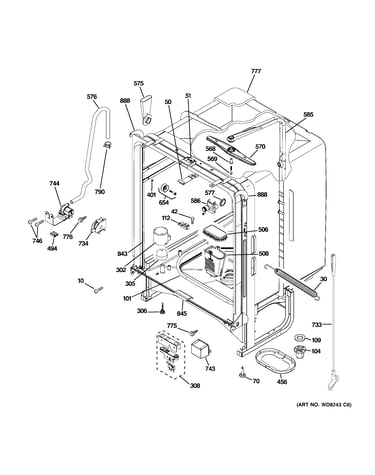

Body parts diagram

Dishwasher water inlet valve

Part #WD15X10003

BEST SELLER
$68.38 |
8% OFF Phone Price : $74.38
In Stock
Dishwasher Dishrack Slide Rail Stop (replaces Wd12x344) WD12X10304
#652

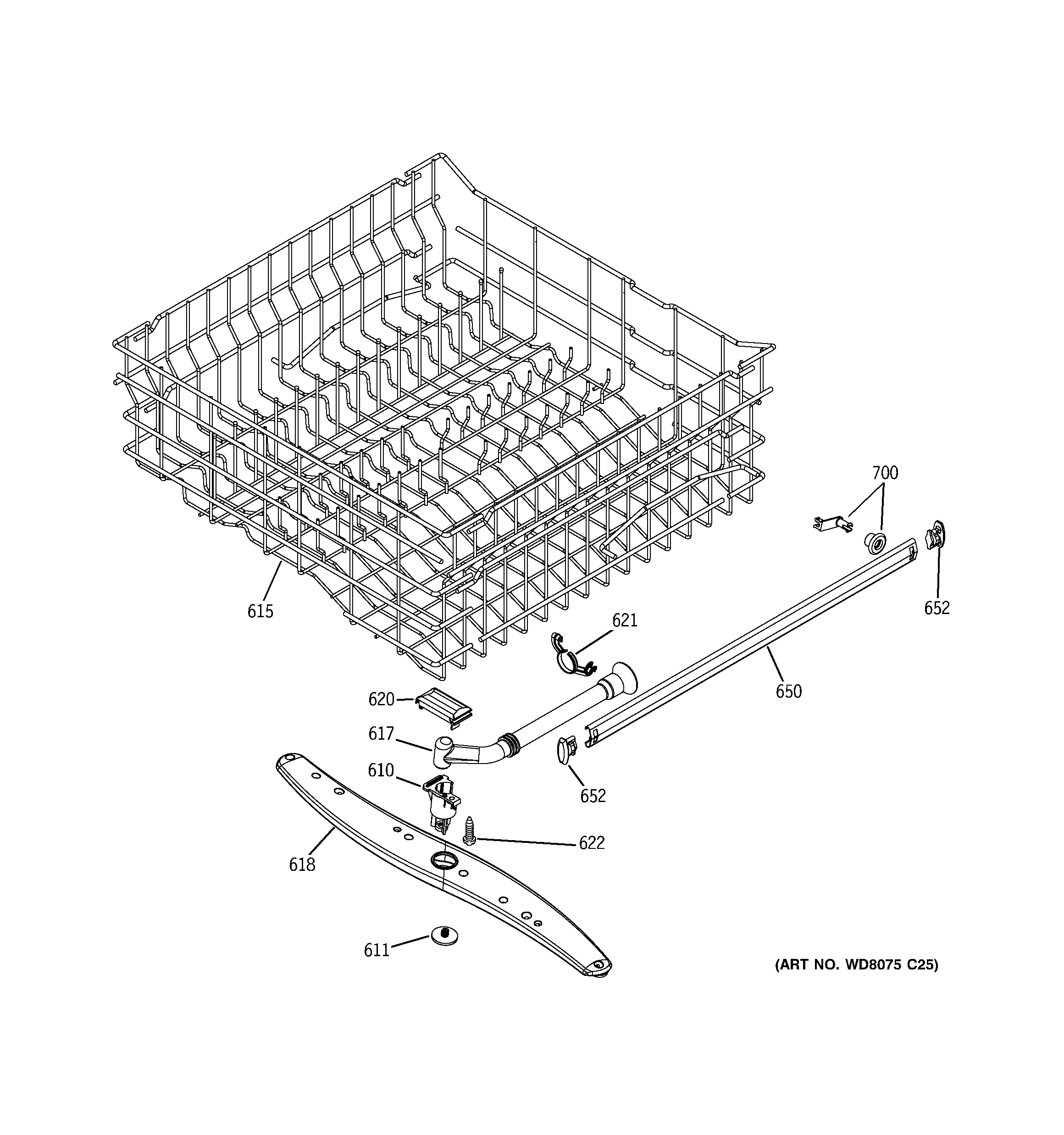

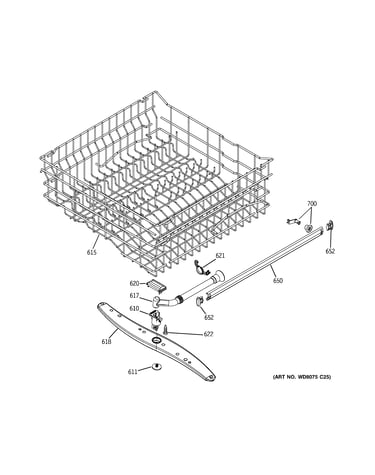

Upper rack assembly diagram

Dishwasher dishrack slide rail stop (replaces wd12x344)

Part #WD12X10304

BEST SELLER
$16.68 |
11% OFF Phone Price : $18.68
In Stock
Dishwasher Spray Arm (replaces Wd22x10047) WD22X10044
#501

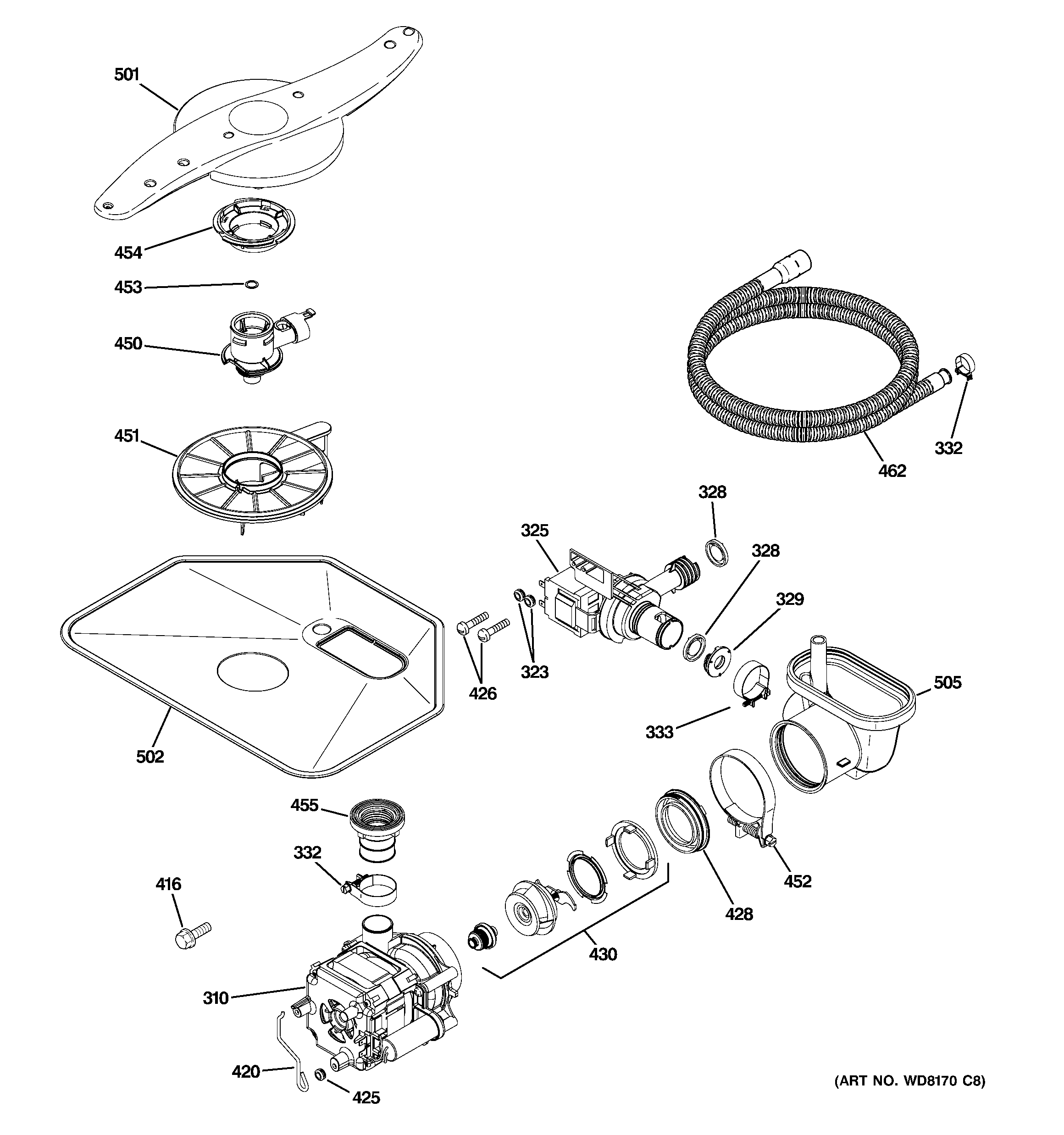

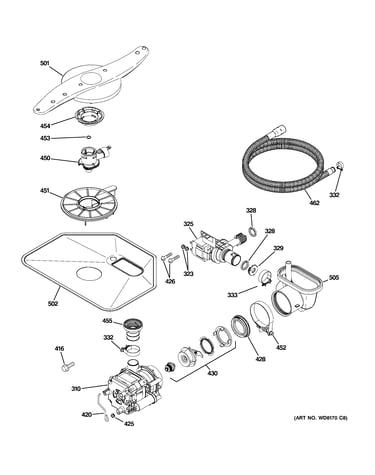

Motor-pump mechanism diagram

Dishwasher spray arm (replaces wd22x10047)

Part #WD22X10044

BEST SELLER
$90.36 |
6% OFF Phone Price : $96.36
In Stock
Dishwasher Dishrack Roller And Stud WD12X10074
#705

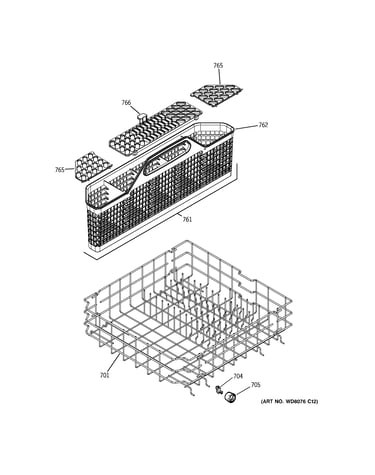

Lower rack assembly diagram

Dishwasher dishrack roller and stud

Part #WD12X10074

Replaced by #WD35X21038

?
Manufacturer substitution
This part replaces WD12X10074. Substitute parts can look different from the original.
BEST SELLER
$32.91 |
15% OFF Phone Price : $38.91
In Stock
Drain Tube WD24X10035
#462

Motor-pump mechanism diagram

Drain tube

Part #WD24X10035

Replaced by #WD24X10045

?
Manufacturer substitution
This part replaces WD24X10035. Substitute parts can look different from the original.
$30.13 |
17% OFF Phone Price : $36.13
In Stock
Dishwasher Screw WD02X10067
#622

Upper rack assembly diagram

Dishwasher screw

Part #WD02X10067

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Dishwasher Circulation Pump Adapter WD18X10010
#455

Motor-pump mechanism diagram

Dishwasher circulation pump adapter

Part #WD18X10010

$32.91 |
15% OFF Phone Price : $38.91
In Stock
Interlock Cover WD12X10272
#1003

Escutcheon & door assembly diagram

Interlock cover

Part #WD12X10272

Replaced by #WD12X10401

?
Manufacturer substitution
This part replaces WD12X10272. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dishwasher Door Handle Plunger Spring WD03X10026
#837

Escutcheon & door assembly diagram

Dishwasher door handle plunger spring

Part #WD03X10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
