Craftsman
Miter Saw

Model # 113234651 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 113234651 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

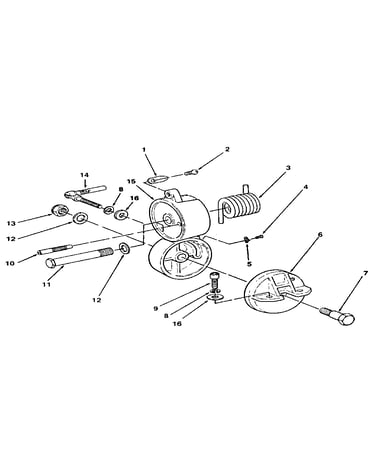

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Emerson Ball Bearing 816742
#32

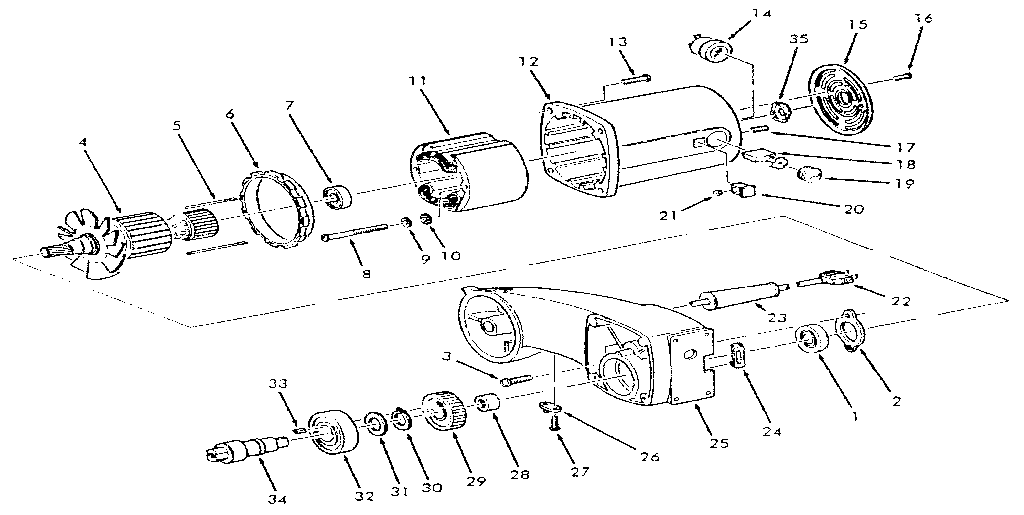

Motor and arm assembly diagram

Emerson ball bearing

Part #816742

The manufacturer no longer makes this part, and there's no substitute part

Emerson Ball Bearing 816741
#1

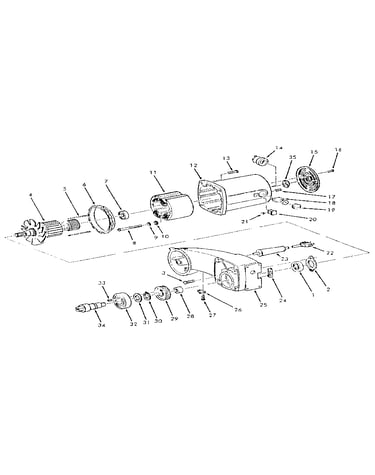

Motor and arm assembly diagram

Emerson ball bearing

Part #816741

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 816723
Lock nut

Part #816723

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Dust Bag Clamp 816812
#21

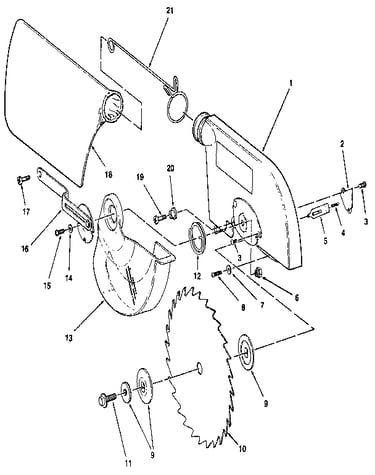

Figure 4. blade & blade guard asm. diagram

Miter saw dust bag clamp

Part #816812

The manufacturer no longer makes this part, and there's no substitute part

Washer (silver) 818043
#25

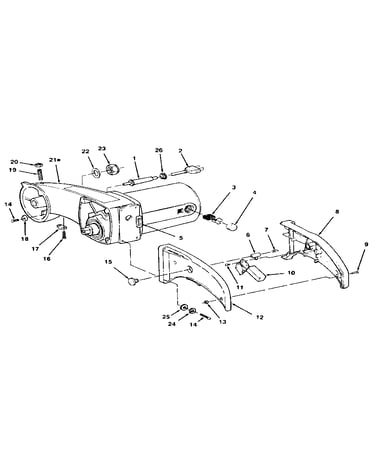

Figure 2 - arm and motor assembly diagram

Washer (silver)

Part #818043

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Motor Brush 816768
Miter saw motor brush

Part #816768

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Dust Bag 816811
#18

Figure 4. blade & blade guard asm. diagram

Miter saw dust bag

Part #816811

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Screw, #8-32 X 1/2-in 809727-4
#17

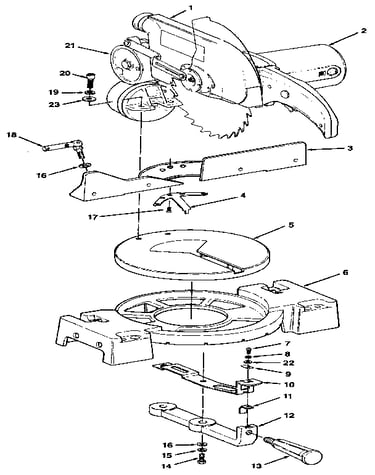

Figure 1 diagram

Miter saw screw, #8-32 x 1/2-in

Part #809727-4

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Blade Bolt 816703
#11

Figure 4. blade & blade guard asm. diagram

Miter saw blade bolt

Part #816703

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Miter Handle 816669
#13

Figure 1 diagram

Miter saw miter handle

Part #816669

The manufacturer no longer makes this part, and there's no substitute part
