Kenmore
Mechanical Sewing Machine

Model # 1581786081 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 1581786081 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

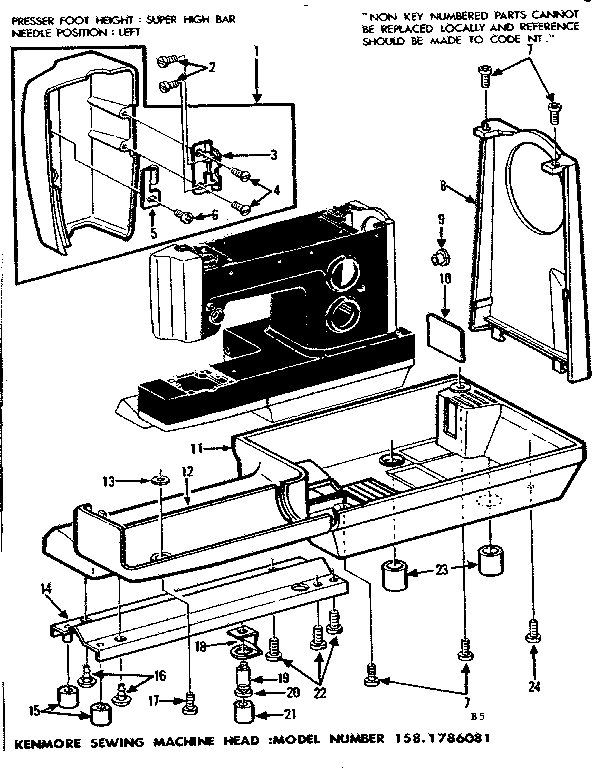

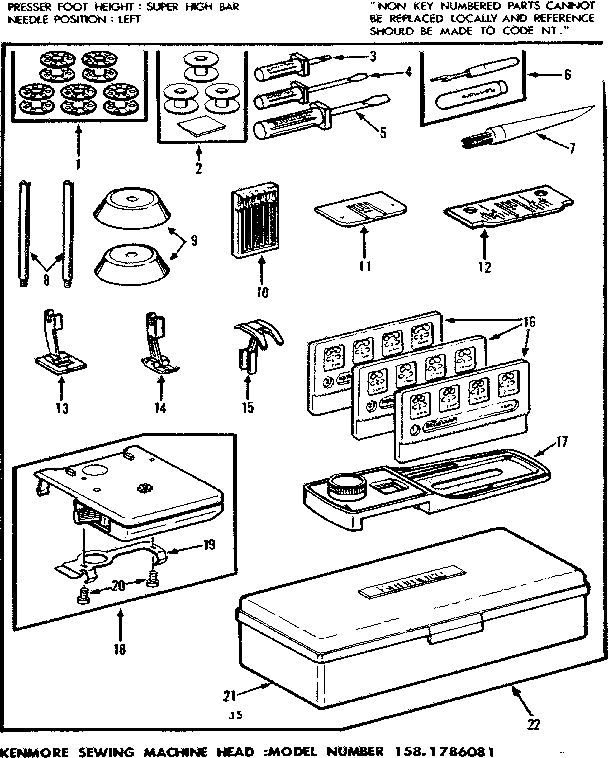

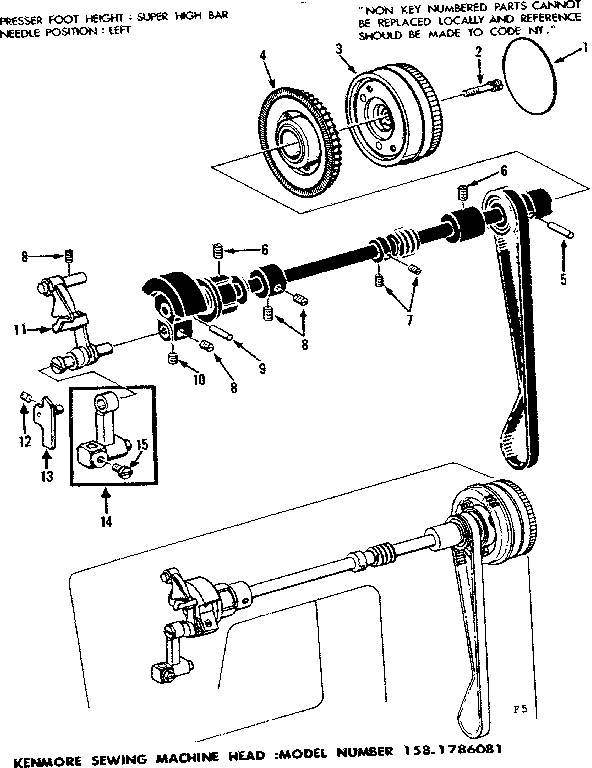

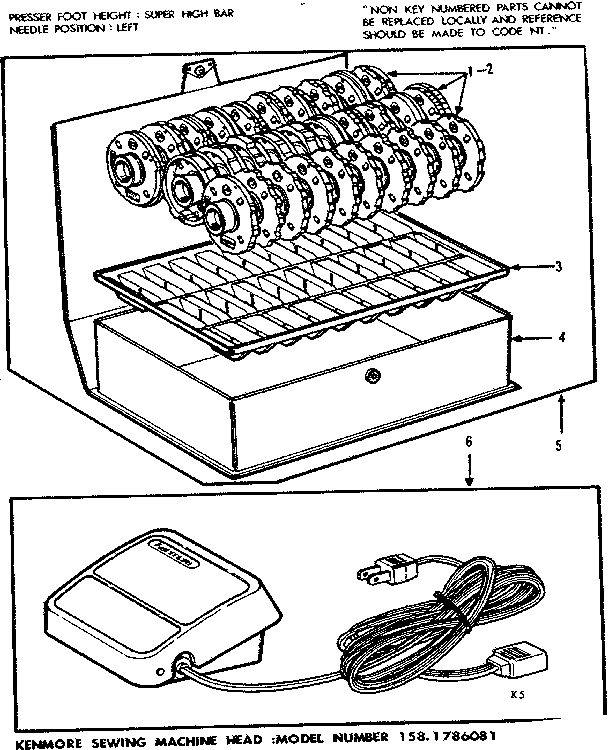

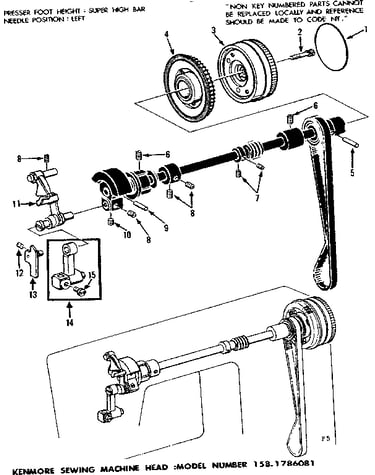

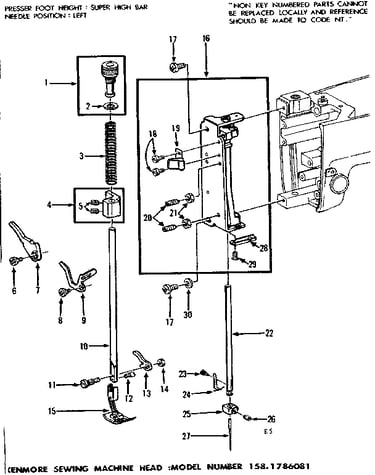

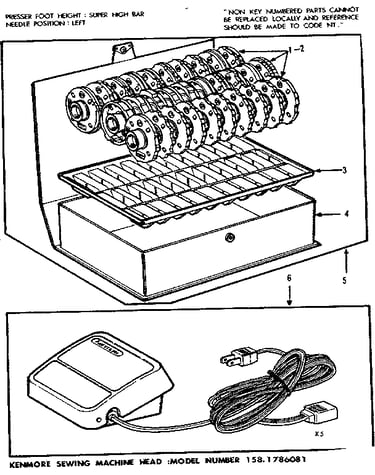

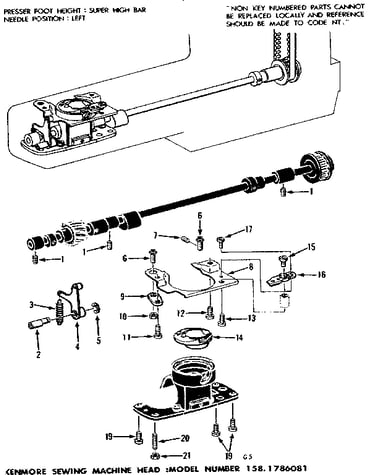

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 264 parts  |
Roller Set 49968
#22

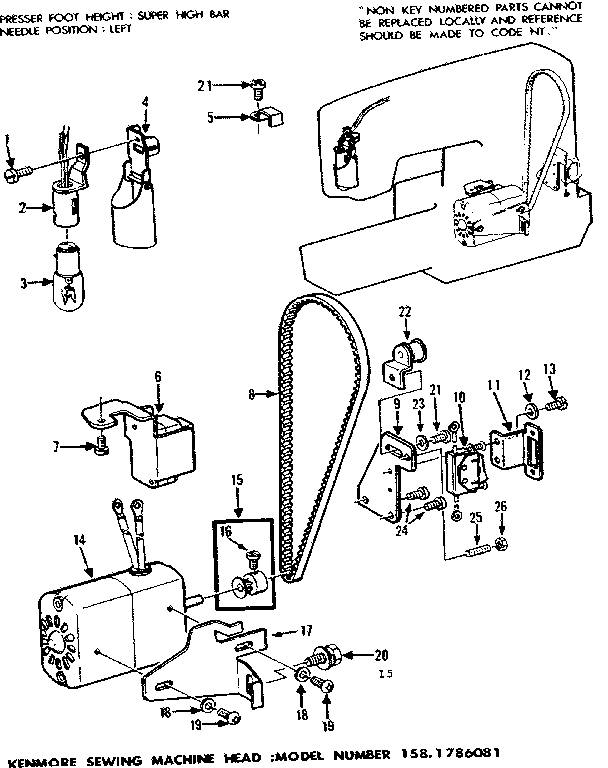

Motor assembly diagram

Roller set

Part #49968

The manufacturer no longer makes this part, and there's no substitute part

Clipon Washr 40395
#17

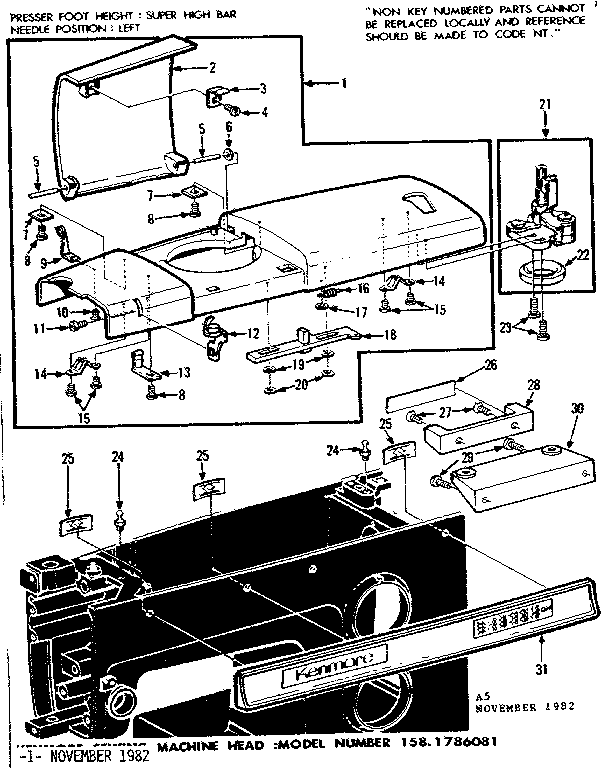

Bobbin winder and top plate diagram

Clipon washr

Part #40395

The manufacturer no longer makes this part, and there's no substitute part

Cam Cover 55507
#2

Bobbin winder and top plate diagram

Cam cover

Part #55507

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 45353
#10

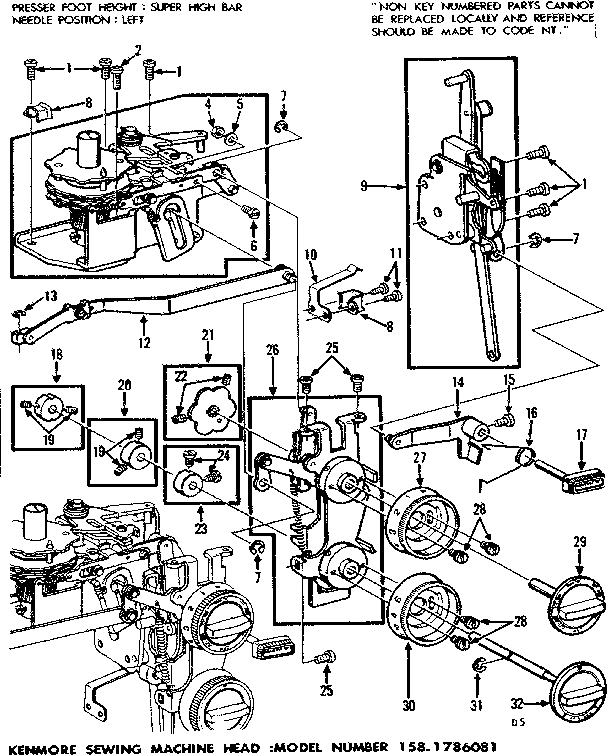

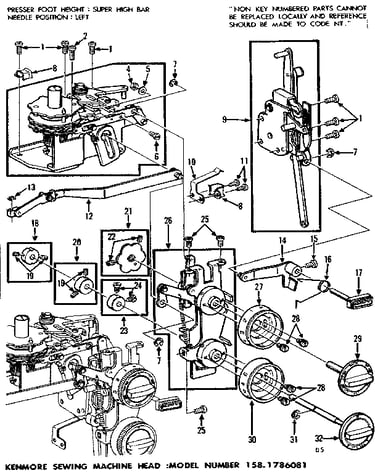

Dial control diagram

Spring plate

Part #45353

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 45740
#9

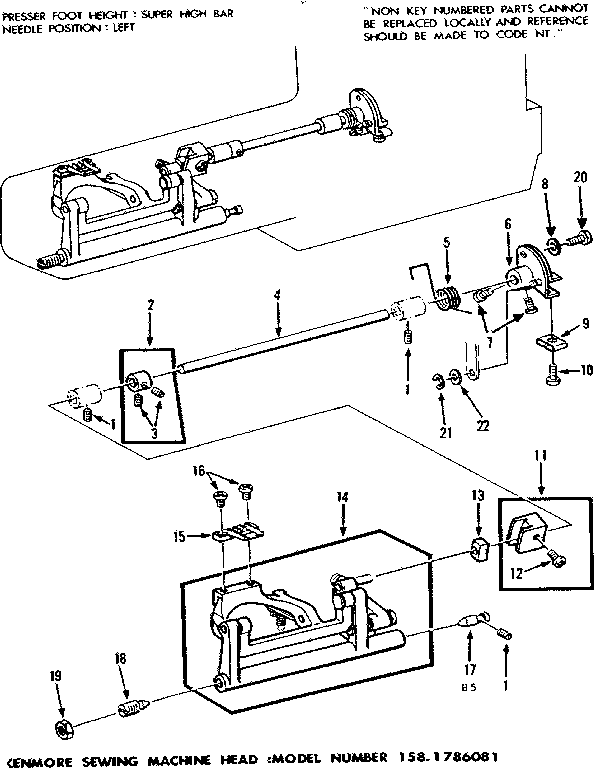

Feed regulator assembly diagram

Spring plate

Part #45740

The manufacturer no longer makes this part, and there's no substitute part

Pl Washer 55496
#2

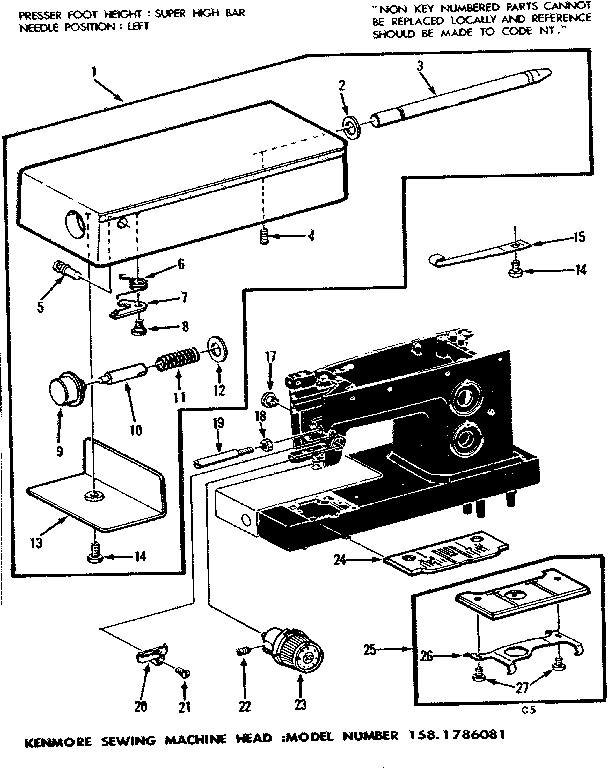

Thread tension assembly diagram

Pl washer

Part #55496

The manufacturer no longer makes this part, and there's no substitute part

Shaft 57827
#4

Feed regulator assembly diagram

Shaft

Part #57827

The manufacturer no longer makes this part, and there's no substitute part

Spring 57812
#16

Dial control diagram

Spring

Part #57812

The manufacturer no longer makes this part, and there's no substitute part

Spring 57814
#5

Feed regulator assembly diagram

Spring

Part #57814

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 59009
#31

Bobbin winder and top plate diagram

Control panel

Part #59009

The manufacturer no longer makes this part, and there's no substitute part
