Model # PD366BS/08 Official Thermador dual-fuel range
Here are the diagrams and repair parts for Official Thermador PD366BS/08 dual-fuel range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

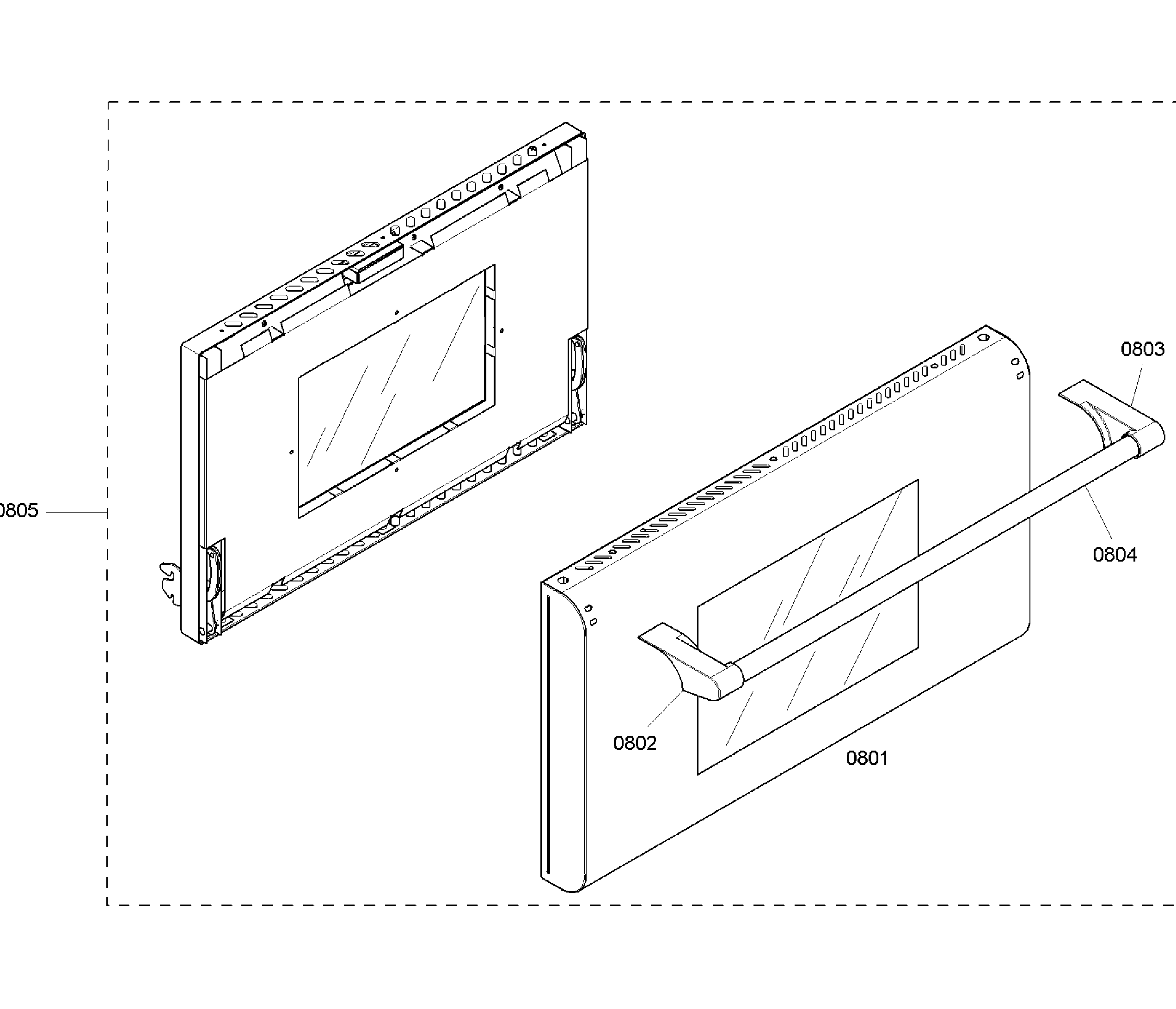

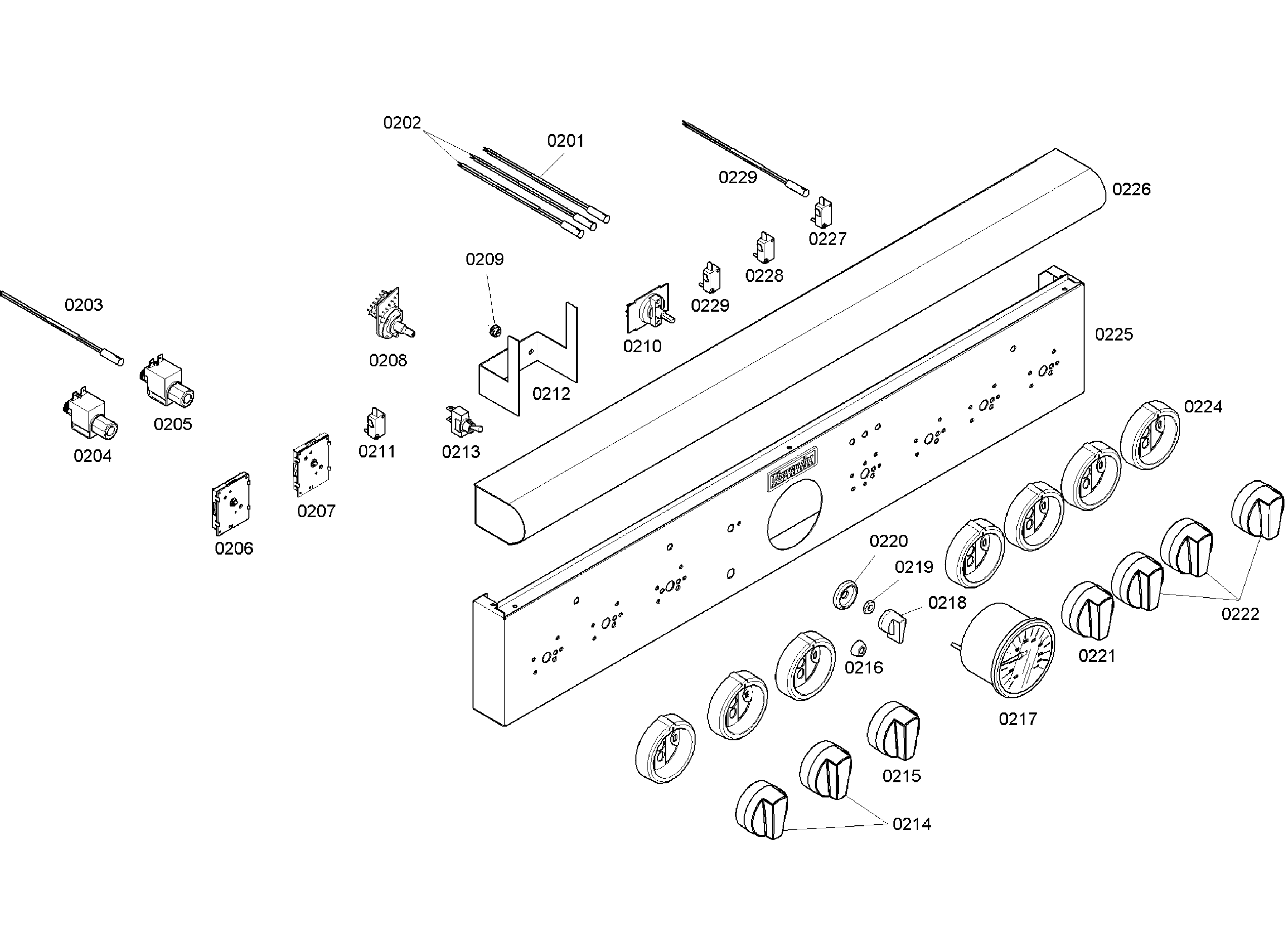

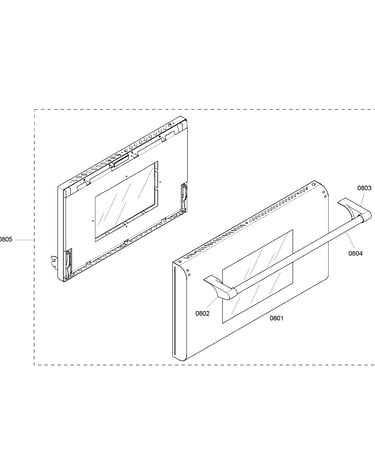

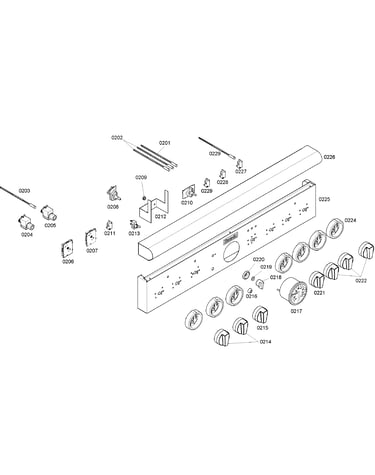

SELECT DIAGRAM
Browse Parts for
PD366BS/08 Dual-Fuel Range
Holder
Part #600607
Replaced by #00600607
?
Manufacturer substitution
This part replaces 600607. Substitute parts can look different from the original.
$32.42 |
16% OFF Phone Price : $38.42
In Stock

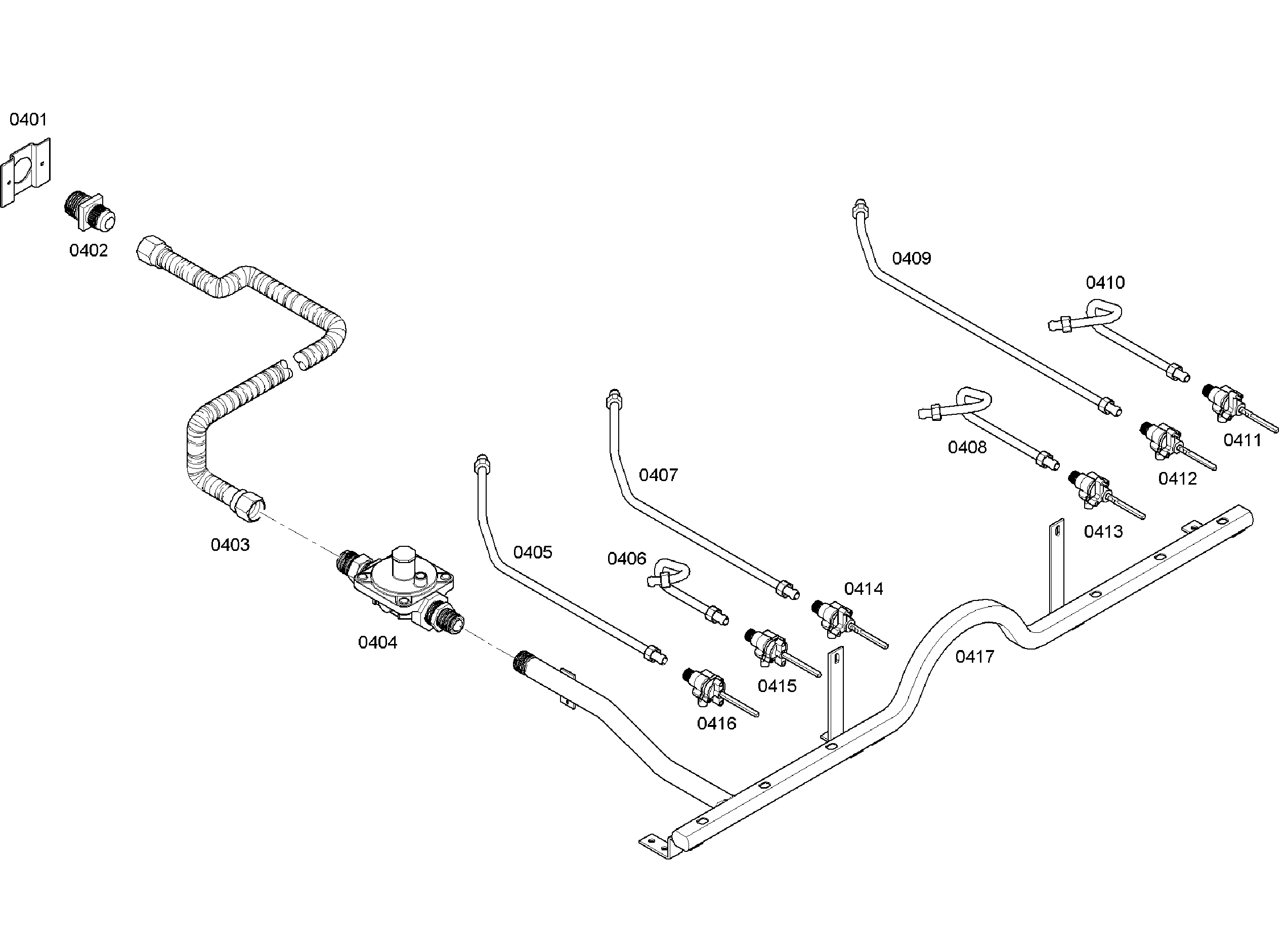

Cooktop burner orifice nut
Part #188978
Replaced by #00188978
?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Ignition head
Part #189324
Replaced by #00189324
?
Manufacturer substitution
This part replaces 189324. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
#NI

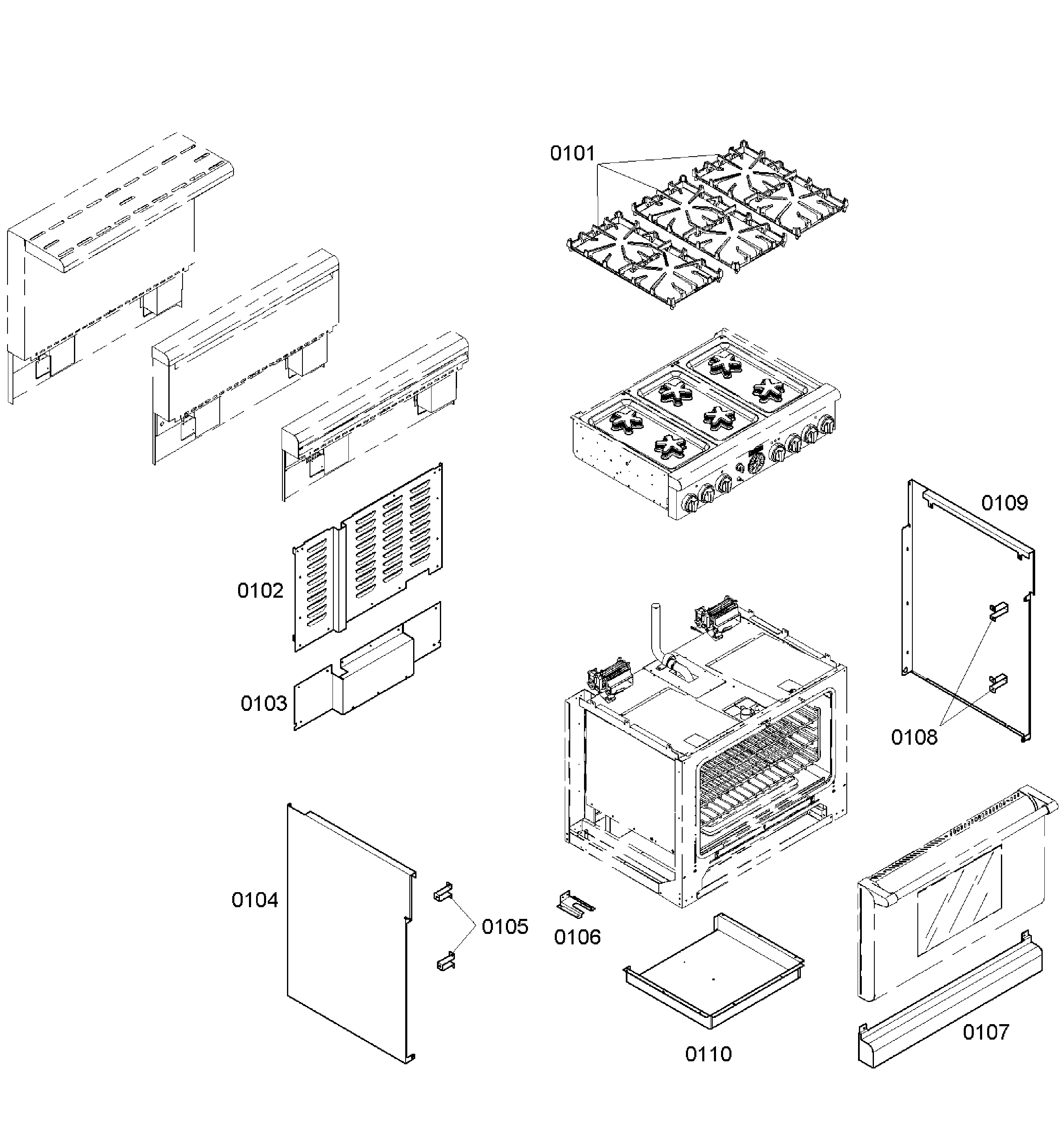

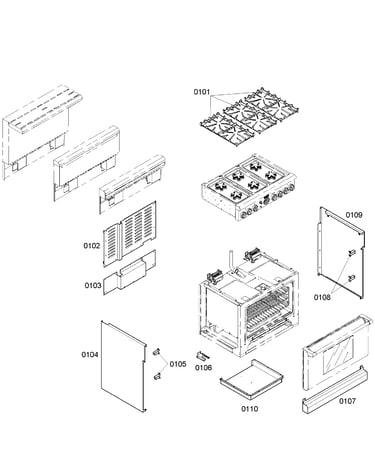

Main assy diagram
Range surface burner grate pad set
Part #413552
Replaced by #00413552
?
Manufacturer substitution
This part replaces 413552. Substitute parts can look different from the original.
This item is not returnable
$27.49 |
18% OFF Phone Price : $33.49
In Stock
#504

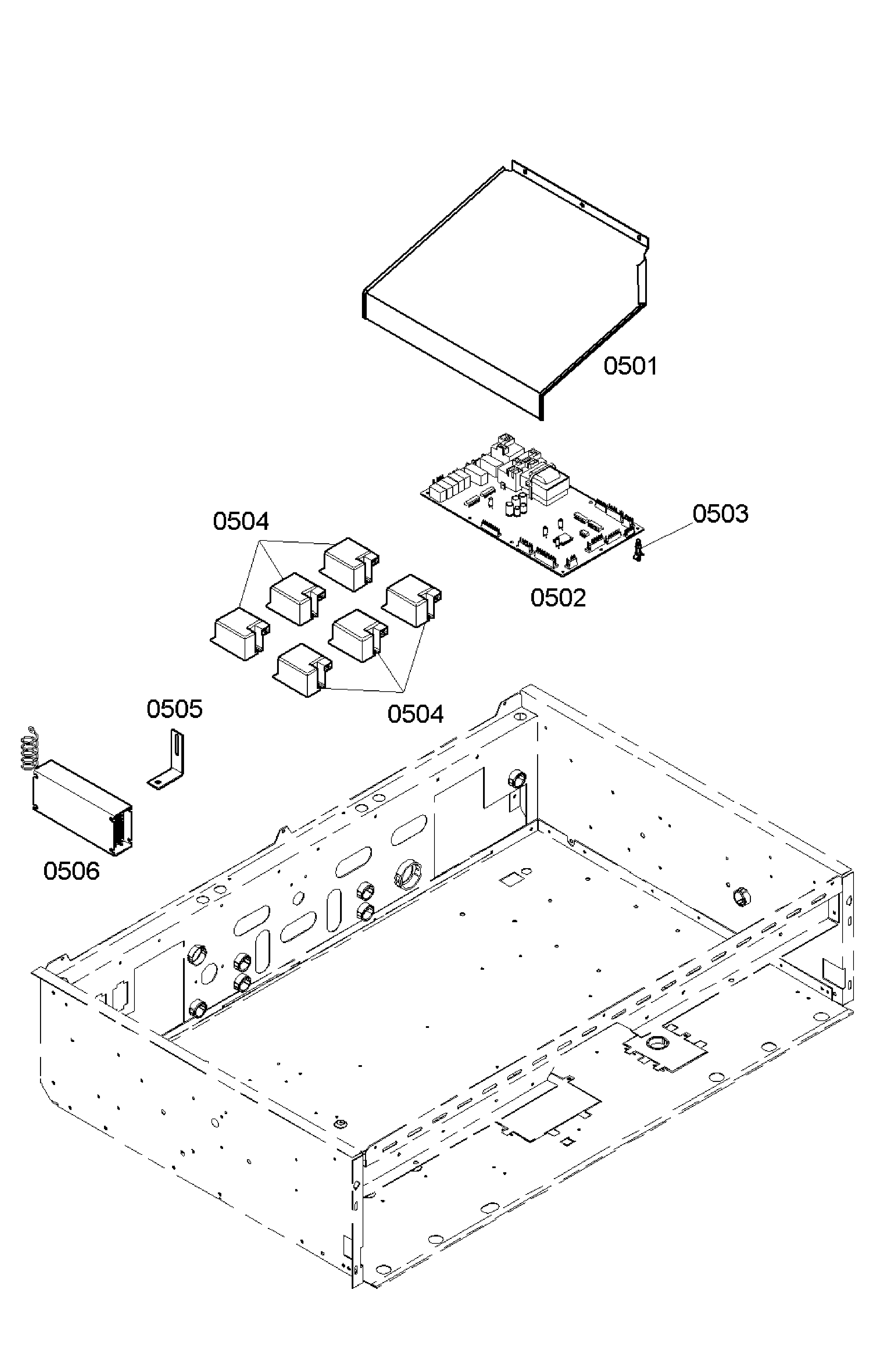

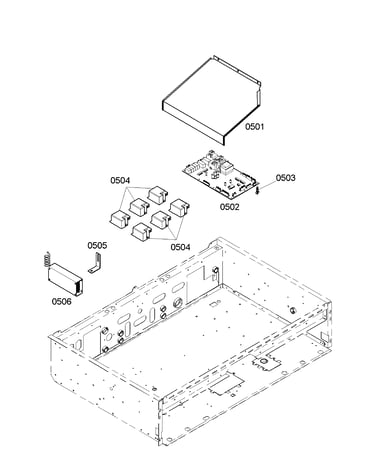

Pcb's assy diagram
Ignition
Part #427090
Replaced by #00619017
?
Manufacturer substitution
This part replaces 427090. Substitute parts can look different from the original.
$138.31 |
8% OFF Phone Price : $150.31
In Stock
Micro-switch
Part #428049
The manufacturer no longer makes this part, and there's no substitute part
#502
Pcb's assy diagram
Range power control board
Part #709785
Replaced by #00709785
?
Manufacturer substitution
This part replaces 709785. Substitute parts can look different from the original.
This item is not returnable
$338.55 |
$12.00 OFF Phone Price : $350.55
In Stock

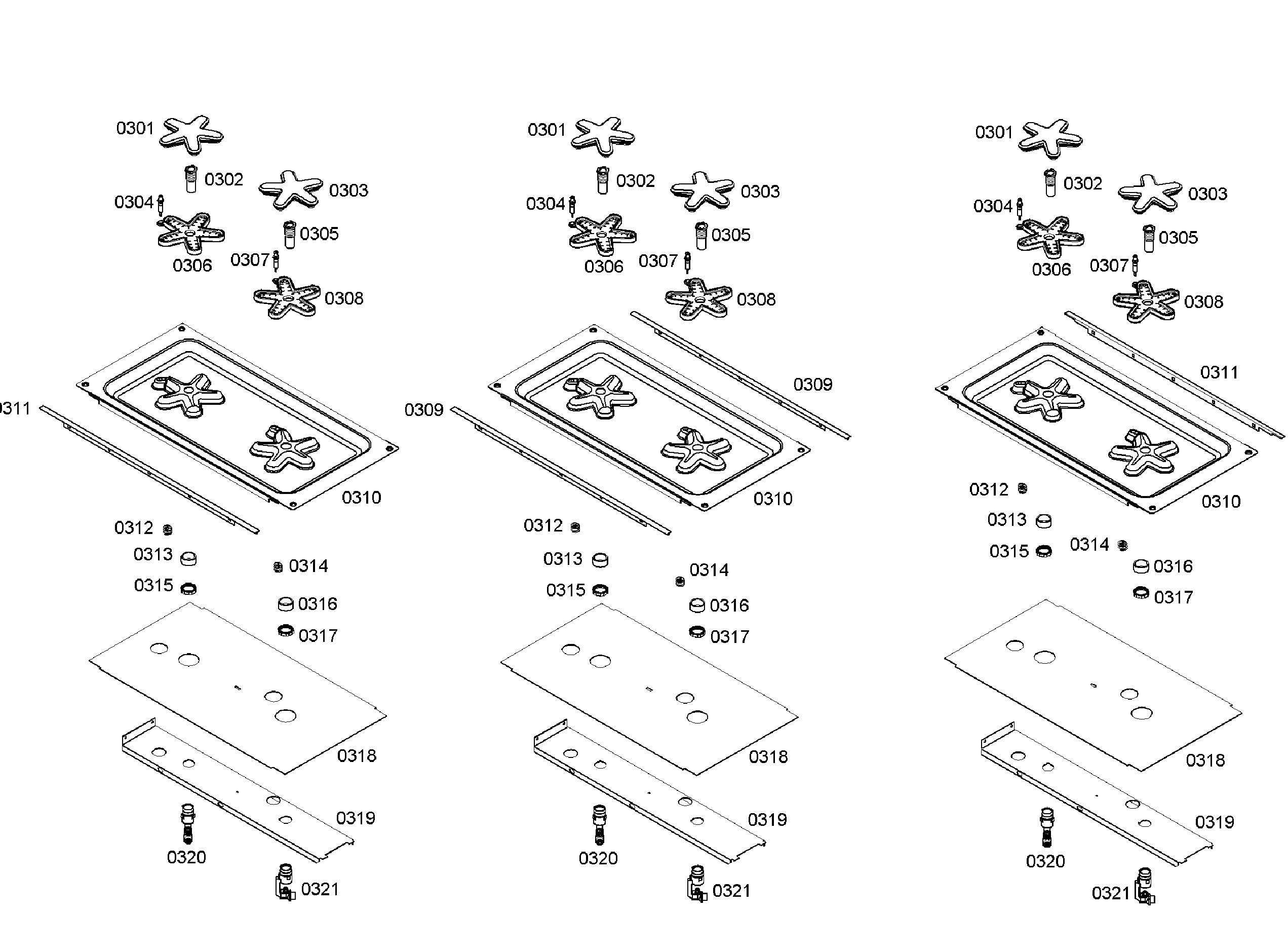

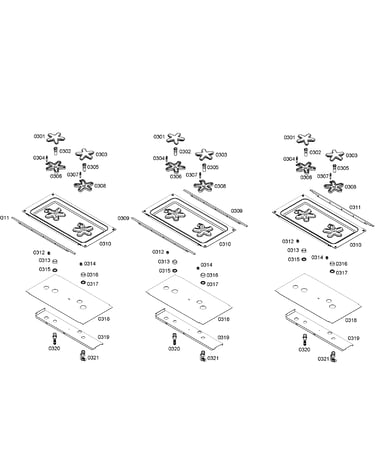

Range surface burner cap
Part #494133
$68.24
In Stock
#702

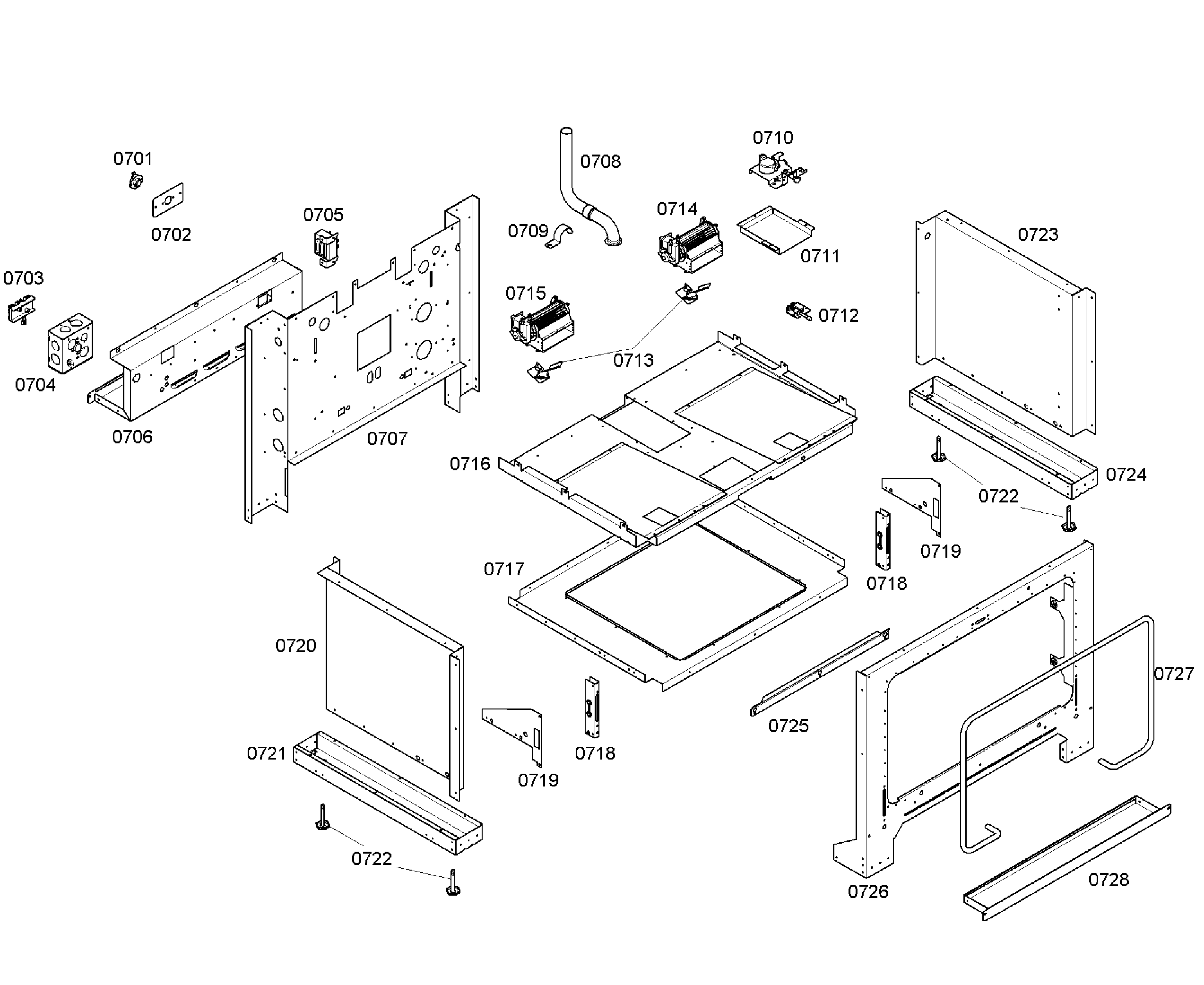

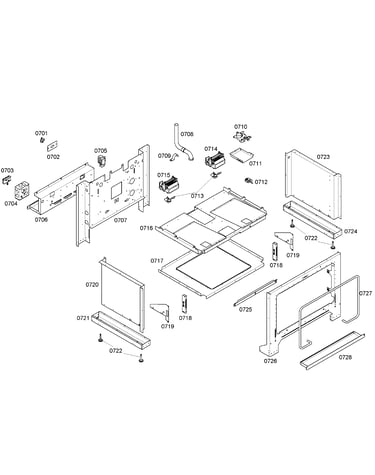

Cabinet assy diagram
Bracket
Part #494382
Replaced by #00494382
?
Manufacturer substitution
This part replaces 494382. Substitute parts can look different from the original.
$18.06
In Stock
#618

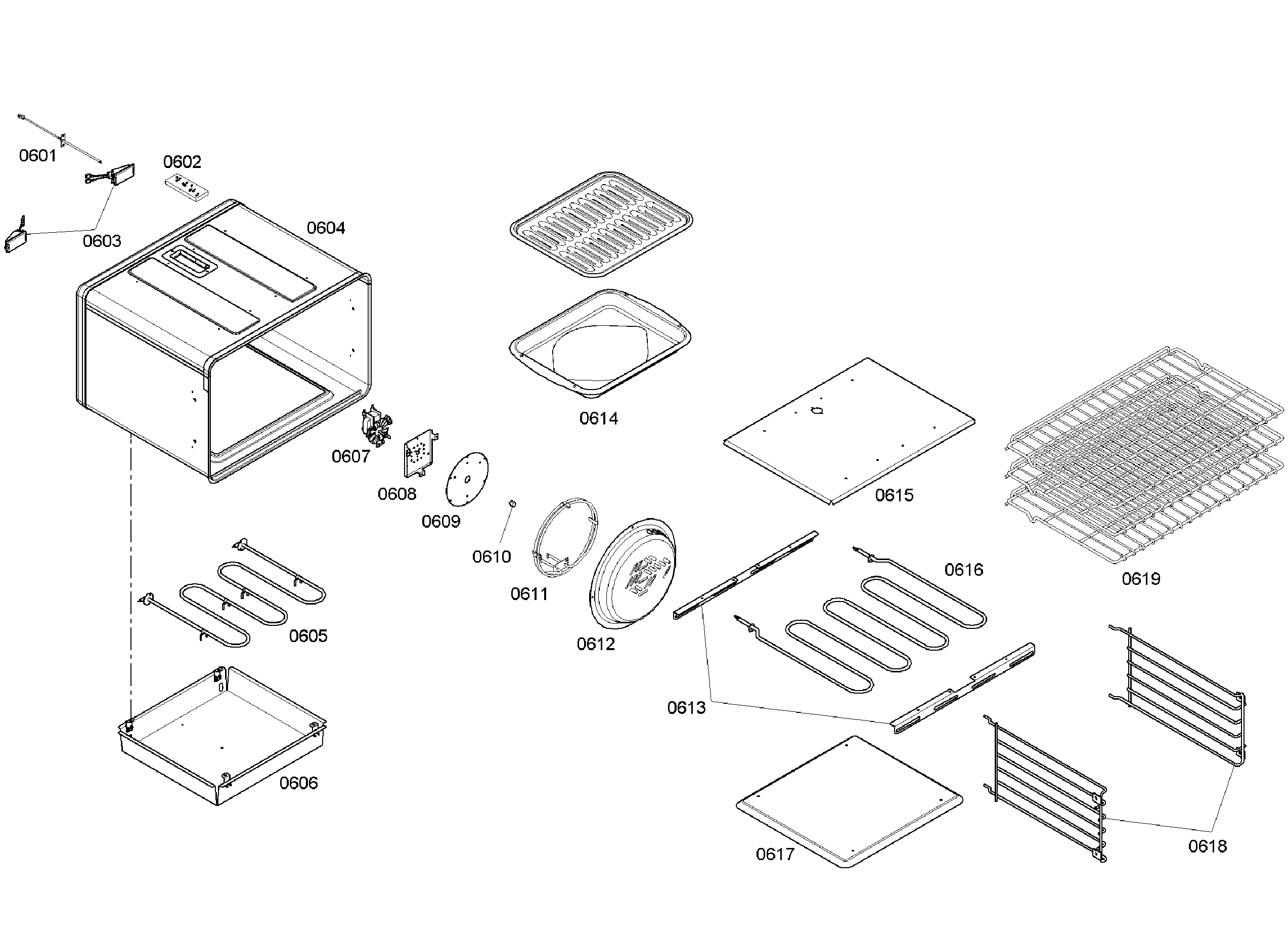

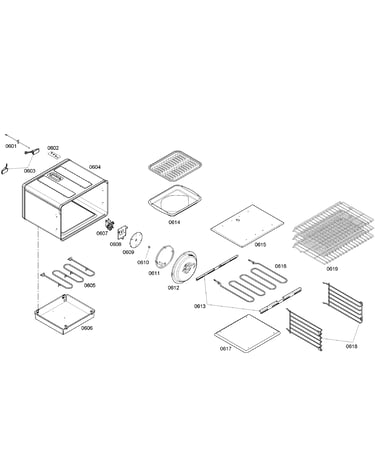

Oven assy diagram
Support
Part #418089
Replaced by #00418089
?
Manufacturer substitution
This part replaces 418089. Substitute parts can look different from the original.
$143.30
In Stock
