Model # 13953662SRT2 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 13953662SRT2 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Garage Door Opener Rpm Sensor Assembly 41C4398A
#17

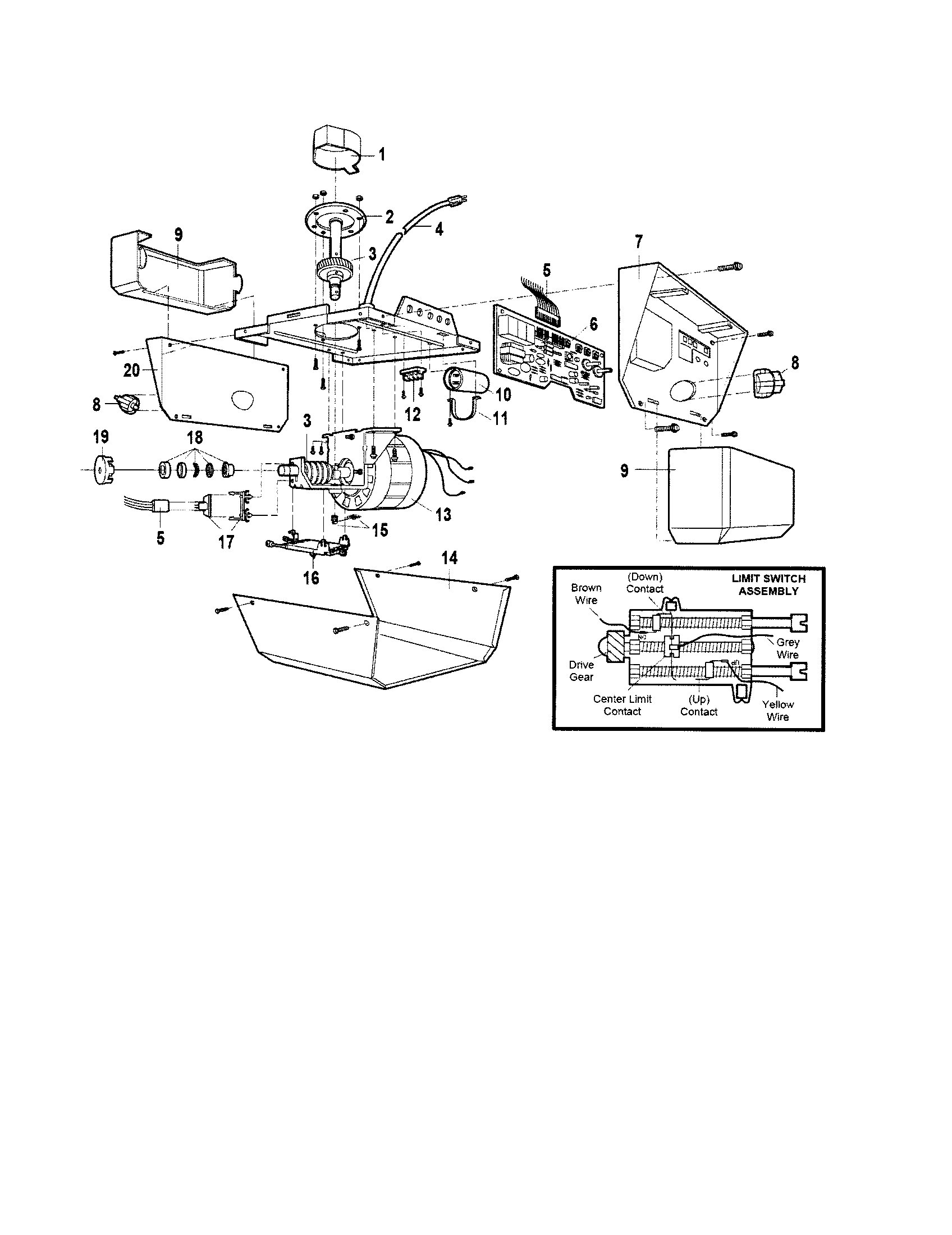

Opener assembly diagram

Garage door opener rpm sensor assembly

Part #41C4398A

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Chain And Cable Assembly (replaces 65410) 41A3473
#6

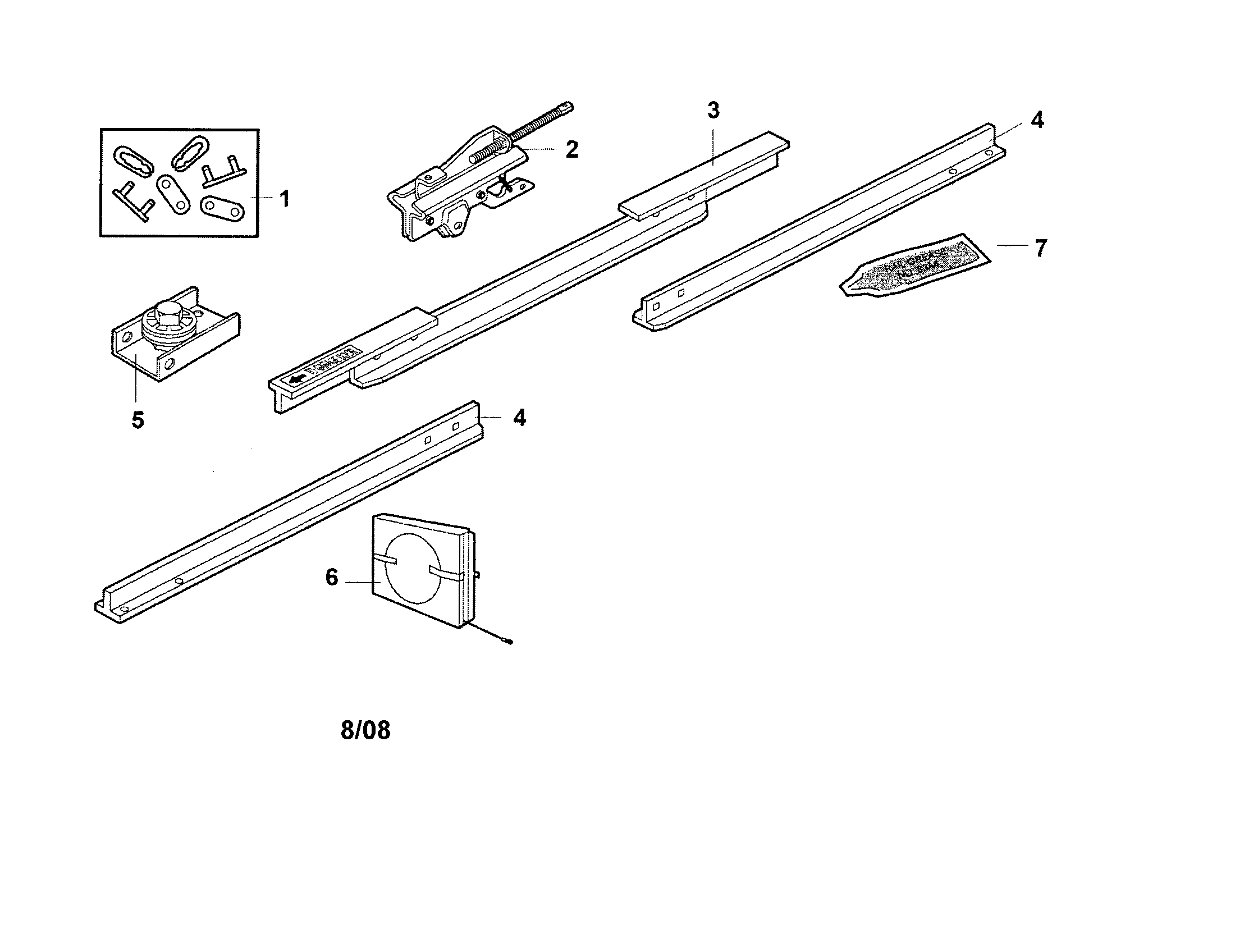

Rail assembly diagram

Garage door opener chain and cable assembly (replaces 65410)

Part #41A3473

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Limit Switch 41D3452
#16

Opener assembly diagram

Garage door opener limit switch

Part #41D3452

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Drive And Worm Gear Kit (replaces 3002375, 65409) 41A2817
#3

Opener assembly diagram

Garage door opener drive and worm gear kit (replaces 3002375, 65409)

Part #41A2817

The manufacturer no longer makes this part, and there's no substitute part

3-function Remote Control 139.53680
#7

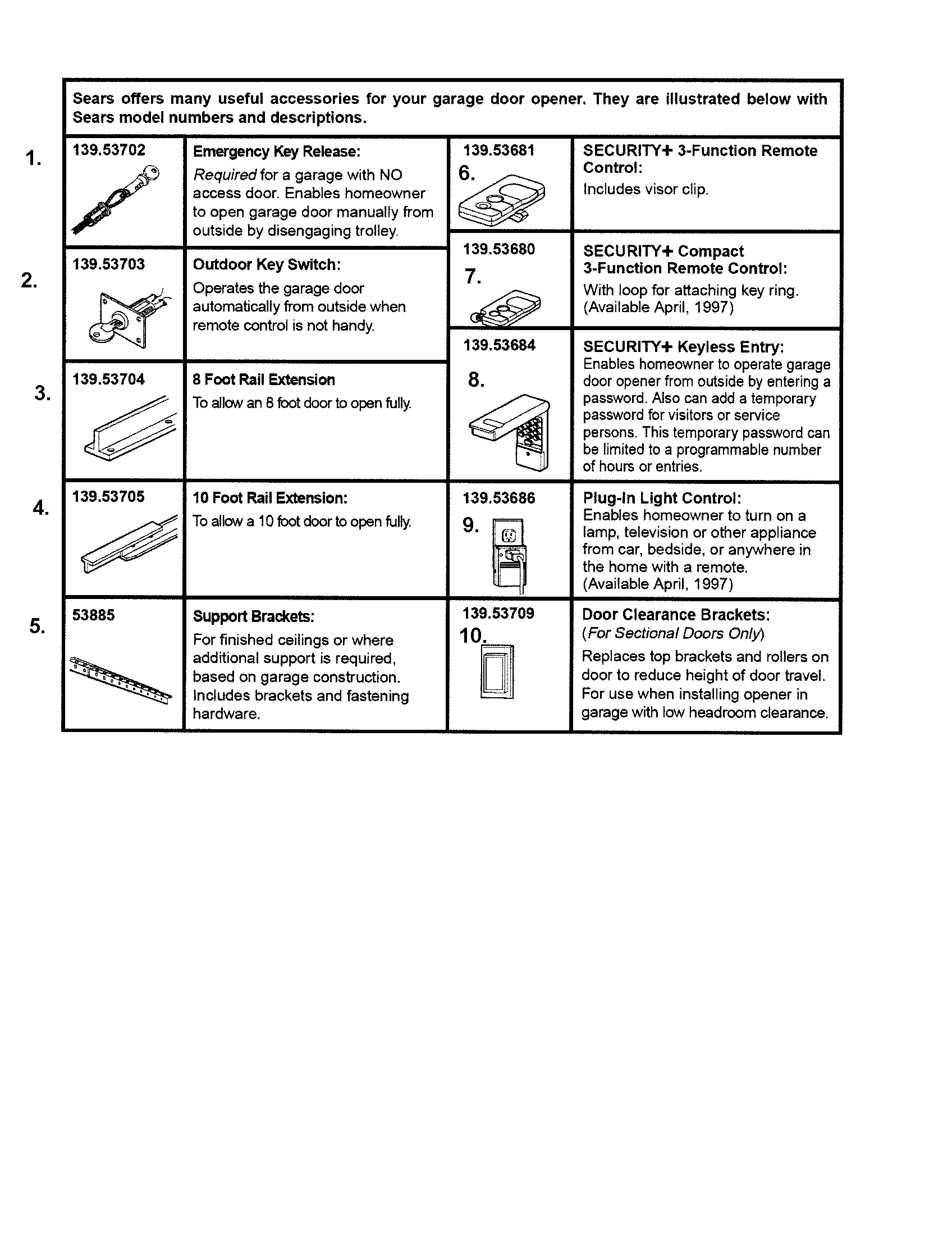

Accessories diagram

3-function remote control

Part #139.53680

The manufacturer no longer makes this part, and there's no substitute part

Lens 108D48-2
#9

Opener assembly diagram

Lens

Part #108D48-2

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Gear And Sprocket Assembly 41C4220A
#2

Opener assembly diagram

Garage door opener gear and sprocket assembly

Part #41C4220A

The manufacturer no longer makes this part, and there's no substitute part

Start Cap 30B363
#10

Opener assembly diagram

Start cap

Part #30B363

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Motor Assembly 41D3058
#13

Opener assembly diagram

Garage door opener motor assembly

Part #41D3058

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Safety Sensor Kit 41A4373A
#13

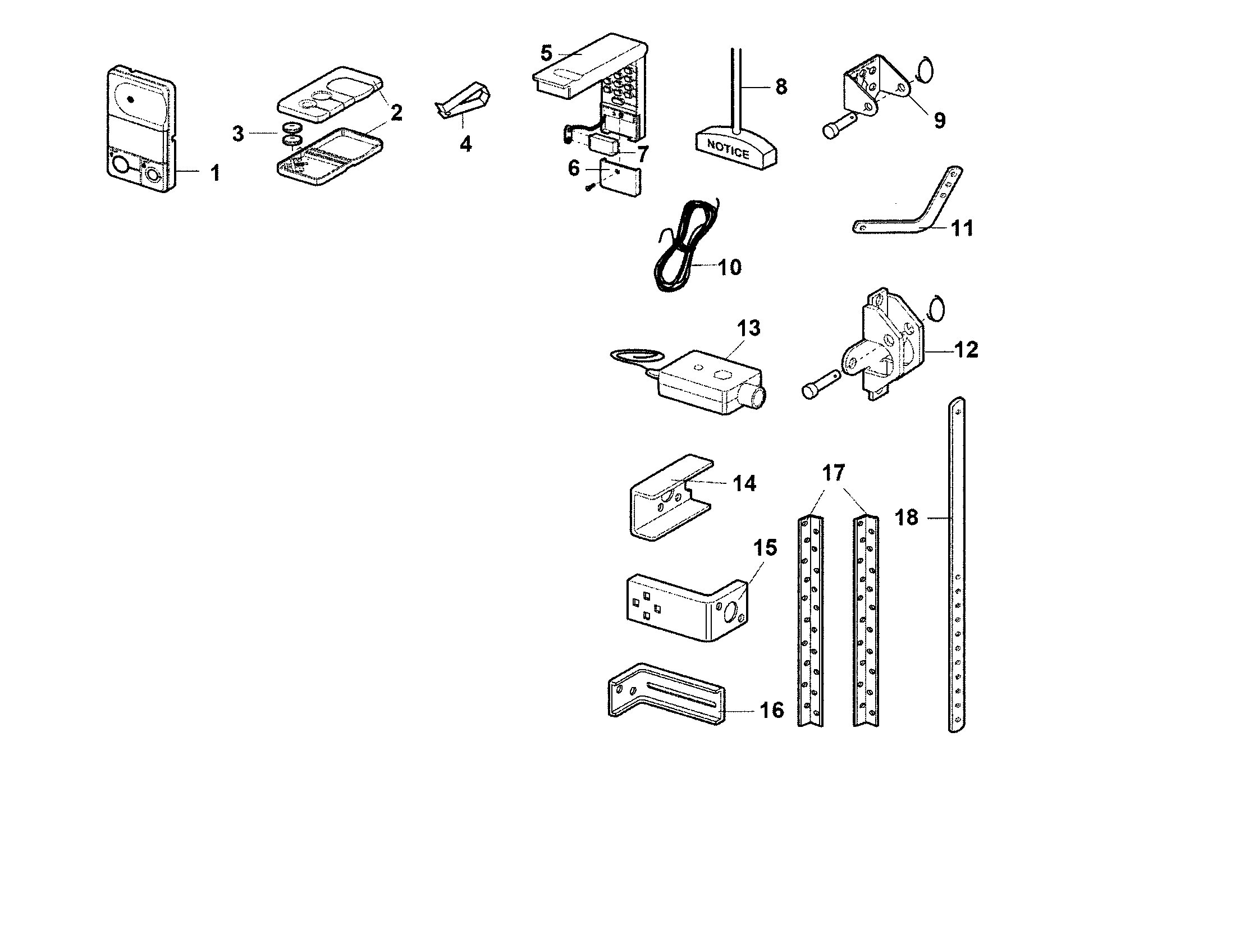

Installation parts diagram

Garage door opener safety sensor kit

Part #41A4373A

The manufacturer no longer makes this part, and there's no substitute part
