Model # PRL366GH-01 Official Thermador gas range

Here are the diagrams and repair parts for Official Thermador PRL366GH-01 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

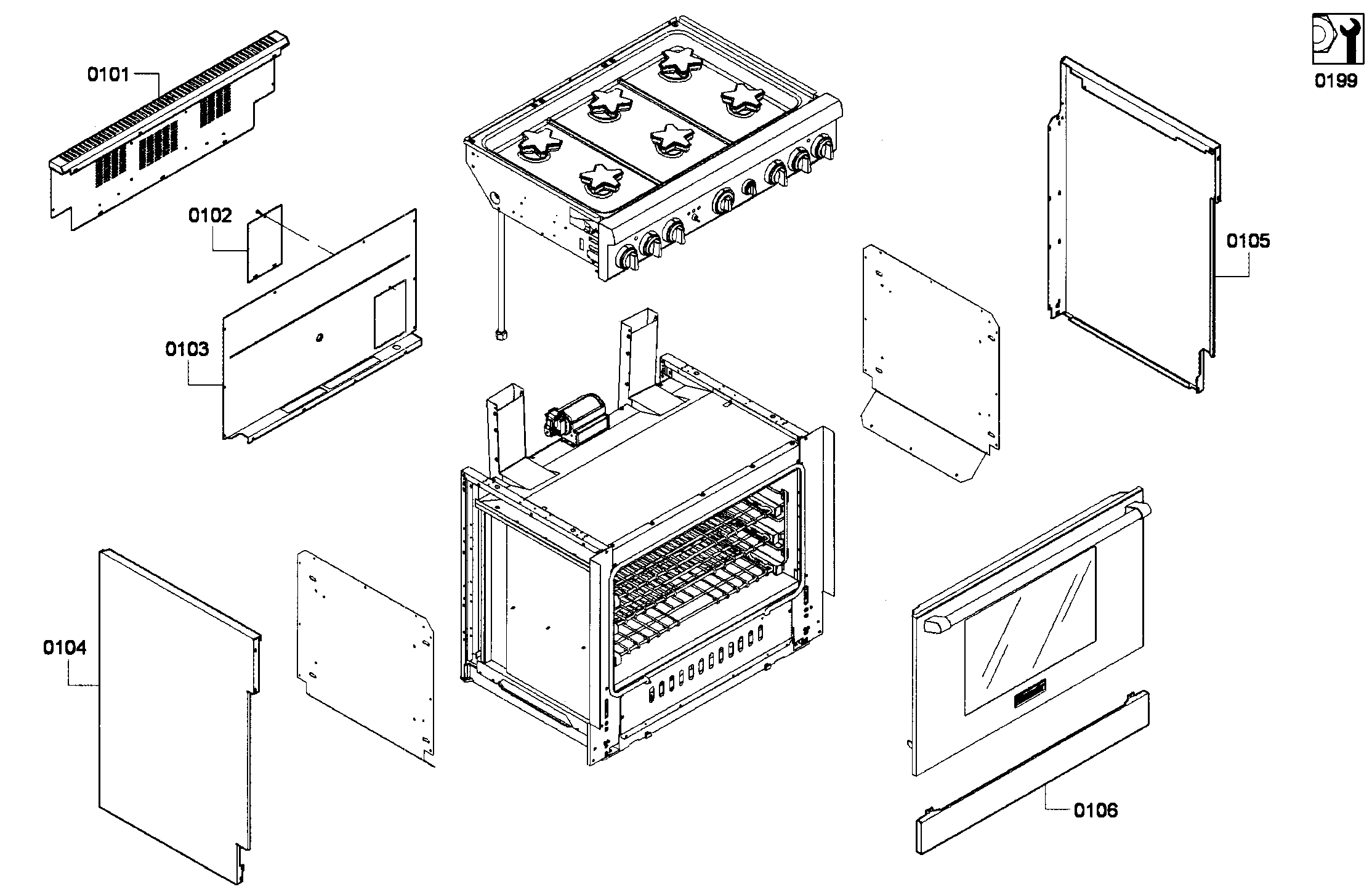

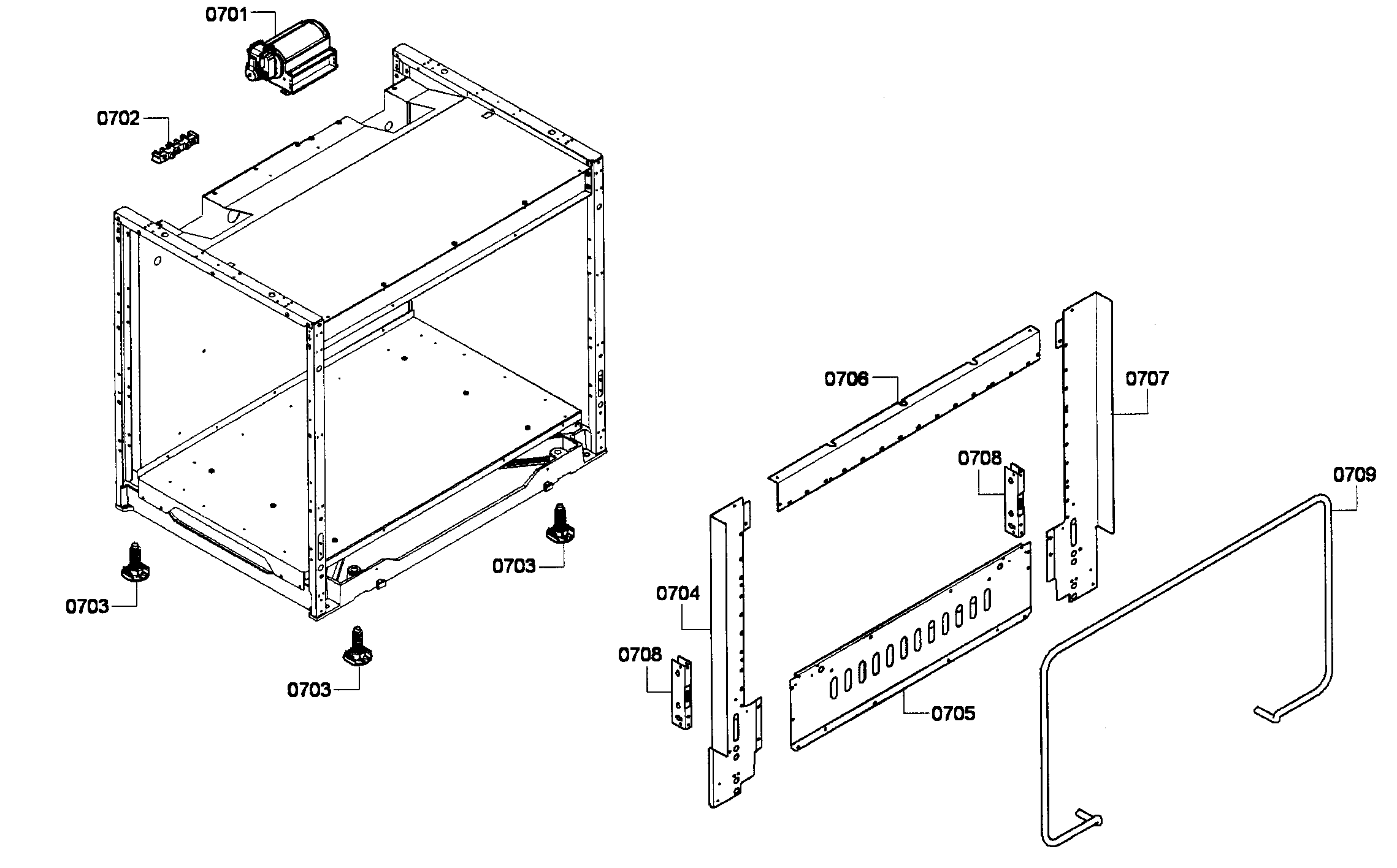

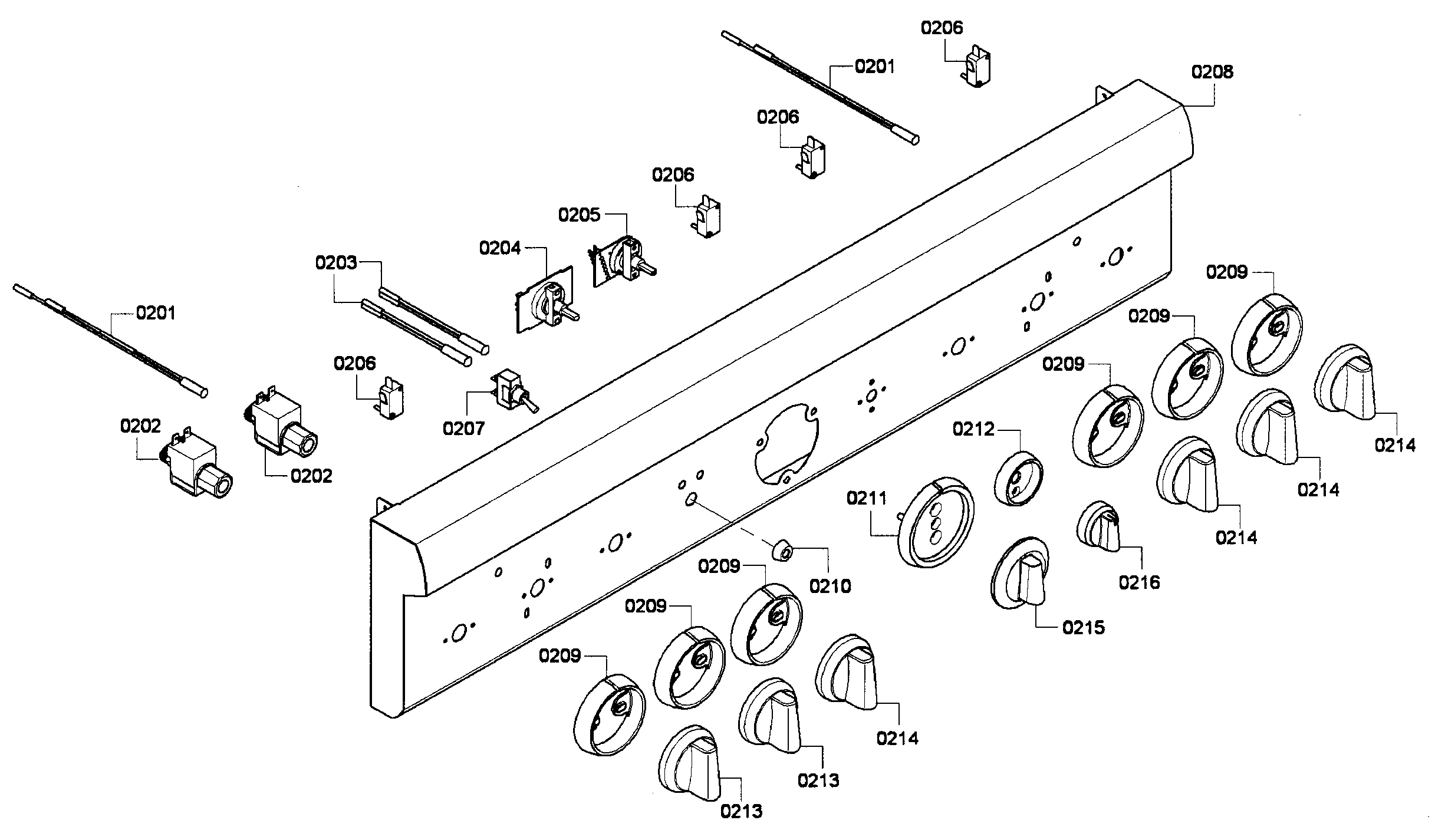

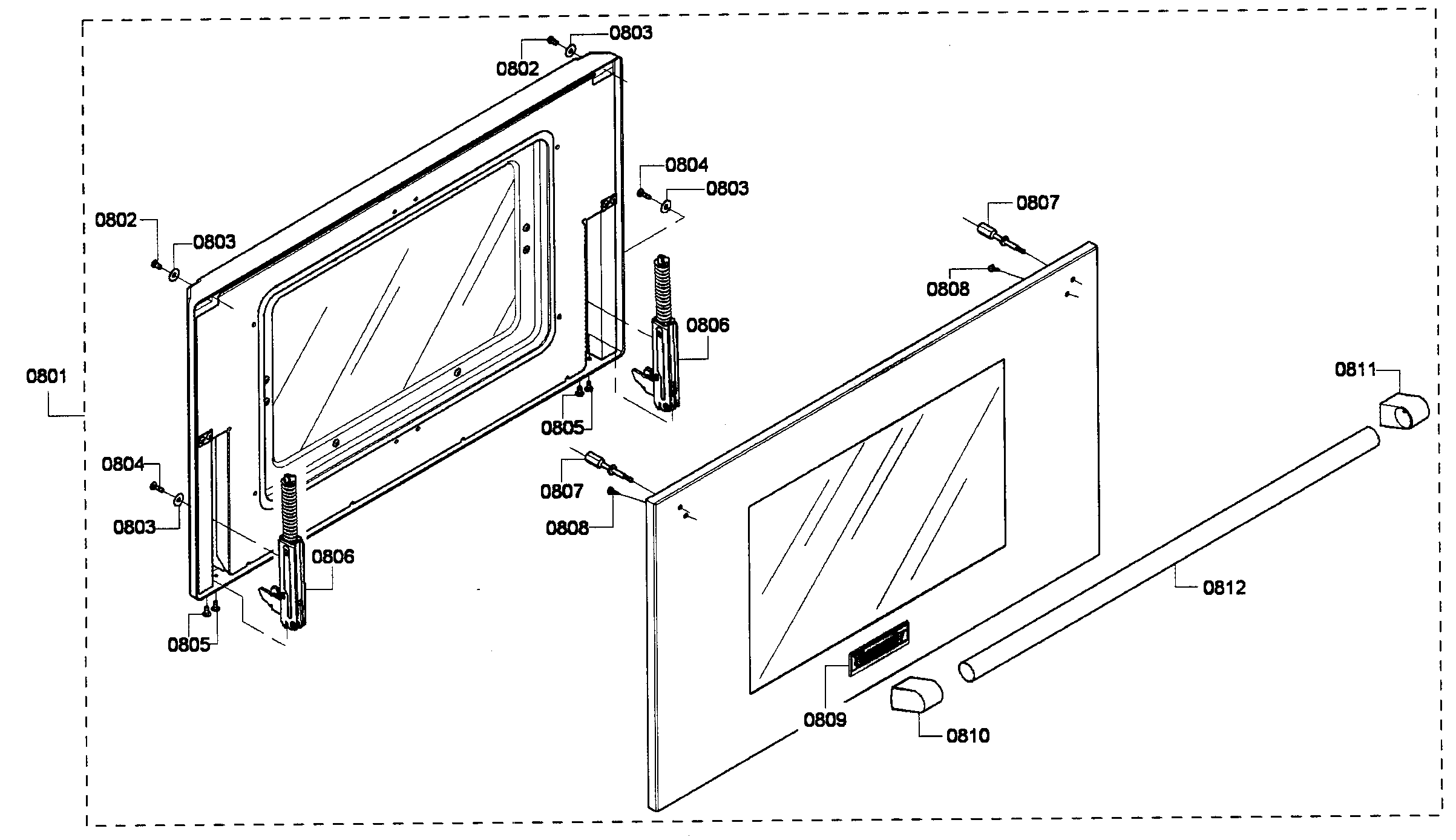

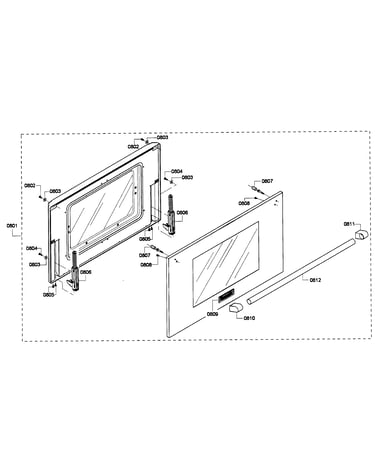

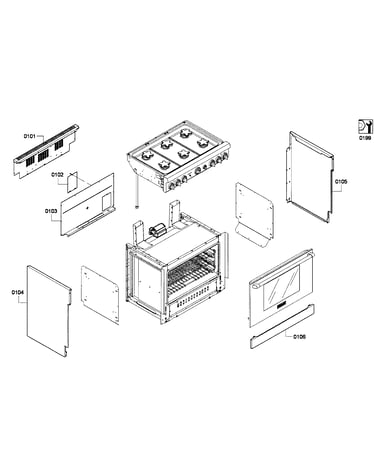

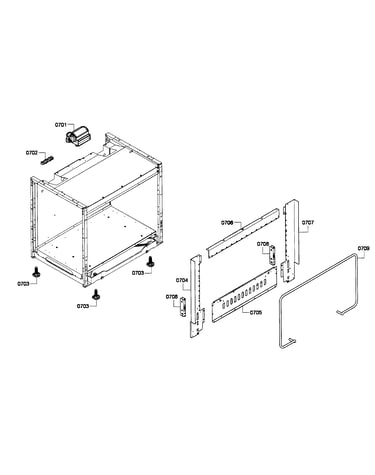

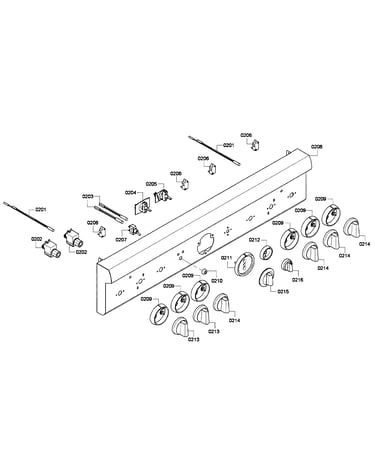

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Igniter 492431
#607

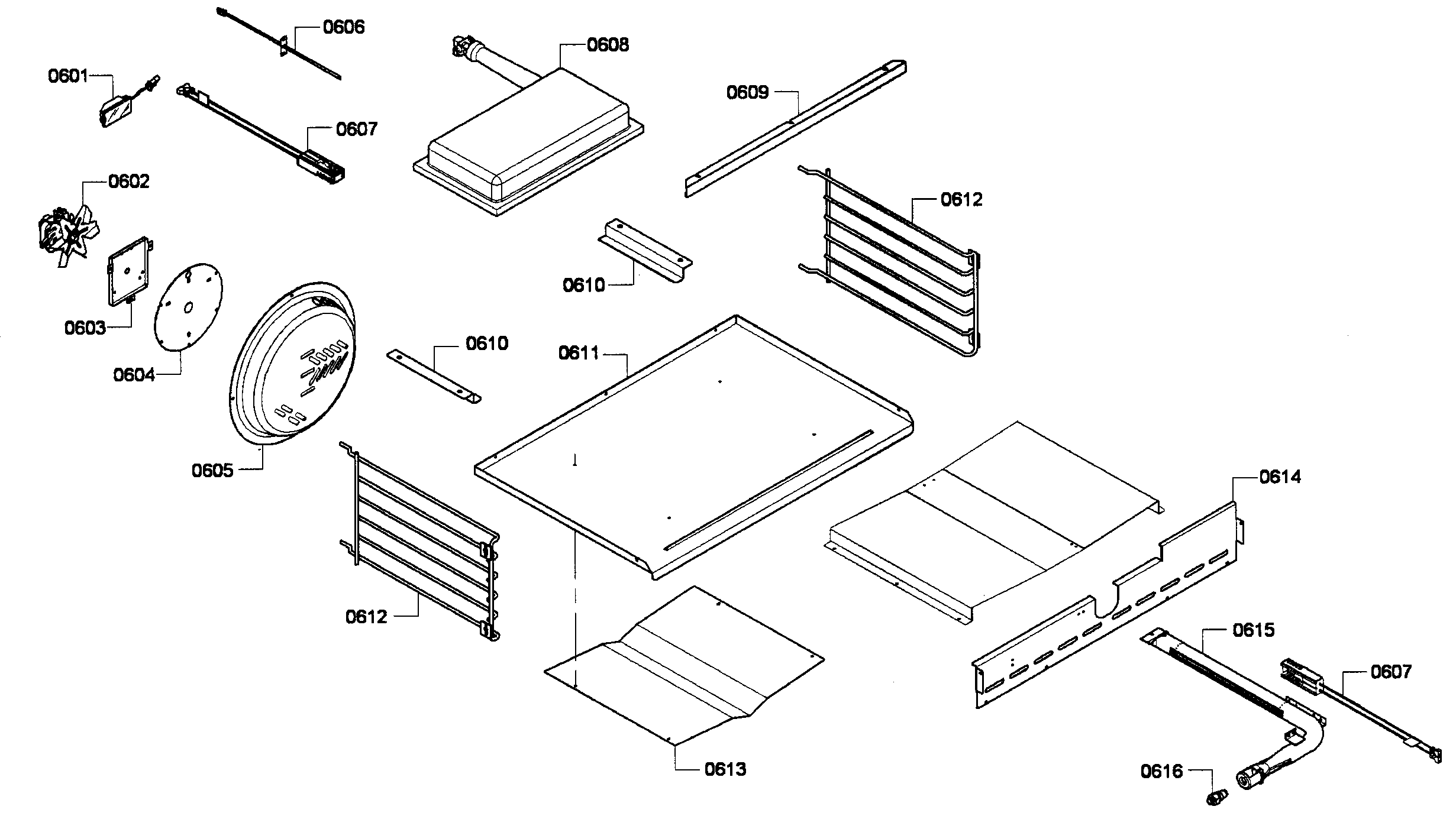

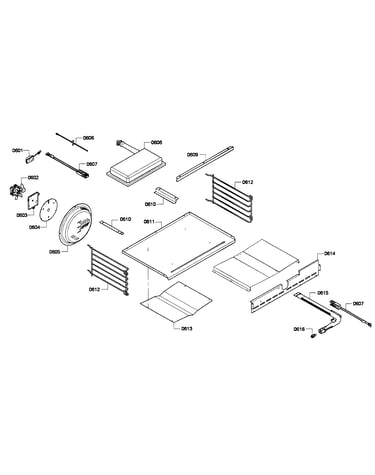

Oven assy diagram

Igniter

Part #492431

Replaced by #00492431

?
Manufacturer substitution
This part replaces 492431. Substitute parts can look different from the original.
$120.69 |
9% OFF Phone Price : $132.69
In Stock
Potentiometer 611346
#425

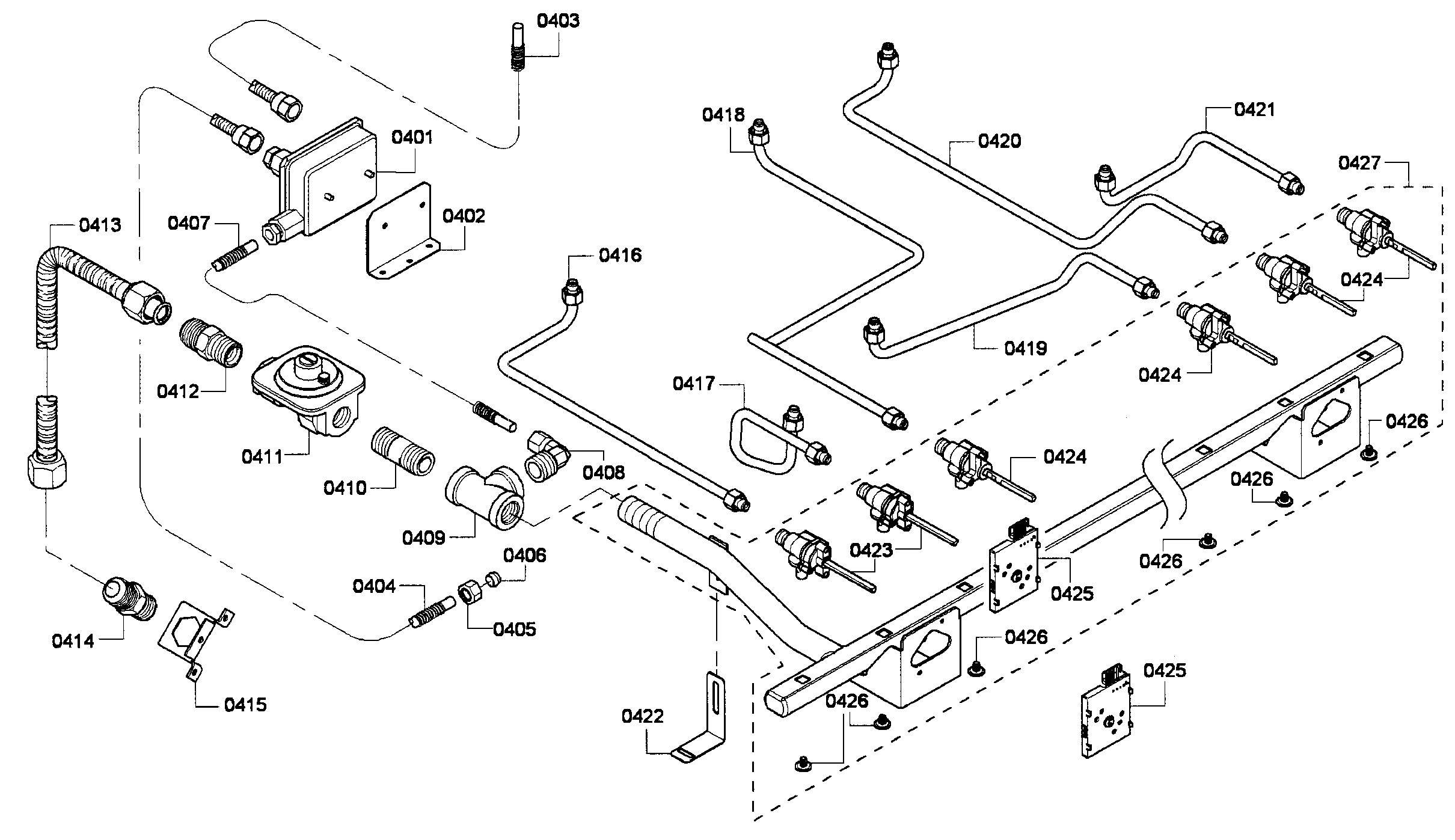

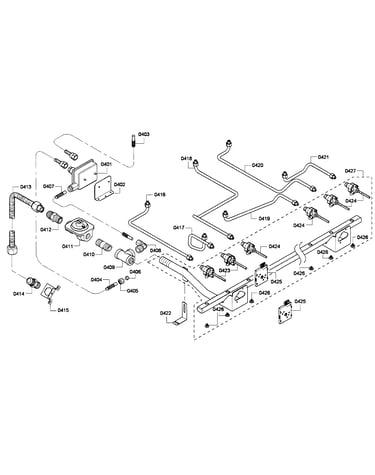

Gas supplay diagram

Potentiometer

Part #611346

Replaced by #00629722

?
Manufacturer substitution
This part replaces 611346. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
In Stock
Screw 420807
#426

Gas supplay diagram

Screw

Part #420807

Replaced by #00420807

?
Manufacturer substitution
This part replaces 420807. Substitute parts can look different from the original.
This item is not returnable
$3.69
In Stock
Cover 489125
#605

Oven assy diagram

Cover

Part #489125

Replaced by #00489125

?
Manufacturer substitution
This part replaces 489125. Substitute parts can look different from the original.
$202.62
In Stock
Motor 497756
#602

Oven assy diagram

Motor

Part #497756

Replaced by #00497756

?
Manufacturer substitution
This part replaces 497756. Substitute parts can look different from the original.
$259.73 |
$12.00 OFF Phone Price : $271.73
In Stock
Cable Harness 648854
#NI

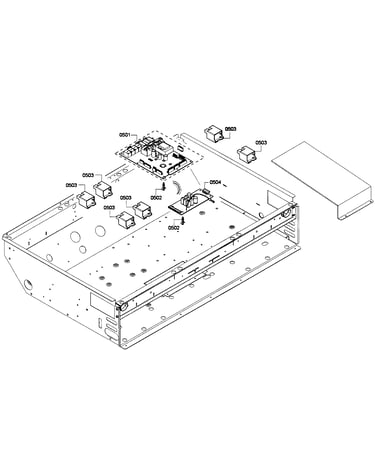

Pcb's assy diagram

Cable harness

Part #648854

Replaced by #00648854

?
Manufacturer substitution
This part replaces 648854. Substitute parts can look different from the original.
$186.96
In Stock
Valve 617175
#423

Gas supplay diagram

Valve

Part #617175

Replaced by #00629120

?
Manufacturer substitution
This part replaces 617175. Substitute parts can look different from the original.
$105.73
In Stock
Electrode 617161
#303

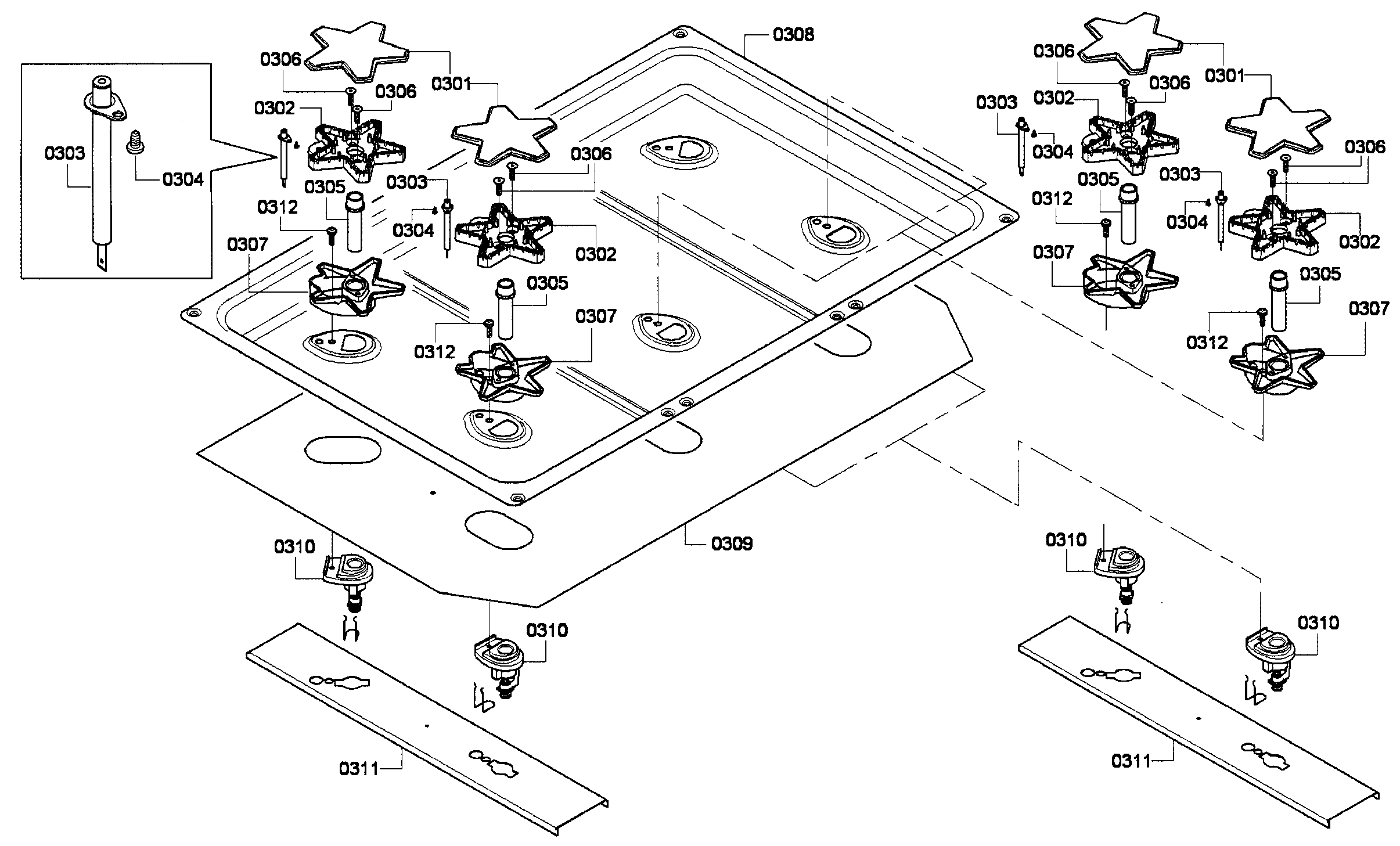

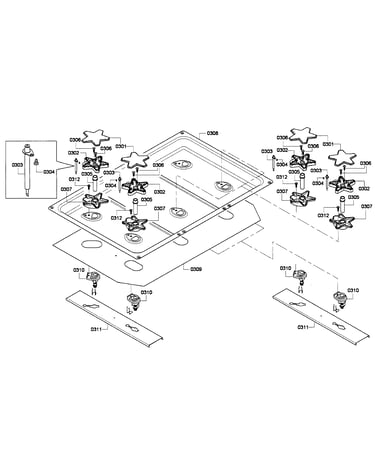

Burners assy diagram

Electrode

Part #617161

Replaced by #00617161

?
Manufacturer substitution
This part replaces 617161. Substitute parts can look different from the original.
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Support 676034
#901

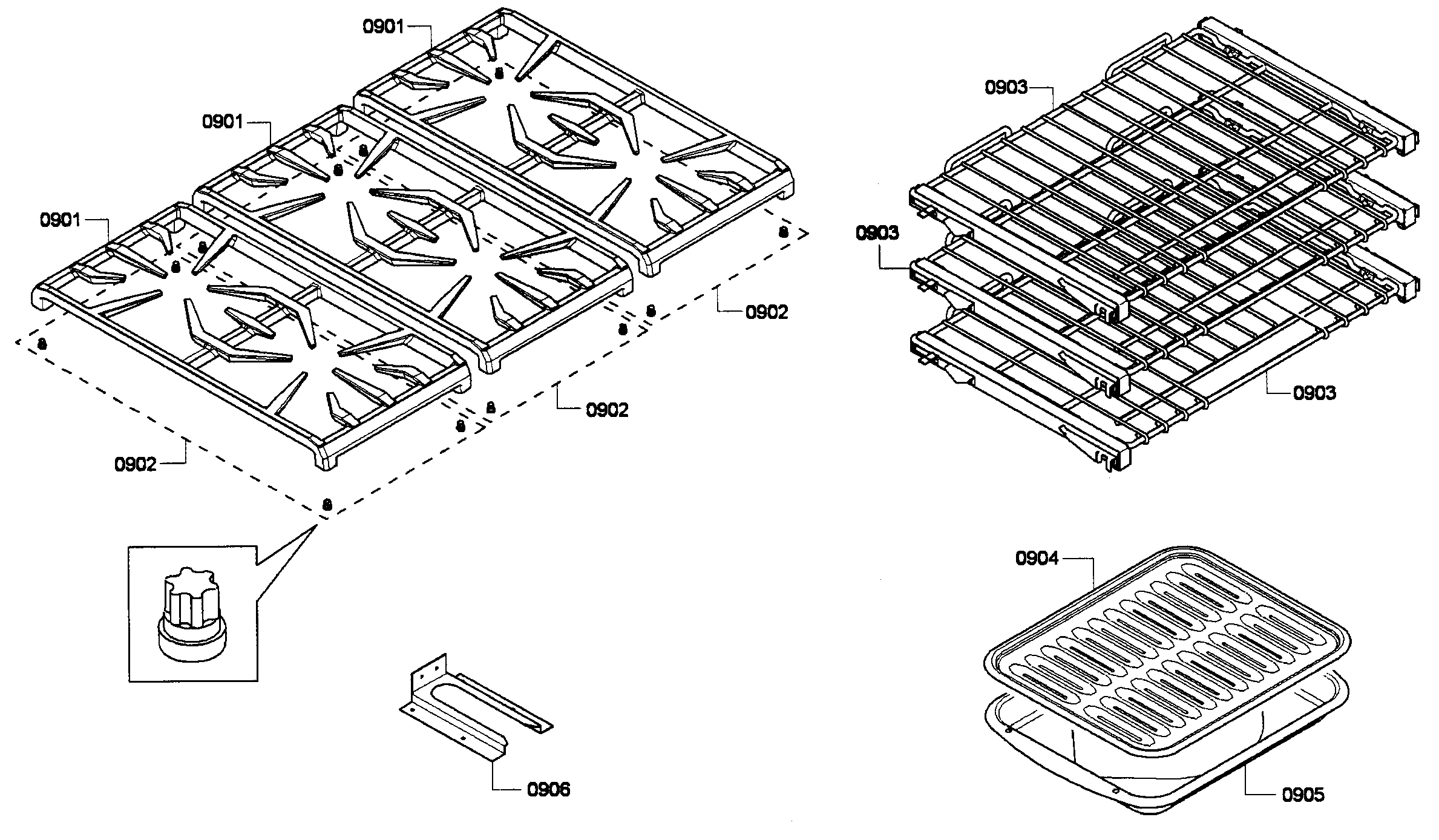

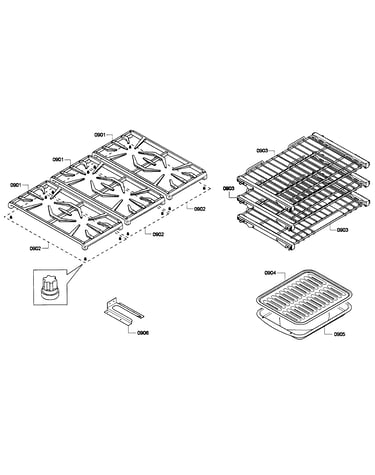

Racks/shelfs diagram

Support

Part #676034

Replaced by #00145306

?
Manufacturer substitution
This part replaces 676034. Substitute parts can look different from the original.
$189.96 |
6% OFF Phone Price : $201.96
In Stock
Pcb 649291
#501

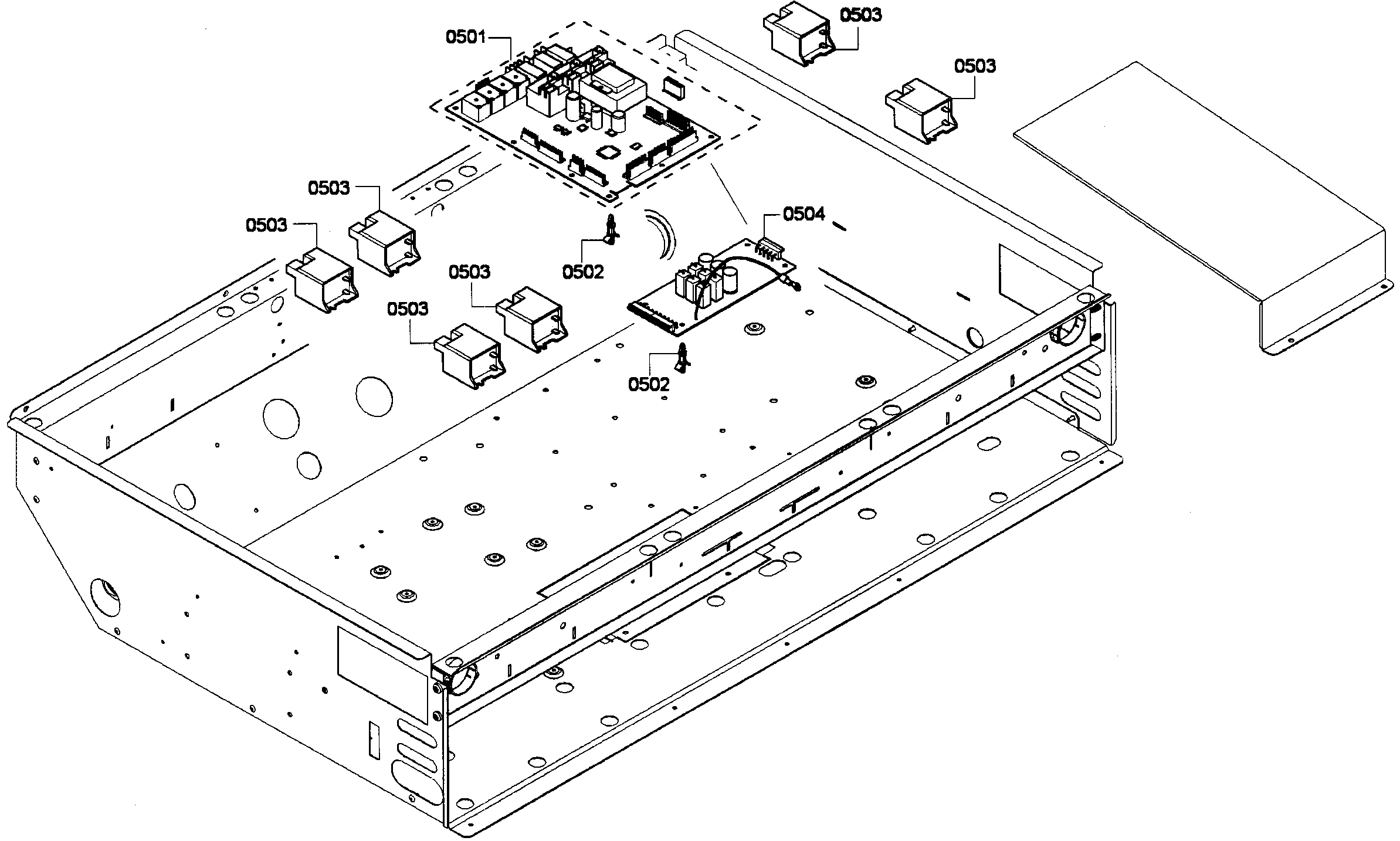

Pcb's assy diagram

Pcb

Part #649291

Replaced by #00709785

?
Manufacturer substitution
This part replaces 649291. Substitute parts can look different from the original.
This item is not returnable
$338.55 |
$12.00 OFF Phone Price : $350.55
In Stock
