Magic Chef
Top-Mount Refrigerator

Model # CTL1511AEW Official Magic Chef refrigerator

Here are the diagrams and repair parts for Official Magic Chef CTL1511AEW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

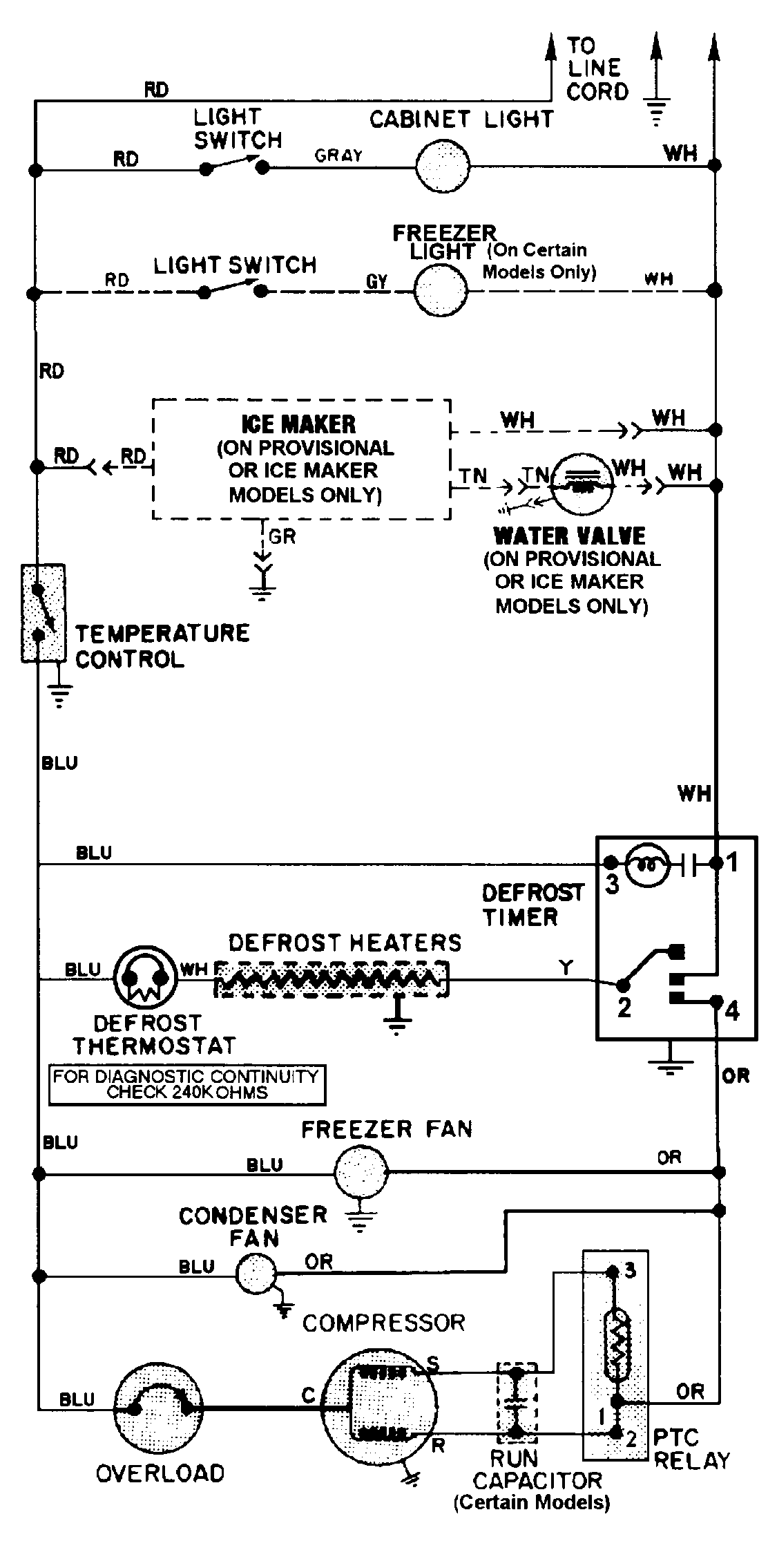

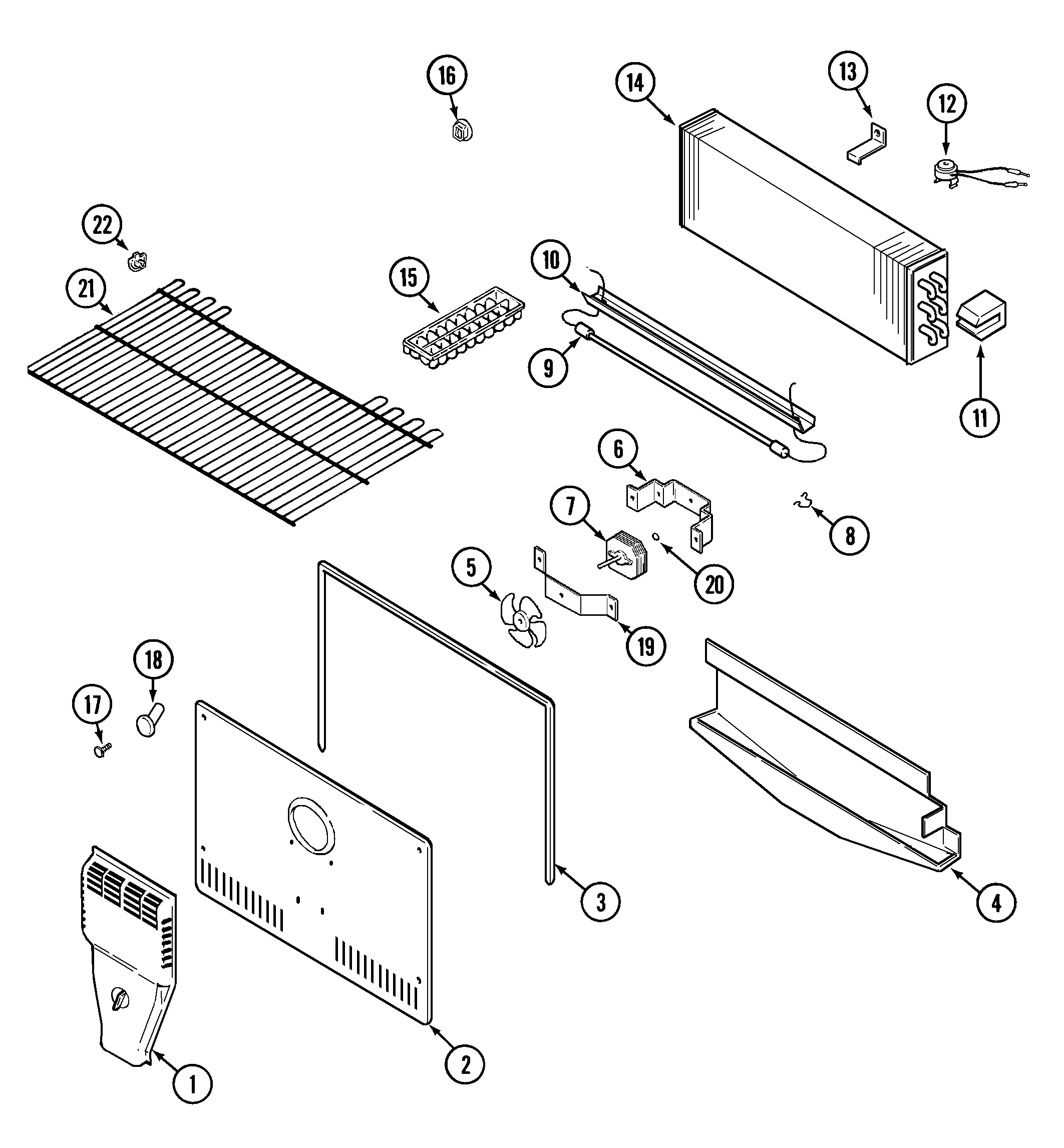

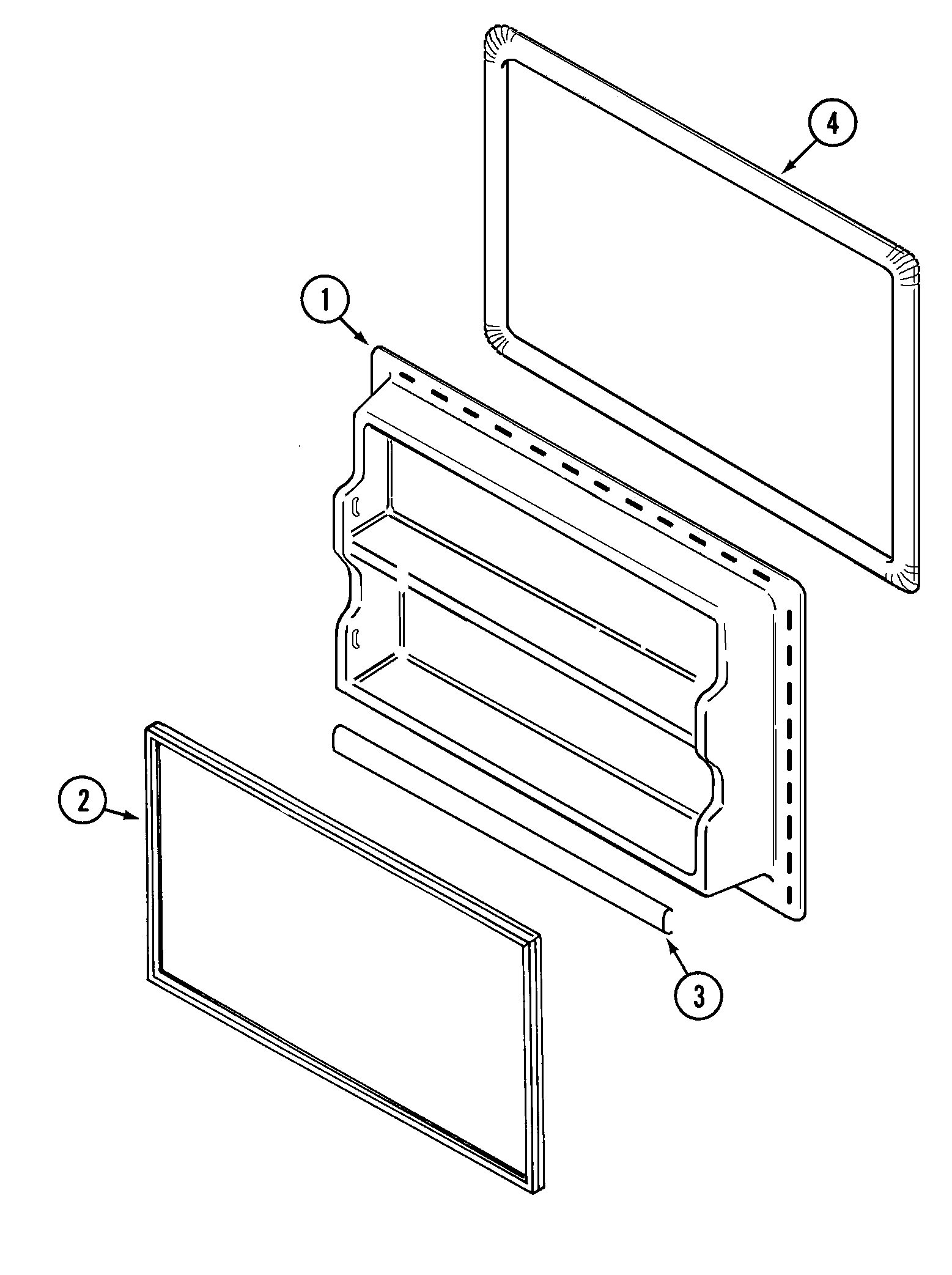

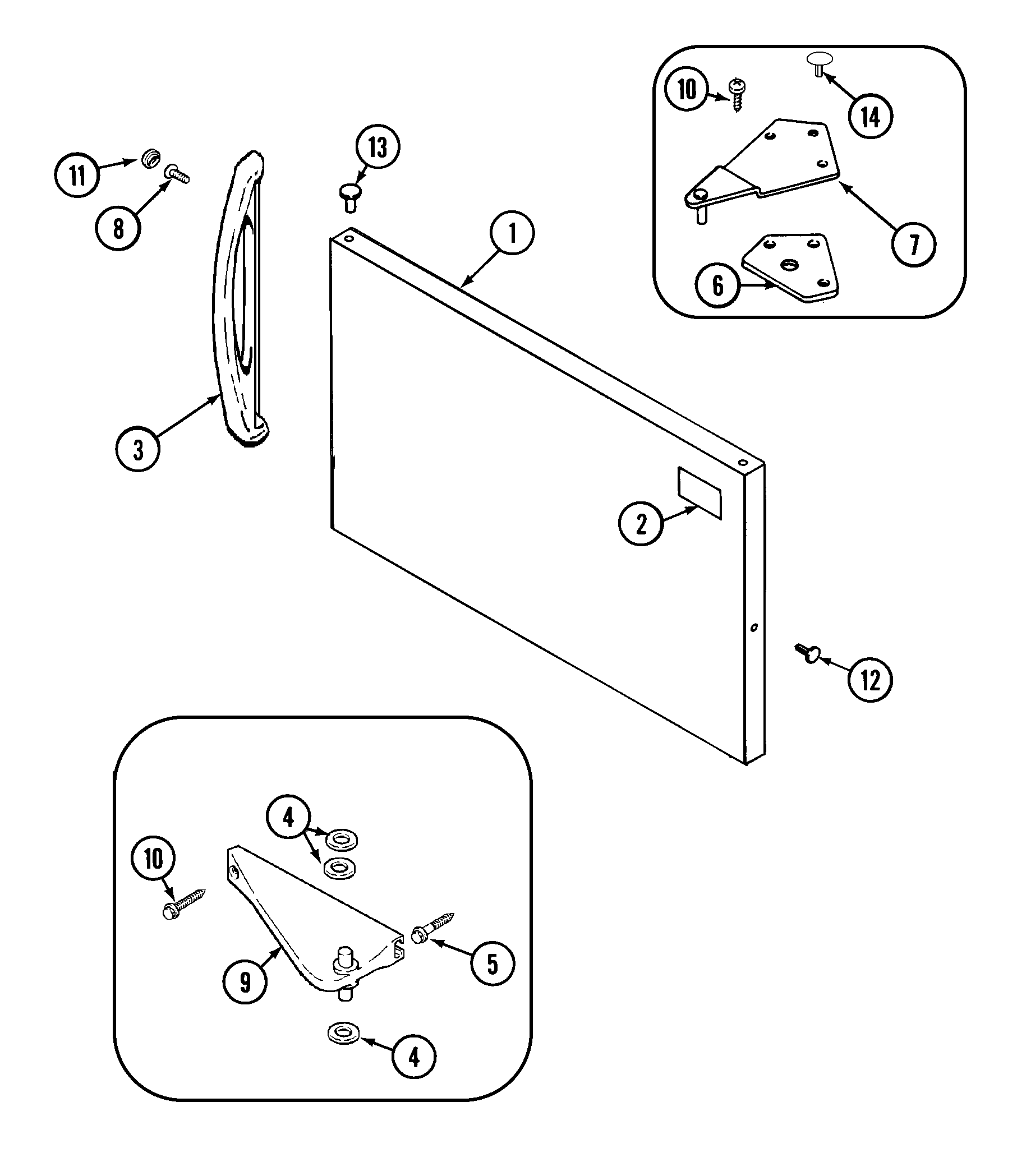

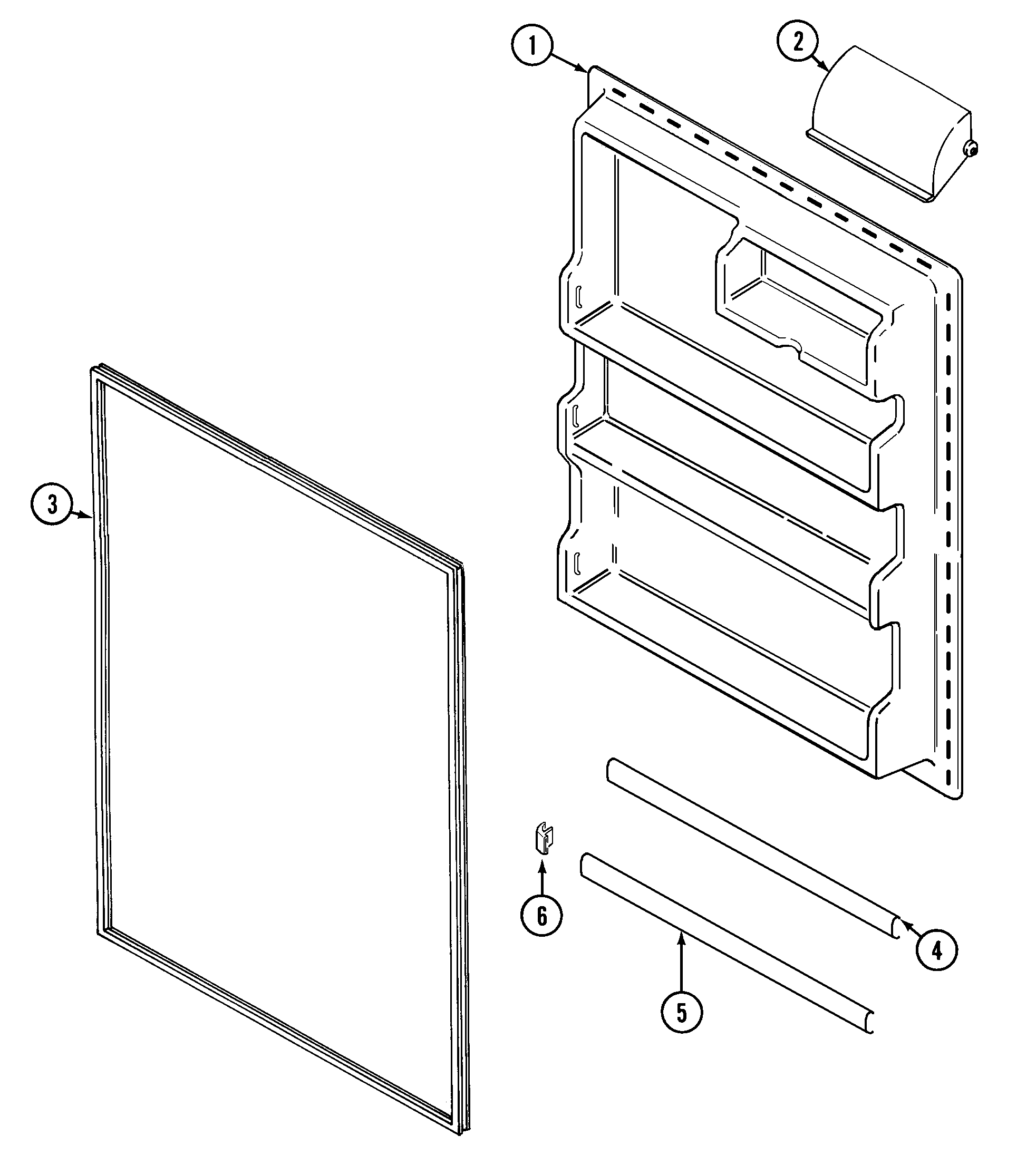

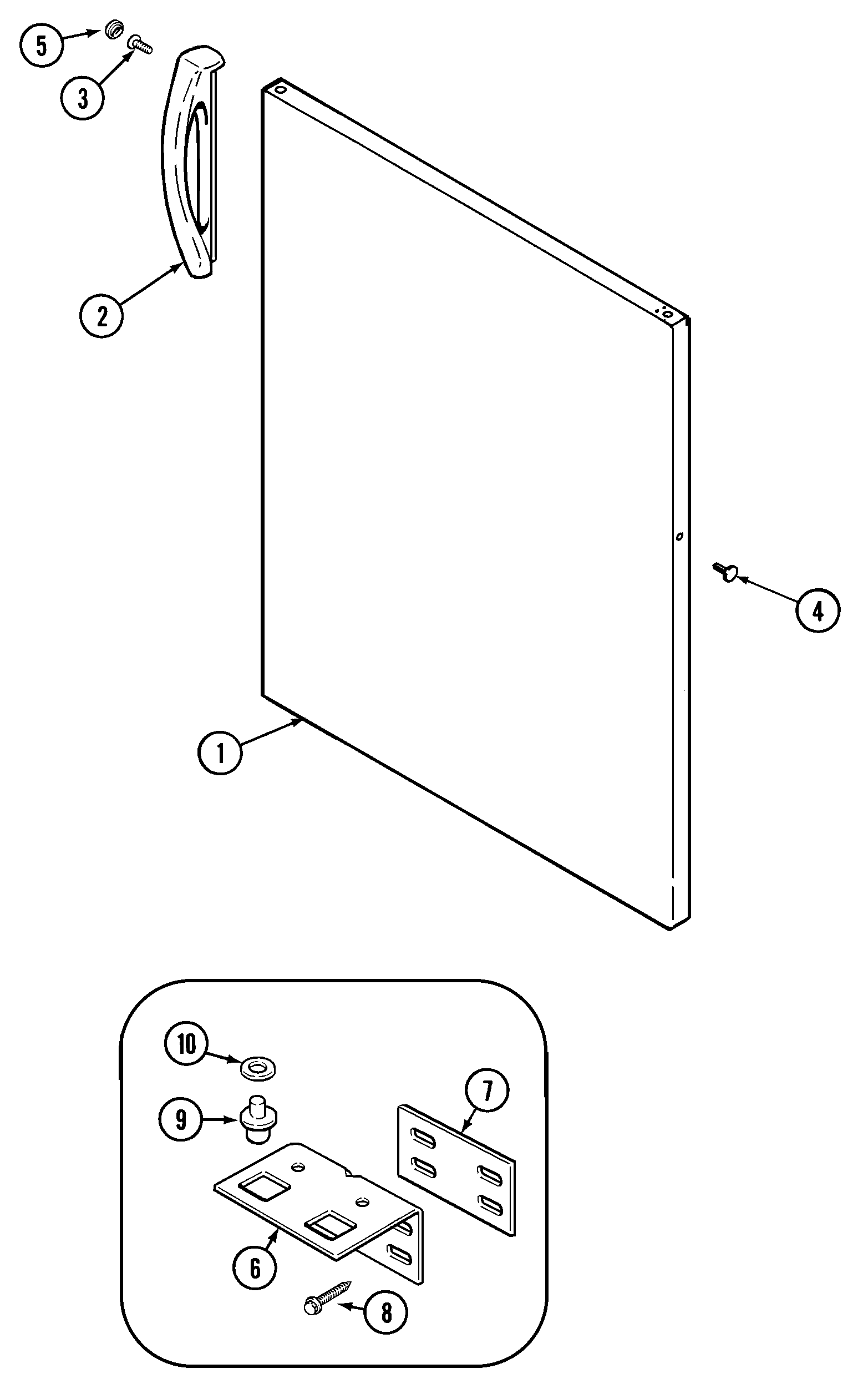

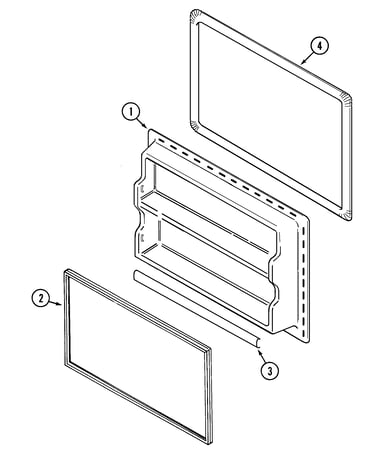

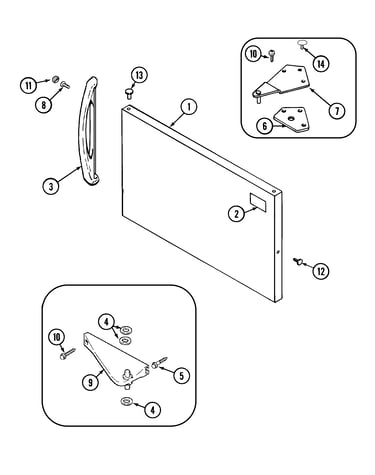

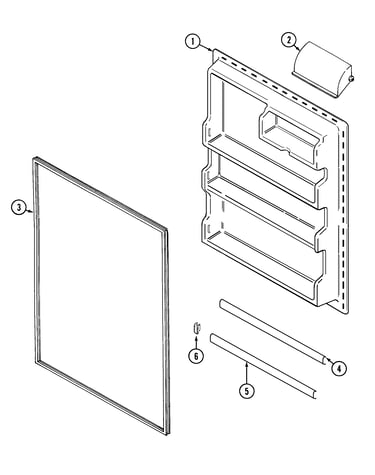

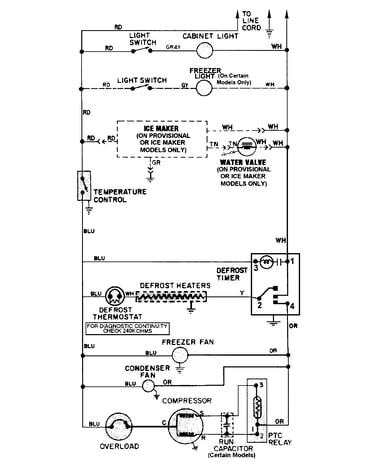

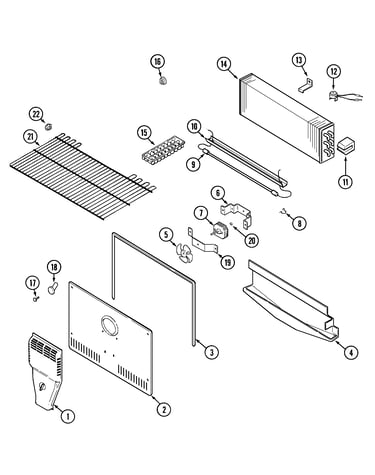

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

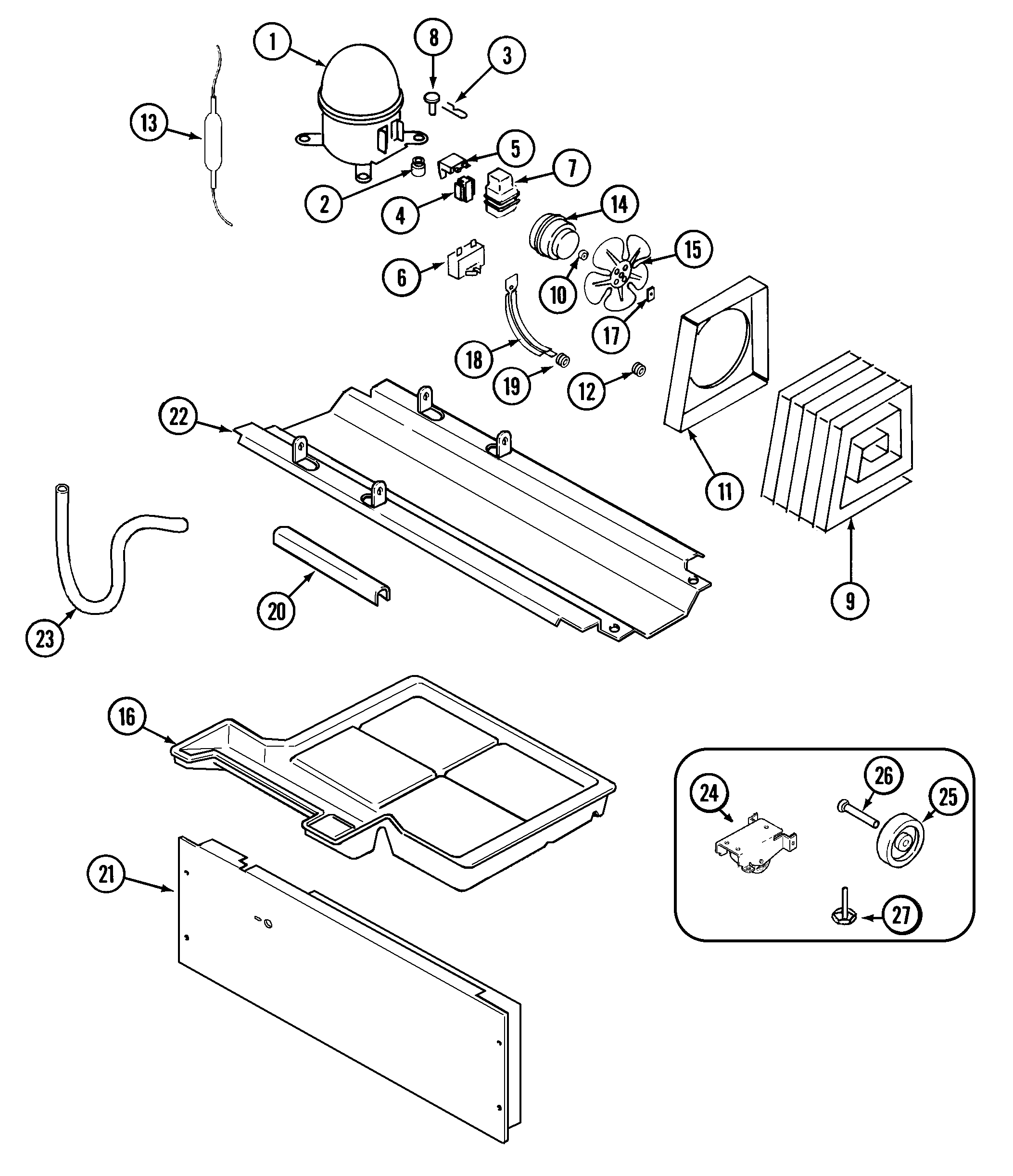

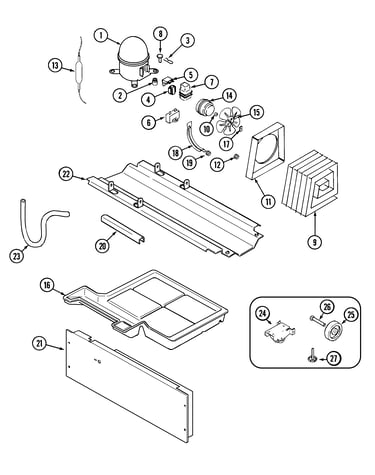

Compressor diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Bulb 31956-1
#7

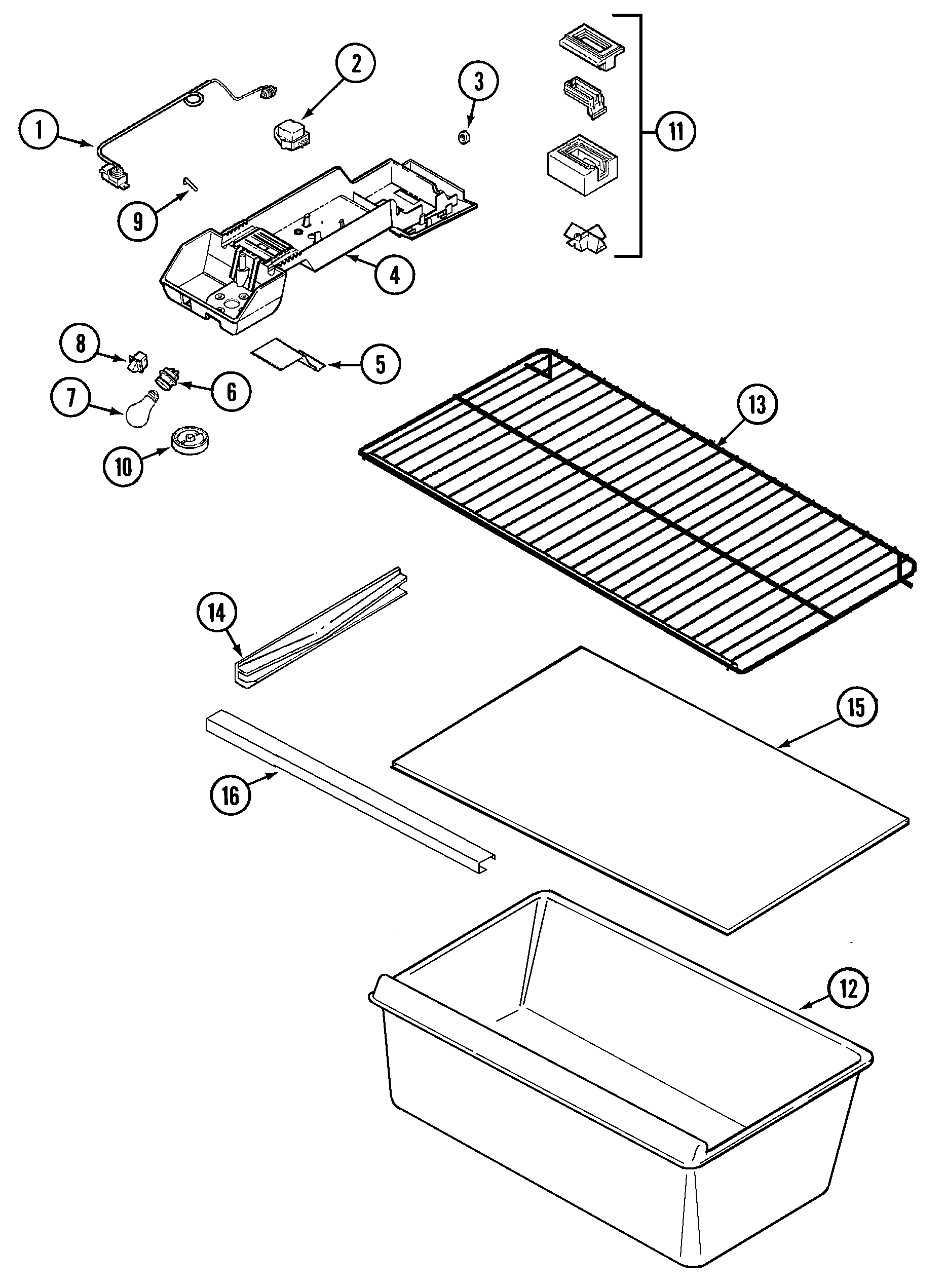

Fresh food compartment diagram

Refrigerator light bulb

Part #31956-1

Replaced by #40A15

?
Manufacturer substitution
This part replaces 31956-1. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 61003026
#8

Fresh food compartment diagram

Refrigerator light switch

Part #61003026

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 61003026. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Light Switch 66987-1
#8A

Fresh food compartment diagram

Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Compressor 12001380
#1B

Compressor diagram

Refrigerator compressor

Part #12001380

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 12001380. Substitute parts can look different from the original.
BEST SELLER
$338.61 |
$12.00 OFF Phone Price : $350.61
In Stock
Refrigerator Compressor 12001379
#1A

Compressor diagram

Refrigerator compressor

Part #12001379

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 12001379. Substitute parts can look different from the original.
BEST SELLER
$338.61 |
$12.00 OFF Phone Price : $350.61
In Stock
Refrigerator Run Capacitor 65889-8
#6B

Compressor diagram

Refrigerator run capacitor

Part #65889-8

Replaced by #WP65889-4

?
Manufacturer substitution
This part replaces 65889-8. Substitute parts can look different from the original.
BEST SELLER
$55.99 |
10% OFF Phone Price : $61.99
In Stock
Refrigerator Run Capacitor 61003525
#6

Compressor diagram

Refrigerator run capacitor

Part #61003525

Replaced by #WP65889-4

?
Manufacturer substitution
This part replaces 61003525. Substitute parts can look different from the original.
BEST SELLER
$55.99 |
10% OFF Phone Price : $61.99
In Stock
Refrigerator Compressor Start Capacitor 65889-4
#6A

Compressor diagram

Refrigerator compressor start capacitor

Part #65889-4

Replaced by #WP65889-4

?
Manufacturer substitution
This part replaces 65889-4. Substitute parts can look different from the original.
BEST SELLER
$55.99 |
10% OFF Phone Price : $61.99
In Stock
Screw 400017-1
Screw

Part #400017-1

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 400017-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
