Model # KGCS105GSS0 Official KitchenAid 30" gas cooktop
Here are the diagrams and repair parts for Official KitchenAid KGCS105GSS0 30" gas cooktop, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forKGCS105GSS0 Cooktops
- #20

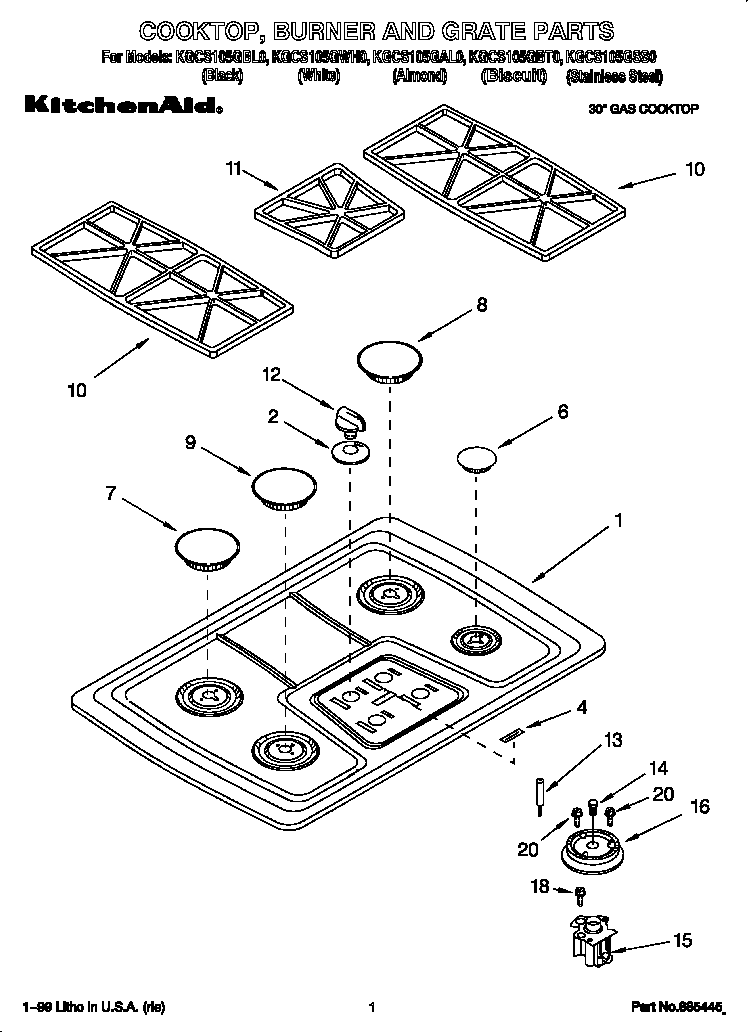

Cooktop, burner, grate diagram
Range screwPart #3368921
Replaced by #WP3368921
?Manufacturer substitutionThis part replaces 3368921. Substitute parts can look different from the original.This item is not returnable$2.83 |44% OFF Was : $5.05In Stock - #11

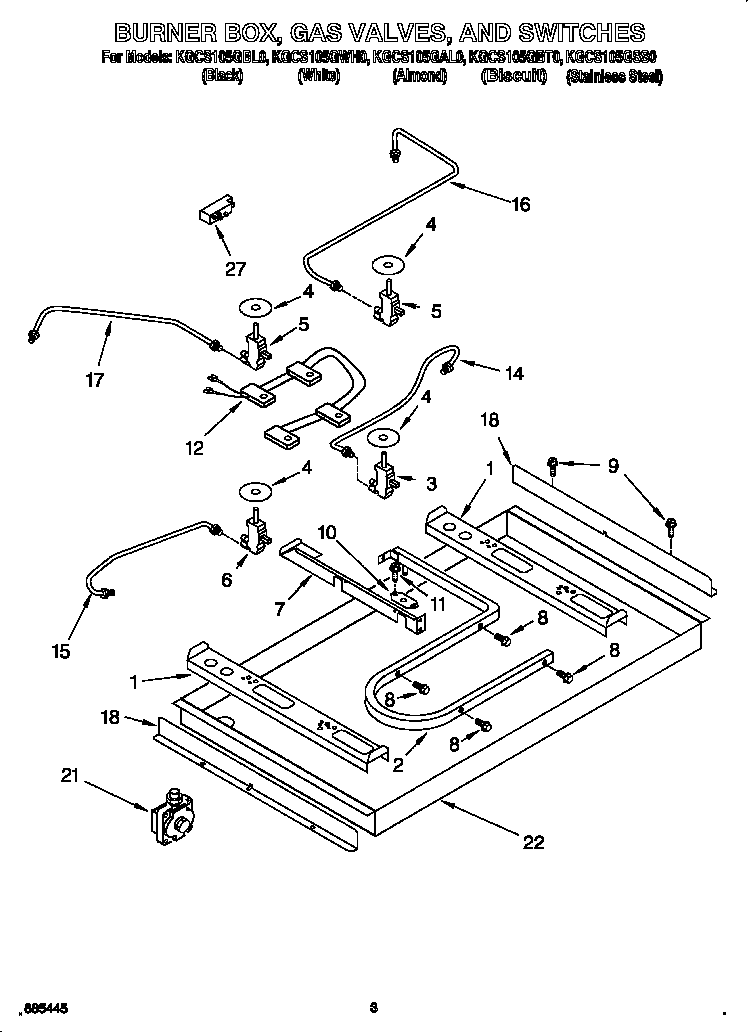

Burner box, gas valves/switches diagram
Range screwPart #3196160
Replaced by #W10491985
?Manufacturer substitutionThis part replaces 3196160. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #27
Burner box, gas valves/switches diagram
Range spark modulePart #8053421
The manufacturer no longer makes this part, and there's no substitute part
- #16B
Cooktop, burner, grate diagram
Burner headPart #9753187
Replaced by #814513
?Manufacturer substitutionThis part replaces 9753187. Substitute parts can look different from the original.$106.63 |10% OFF Phone Price : $118.63In Stock - #15B
Cooktop, burner, grate diagram
Holder orificePart #3191741
Replaced by #814513
?Manufacturer substitutionThis part replaces 3191741. Substitute parts can look different from the original.$106.63 |10% OFF Phone Price : $118.63In Stock - #7B
Cooktop, burner, grate diagram
Cooktop burner capPart #3191731
Replaced by #WP3191731
?Manufacturer substitutionThis part replaces 3191731. Substitute parts can look different from the original.$62.97In Stock - #4
Burner box, gas valves/switches diagram
Gasket switchPart #3191387
Replaced by #WP3188425
?Manufacturer substitutionThis part replaces 3191387. Substitute parts can look different from the original.$39.06 |13% OFF Phone Price : $45.06In Stock - #10D
Cooktop, burner, grate diagram
Burner gratePart #3192485
Replaced by #WP9759505
?Manufacturer substitutionThis part replaces 3192485. Substitute parts can look different from the original.$120.61 |9% OFF Phone Price : $132.61In Stock - #18
Burner box, gas valves/switches diagram
ShieldPart #3191462
$18.43 |10% OFF Phone Price : $20.43In Stock #NI
All parts diagram
BushingPart #4173634
$8.07 |11% OFF Phone Price : $9.07In Stock
