Model # HT-R391 Official Onkyo audio receiver

Here are the diagrams and repair parts for Official Onkyo HT-R391 audio receiver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Transistor 2202526
#NI

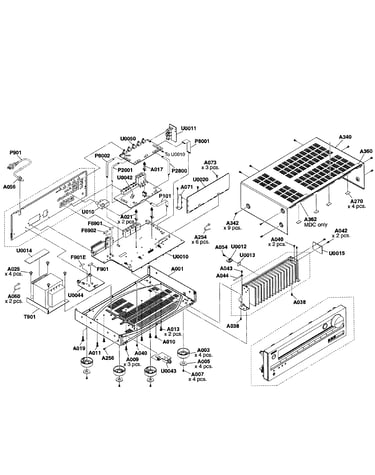

Cabinet parts diagram

Transistor

Part #2202526

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 22242718R2
#NI

Cabinet parts diagram

Integrated circuit

Part #22242718R2

The manufacturer no longer makes this part, and there's no substitute part

Cover,bent 28210089B
#A340

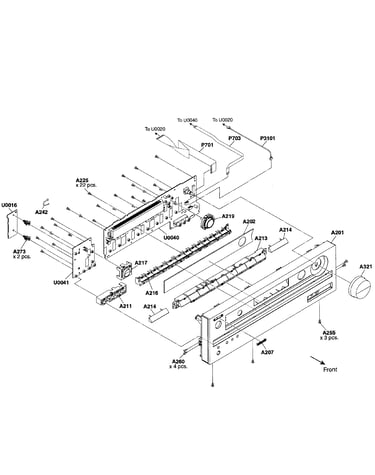

Front panel diagram

Cover,bent

Part #28210089B

The manufacturer no longer makes this part, and there's no substitute part

Knob Inp-l 28326910B
#A214

Front panel diagram

Knob inp-l

Part #28326910B

The manufacturer no longer makes this part, and there's no substitute part

Selector Knob 28326906A
#A216

Front panel diagram

Selector knob

Part #28326906A

The manufacturer no longer makes this part, and there's no substitute part

Knob Input 28326908B
#A213

Front panel diagram

Knob input

Part #28326908B

The manufacturer no longer makes this part, and there's no substitute part

Tr Krc104s 2216210R2
#NI

Cabinet parts diagram

Tr krc104s

Part #2216210R2

The manufacturer no longer makes this part, and there's no substitute part

Cable 2045072512
#P703

Front panel diagram

Cable

Part #2045072512

The manufacturer no longer makes this part, and there's no substitute part

Amp Pcb 1B271530-2B
#NI

Cabinet parts diagram

Amp pcb

Part #1B271530-2B

The manufacturer no longer makes this part, and there's no substitute part

Tr 2sa1941 2203052
#NI

Cabinet parts diagram

Tr 2sa1941

Part #2203052

The manufacturer no longer makes this part, and there's no substitute part
