Samsung
Bottom-Mount Refrigerator

Model # RB193KASB/XAC-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RB193KASB-XAC-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

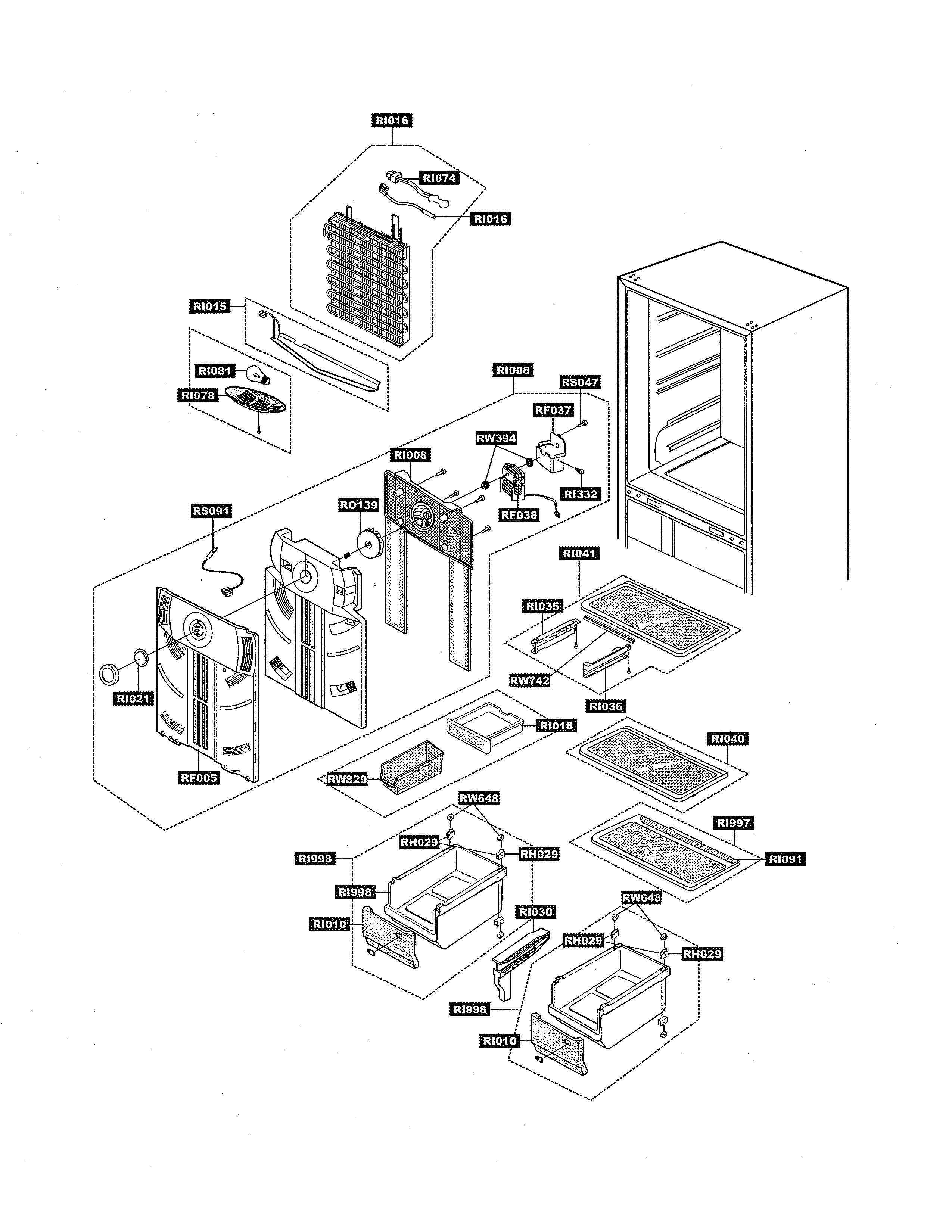

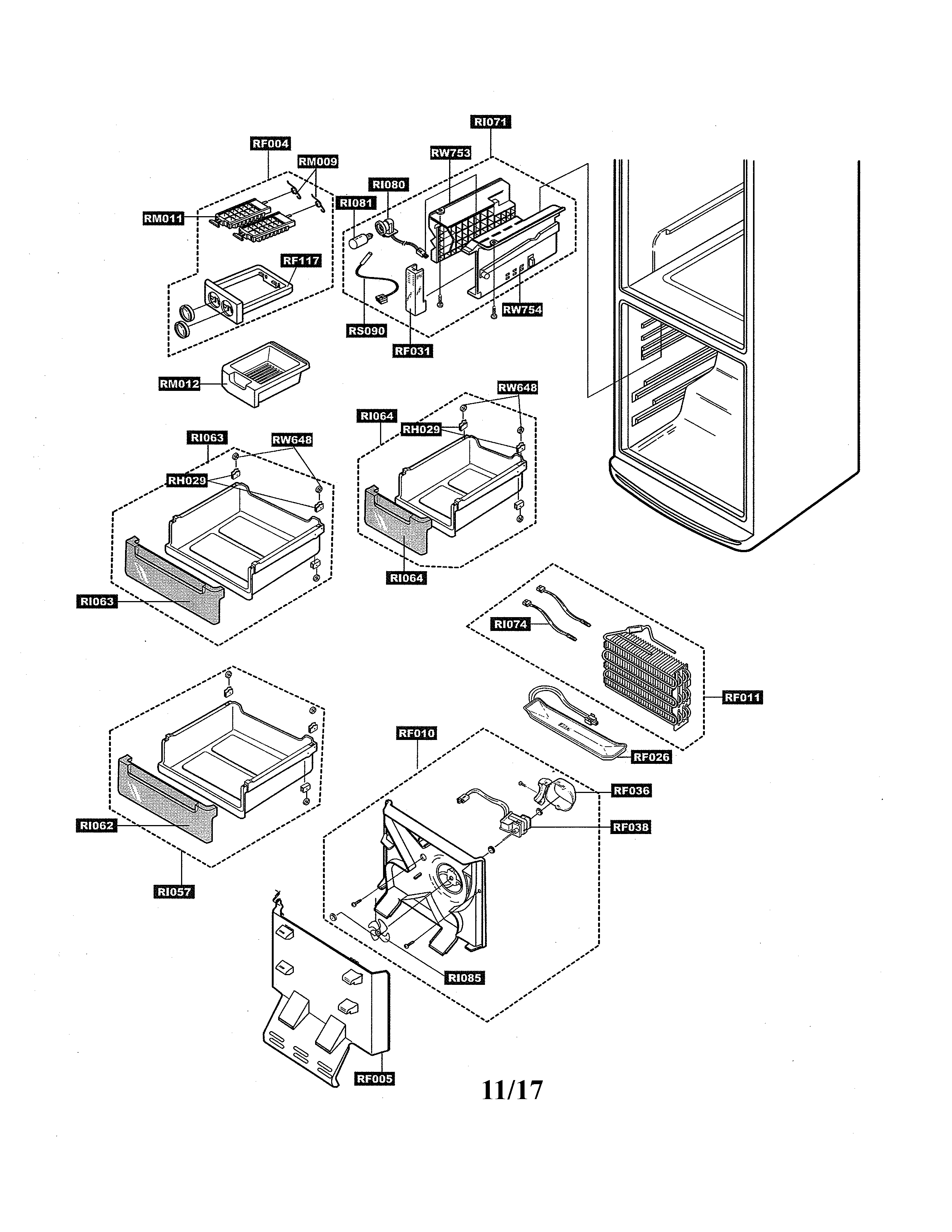

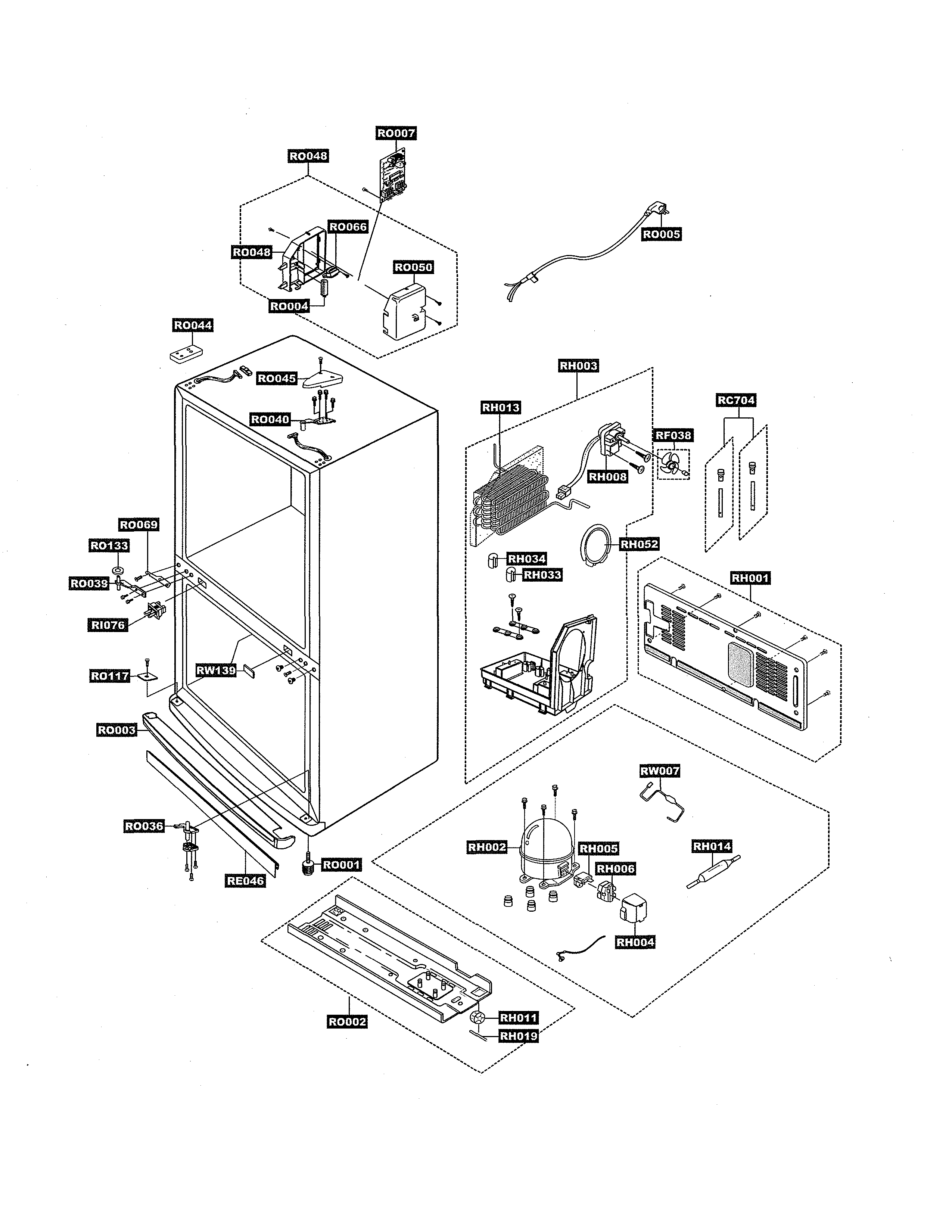

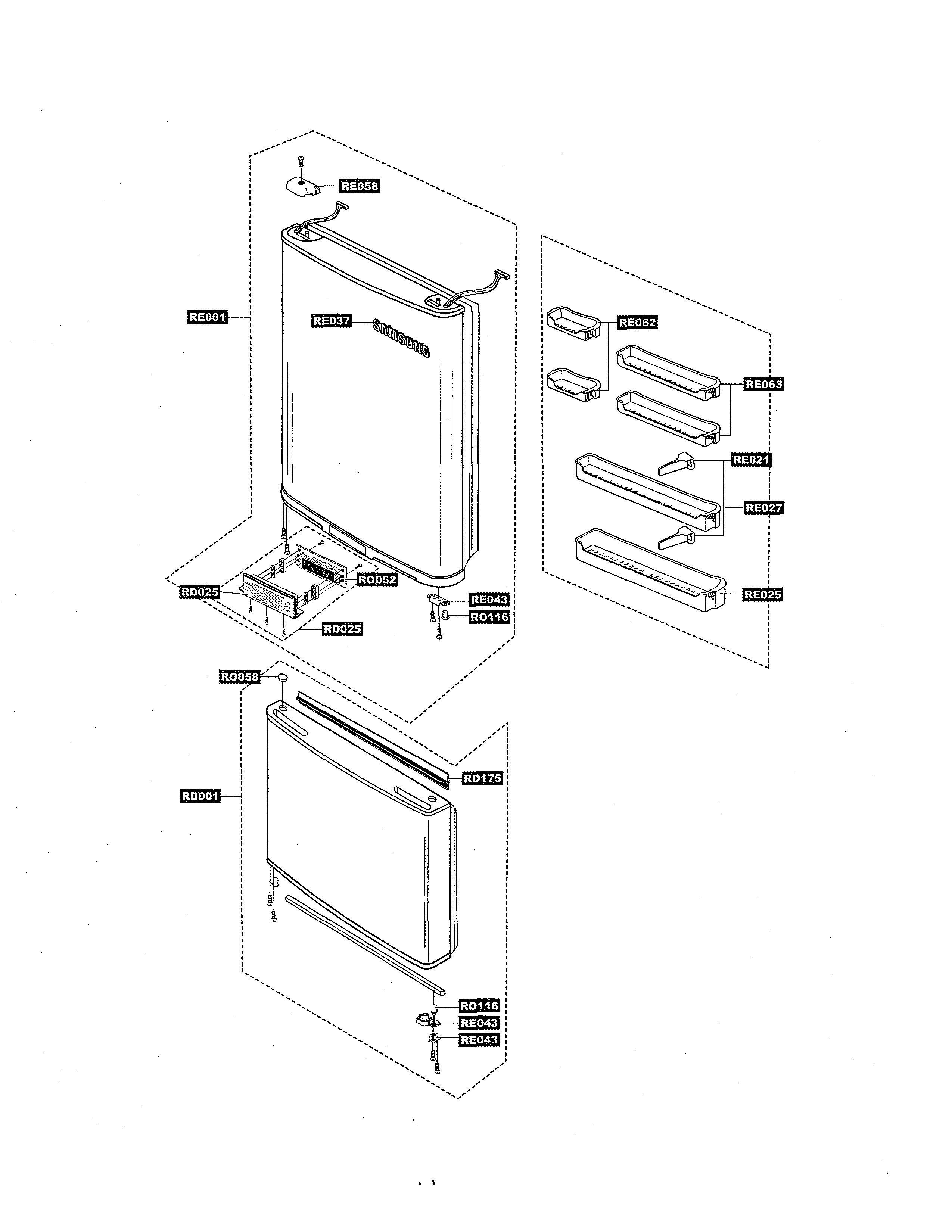

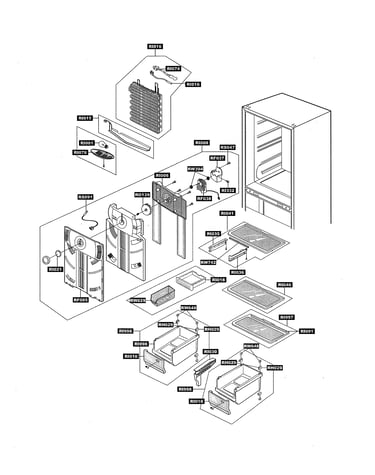

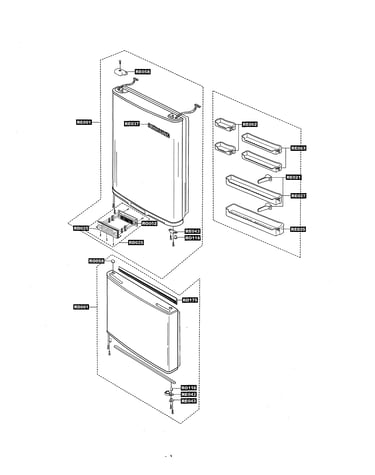

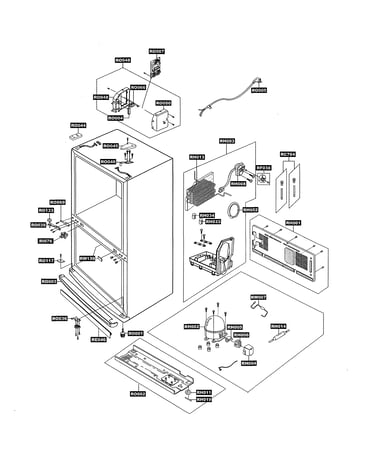

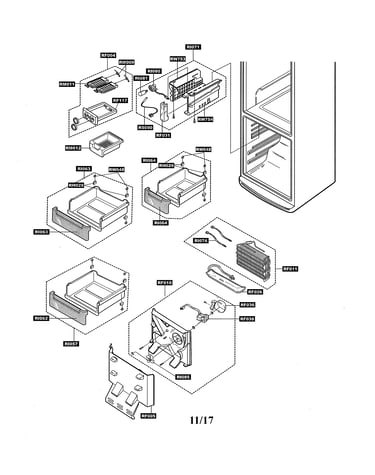

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Refrigerator Screw (replaces 6002-000231, 6002-000494) 6002-000213
Refrigerator screw (replaces 6002-000231, 6002-000494)

Part #6002-000213

BEST SELLER
This item is not returnable
$2.26
In Stock
Refrigerator Defrost Thermal Fuse (replaces Da47-10115a, Da47-10148q, Da47-10148s, Da47-10148w) DA47-00095E
Refrigerator defrost thermal fuse (replaces da47-10115a, da47-10148q, da47-10148s, da47-10148w)

Part #DA47-00095E

$32.71 |
15% OFF Phone Price : $38.71
In Stock
Refrigerator Drain Tube Grommet DA63-00951B
Refrigerator drain tube grommet

Part #DA63-00951B

Replaced by #DA63-00951C

?
Manufacturer substitution
This part replaces DA63-00951B. Substitute parts can look different from the original.
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Refrigerator Thermal Fuse DA47-00095D
Refrigerator thermal fuse

Part #DA47-00095D

Replaced by #DA47-00095E

?
Manufacturer substitution
This part replaces DA47-00095D. Substitute parts can look different from the original.
$32.71 |
15% OFF Phone Price : $38.71
In Stock
Refrigerator Freezer Roller DA66-10104A
Refrigerator freezer roller

Part #DA66-10104A

This item is not returnable
$4.23
In Stock
Refrigerator Door Bin DA63-01263C
Refrigerator door bin

Part #DA63-01263C

$117.80 |
9% OFF Phone Price : $129.80
In Stock
Refrigerator Crisper Drawer Cover Assembly DA97-00663C
Refrigerator crisper drawer cover assembly

Part #DA97-00663C

Replaced by #DA97-00663L

?
Manufacturer substitution
This part replaces DA97-00663C. Substitute parts can look different from the original.
$96.24 |
11% OFF Phone Price : $108.24
In Stock
Refrigerator Drain Tube DA97-04046A
Refrigerator drain tube

Part #DA97-04046A

$10.41 |
16% OFF Phone Price : $12.41
In Stock
Refrigerator Compressor Overload Protector DA34-10003D
Refrigerator compressor overload protector

Part #DA34-10003D

This item is not returnable
$30.96 |
16% OFF Phone Price : $36.96
In Stock
Refrigerator Rear Caster DA61-40126B
Refrigerator rear caster

Part #DA61-40126B

This item is not returnable
$3.63
In Stock
