Model # 79044113510 Official Kenmore Elite cooktop

Here are the diagrams and repair parts for Official Kenmore Elite 79044113510 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

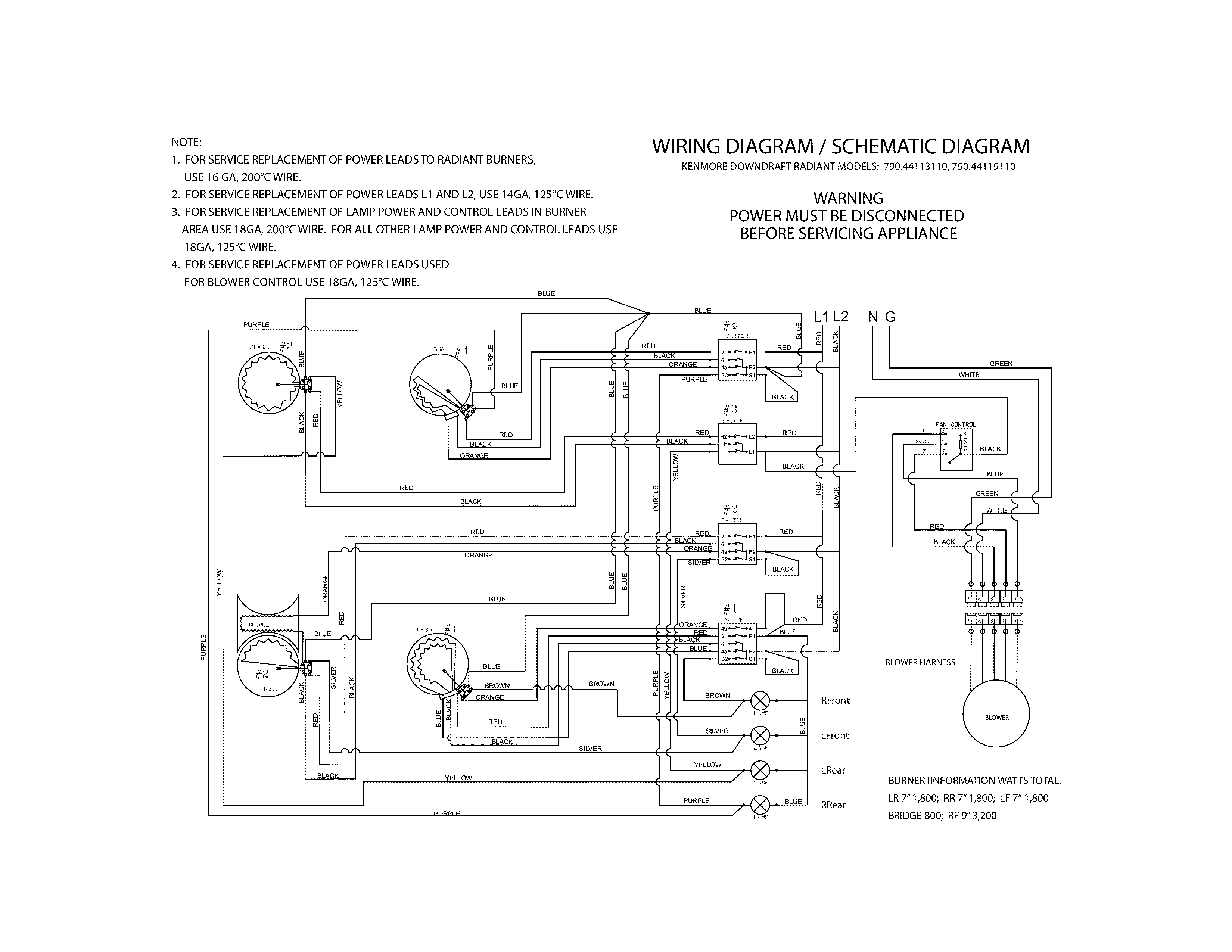

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Range Radiant Surface Element 316530000
#13

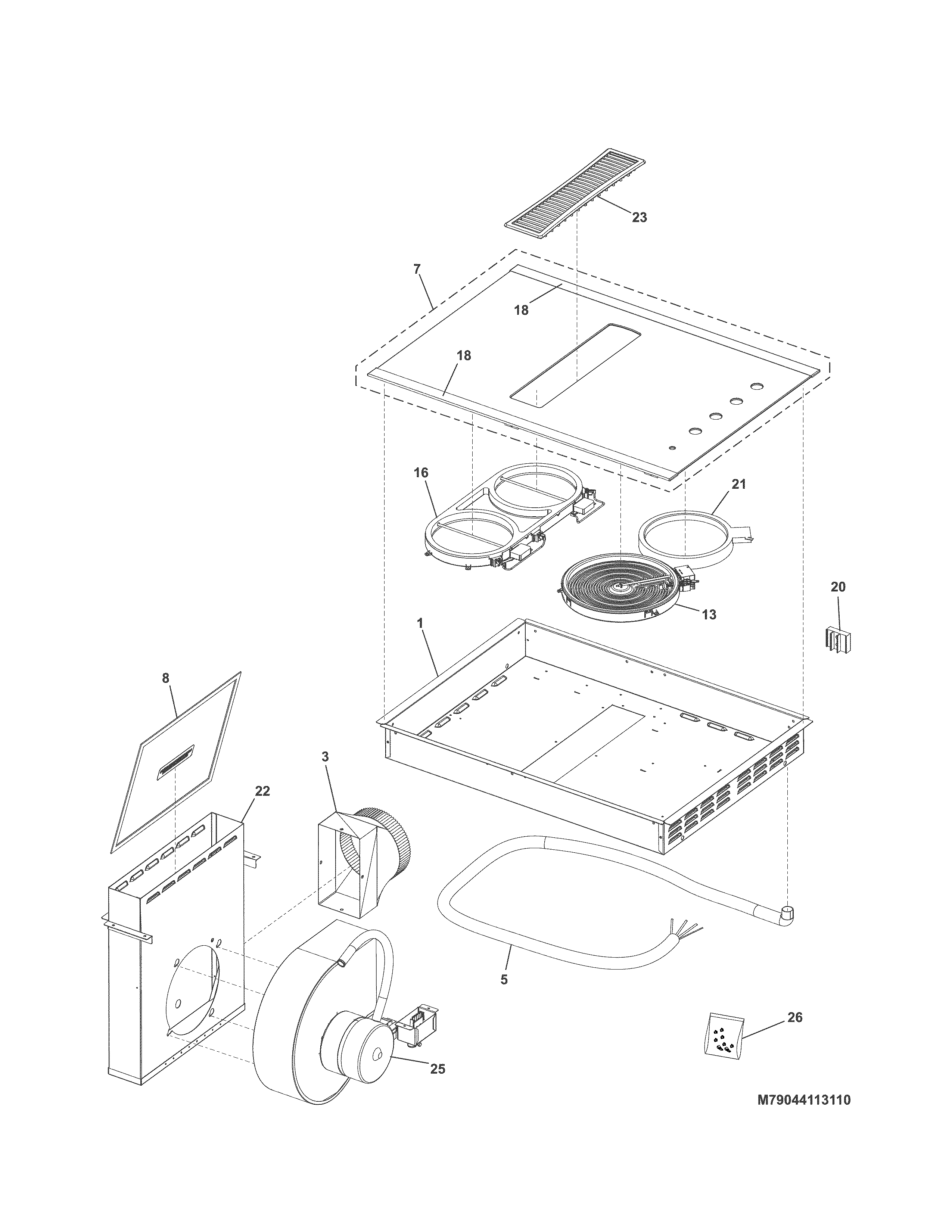

Main top/surface units diagram

Range radiant surface element

Part #316530000

Replaced by #316530001

?
Manufacturer substitution
This part replaces 316530000. Substitute parts can look different from the original.
BEST SELLER
$158.22 |
7% OFF Phone Price : $170.22
In Stock
Brdge Elmnt 318178200
#16

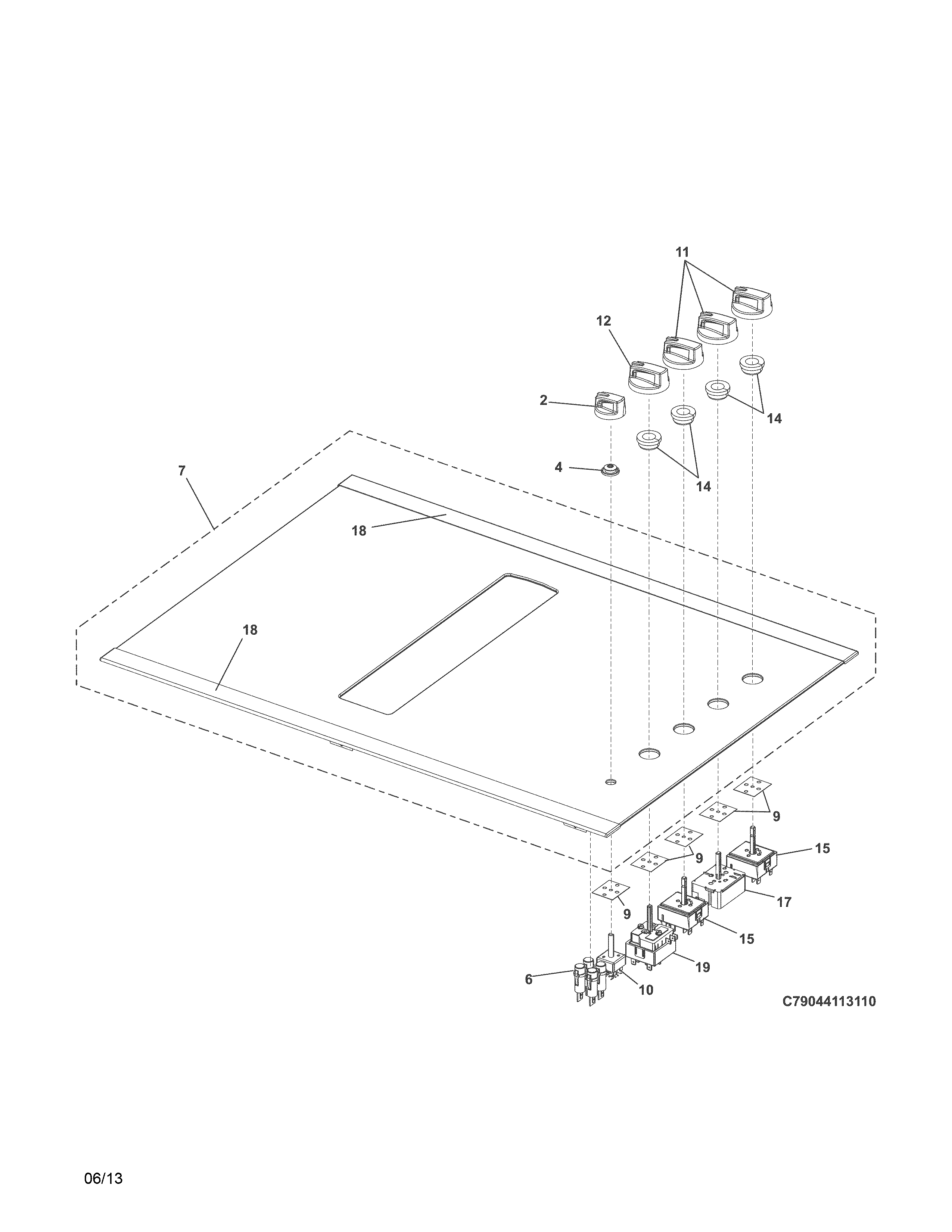

Main top/surface units diagram

Brdge elmnt

Part #318178200

Replaced by #318258201

?
Manufacturer substitution
This part replaces 318178200. Substitute parts can look different from the original.
$342.13 |
$12.00 OFF Phone Price : $354.13
In Stock
Cooktop Element Control Switch (replaces 318220072, 318369610) 318293825
#17

Control panel diagram

Cooktop element control switch (replaces 318220072, 318369610)

Part #318293825

$60.20 |
9% OFF Phone Price : $66.20
In Stock
Range Surface Element Control Switch (replaces 903097-9050) 318191000
#15

Control panel diagram

Range surface element control switch (replaces 903097-9050)

Part #318191000

$67.09 |
8% OFF Phone Price : $73.09
In Stock
Cooktop Element Control Switch 318531500
#19

Control panel diagram

Cooktop element control switch

Part #318531500

$82.28 |
7% OFF Phone Price : $88.28
In Stock
Cooktop Element Control Switch Seal 5304485480
#9

Control panel diagram

Cooktop element control switch seal

Part #5304485480

$37.53 |
14% OFF Phone Price : $43.53
In Stock
Cooktop Downdraft Blower Assembly 5304485487
#25

Main top/surface units diagram

Cooktop downdraft blower assembly

Part #5304485487

$836.45
In Stock
Installation 318205435
#NI

Control panel diagram

Installation

Part #318205435

This item is not returnable
$4.14
In Stock
Conduit Asse 5304485475
#5

Main top/surface units diagram

Conduit asse

Part #5304485475

$389.85
In Stock
Service Data Sheet 5304485509
#NI

Control panel diagram

Service data sheet

Part #5304485509

This item is not returnable
$4.14
In Stock
