Model # 1581358180 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 1581358180 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

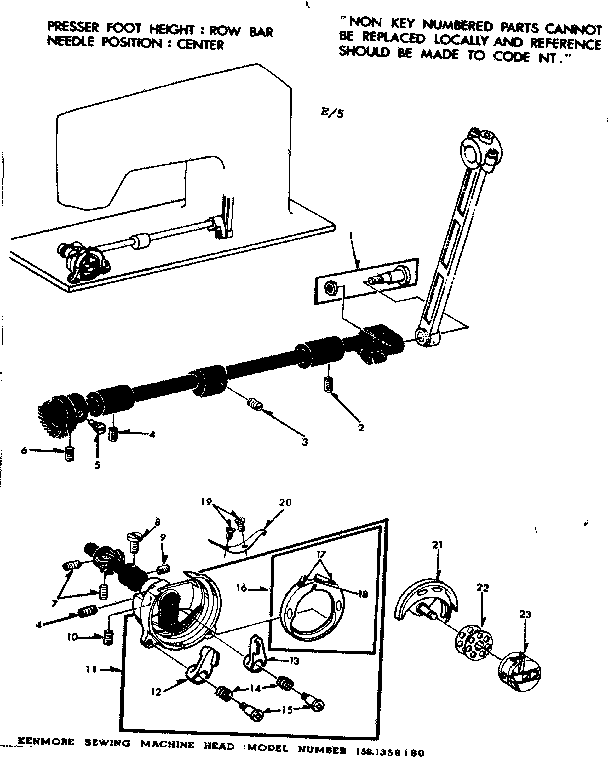

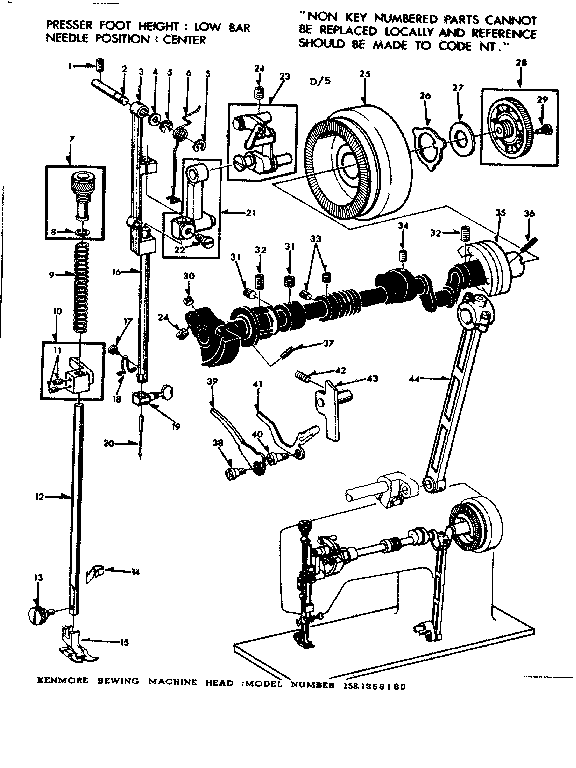

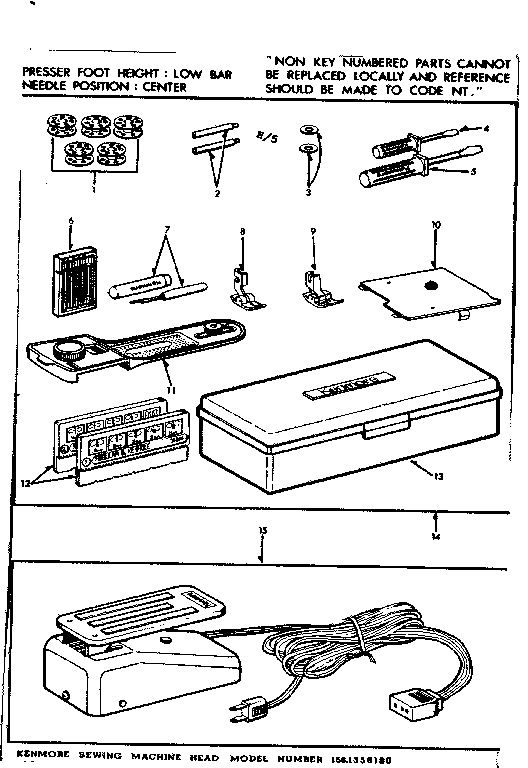

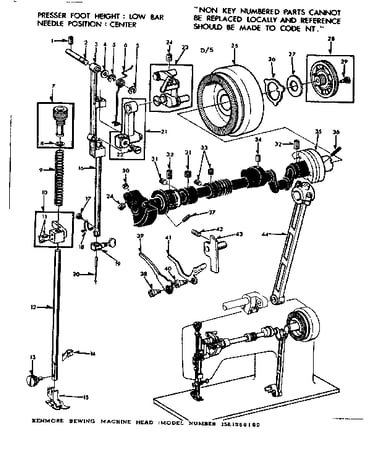

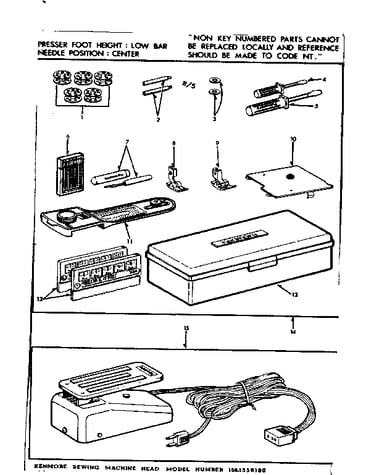

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Guard Cord 39679
#12

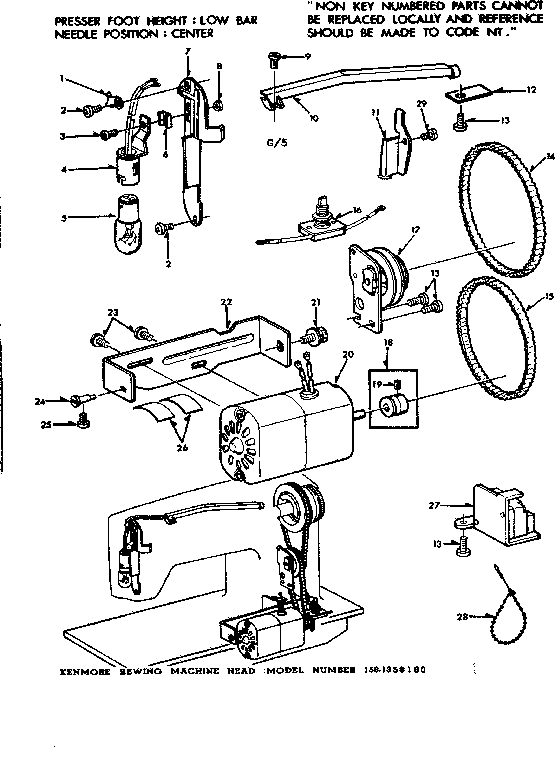

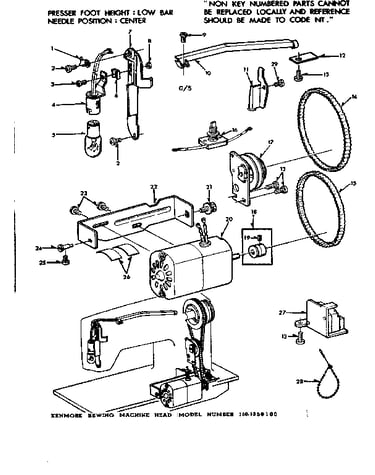

Motor assembly diagram

Guard cord

Part #39679

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 53276
#25

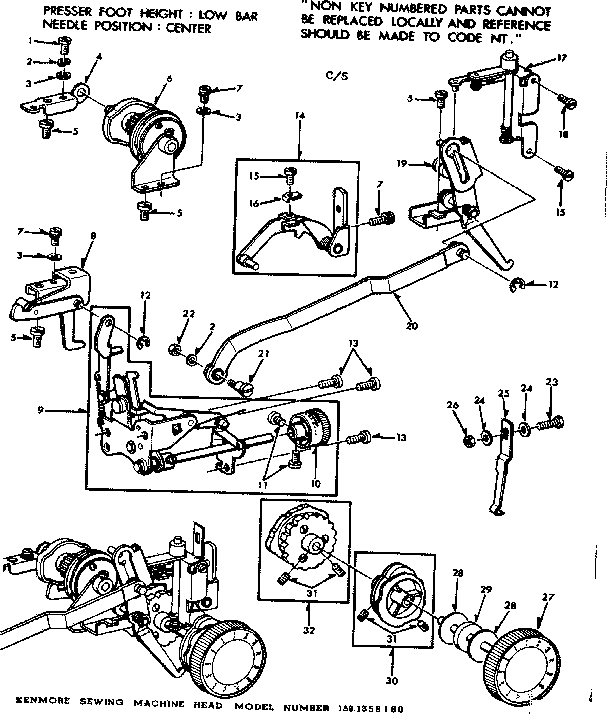

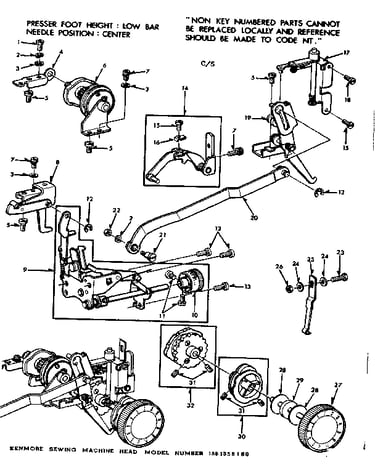

Geared cam assembly diagram

Spring plate

Part #53276

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 54587
#22

Motor assembly diagram

Motor bracket

Part #54587

The manufacturer no longer makes this part, and there's no substitute part

Feed Roller 49570
#13

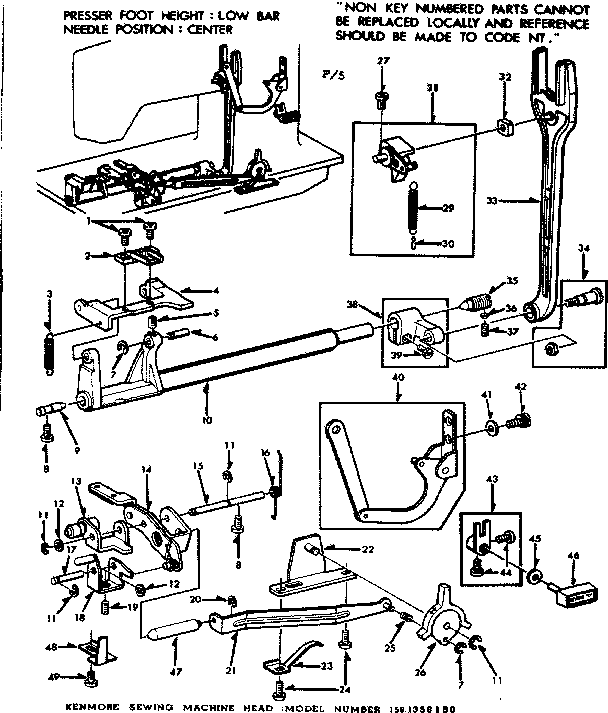

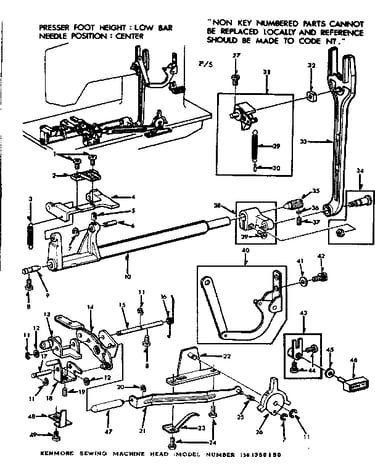

Feed regulator assembly diagram

Feed roller

Part #49570

The manufacturer no longer makes this part, and there's no substitute part

Drop Base 54579
#22

Feed regulator assembly diagram

Drop base

Part #54579

The manufacturer no longer makes this part, and there's no substitute part

Shaft 53843
#15

Feed regulator assembly diagram

Shaft

Part #53843

The manufacturer no longer makes this part, and there's no substitute part

Spring 53840
#16

Feed regulator assembly diagram

Spring

Part #53840

The manufacturer no longer makes this part, and there's no substitute part

Separator 53844
#25

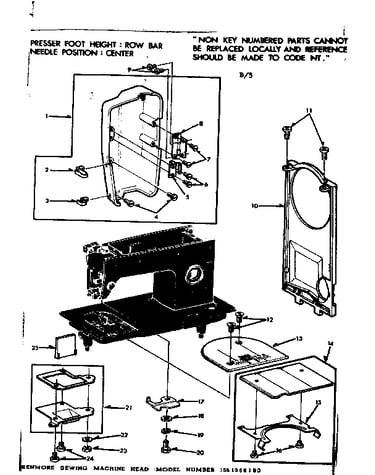

Needle plate diagram

Separator

Part #53844

The manufacturer no longer makes this part, and there's no substitute part

Drop Stopper 54484
#48

Feed regulator assembly diagram

Drop stopper

Part #54484

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Control Panel 59016
#17

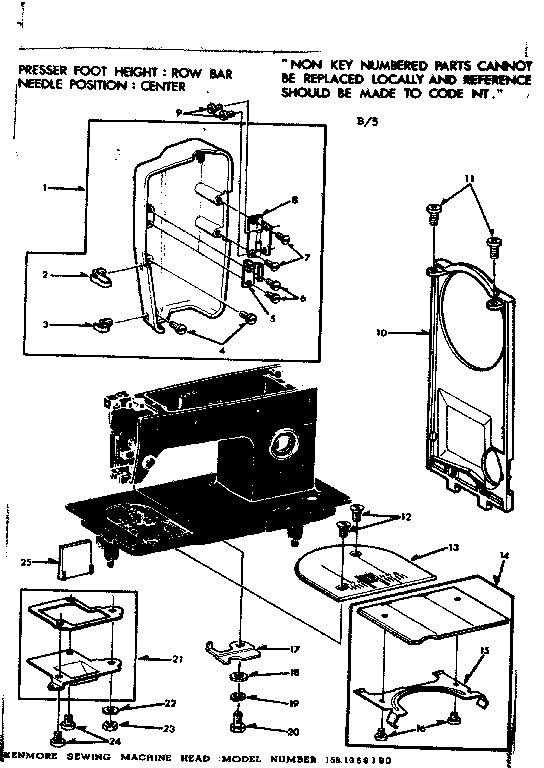

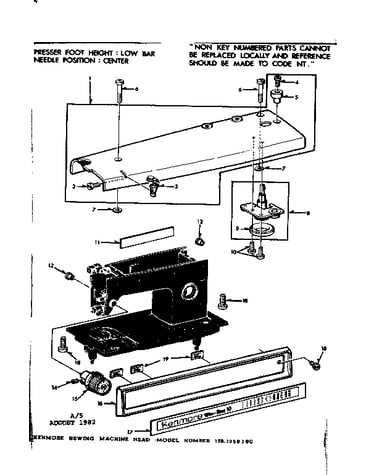

Base assembly diagram

Kenmore control panel

Part #59016

The manufacturer no longer makes this part, and there's no substitute part
