Model # 919168700 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919168700 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 64 parts |

#82

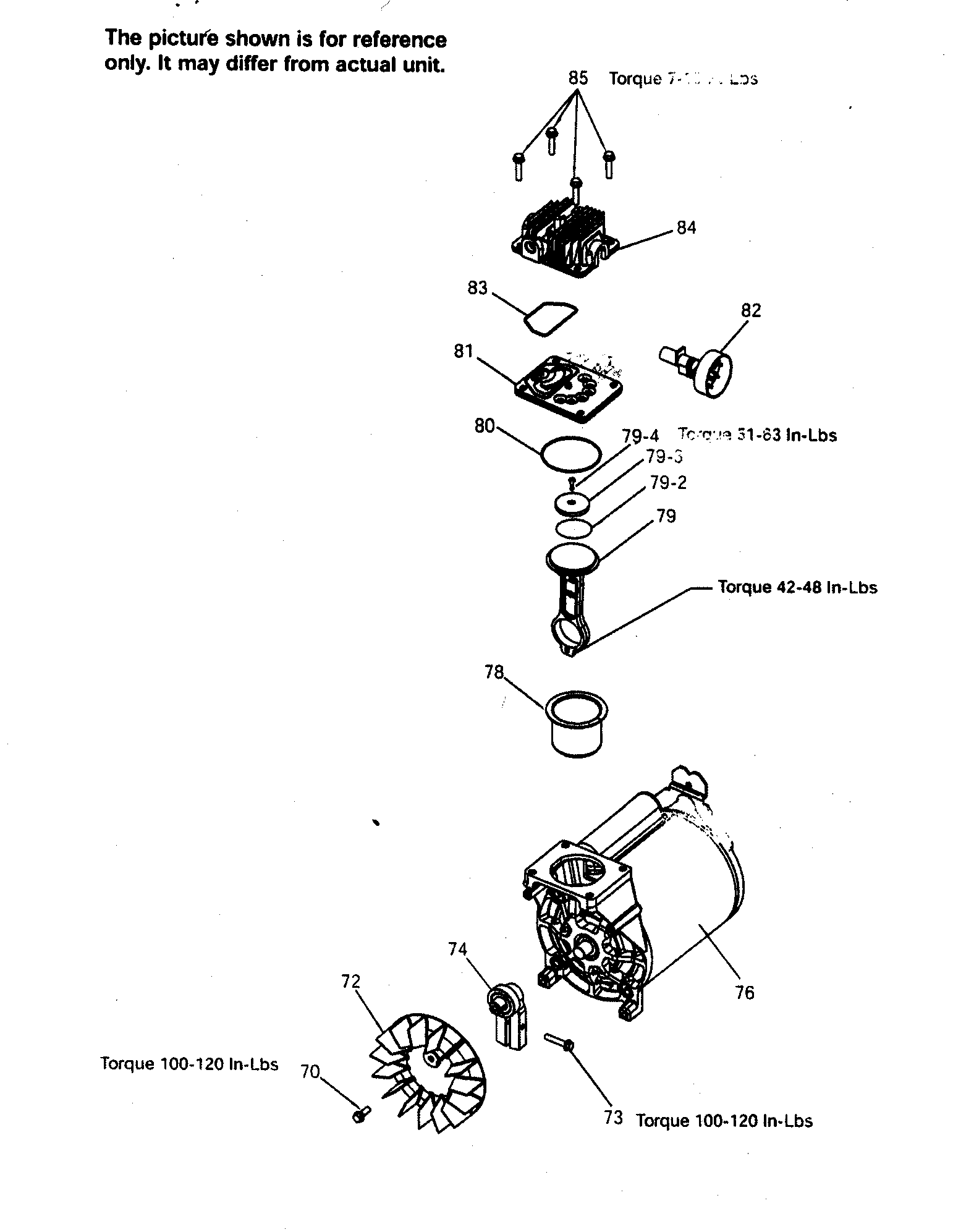

Pump assy diagram

Air compressor muffler

Part #CAC-1371

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Compression Nut SSP-7821-1

#34

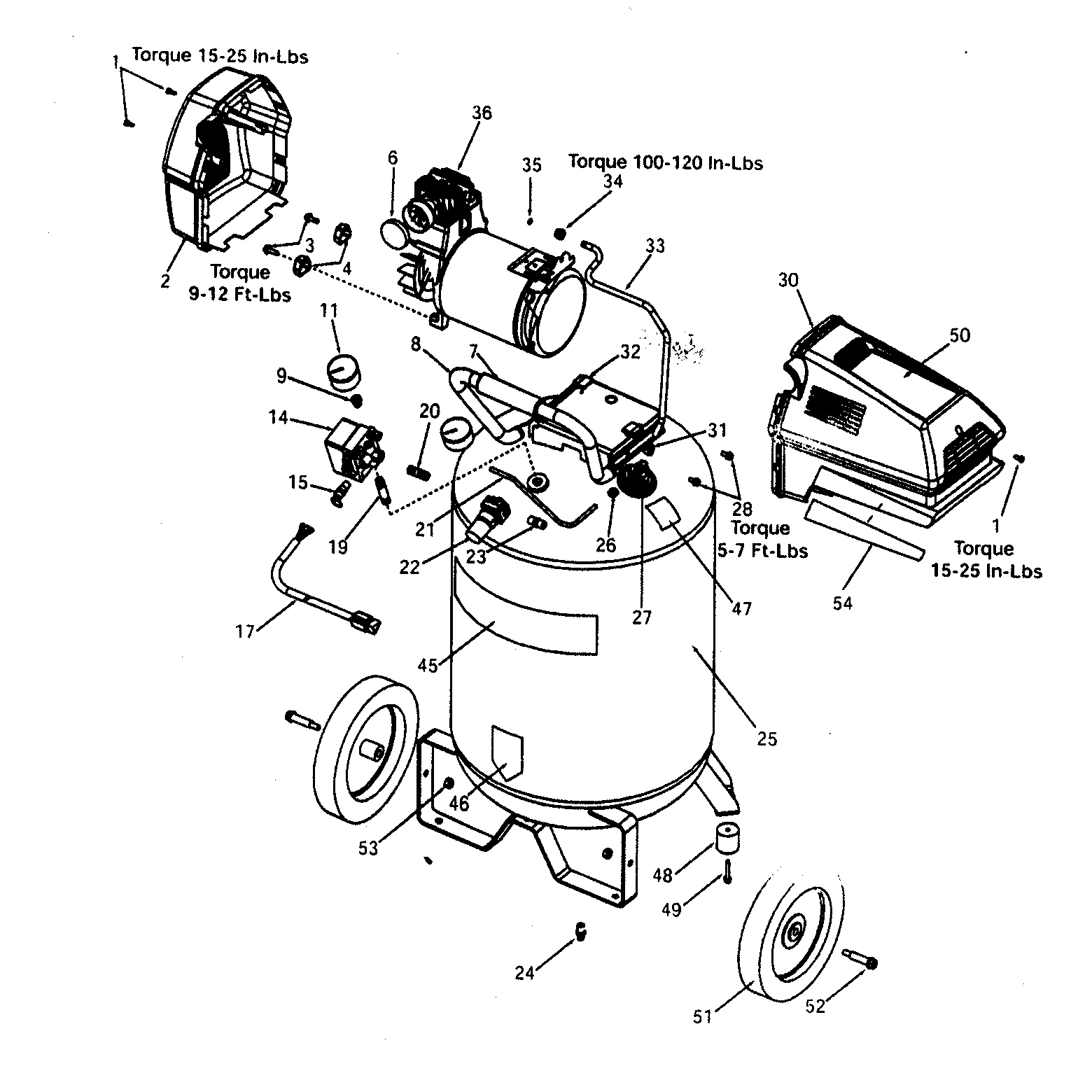

Tank assy diagram

Air compressor compression nut

Part #SSP-7821-1

The manufacturer no longer makes this part, and there's no substitute part

#51

Tank assy diagram

Air compressor wheel

Part #D23138

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Cylinder Sleeve And Ring Kit (replaces K-0058) K-0650

#NI

Pump assy diagram

Tower air compressor cylinder sleeve and ring kit (replaces k-0058)

Part #K-0650

The manufacturer no longer makes this part, and there's no substitute part

#85

Pump assy diagram

Unknown brand name #696 air compressor screw

Part #SSF-927

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Air Compressor Pressure Gauge, 200-psi Z-D27212

#11

Tank assy diagram

Porter cable air compressor pressure gauge, 200-psi

Part #Z-D27212

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Ge Motor Start Capacitor D23936

#NI

Pump assy diagram

Air compressor ge motor start capacitor

Part #D23936

The manufacturer no longer makes this part, and there's no substitute part

Devilbiss Air Compressor Base Bumper SST-107

#48

Tank assy diagram

Devilbiss air compressor base bumper

Part #SST-107

The manufacturer no longer makes this part, and there's no substitute part

#72

Pump assy diagram

Air compressor fan blade

Part #AC-0108

The manufacturer no longer makes this part, and there's no substitute part

#17

Tank assy diagram

Air compressor power cord

Part #D26615

The manufacturer no longer makes this part, and there's no substitute part
