Model # E24WC75HSS1 Official Electrolux wine cooler

Here are the diagrams and repair parts for Official Electrolux E24WC75HSS1 wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

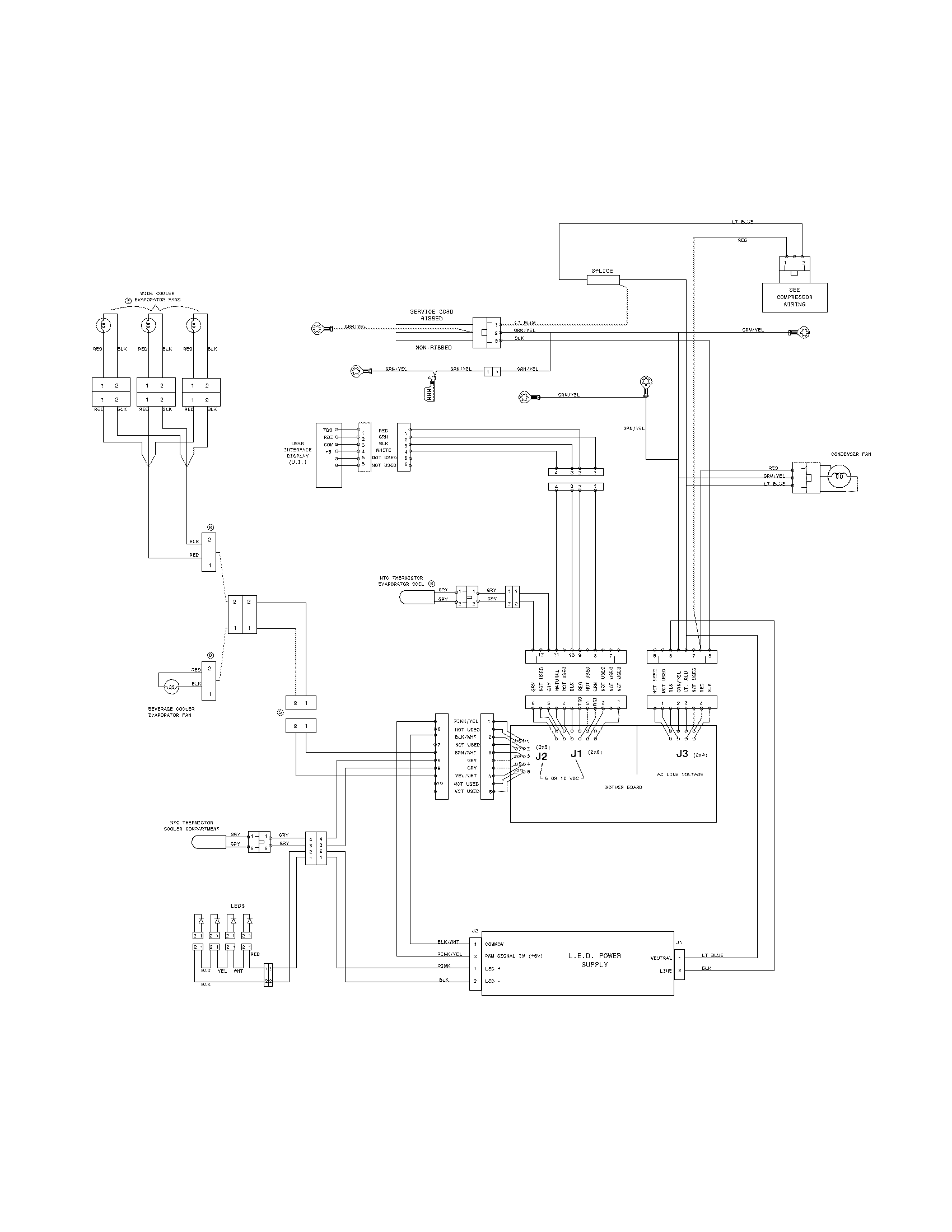

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Refrigerator Door Air Filter 242047801
#95

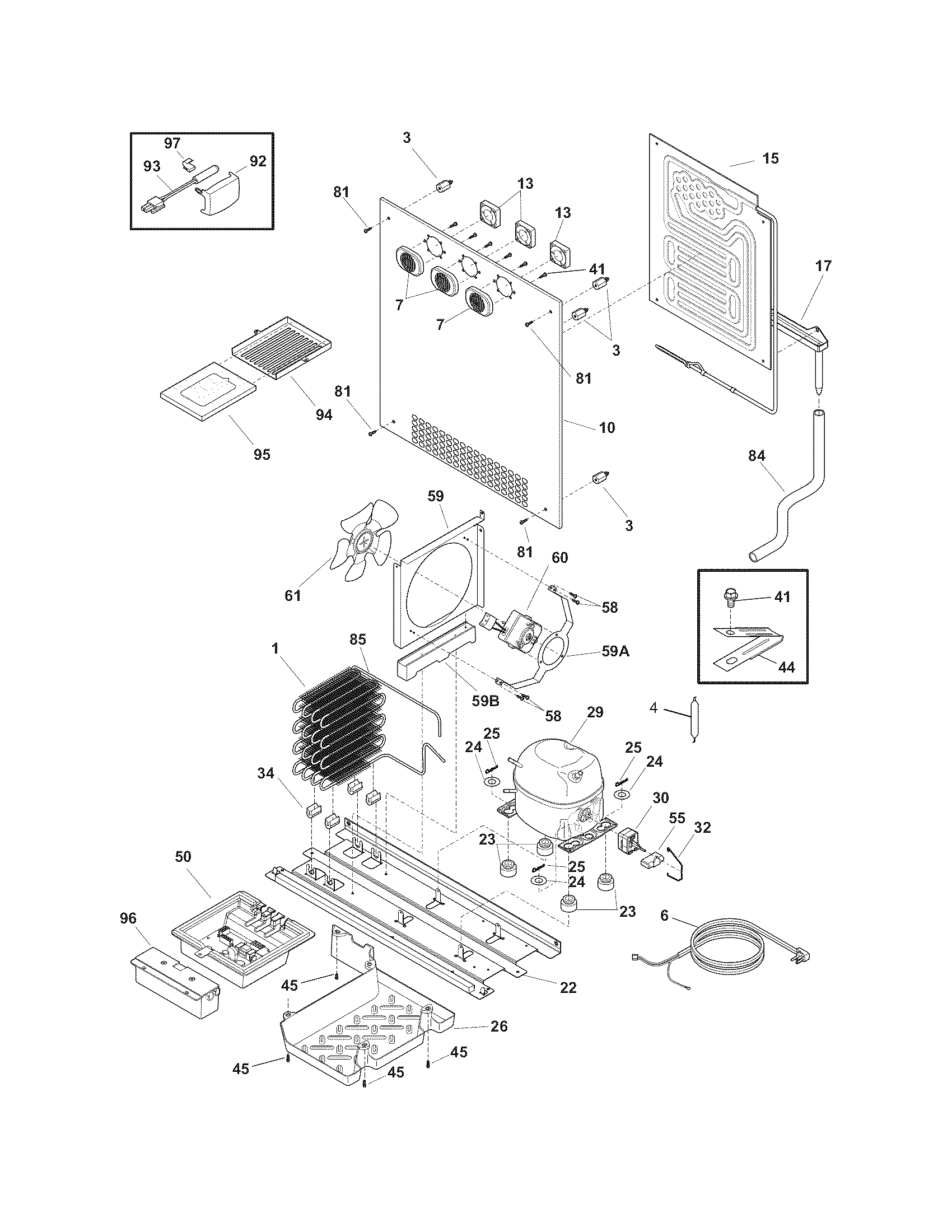

System diagram

Refrigerator door air filter

Part #242047801

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39 |
18% OFF Phone Price : $33.39
In Stock
Filter Drier 218944002
#4

System diagram

Filter drier

Part #218944002

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944002. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
#93

System diagram

Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$40.44 |
13% OFF Phone Price : $46.44
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Condenser Fan Motor 242018301
#60

System diagram

Refrigerator condenser fan motor

Part #242018301

Replaced by #242018304

?
Manufacturer substitution
This part replaces 242018301. Substitute parts can look different from the original.
BEST SELLER
$91.38 |
6% OFF Phone Price : $97.38
In Stock
Refrigerator Power Cord (replaces 7241516901) 241516901
#6

System diagram

Refrigerator power cord (replaces 7241516901)

Part #241516901

Replaced by #241516904

?
Manufacturer substitution
This part replaces 241516901. Substitute parts can look different from the original.
$27.76
In Stock
Refrigerator Screw (replaces 216850900, 241951701, 5303001479, 7241710601) 241710601
#42

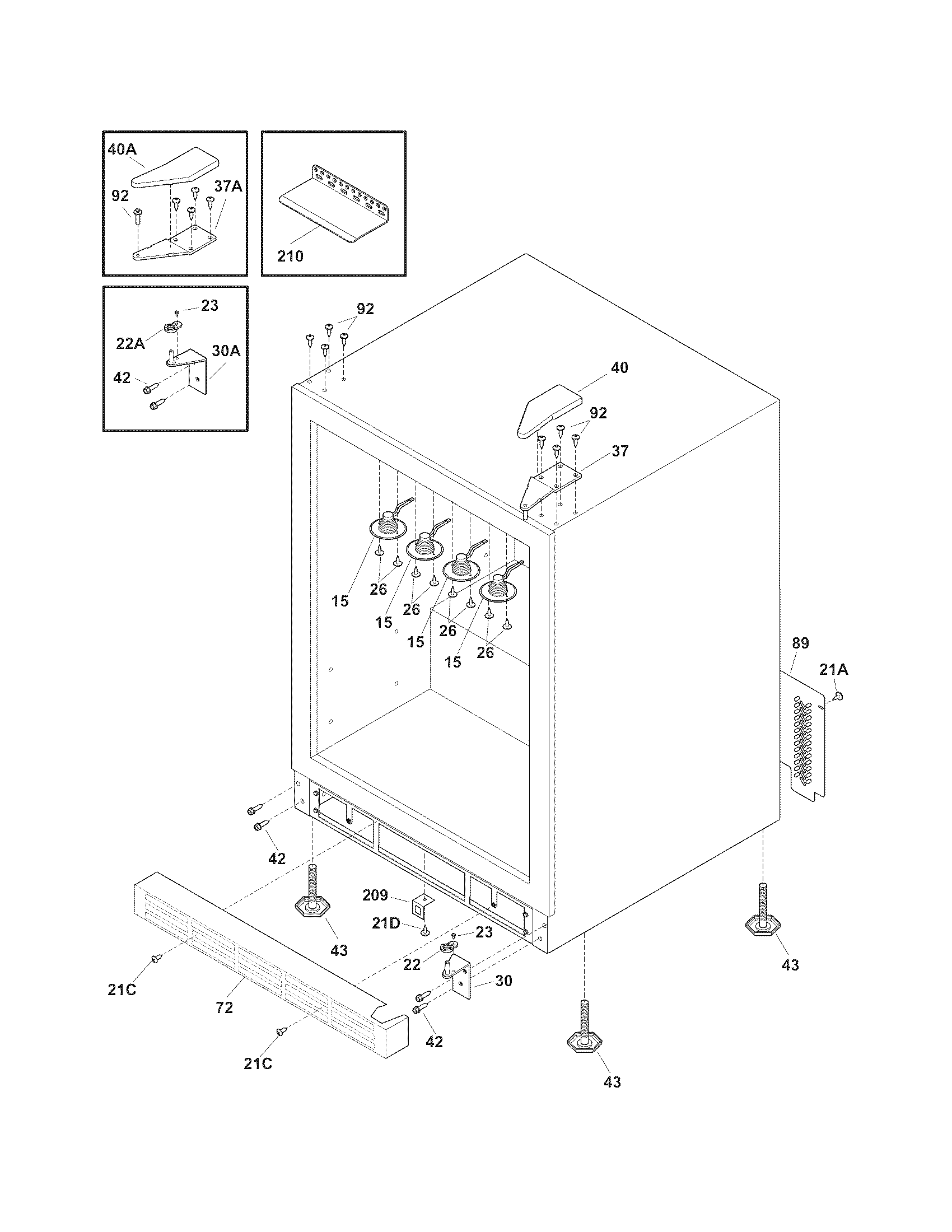

Cabinet diagram

Refrigerator screw (replaces 216850900, 241951701, 5303001479, 7241710601)

Part #241710601

This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Wine Cooler Temperature Control Board 241897403
#23

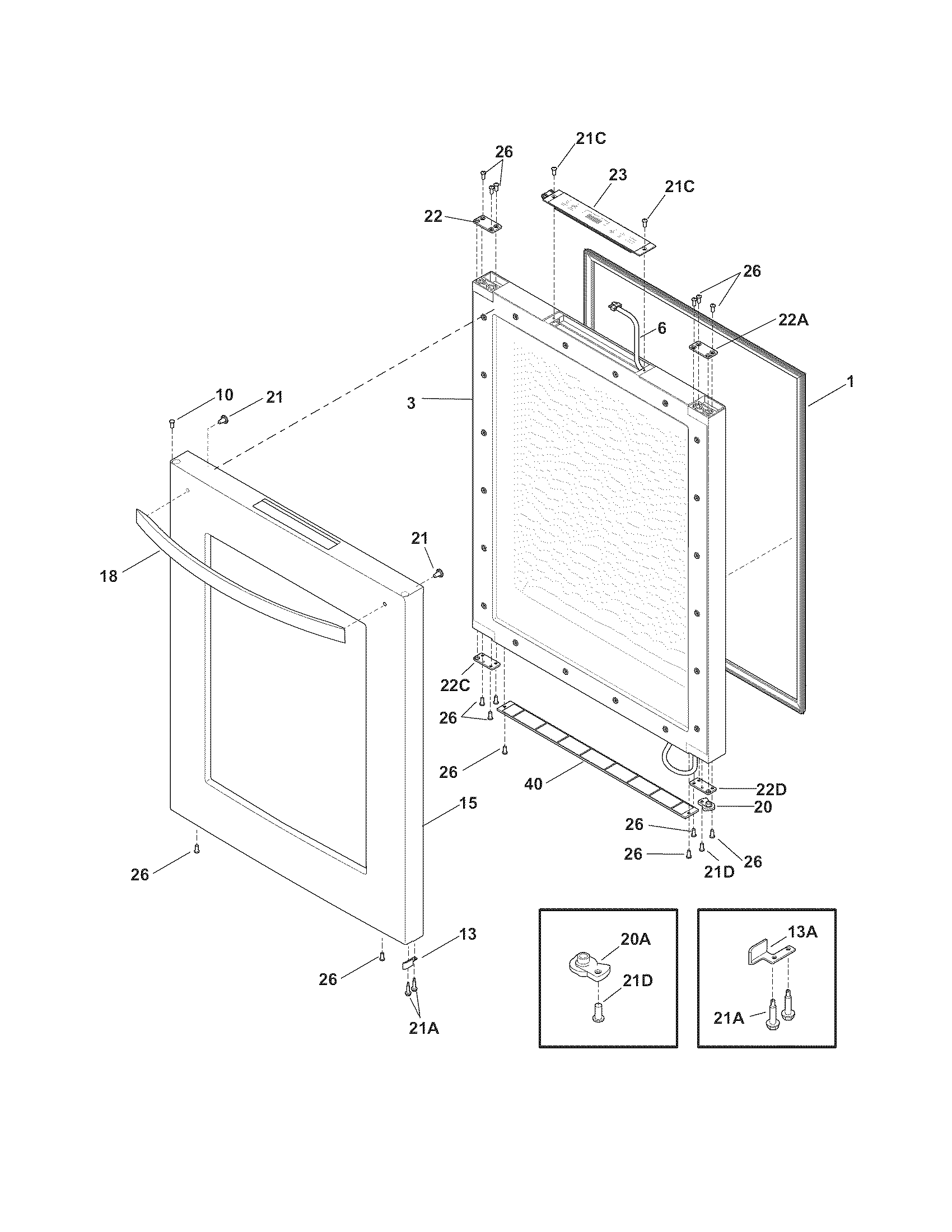

Door diagram

Wine cooler temperature control board

Part #241897403

$185.70
In Stock
Refrigerator Compressor Grommet 218513300
#23

System diagram

Refrigerator compressor grommet

Part #218513300

$36.56 |
14% OFF Phone Price : $42.56
In Stock
Filter Housing 241904001
#94

System diagram

Filter housing

Part #241904001

$29.80
In Stock
