Model # 113178450 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113178450 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Shop Vacuum Drain Cap Retainer Strap 73166
#11

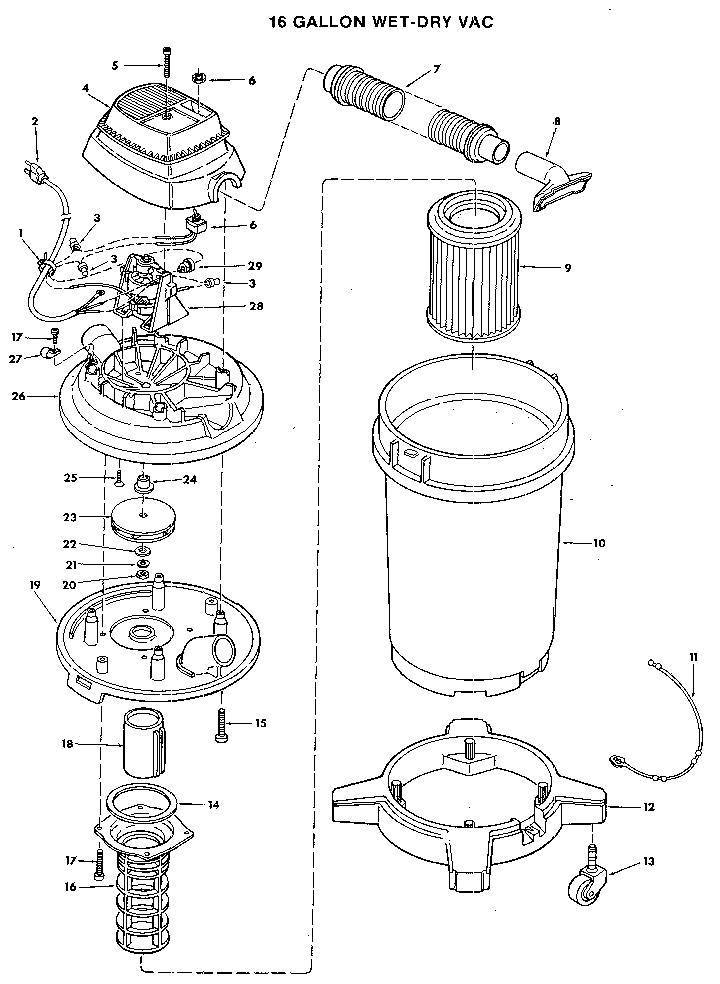

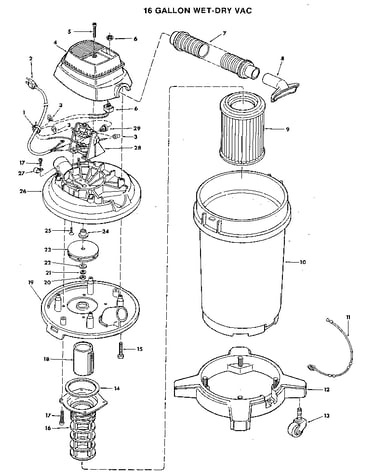

16 gallon wet-dry vac diagram

Shop vacuum drain cap retainer strap

Part #73166

The manufacturer no longer makes this part, and there's no substitute part

Relf Strain 62503
#29

16 gallon wet-dry vac diagram

Relf strain

Part #62503

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster 73137
#13

16 gallon wet-dry vac diagram

Vacuum caster

Part #73137

The manufacturer no longer makes this part, and there's no substitute part

Lid 73113
#19

16 gallon wet-dry vac diagram

Lid

Part #73113

The manufacturer no longer makes this part, and there's no substitute part

Screw STD611010
#15

16 gallon wet-dry vac diagram

Screw

Part #STD611010

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly 73135
#2

16 gallon wet-dry vac diagram

Cord assembly

Part #73135

The manufacturer no longer makes this part, and there's no substitute part

Retainer 15537
#9

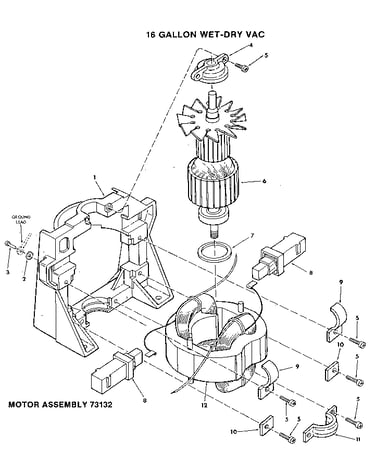

Motor assembly 73132 diagram

Retainer

Part #15537

The manufacturer no longer makes this part, and there's no substitute part

Switch (black) 73112
#6

16 gallon wet-dry vac diagram

Switch (black)

Part #73112

The manufacturer no longer makes this part, and there's no substitute part

Filter Cage 73110
#16

16 gallon wet-dry vac diagram

Filter cage

Part #73110

The manufacturer no longer makes this part, and there's no substitute part

Gasket 73270
#14

16 gallon wet-dry vac diagram

Gasket

Part #73270

The manufacturer no longer makes this part, and there's no substitute part
