Dacor
Electric Wall Oven

Model # ECS130 Official Dacor electric oven

Here are the diagrams and repair parts for Official Dacor ECS130 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

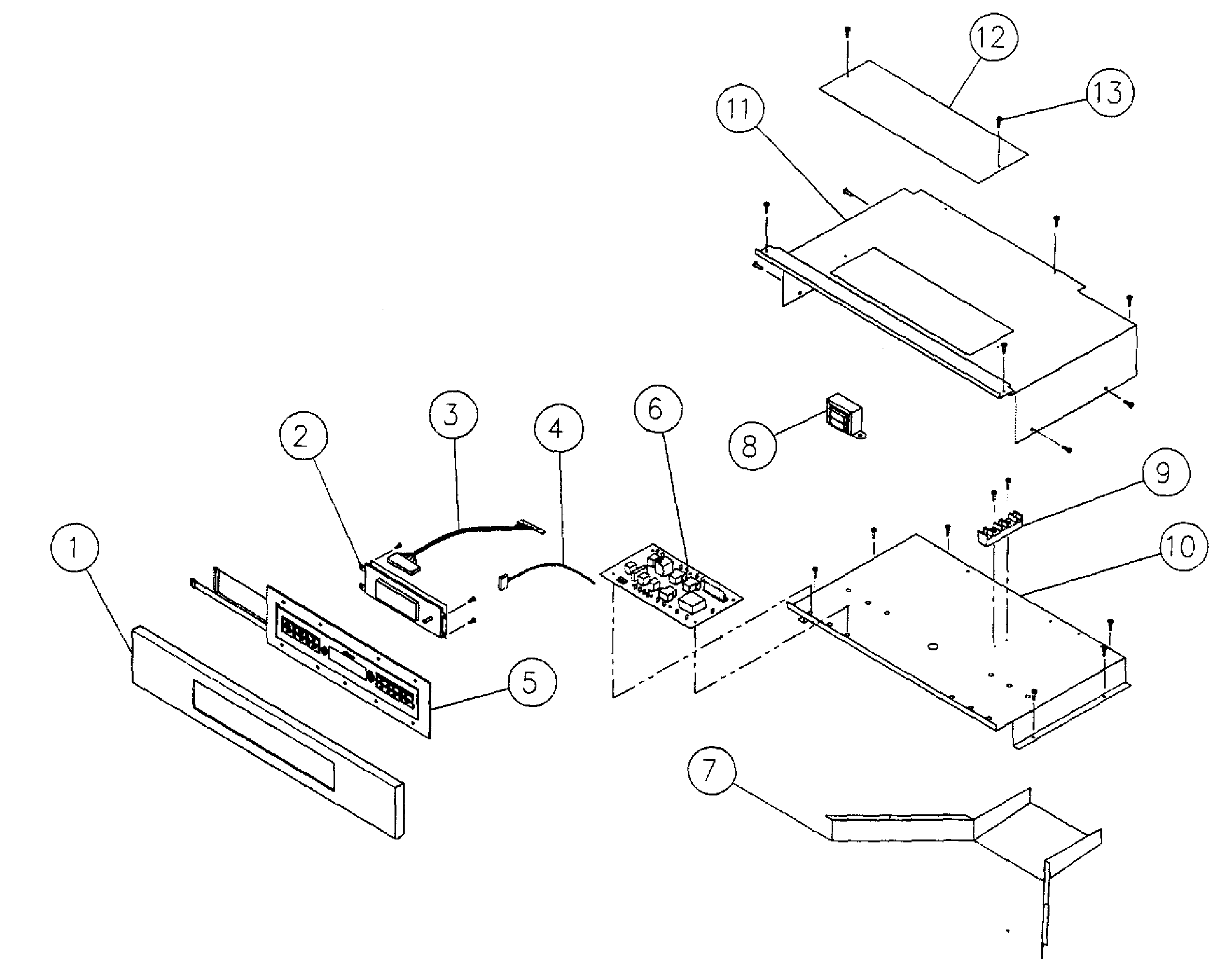

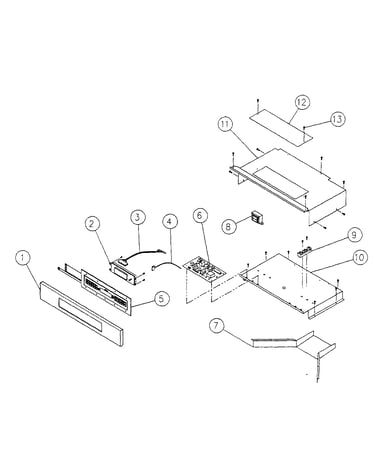

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Oven Door Glass 82216B
#1A

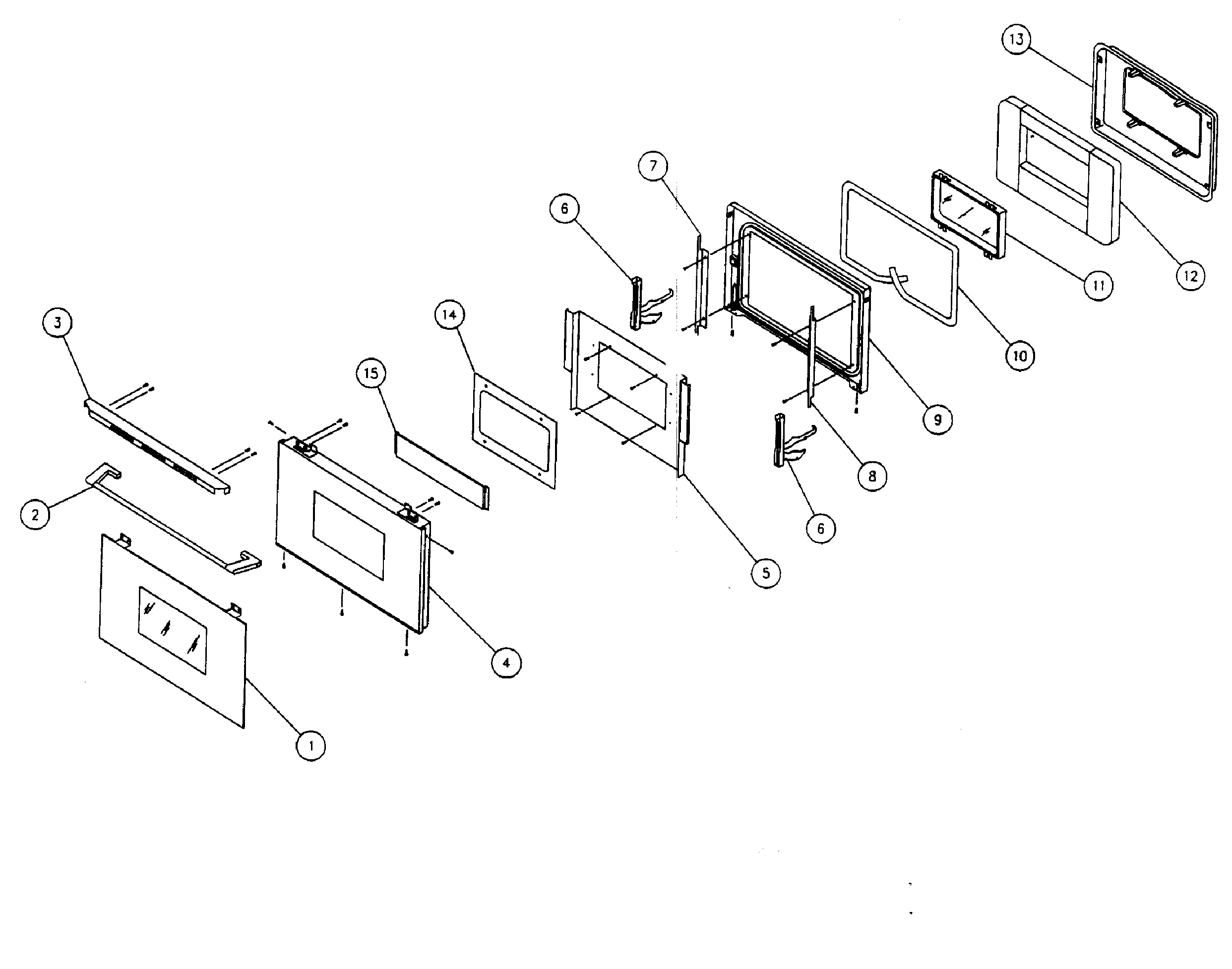

Door assy diagram

Oven door glass

Part #82216B

$58.99
In Stock
Appliance Screw, #8 X 3/8-in 83263
#NI

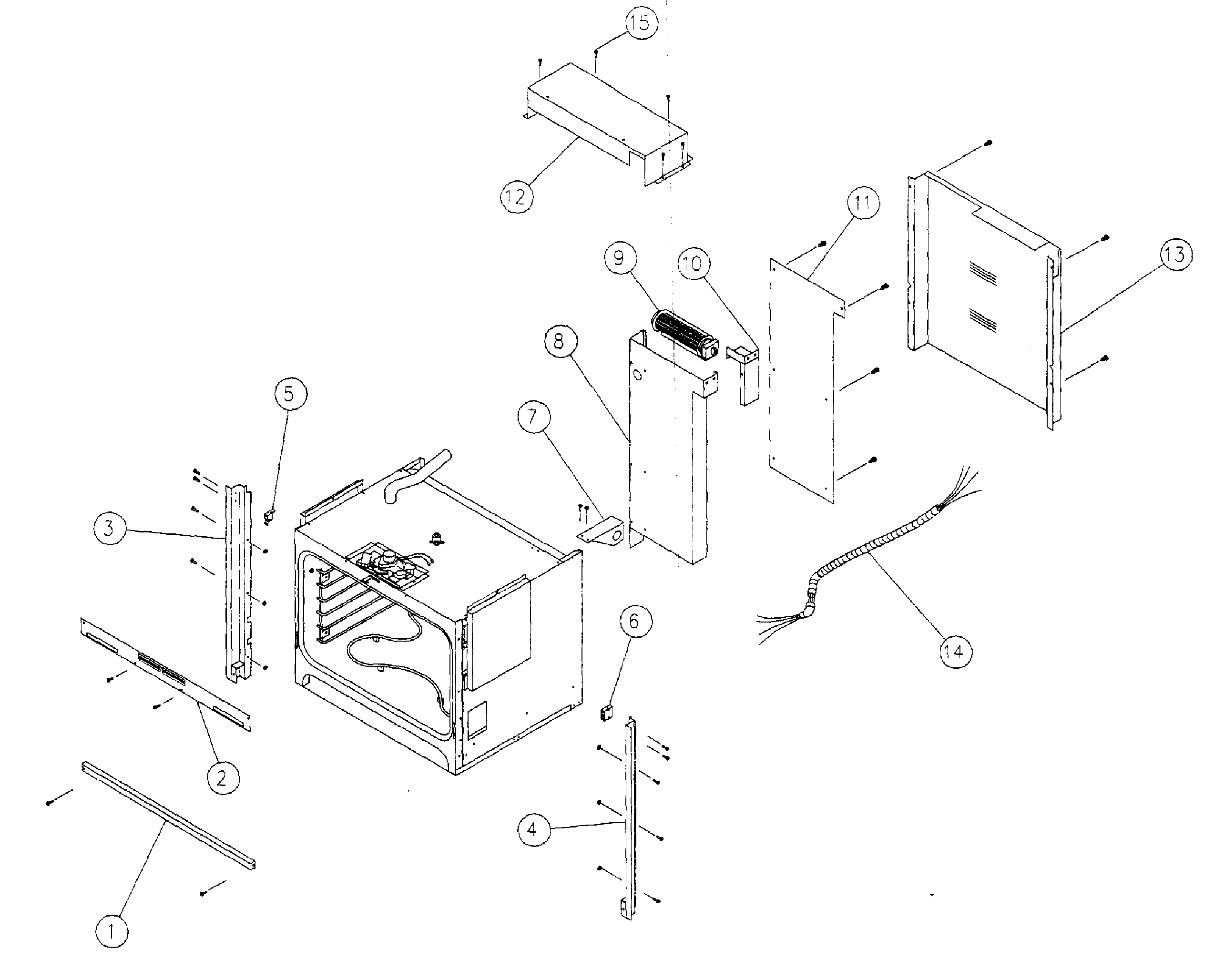

Oven assy diagram

Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Appliance Screw 83534
#14

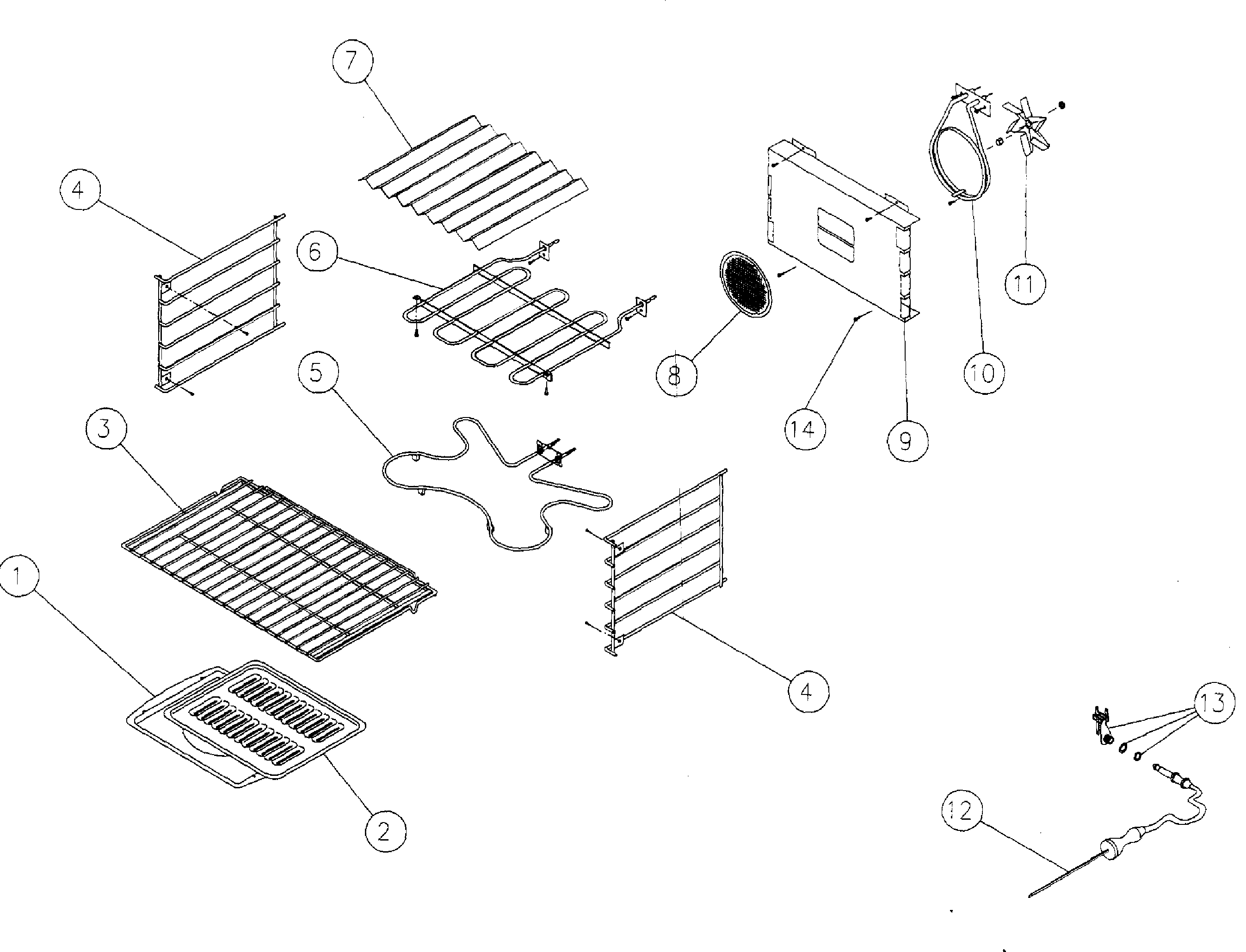

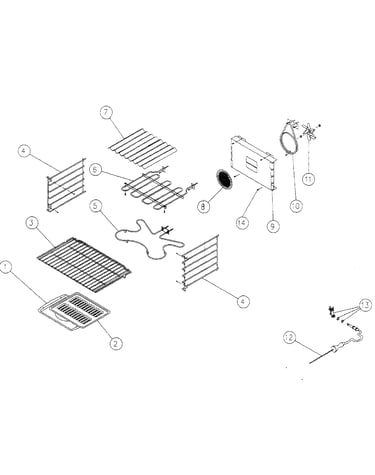

Inside cell diagram

Appliance screw

Part #83534

This item is not returnable
$2.16
Back Order
Exhaust Tube 82695
#15

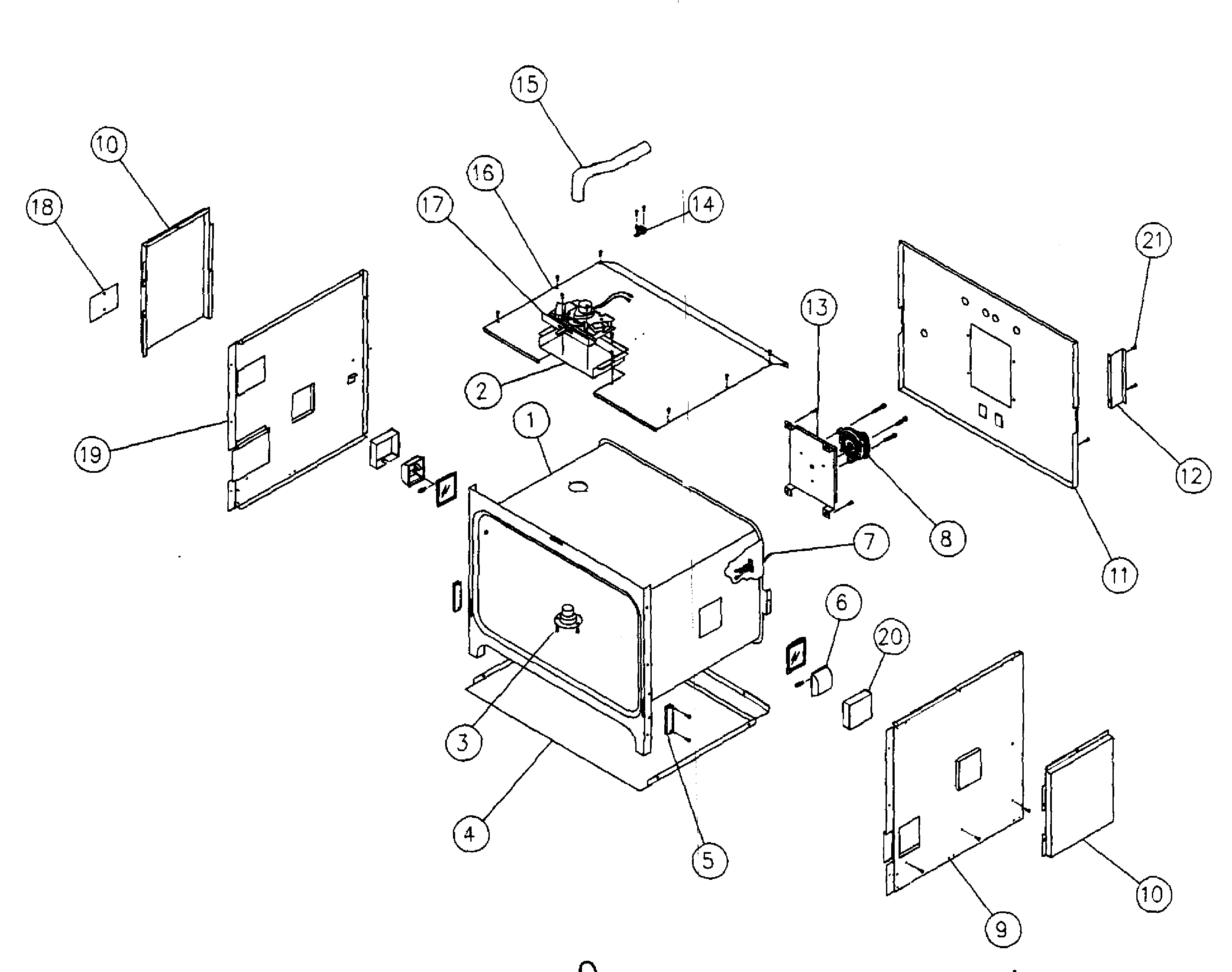

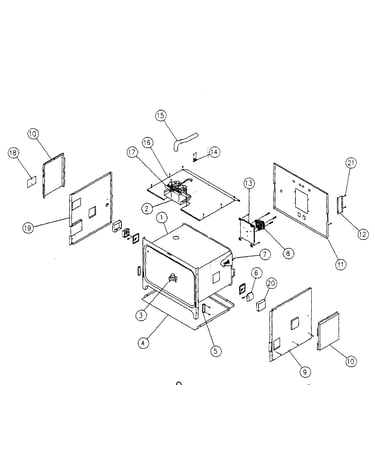

Cell assy diagram

Exhaust tube

Part #82695

$15.99
In Stock
Case 27600
#9

Cell assy diagram

Case

Part #27600

$75.99
In Stock
Mounting Plate 36280
#13

Cell assy diagram

Mounting plate

Part #36280

$20.49
In Stock
Oven Grille Exhaust 82229R
#1B

Oven assy diagram

Oven grille exhaust

Part #82229R

$79.49
In Stock
Probe Cover 36279
#18

Cell assy diagram

Probe cover

Part #36279

This item is not returnable
$2.16
In Stock
Door Handle 13407SCH
#2

Door assy diagram

Door handle

Part #13407SCH

$267.49
In Stock
Sockete 62714
#13

Inside cell diagram

Sockete

Part #62714

$34.99
In Stock
