Model # E24WC75HSS1 Official Electrolux wine cooler

Here are the diagrams and repair parts for Official Electrolux E24WC75HSS1 wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

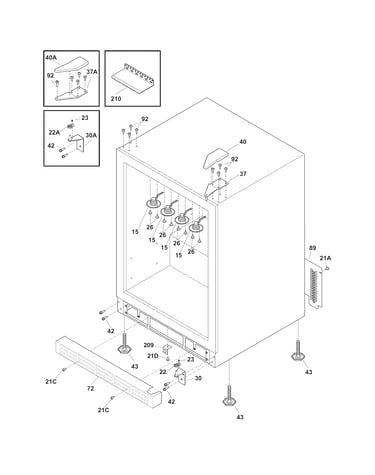

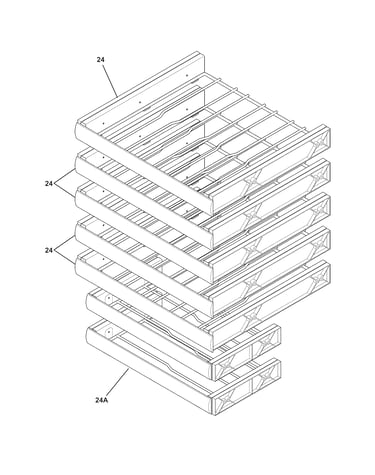

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Refrigerator Door Air Filter 242047801
#95

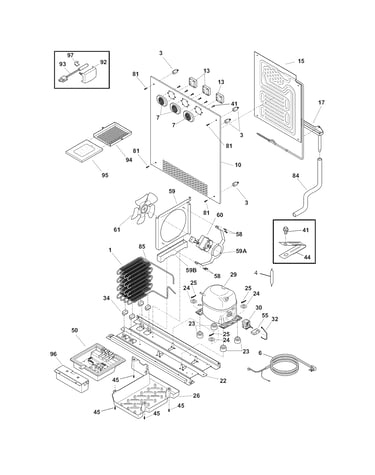

System diagram

Refrigerator door air filter

Part #242047801

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39
18% OFF Phone Price : $33.39
In Stock
Filter Drier 218944002
#4

System diagram

Filter drier

Part #218944002

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944002. Substitute parts can look different from the original.
BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
#93

System diagram

Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$40.44
13% OFF Phone Price : $46.44
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49
22% OFF Phone Price : $27.49
In Stock
Chest Freezer Run Capacitor 218909913
#55

System diagram

Chest freezer run capacitor

Part #218909913

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218909913. Substitute parts can look different from the original.
BEST SELLER
$47.29
11% OFF Phone Price : $53.29
In Stock
Refrigerator Power Cord (replaces 7241516901) 241516901
#6

System diagram

Refrigerator power cord (replaces 7241516901)

Part #241516901

Replaced by #241516904

?
Manufacturer substitution
This part replaces 241516901. Substitute parts can look different from the original.
In Stock
Refrigerator Screw (replaces 218252200, 7218252201) 218252201
Refrigerator screw (replaces 218252200, 7218252201)

Part #218252201

This item is not returnable
$16.44
11% OFF Phone Price : $18.44
In Stock
Refrigerator Condenser Motor Bracket Screw 240433203
#58

System diagram

Refrigerator condenser motor bracket screw

Part #240433203

Replaced by #241953902

?
Manufacturer substitution
This part replaces 240433203. Substitute parts can look different from the original.
This item is not returnable
$17.79
10% OFF Phone Price : $19.79
In Stock
Screw-#8-32 240555004
#81

System diagram

Screw-#8-32

Part #240555004

Replaced by #240555002

?
Manufacturer substitution
This part replaces 240555004. Substitute parts can look different from the original.
This item is not returnable
$14.09
12% OFF Phone Price : $16.09
In Stock
Refrigerator Door Handle Screw 240383408
#21

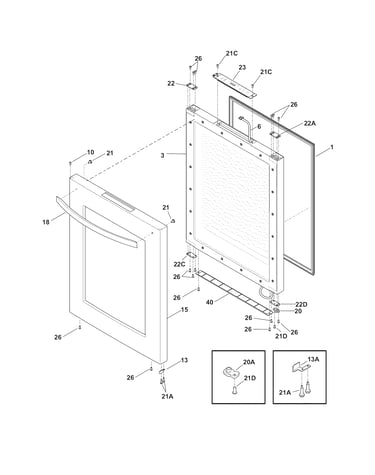

Door diagram

Refrigerator door handle screw

Part #240383408

This item is not returnable
$13.80
13% OFF Phone Price : $15.80
In Stock
