Model # 27298413.83 Official Kenmore sewing machine cabinet

Here are the diagrams and repair parts for Official Kenmore 27298413.83 sewing machine cabinet, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for27298413.83 Sewing Machine Cabinet

  • Plug 000243
    #1O

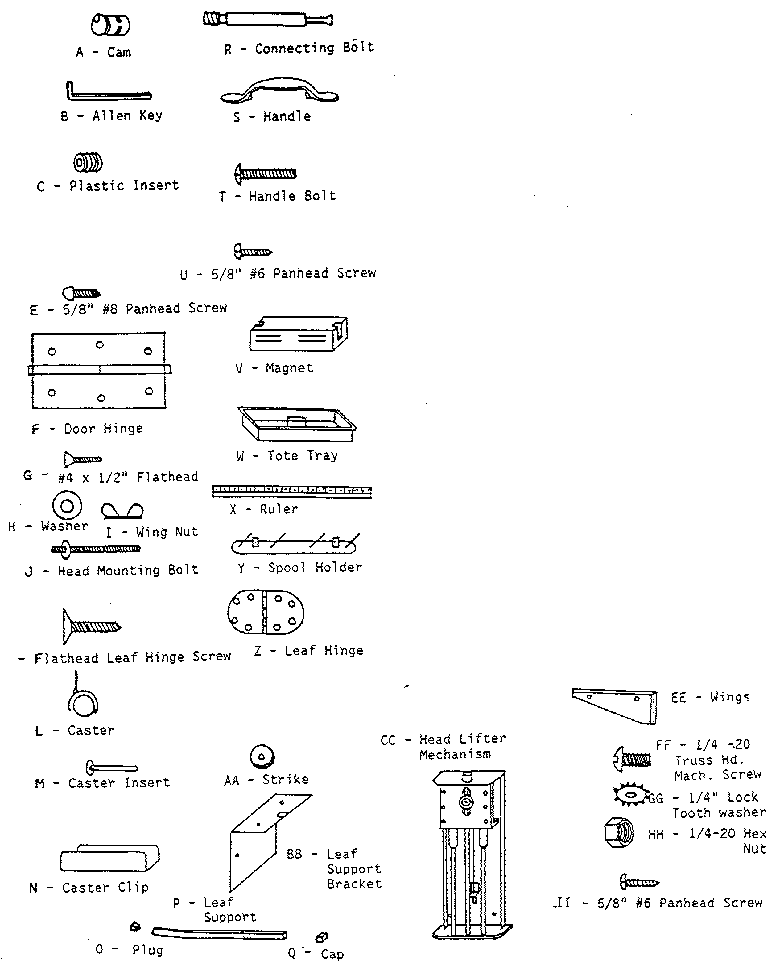

    Hardware diagram

    Plug

    Part #000243

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 001711
    #1FF

    Hardware diagram

    Screw

    Part #001711

    The manufacturer no longer makes this part, and there's no substitute part

  • Carrage Bolt 002321
    #20

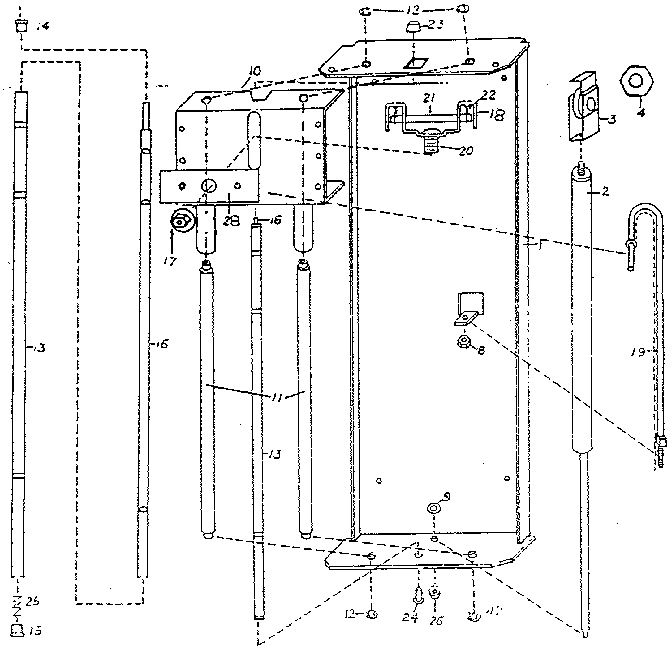

    Cable assembly diagram

    Carrage bolt

    Part #002321

    The manufacturer no longer makes this part, and there's no substitute part

  • Pulley Holder 002309
    #3

    Cable assembly diagram

    Pulley holder

    Part #002309

    The manufacturer no longer makes this part, and there's no substitute part

  • Frame 002308
    #1

    Cable assembly diagram

    Frame

    Part #002308

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring 002317
    #22

    Cable assembly diagram

    Spring

    Part #002317

    The manufacturer no longer makes this part, and there's no substitute part

  • Leaf 000881
    #1C

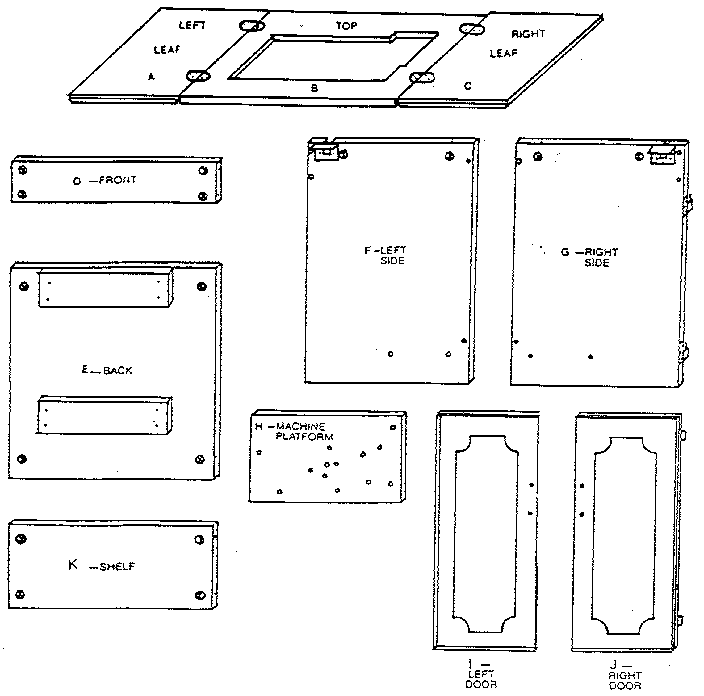

    Panels diagram

    Leaf

    Part #000881

    The manufacturer no longer makes this part, and there's no substitute part

  • T Leaf Hinge 000060
    #1Z

    Hardware diagram

    T leaf hinge

    Part #000060

    The manufacturer no longer makes this part, and there's no substitute part

  • Back 002158
    #1E

    Panels diagram

    Back

    Part #002158

    The manufacturer no longer makes this part, and there's no substitute part

  • Hng Scrw 5/8 000061
    #1K

    Hardware diagram

    Hng scrw 5/8

    Part #000061

    The manufacturer no longer makes this part, and there's no substitute part
