Model # KEDS207YWH2 Official KitchenAid 30" electric drop-in range with self-cleaning oven

Here are the diagrams and repair parts for Official KitchenAid KEDS207YWH2 30" electric drop-in range with self-cleaning oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

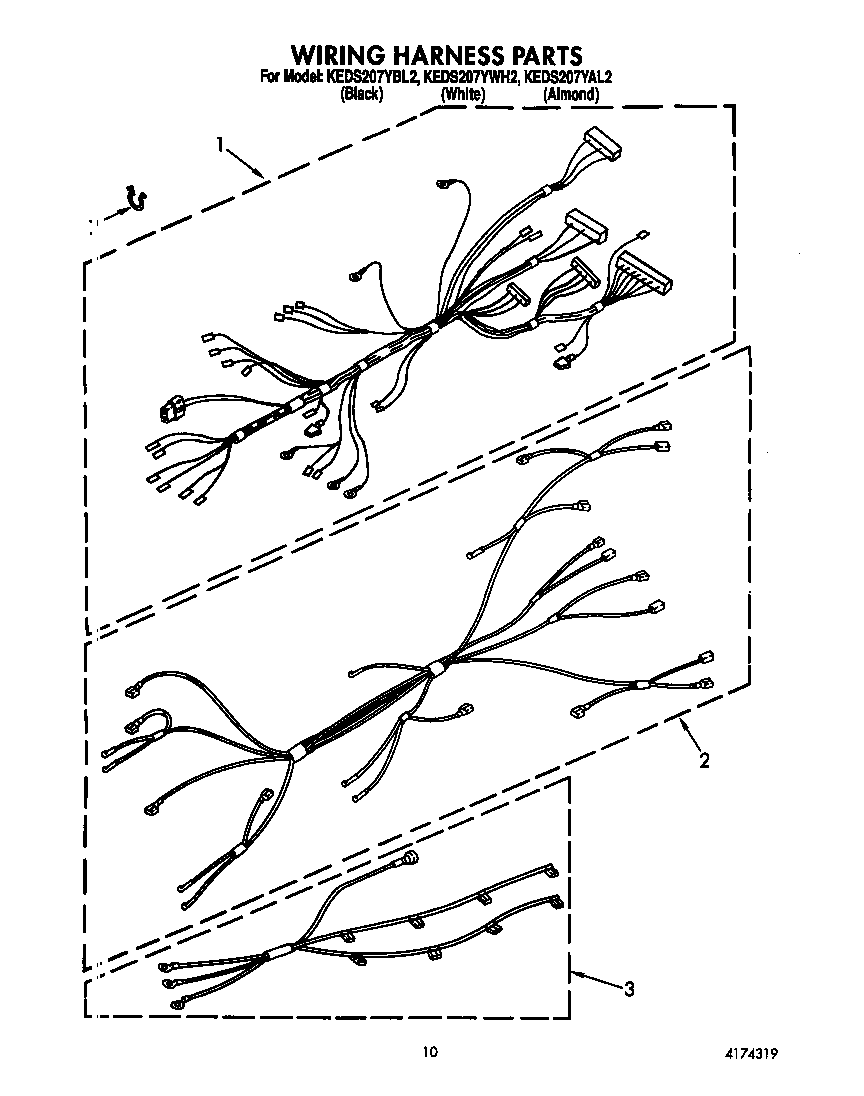

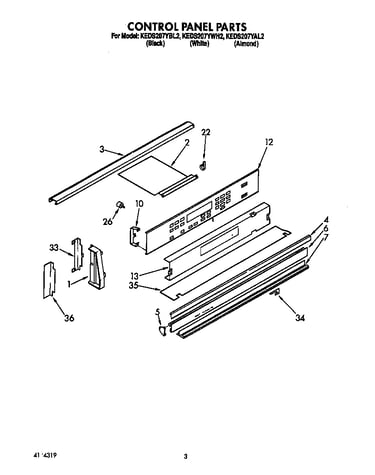

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 255 parts  |
Light Bulb 311255
#29

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 3148107
Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 313638
#33A

Oven diagram

Screw

Part #313638

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 313638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Touch-up Paint (black) 72032

#NI

All parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock

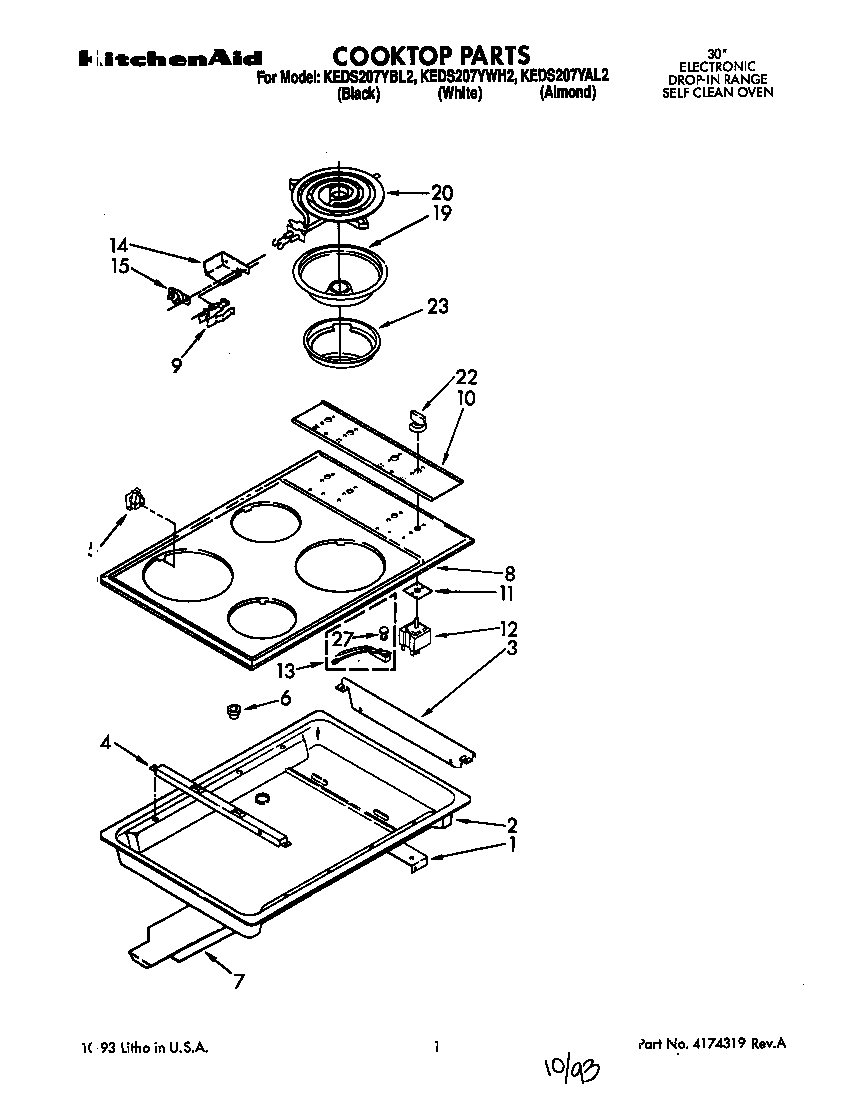

Range Coil Surface Element, 8-in 660533
#20A

Cooktop diagram

Range coil surface element, 8-in

Part #660533

Replaced by #WP660533

?
Manufacturer substitution
This part replaces 660533. Substitute parts can look different from the original.
$25.41 |
19% OFF Phone Price : $31.41
In Stock

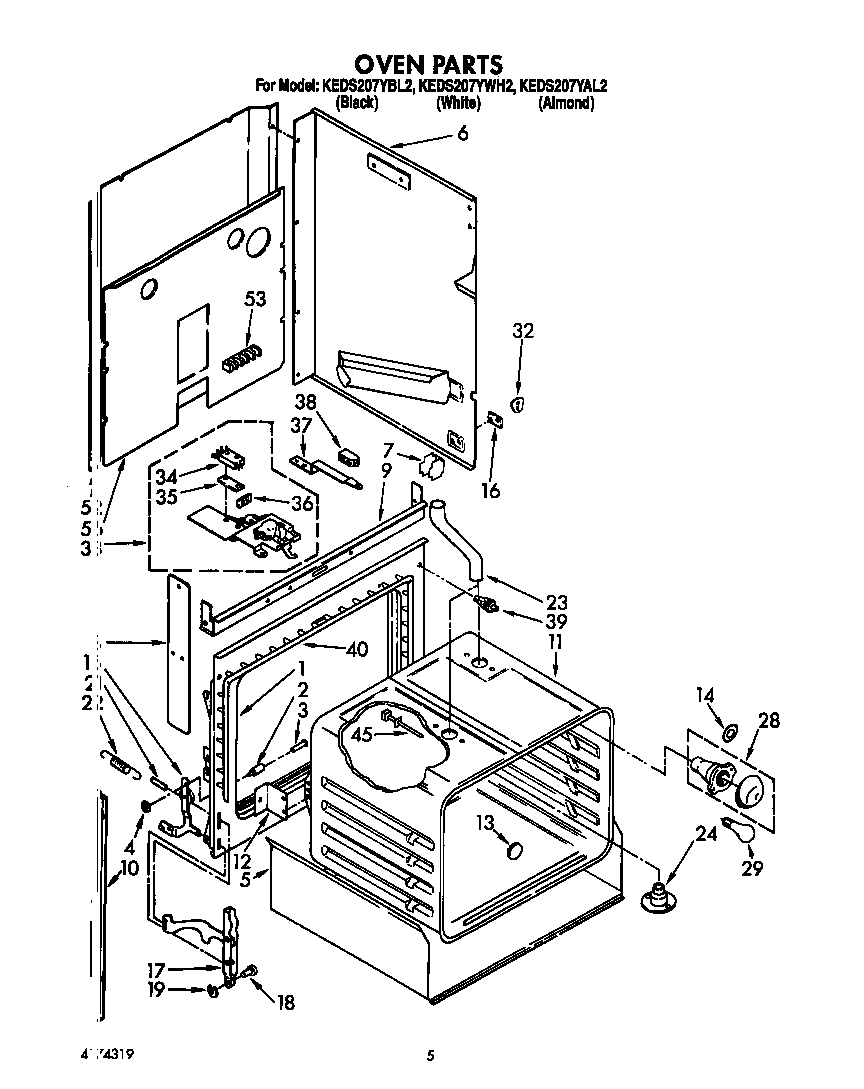

Light Socket 3150505
#28

Oven diagram

Light socket

Part #3150505

Replaced by #W11594027

?
Manufacturer substitution
This part replaces 3150505. Substitute parts can look different from the original.
$56.53 |
10% OFF Phone Price : $62.53
In Stock

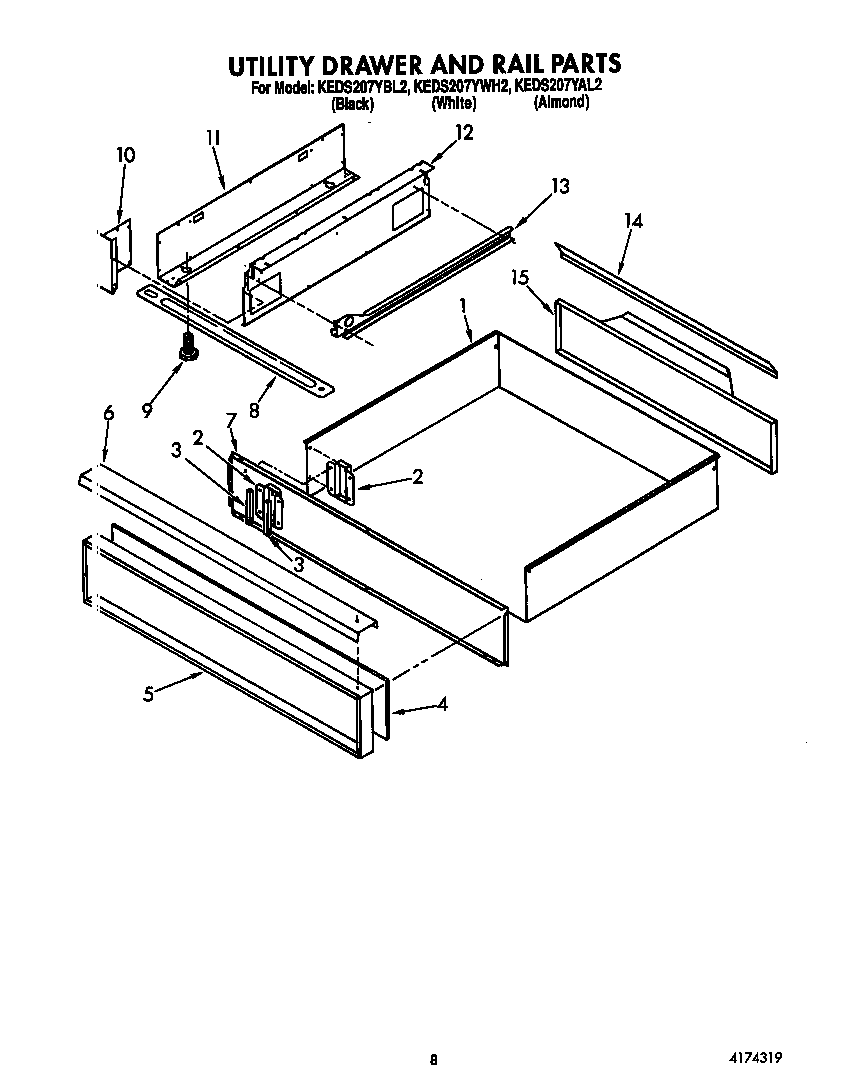

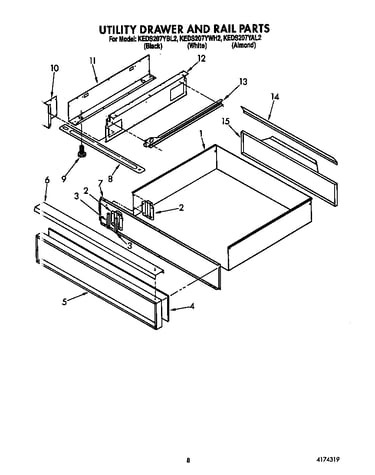

Level Foot 312701
#9

Utility drawer and rail diagram

Level foot

Part #312701

Replaced by #WPW10058460

?
Manufacturer substitution
This part replaces 312701. Substitute parts can look different from the original.
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock

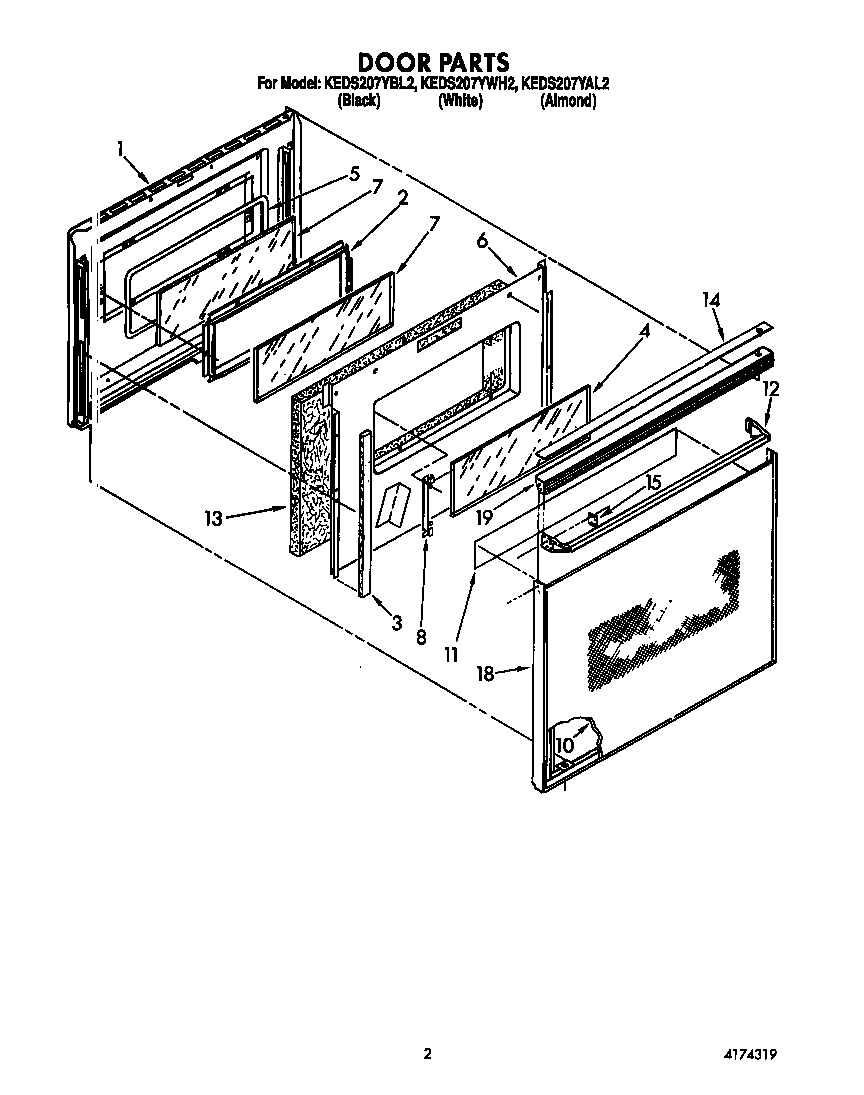

Wall Oven Door Inner Glass 3169203
#7

Door diagram

Wall oven door inner glass

Part #3169203

Replaced by #WP3169203

?
Manufacturer substitution
This part replaces 3169203. Substitute parts can look different from the original.
$57.87 |
9% OFF Phone Price : $63.87
In Stock
Gaskt-lite 3184533
#14

Oven diagram

Gaskt-lite

Part #3184533

Replaced by #WP3184533

?
Manufacturer substitution
This part replaces 3184533. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock

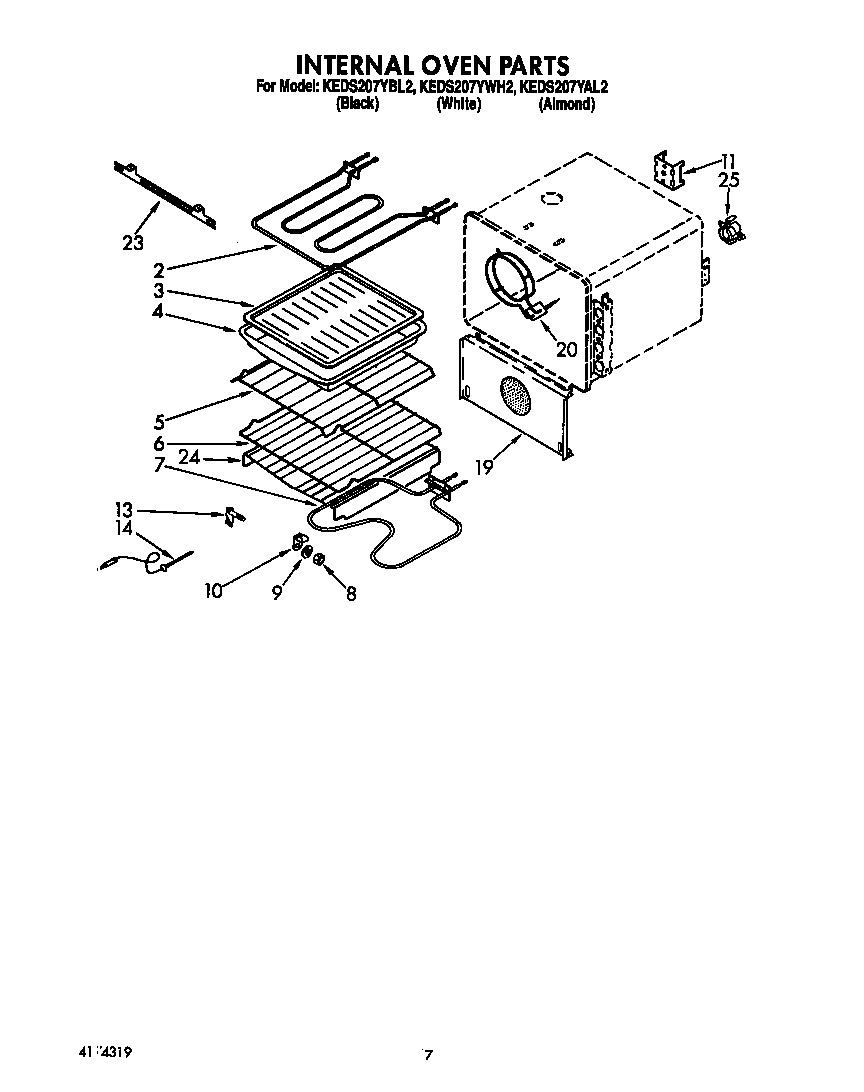

Range Bake Element 661416
#7

Internal oven diagram

Range bake element

Part #661416

Replaced by #WP661416

?
Manufacturer substitution
This part replaces 661416. Substitute parts can look different from the original.
$71.58 |
8% OFF Phone Price : $77.58
In Stock
