Maytag
Dishwasher

Model # MDB6000AWB Official Maytag dishwasher

Here are the diagrams and repair parts for Official Maytag MDB6000AWB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

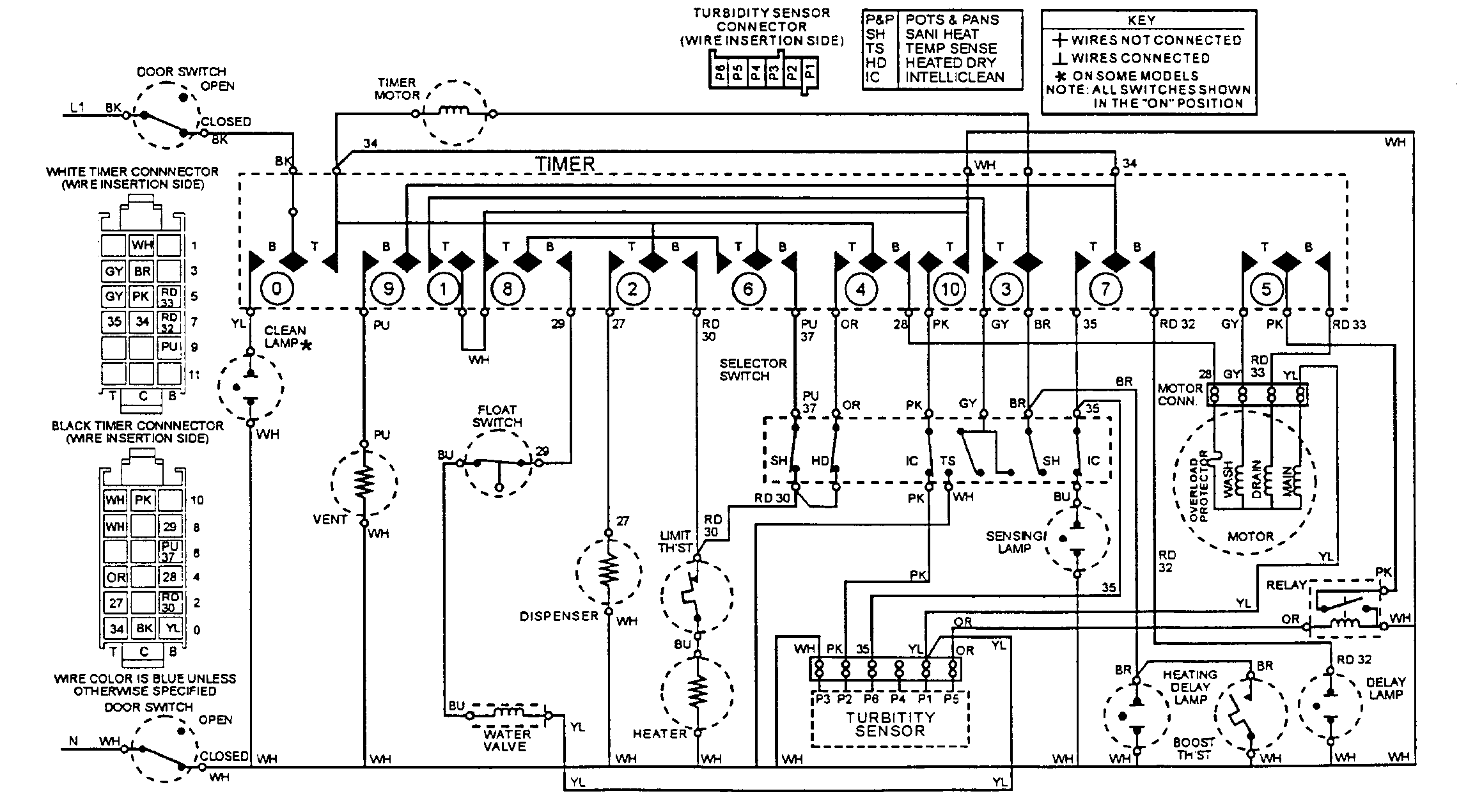

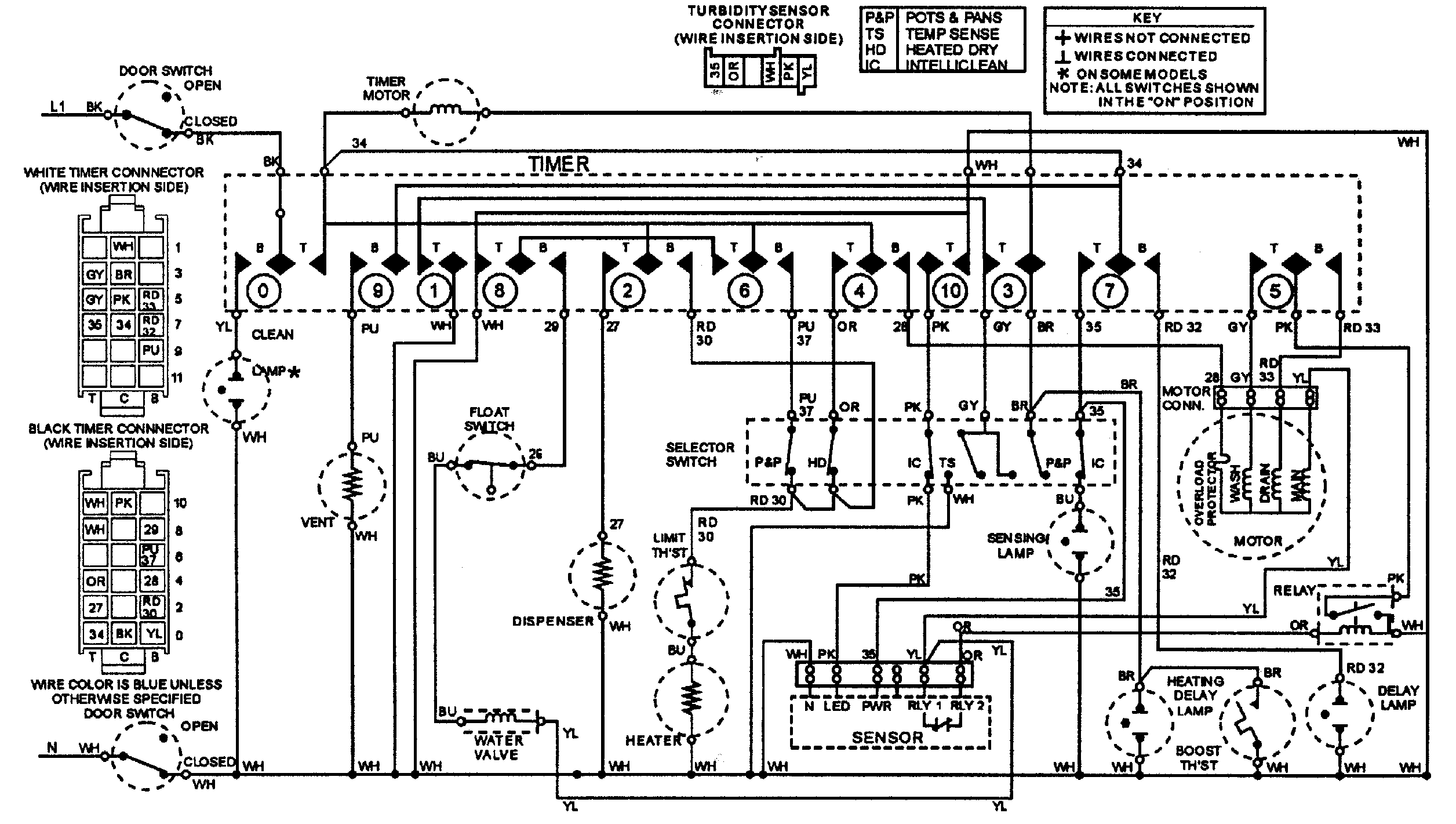

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Clamp Spring 911856
#3

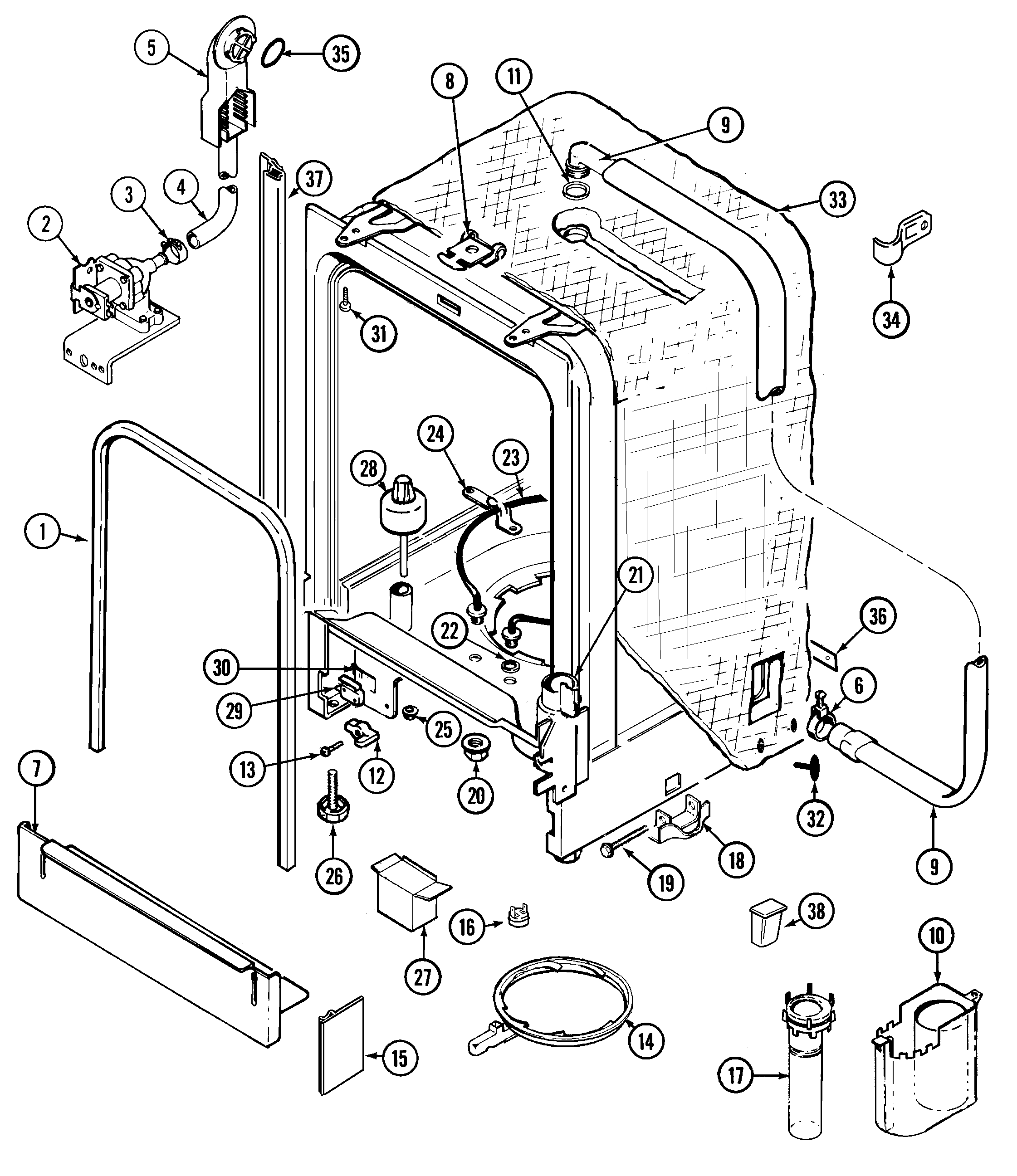

Tub diagram

Clamp spring

Part #911856

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 911856. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Door Spring Link 912653
#11

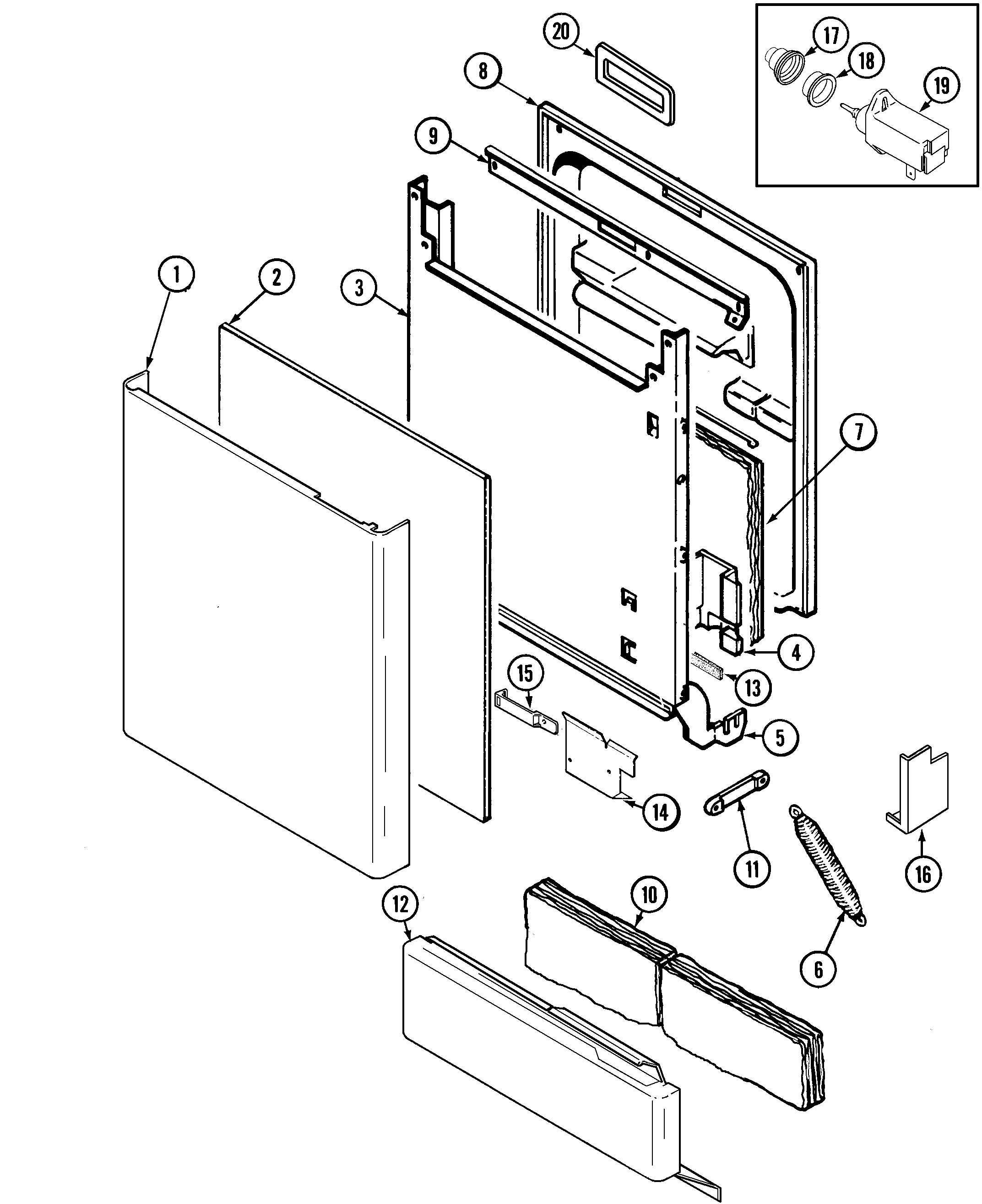

Door diagram

Dishwasher door spring link

Part #912653

Replaced by #WP912653

?
Manufacturer substitution
This part replaces 912653. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock
Silverware Basket 99001751
#6

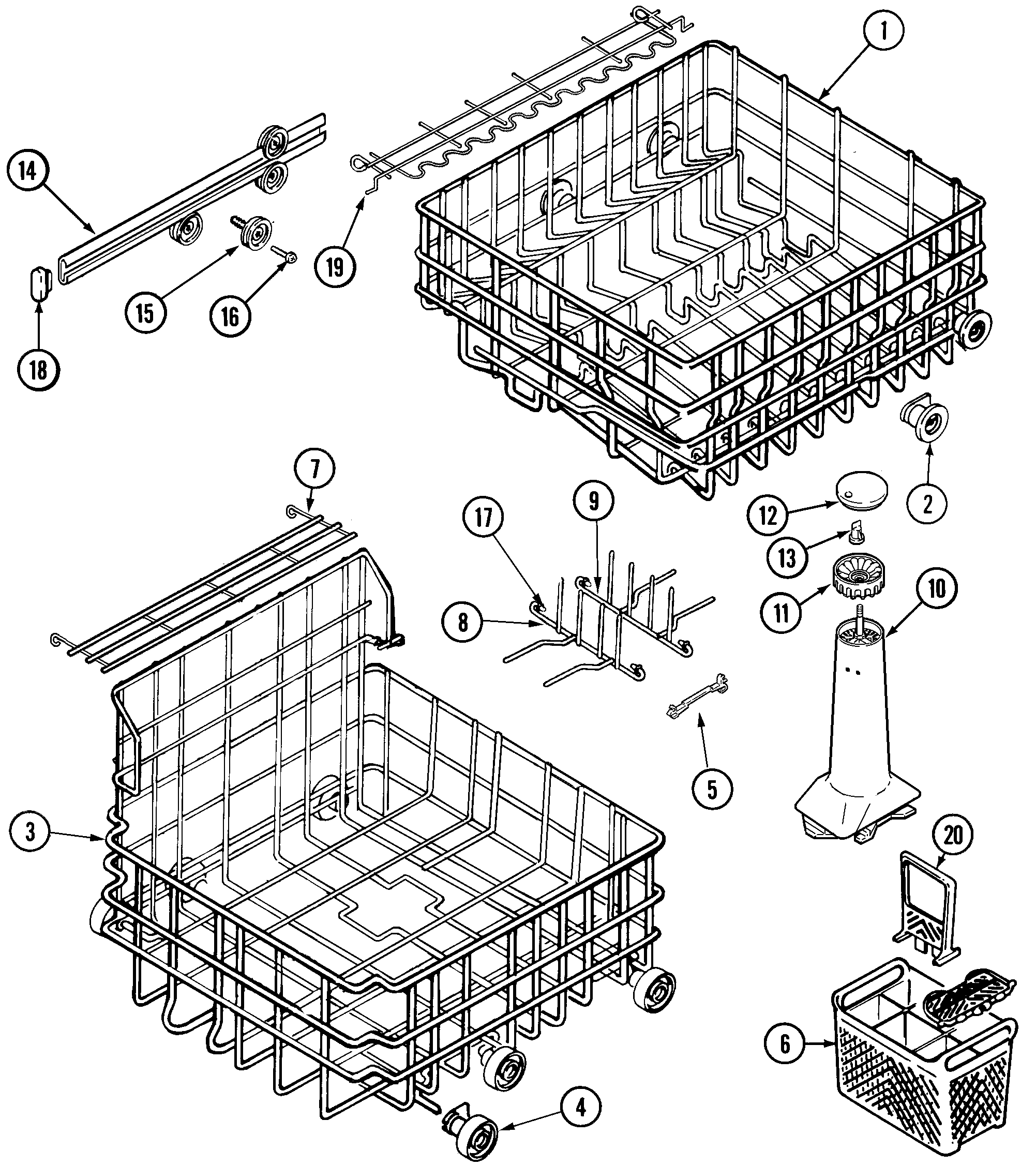

Track & rack assembly diagram

Silverware basket

Part #99001751

Replaced by #WP6-918873

?
Manufacturer substitution
This part replaces 99001751. Substitute parts can look different from the original.
$20.61 |
23% OFF Phone Price : $26.61
In Stock
Plate Screw 912365
Plate screw

Part #912365

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 912365. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Door Screw 912620
#8A

Door diagram

Door screw

Part #912620

Replaced by #WPY912620

?
Manufacturer substitution
This part replaces 912620. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Dishwasher Water Inlet Valve 99001359
#2

Tub diagram

Dishwasher water inlet valve

Part #99001359

Replaced by #WP99001359

?
Manufacturer substitution
This part replaces 99001359. Substitute parts can look different from the original.
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Dishwasher Spray Arm Assembly, Lower 99001788
#2

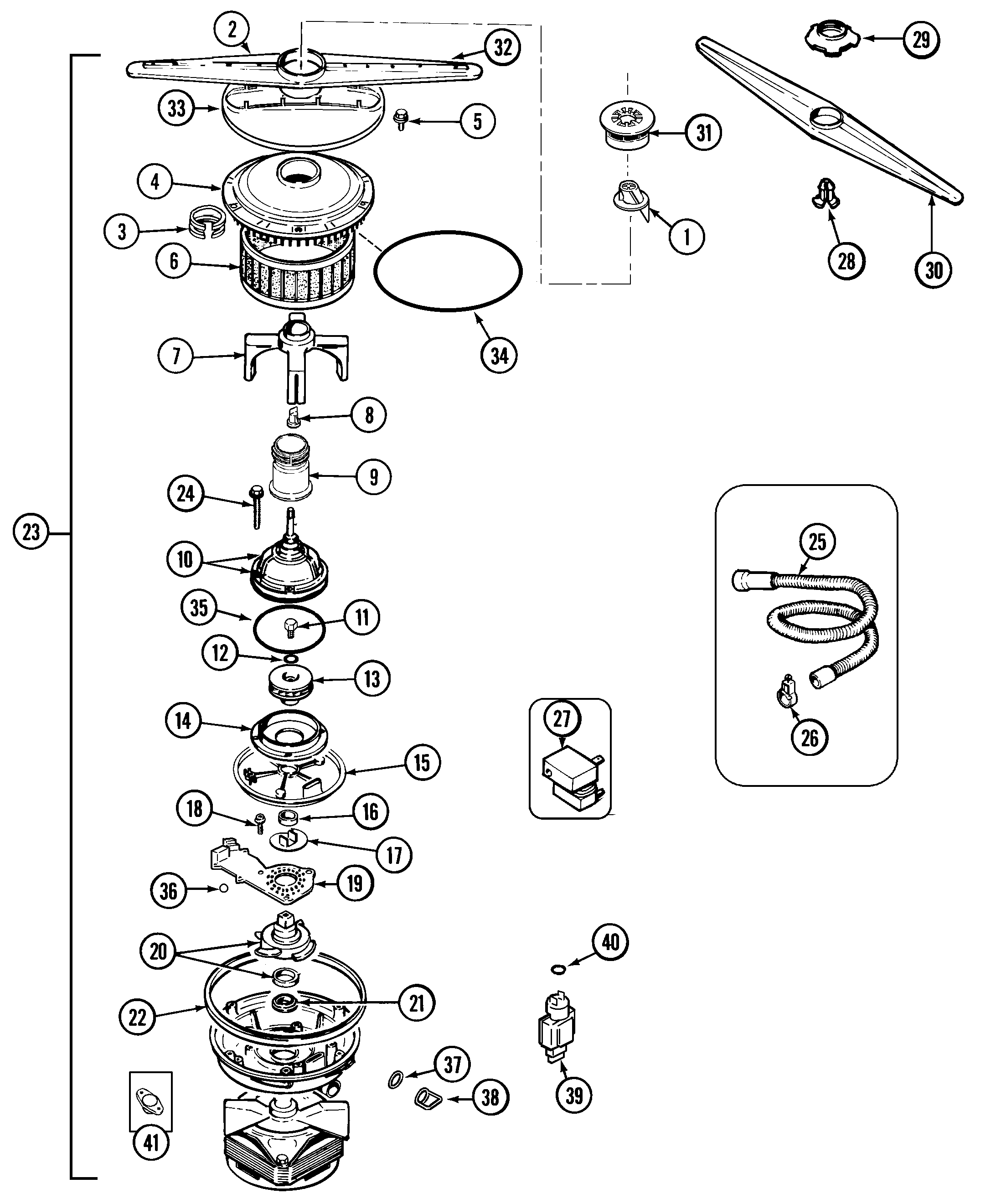

Pump & motor diagram

Dishwasher spray arm assembly, lower

Part #99001788

Replaced by #WP99001788

?
Manufacturer substitution
This part replaces 99001788. Substitute parts can look different from the original.
$53.71 |
10% OFF Phone Price : $59.71
In Stock
Water Switch (white) 99002560
#29

Tub diagram

Water switch (white)

Part #99002560

Replaced by #WP99002560

?
Manufacturer substitution
This part replaces 99002560. Substitute parts can look different from the original.
$31.76 |
16% OFF Phone Price : $37.76
In Stock
Rack Stop 912546
#18

Track & rack assembly diagram

Rack stop

Part #912546

Replaced by #WP99002135

?
Manufacturer substitution
This part replaces 912546. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Dishwasher High-limit Thermostat 99001852
#16

Tub diagram

Dishwasher high-limit thermostat

Part #99001852

Replaced by #WP99001852

?
Manufacturer substitution
This part replaces 99001852. Substitute parts can look different from the original.
$35.47 |
14% OFF Phone Price : $41.47
In Stock
