LG
Side-By-Side Refrigerator

Model # LSXS26366S/00 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LSXS26366S-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204
#405H

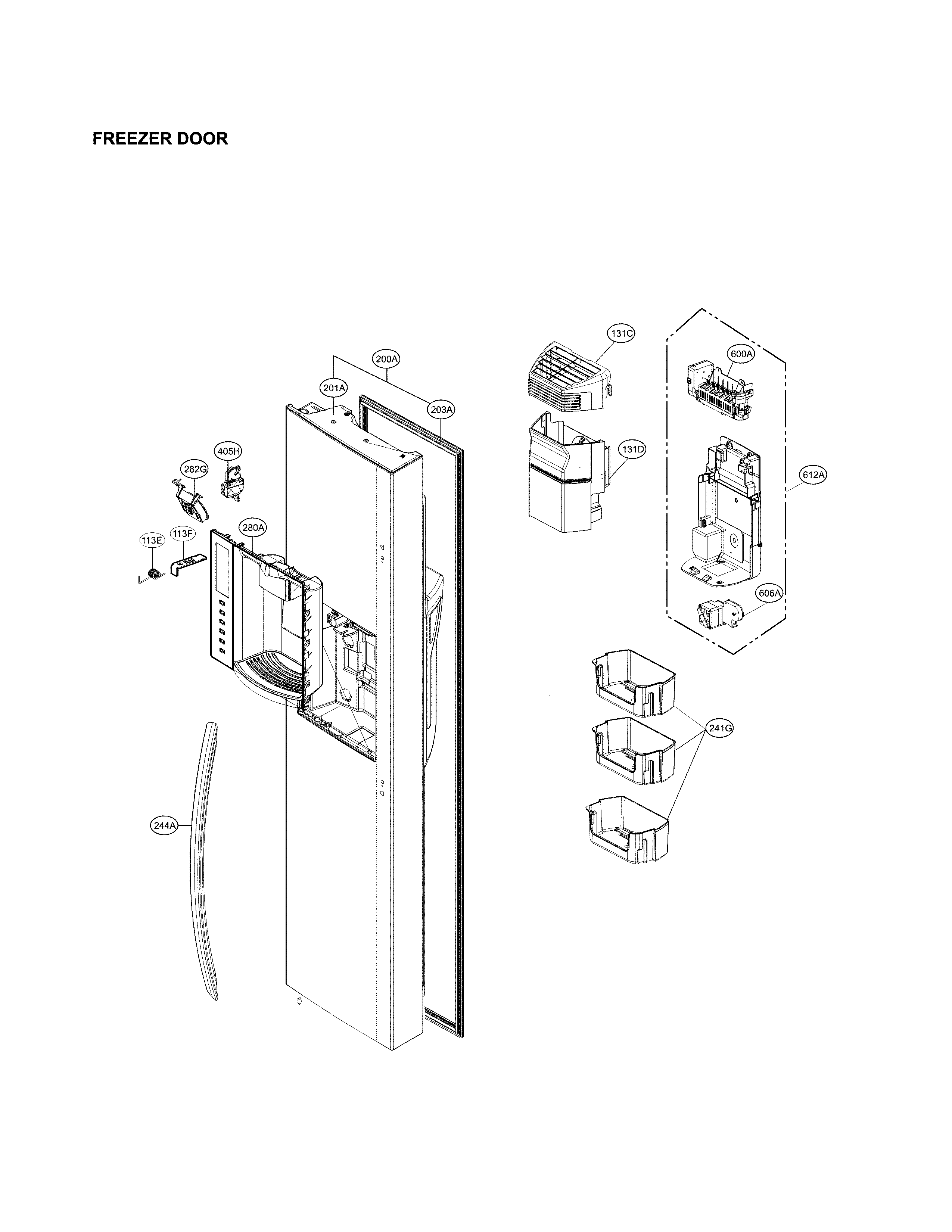

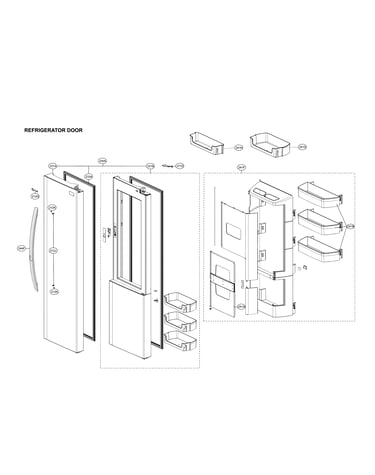

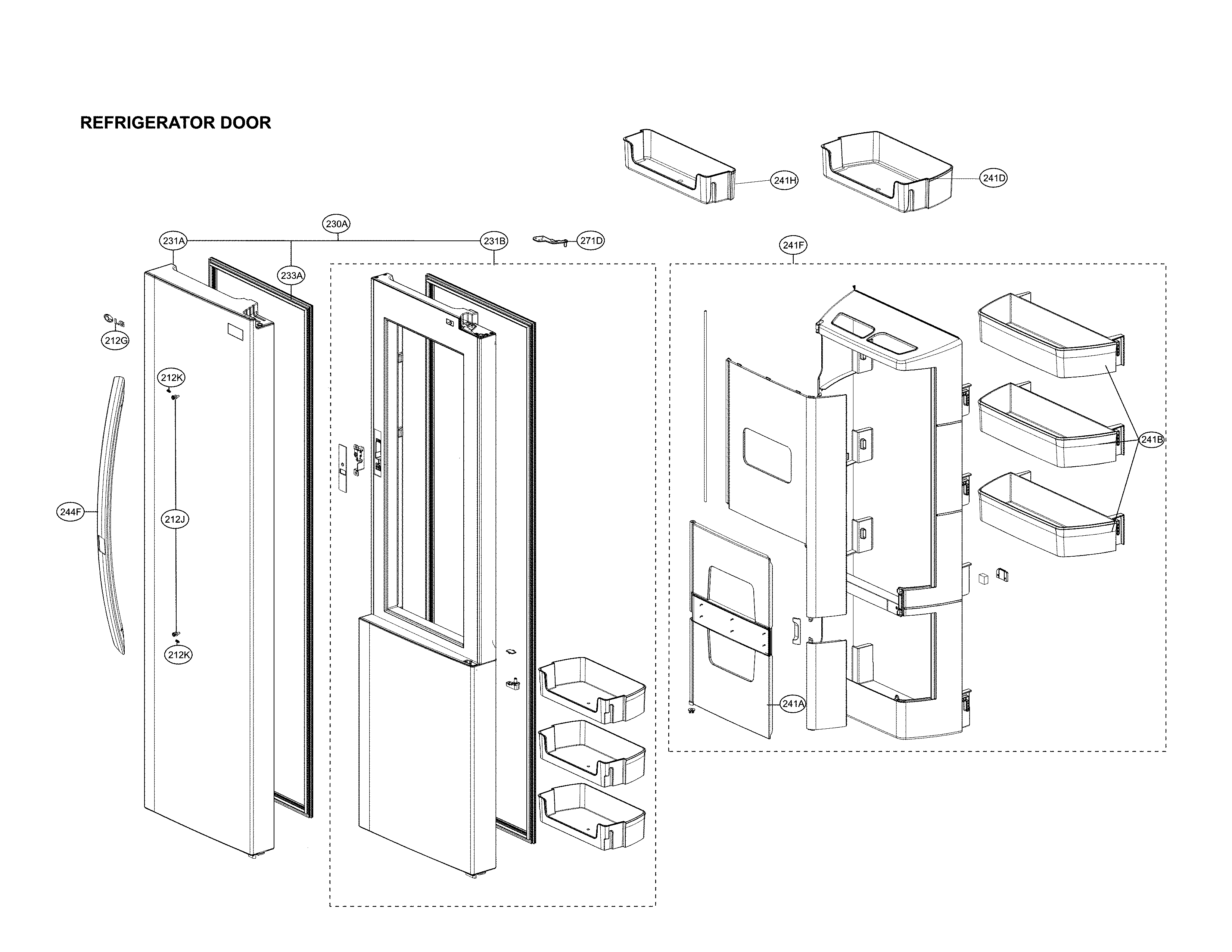

Freezer door parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$52.52 |
10% OFF Phone Price : $58.52
In Stock
Refrigerator Ice Maker Assembly (aeq73130002) - Refrigeration System Part By Kenmore AEQ73130002
#600A

Freezer door parts diagram

Refrigerator ice maker assembly (aeq73130002) - refrigeration system part by kenmore

Part #AEQ73130002

BEST SELLER
$146.20 |
8% OFF Phone Price : $158.20
In Stock
Lg Lt800p Refrigerator Water Filter (replaces Agm76550401) ADQ73613401
#611B

Refrigerator compartment parts diagram

Lg lt800p refrigerator water filter (replaces agm76550401)

Part #ADQ73613401

BEST SELLER

Get free shipping with Automatic Reorder

$66.49
In Stock
Refrigerator Auger Motor EAU61004403
#612A

Freezer door parts diagram

Refrigerator auger motor

Part #EAU61004403

Replaced by #EAU61004410

?
Manufacturer substitution
This part replaces EAU61004403. Substitute parts can look different from the original.
BEST SELLER
$291.60 |
$12.00 OFF Phone Price : $303.60
In Stock
Refrigerator Evaporator ADL74760901
#301A

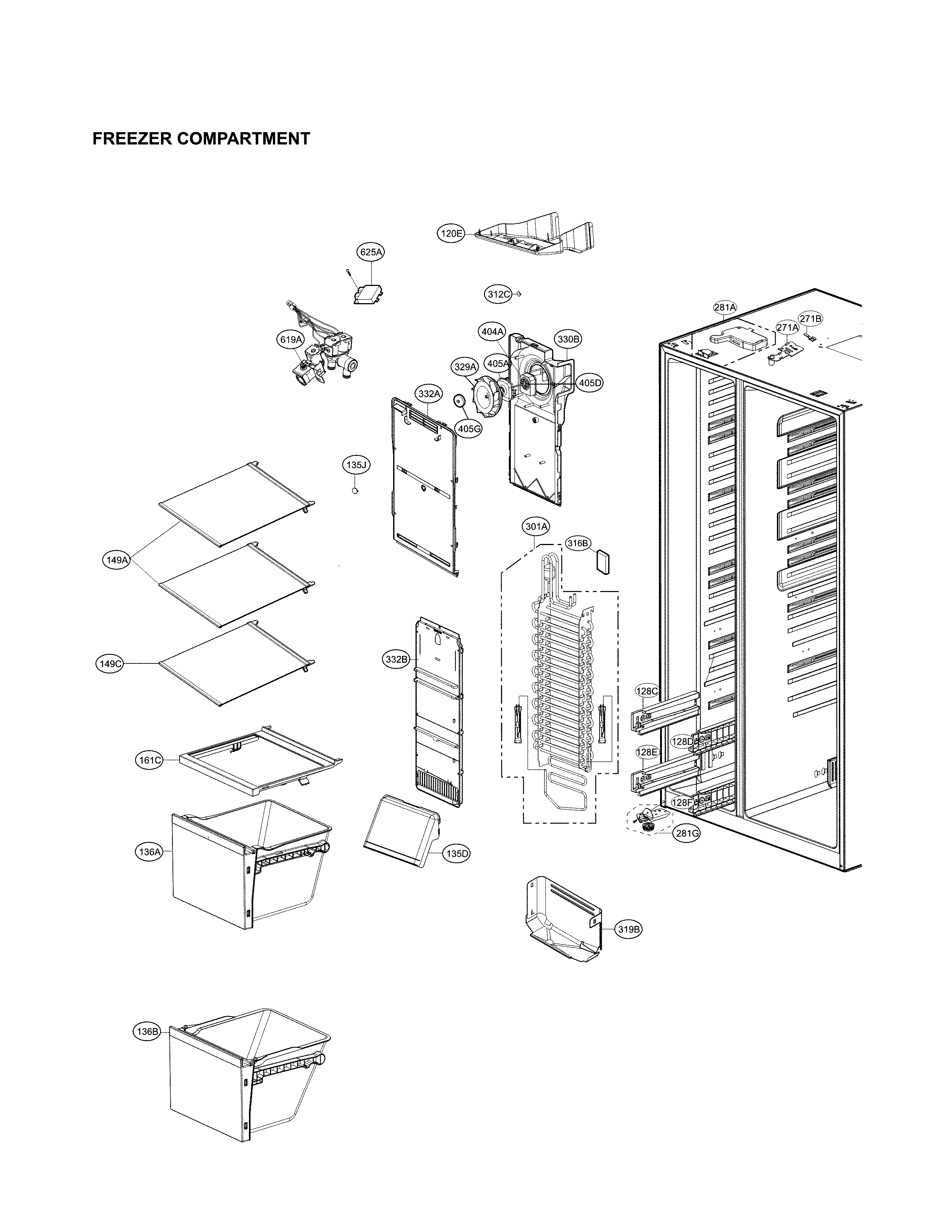

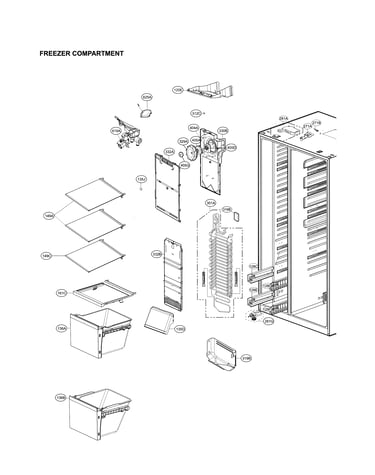

Freezer compartment parts diagram

Refrigerator evaporator

Part #ADL74760901

BEST SELLER
$306.80 |
$12.00 OFF Phone Price : $318.80
In Stock
Refrigerator Water Tube Fitting (replaces 4932ja3013b, Mcd38280802, Mcd38280805, Mcd61866802, Mcd61866804) 4932JA3002C
#621B

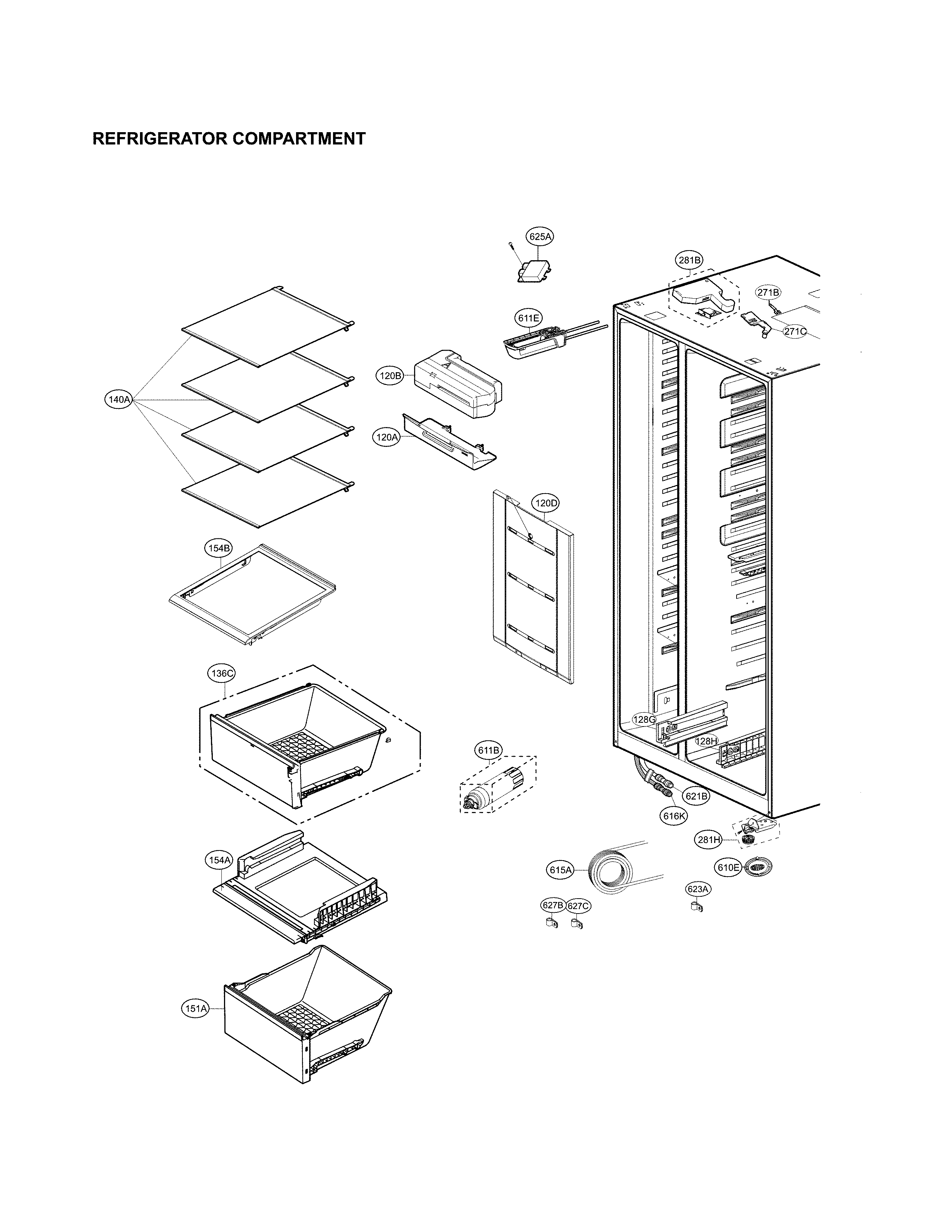

Refrigerator compartment parts diagram

Refrigerator water tube fitting (replaces 4932ja3013b, mcd38280802, mcd38280805, mcd61866802, mcd61866804)

Part #4932JA3002C

BEST SELLER
$16.64 |
11% OFF Phone Price : $18.64
In Stock
Refrigerator Clamp 4930JA3034A
#318A

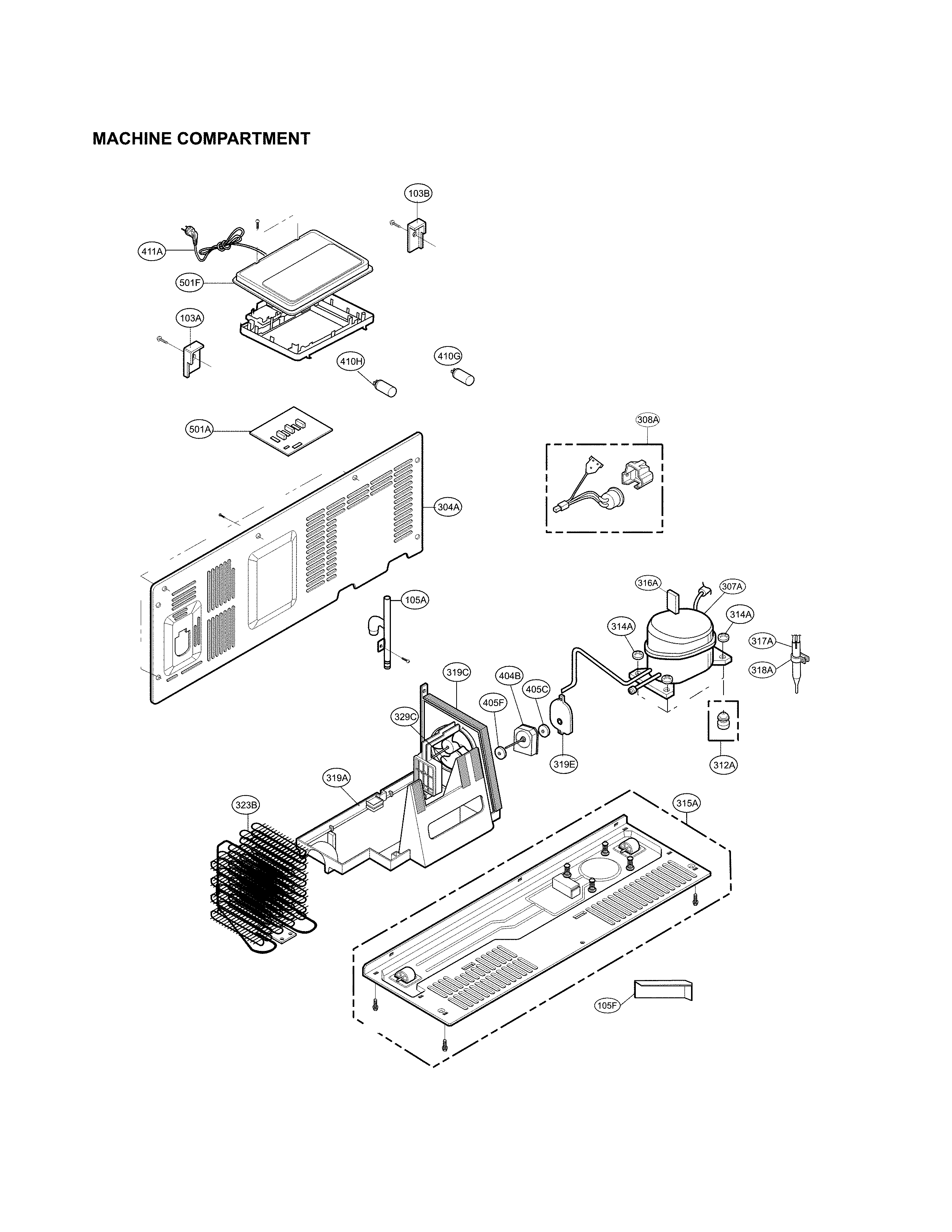

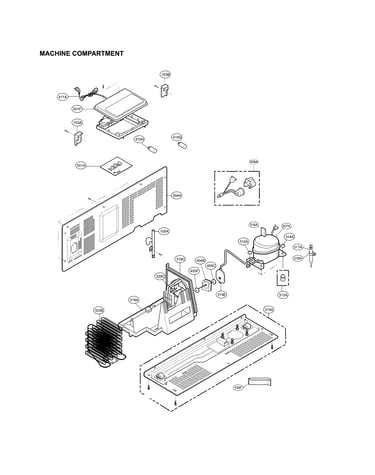

Machine compartment parts diagram

Refrigerator clamp

Part #4930JA3034A

BEST SELLER
This item is not returnable
$7.22 |
12% OFF Phone Price : $8.22
In Stock
Refrigerator Run Capacitor EAE32501017
#410G

Machine compartment parts diagram

Refrigerator run capacitor

Part #EAE32501017

BEST SELLER
$48.33 |
11% OFF Phone Price : $54.33
In Stock
Refrigerator Water Reservoir (replaces 4838jj1003a, 4839jj2002b, 4839jj2003a, Mjm61904701) MJM61904702
#615A

Refrigerator compartment parts diagram

Refrigerator water reservoir (replaces 4838jj1003a, 4839jj2002b, 4839jj2003a, mjm61904701)

Part #MJM61904702

BEST SELLER
$85.98 |
7% OFF Phone Price : $91.98
In Stock
Refrigerator Compressor Overload Protector EBG60663229
#308A

Machine compartment parts diagram

Refrigerator compressor overload protector

Part #EBG60663229

BEST SELLER
$48.33 |
11% OFF Phone Price : $54.33
In Stock
