Model # 35122652 Official Craftsman 12" tilting arbor saw

Here are the diagrams and repair parts for Official Craftsman 35122652 12" tilting arbor saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

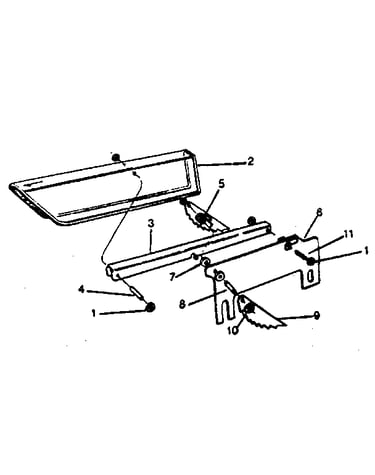

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Bolt 1002.00
#56

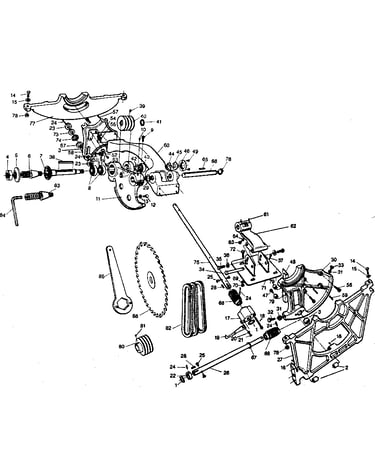

Main mechanism diagram

Bolt

Part #1002.00

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1040.00
Bolt

Part #1040.00

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 1210.00
Set screw

Part #1210.00

The manufacturer no longer makes this part, and there's no substitute part

Roller 1233.00
#53

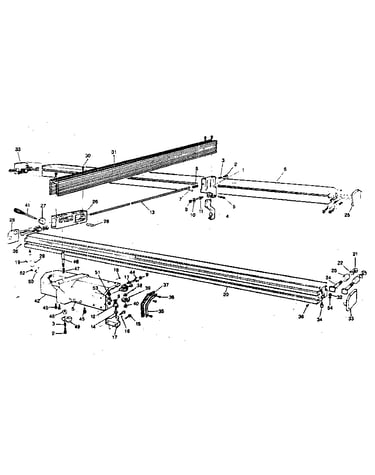

Rip fence diagram

Roller

Part #1233.00

The manufacturer no longer makes this part, and there's no substitute part

Roller 1227.00
#44

Rip fence diagram

Roller

Part #1227.00

The manufacturer no longer makes this part, and there's no substitute part

Lckng Knob 1059.00
#26

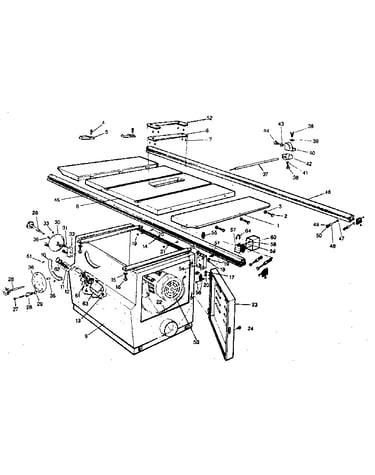

Table and base assembly diagram

Lckng knob

Part #1059.00

The manufacturer no longer makes this part, and there's no substitute part

Cover 0992.00
#46

Main mechanism diagram

Cover

Part #0992.00

The manufacturer no longer makes this part, and there's no substitute part

Bracket 1023.00
#77

Main mechanism diagram

Bracket

Part #1023.00

The manufacturer no longer makes this part, and there's no substitute part

Trunnion 1004.00
#58

Main mechanism diagram

Trunnion

Part #1004.00

The manufacturer no longer makes this part, and there's no substitute part

Line Cord 1055.00
#22

Table and base assembly diagram

Line cord

Part #1055.00

The manufacturer no longer makes this part, and there's no substitute part
