Model # 113298051 Official Craftsman 10" motorized table saw

Here are the diagrams and repair parts for Official Craftsman 113298051 10" motorized table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

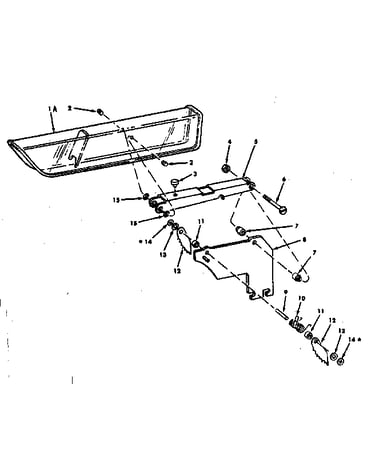

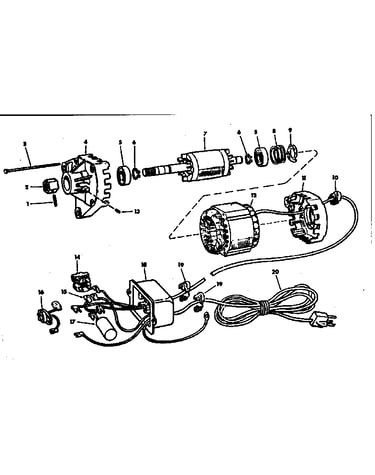

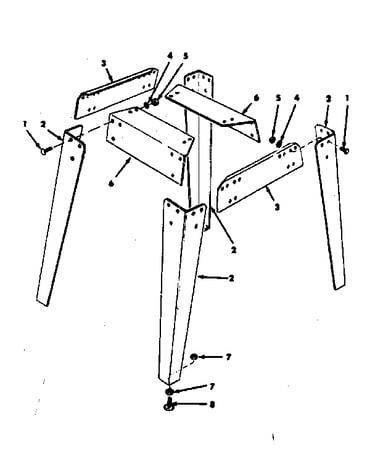

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 167 parts |

#18

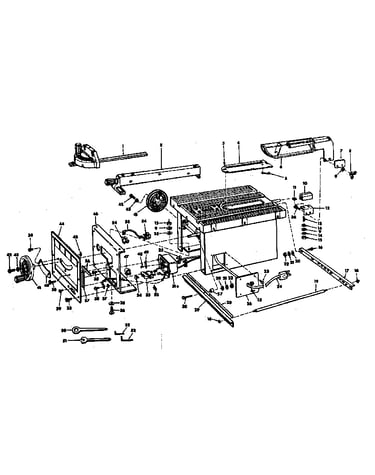

Unit housing diagram

Power tool self-threading nut

Part #60388

The manufacturer no longer makes this part, and there's no substitute part

Unit housing diagram

Table saw table insert screw

Part #447441

The manufacturer no longer makes this part, and there's no substitute part

Table saw knob cap

Part #62693

The manufacturer no longer makes this part, and there's no substitute part

Unit housing diagram

Table saw blade guard clamp

Part #62643

The manufacturer no longer makes this part, and there's no substitute part

Table saw rip fence handle

Part #62692

The manufacturer no longer makes this part, and there's no substitute part

#14

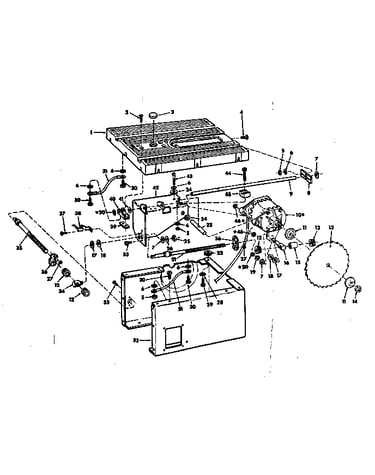

Unit breakdown diagram

Emerson table saw arbor nut

Part #6362

The manufacturer no longer makes this part, and there's no substitute part

Unit breakdown diagram

Flat head screw

Part #805297-1

The manufacturer no longer makes this part, and there's no substitute part

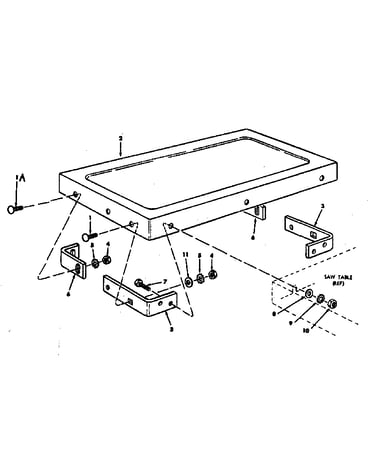

Table extension diagram

Table saw extension wing

Part #62590

The manufacturer no longer makes this part, and there's no substitute part

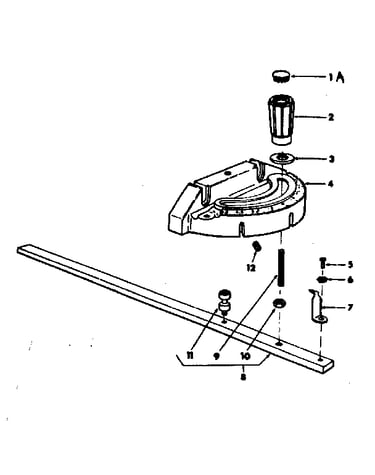

Miter gauge assembly diagram

Table saw miter gauge clamp stud

Part #62225

The manufacturer no longer makes this part, and there's no substitute part

#44

Unit breakdown diagram

Screw

Part #9404392

The manufacturer no longer makes this part, and there's no substitute part
