Hotpoint
Upright Freezer

Model # FV10CFC Official Hotpoint freezer

Here are the diagrams and repair parts for Official Hotpoint FV10CFC freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Power Cord WR23X108
#101B

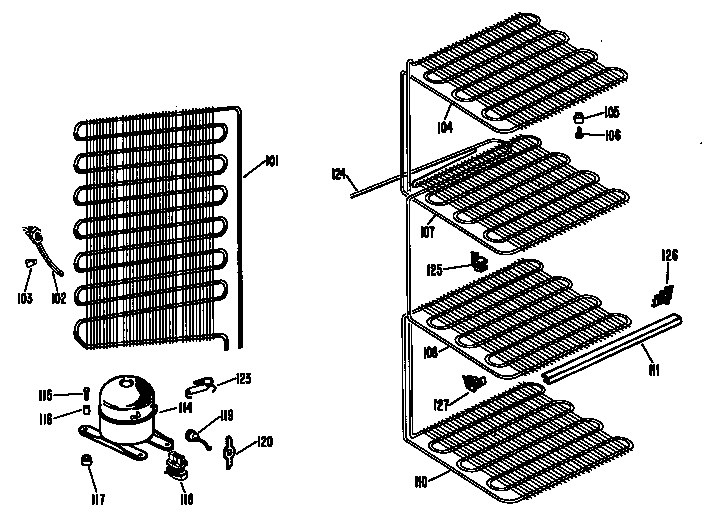

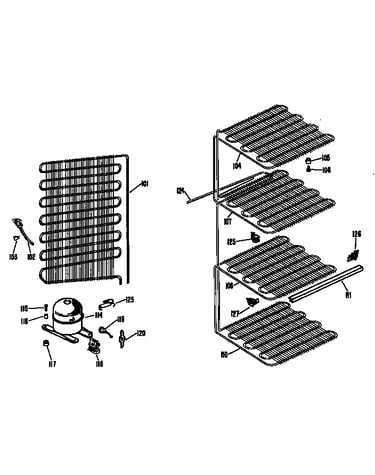

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Water Tubing Clip WR1X5278
#103

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
O D Panel WR78X7491
#1

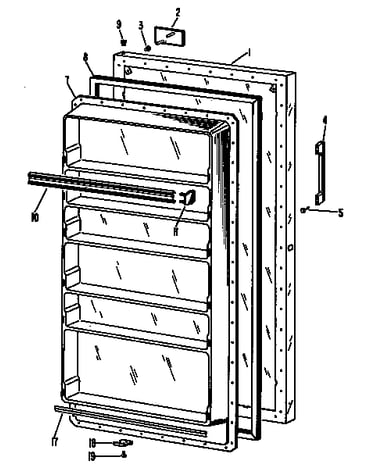

Door diagram

O d panel

Part #WR78X7491

$177.49
In Stock
Insulator WR2X6309
#43B

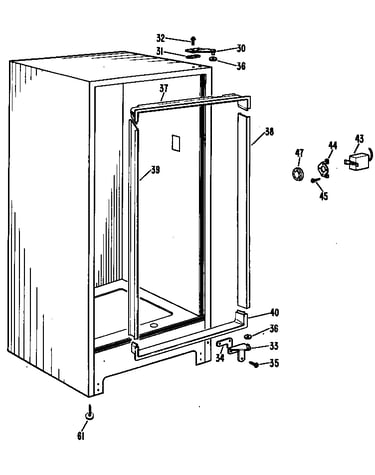

Cabinet diagram

Insulator

Part #WR2X6309

Replaced by #WR2X9500

?
Manufacturer substitution
This part replaces WR2X6309. Substitute parts can look different from the original.
$37.40
In Stock
Refrigerator Screw WR1X5450
#7B

Door diagram

Refrigerator screw

Part #WR1X5450

Replaced by #WR02X13481

?
Manufacturer substitution
This part replaces WR1X5450. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
Plate Stop WR13X5013
#18B

Door diagram

Plate stop

Part #WR13X5013

The manufacturer no longer makes this part, and there's no substitute part

Control WR9X5198
#43A

Cabinet diagram

Control

Part #WR9X5198

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 39-6177-2
#127B

Unit diagram

Owner's manual

Part #39-6177-2

The manufacturer no longer makes this part, and there's no substitute part

Hi Side WR87X5059
#114A

Unit diagram

Hi side

Part #WR87X5059

The manufacturer no longer makes this part, and there's no substitute part

Screw, 2-pack WR1X5451
#32

Cabinet diagram

Screw, 2-pack

Part #WR1X5451

The manufacturer no longer makes this part, and there's no substitute part
