Model # 11626170 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 11626170 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
11626170 Vacuum Cleaners
Parts List LIT725671

#NI

All parts diagram

Parts list

Part #LIT725671

The manufacturer no longer makes this part, and there's no substitute part

Screw 681315
#39

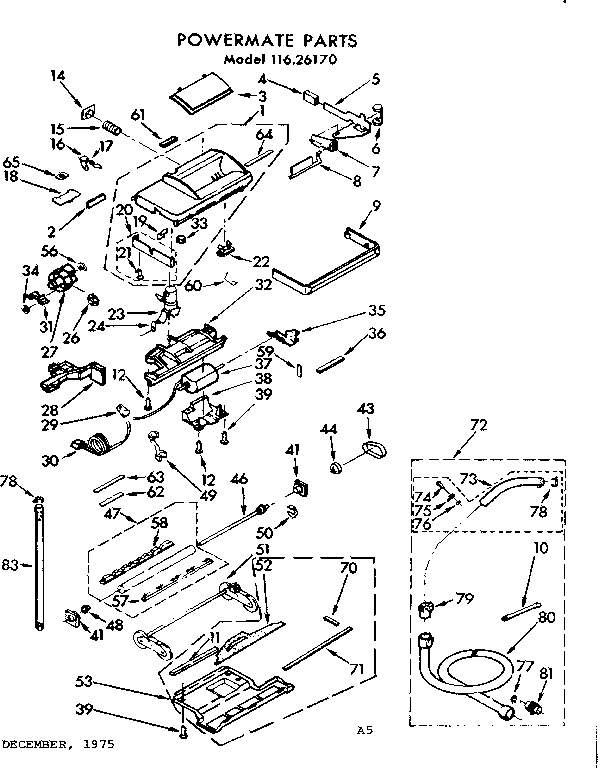

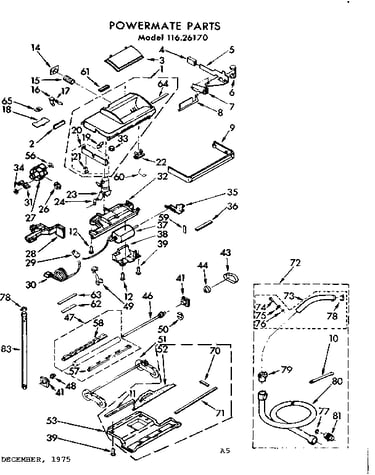

Power mate diagram

Screw

Part #681315

The manufacturer no longer makes this part, and there's no substitute part

Gasket 725696
#71

Power mate diagram

Gasket

Part #725696

The manufacturer no longer makes this part, and there's no substitute part

Cover 722911
#18

Power mate diagram

Cover

Part #722911

The manufacturer no longer makes this part, and there's no substitute part

Gasket 725735
#2

Power mate diagram

Gasket

Part #725735

The manufacturer no longer makes this part, and there's no substitute part

Guard 722917
#9

Power mate diagram

Guard

Part #722917

The manufacturer no longer makes this part, and there's no substitute part

Adapter 722905
#14

Power mate diagram

Adapter

Part #722905

The manufacturer no longer makes this part, and there's no substitute part

Plug 725423
#77

Power mate diagram

Plug

Part #725423

The manufacturer no longer makes this part, and there's no substitute part

Yoke 725833
#23

Power mate diagram

Yoke

Part #725833

The manufacturer no longer makes this part, and there's no substitute part

Relief 680144
#49

Power mate diagram

Relief

Part #680144

The manufacturer no longer makes this part, and there's no substitute part
