Model # 315116320 Official Craftsman 1/3-sheet sander

Here are the diagrams and repair parts for Official Craftsman 315116320 1/3-sheet sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Heat Sink 998044-001
#6

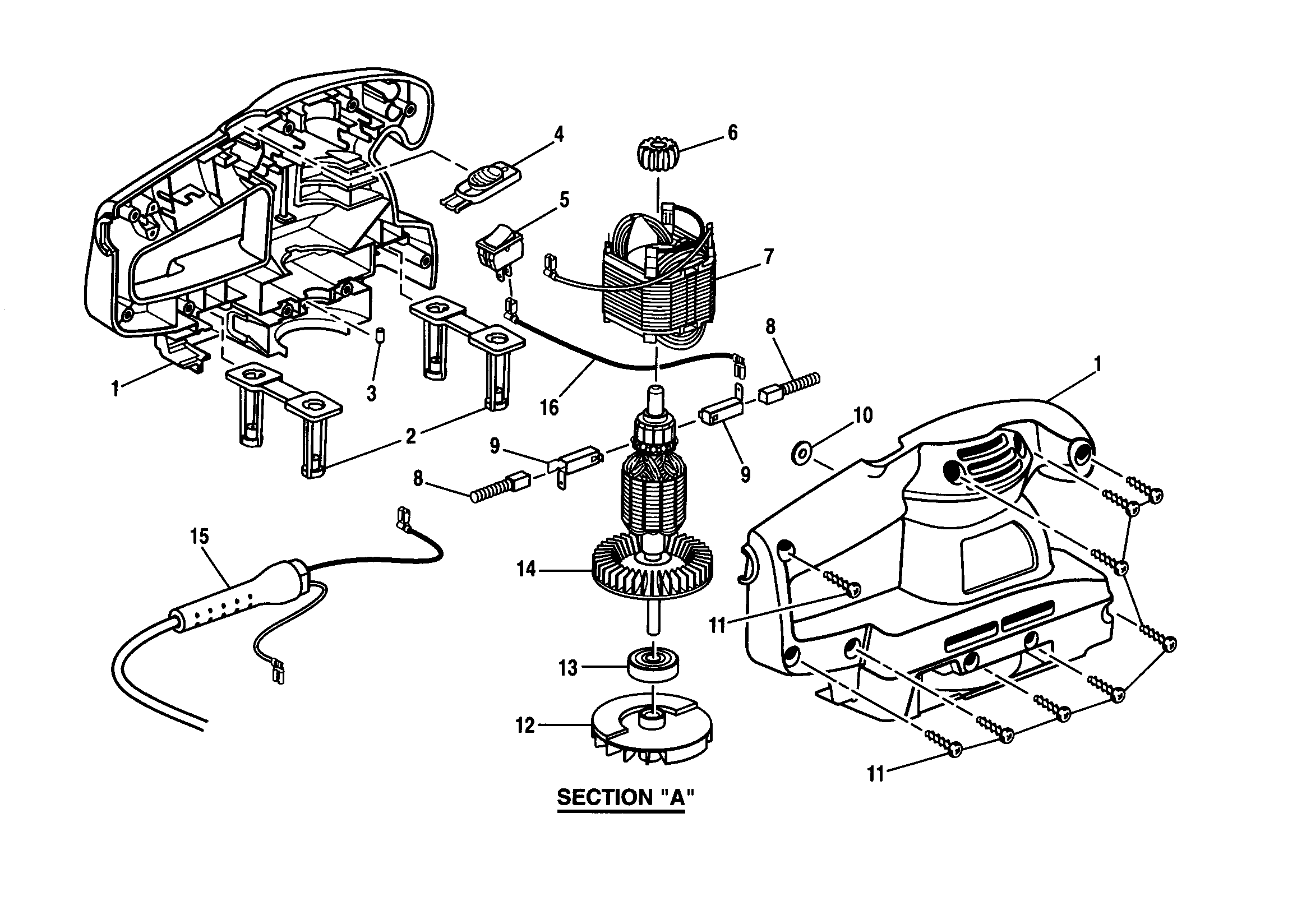

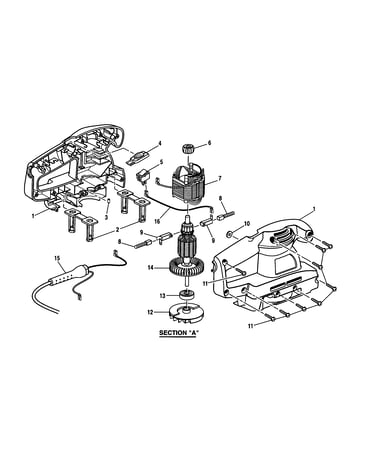

Section "a" diagram

Heat sink

Part #998044-001

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 977308-001
#2

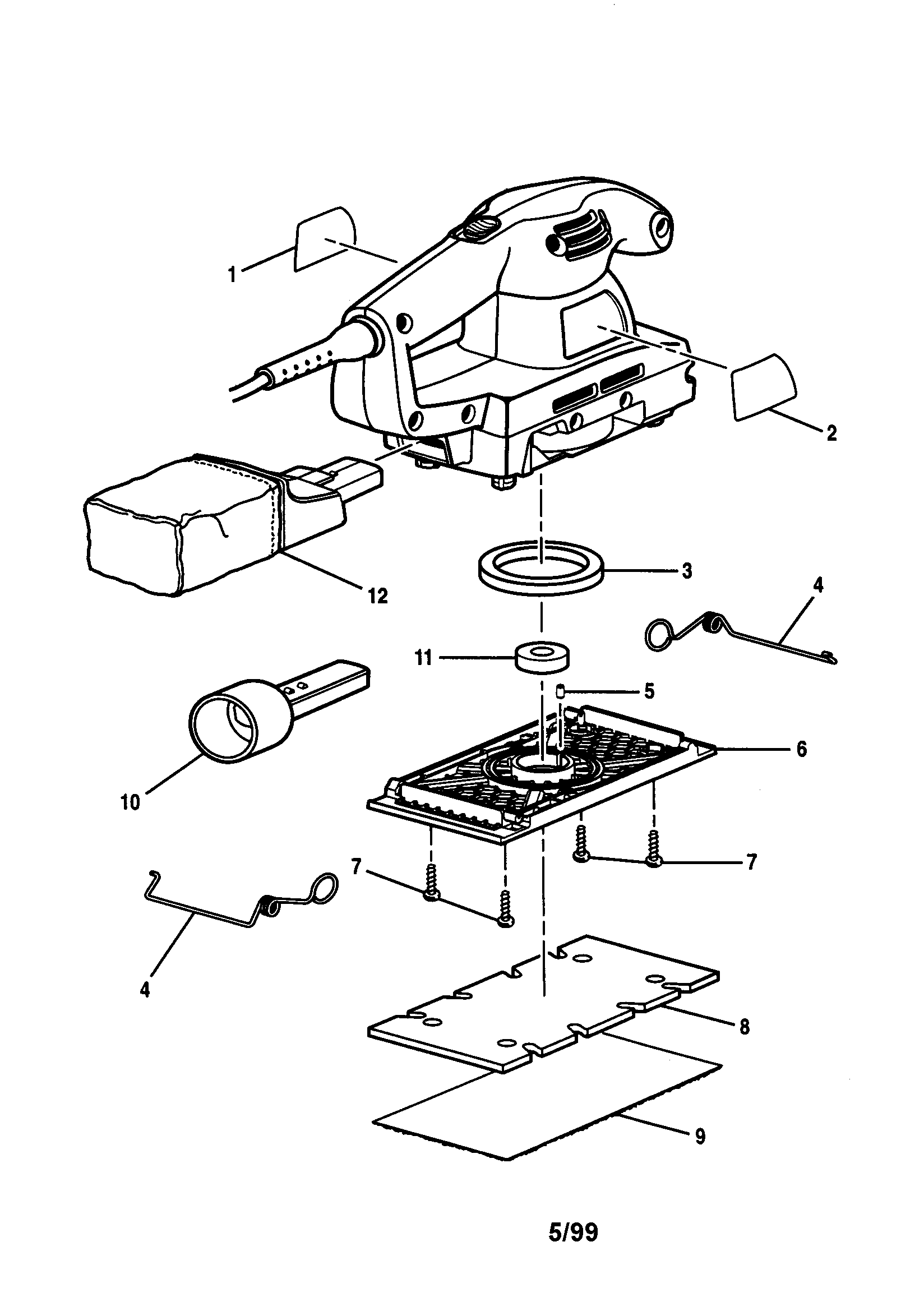

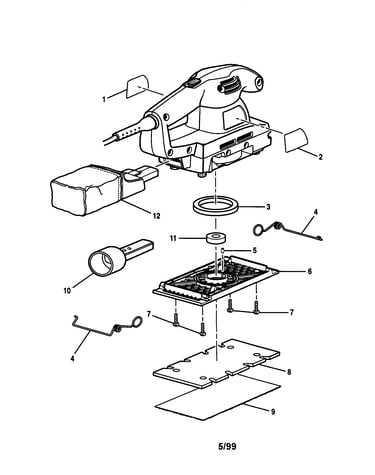

Craftsman-sander diagram

Logo plate

Part #977308-001

The manufacturer no longer makes this part, and there's no substitute part

Lead (black) 977226-003
#16

Section "a" diagram

Lead (black)

Part #977226-003

The manufacturer no longer makes this part, and there's no substitute part

Armature 976061-003
#14

Section "a" diagram

Armature

Part #976061-003

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#9

Craftsman-sander diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Switch 976865-001
#5

Section "a" diagram

Switch

Part #976865-001

The manufacturer no longer makes this part, and there's no substitute part

Adapter 976967-002
#10

Craftsman-sander diagram

Adapter

Part #976967-002

The manufacturer no longer makes this part, and there's no substitute part

Bearing 989919-005
#11

Craftsman-sander diagram

Bearing

Part #989919-005

The manufacturer no longer makes this part, and there's no substitute part

Dust Bag 977270-001
#12

Craftsman-sander diagram

Dust bag

Part #977270-001

The manufacturer no longer makes this part, and there's no substitute part

Cushion 977268-002
#8A

Craftsman-sander diagram

Cushion

Part #977268-002

The manufacturer no longer makes this part, and there's no substitute part
