Kenmore
Dehumidifier

Model # 106639530 Official Kenmore coldspot humidifier & dehumidifier

Here are the diagrams and repair parts for Official Kenmore 106639530 coldspot humidifier & dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Patch Kit 830912

#NI

All parts diagram

Patch kit

Part #830912

Replaced by #W10841140

?
Manufacturer substitution
This part replaces 830912. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Screw 488158
#15

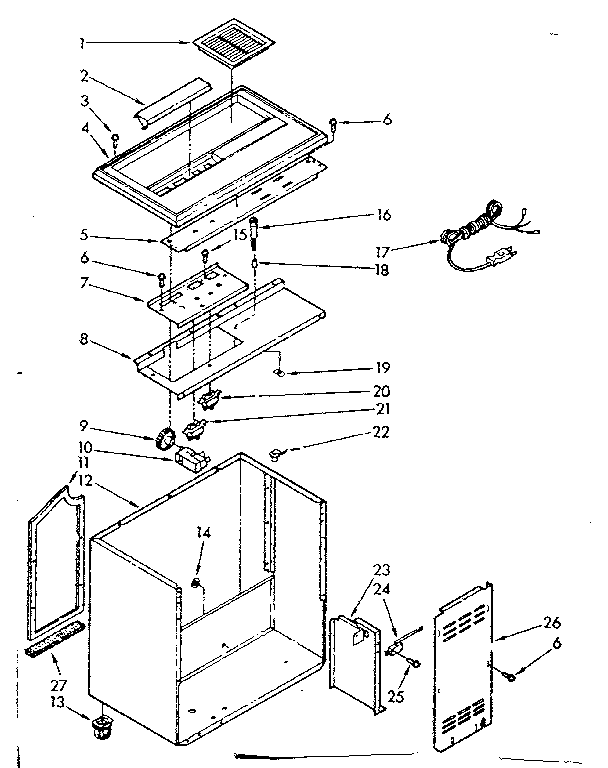

Cabinet diagram

Screw

Part #488158

Replaced by #WP486754

?
Manufacturer substitution
This part replaces 488158. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw 487203
#3

Cabinet diagram

Screw

Part #487203

Replaced by #WP486754

?
Manufacturer substitution
This part replaces 487203. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Pulley 830993
#18

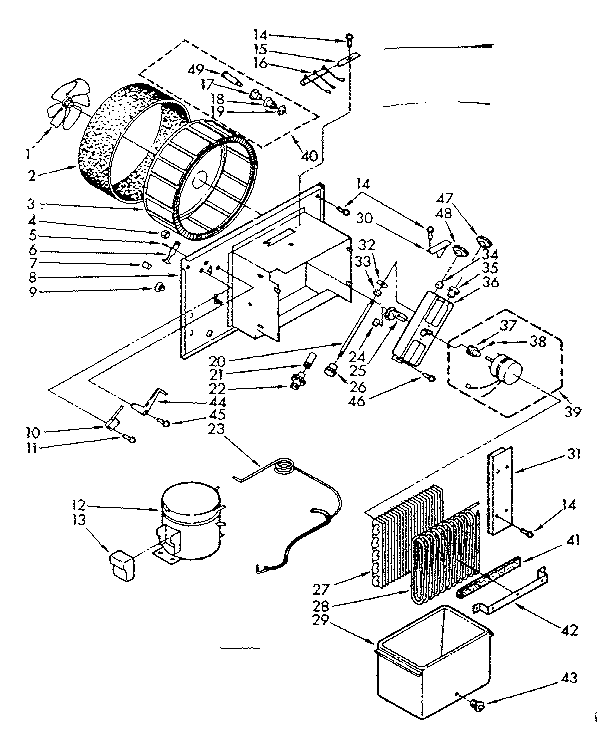

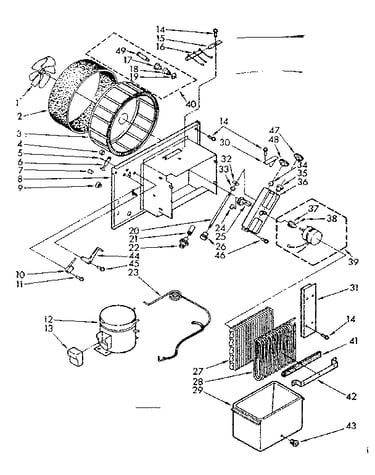

Unit diagram

Pulley

Part #830993

The manufacturer no longer makes this part, and there's no substitute part

Heat Exchange 865514
#23

Unit diagram

Heat exchange

Part #865514

The manufacturer no longer makes this part, and there's no substitute part

Lamp 830996
#16

Cabinet diagram

Lamp

Part #830996

The manufacturer no longer makes this part, and there's no substitute part

Frame 830968
#11B

Cabinet diagram

Frame

Part #830968

The manufacturer no longer makes this part, and there's no substitute part

Pin 830989
#5

Unit diagram

Pin

Part #830989

The manufacturer no longer makes this part, and there's no substitute part

Seal 853915
#41

Unit diagram

Seal

Part #853915

The manufacturer no longer makes this part, and there's no substitute part

Knob 865500
#9

Cabinet diagram

Knob

Part #865500

The manufacturer no longer makes this part, and there's no substitute part
